Name: OWON SDS5032E 30Mhz 2 Channel Oscilloscope
Brand: OWON
Price: 15552.00 TRY
Availability: InStock

OWON SDS5032E 30Mhz 2 Channel Oscilloscope

0 reviews • Write a review

15,552.00TL

Ex Tax: 12,960.00TL

Stok Durumu: Stok Var
Marka: OWON
Model: SDS5032E Osiloskop
SKU: RBZ.200.008

Qty

Add to Cart

Hemen Al Soru Sor

Add to Wish List Compare this Product

Tags: OWON , SDS5032E , 30Mhz , 2 Channel , Oscilloscope

Açıklama
Yorumlar

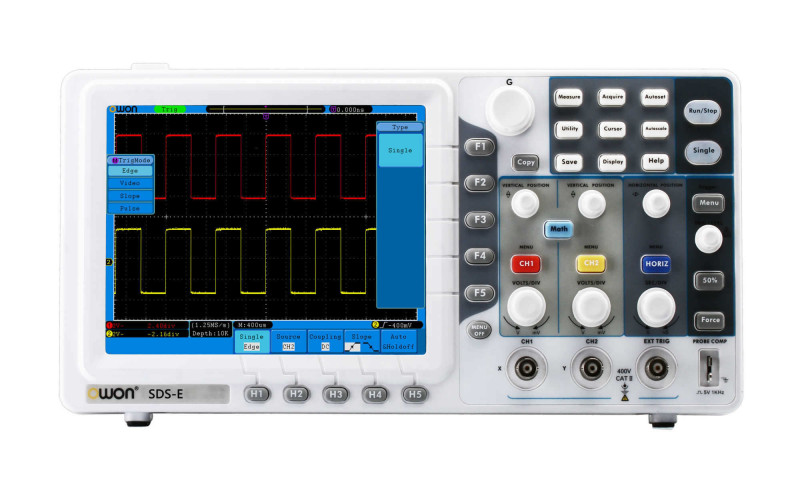

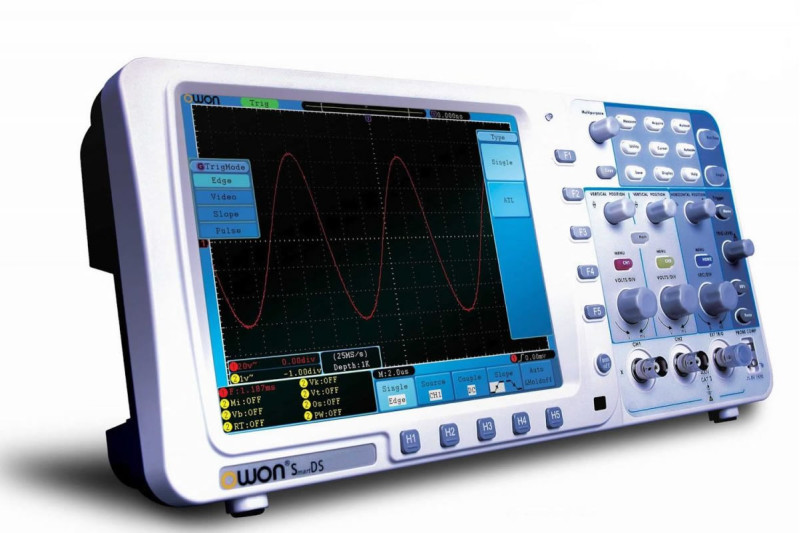

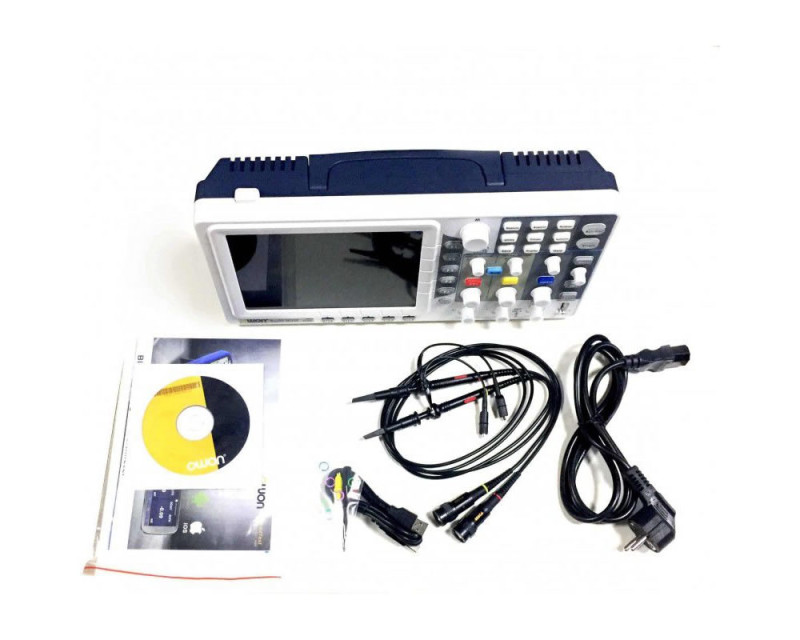

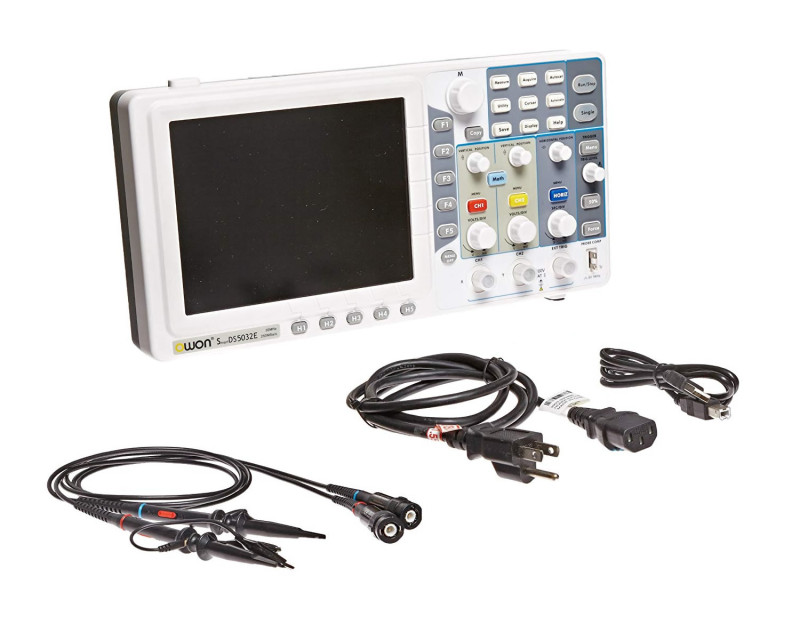

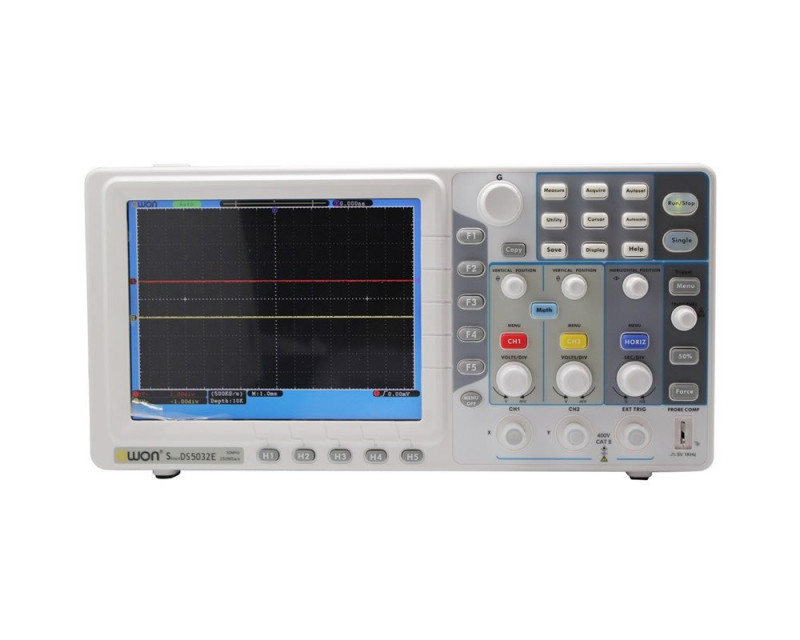

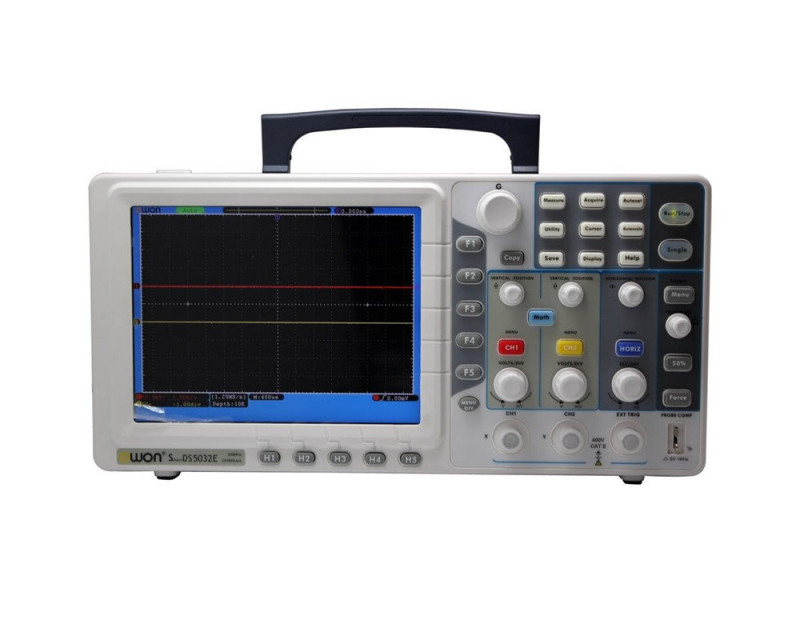

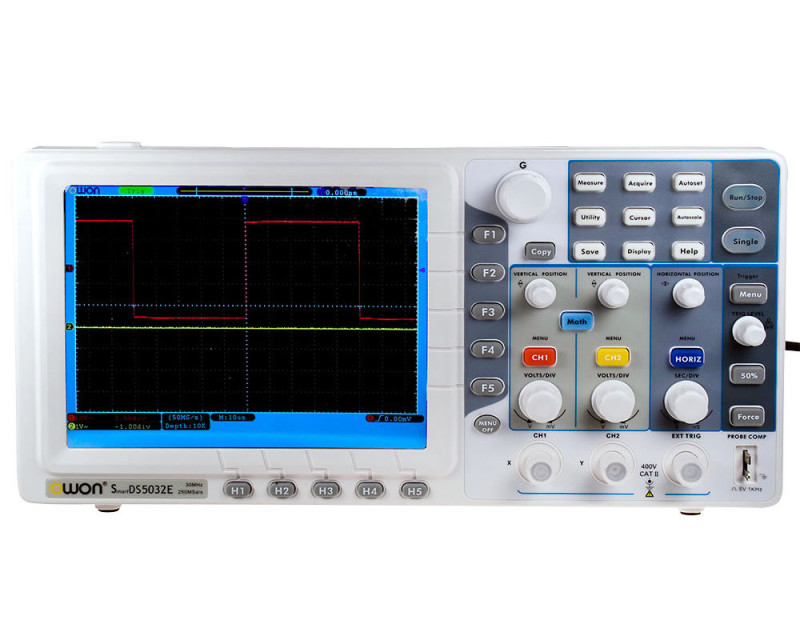

OWON SDS5032E 30Mhz 2 Channel Oscilloscope

Digital Storage Oscilloscope DSO 2 channels 30MHz with 8-inch TFT screen. Analyze in detail the signals and waveforms clearly, thanks to its TFT LCD color.Memory capacity to record the waveforms; up to 10K samples. It also has USB input for memory and communication port for screen capture sampling and data export to Excel.

Bandwidth : 30MHz
2 Channel + 1 External Channel
Maximum Sampling: 250MS/s
Ultra thin bodyy
8 inch Display Color LCD, 800 x 480 pixels
Input impedance: 1MOhm +/-2% in parallel with 10pF +/-5pF
It can be adapted to probe attenuation factor 1X, 10X, 100X and 1000X
Maximum input voltage: 400Vpp
Internal storage capacity of 10K samples

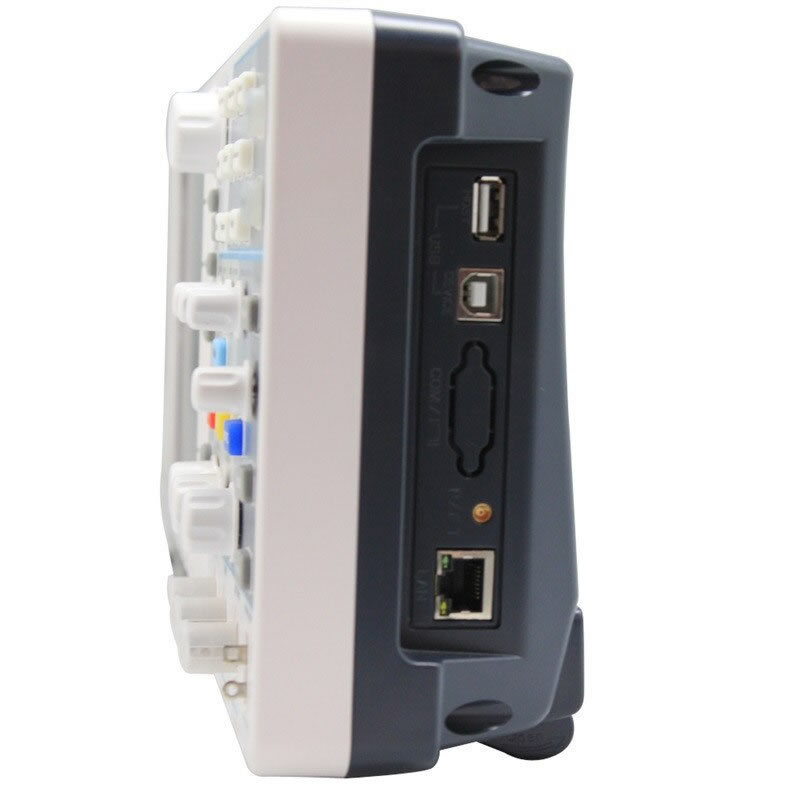

LAN port
USB port

Model		SDS5032E
Bandwidth		30MHz
Sample Rate (real time)		500MS/s
Horizontal Scale (s/div)		5ns/div～100s/div, step by 1~2~5
Channel		2 + 1 (external)
Display		8" color LCD, 800 × 600 pixels
Record Length		10K
Vertical Resolution (A/D)		8 bits (2 Channels simultaneously)
Vertical Sensitivity		5mV/div～5V/div (at input)
Trigger Type		Edge, Pulse, Video, Slope, and Alternate
Trigger Mode		Auto, Normal, and Single
Waveform Math		＋, －, ×, ÷, invert, FFT
Communication Interface		USB host, USB device, Pass / Fail, LAN, and VGA (optional)
Battery		not supported
Dimension (W×H×D)		348 × 170 × 78 (mm)
Weight (without package)		1.50 kg
