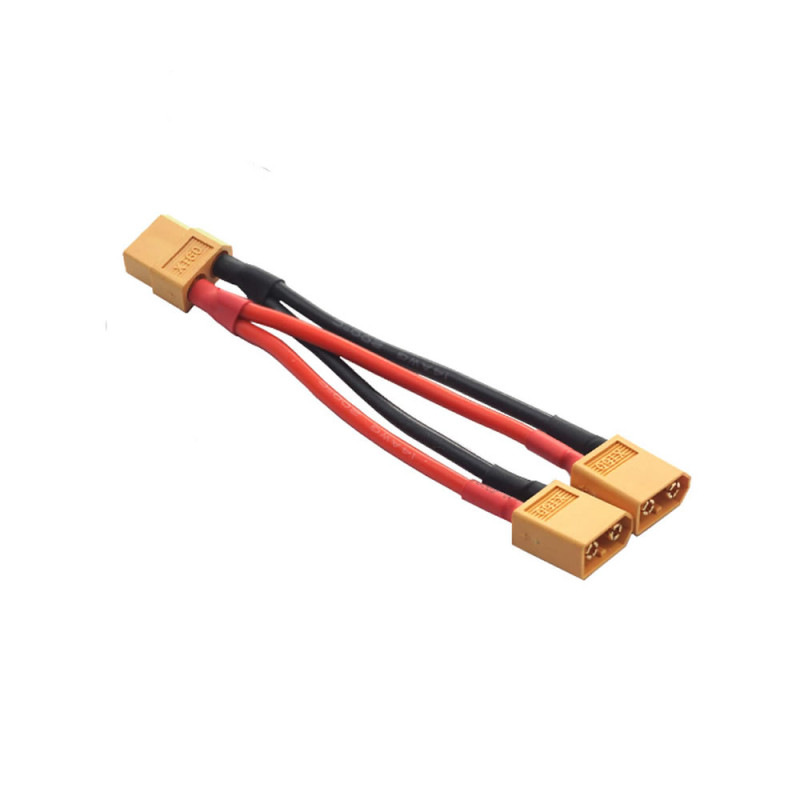

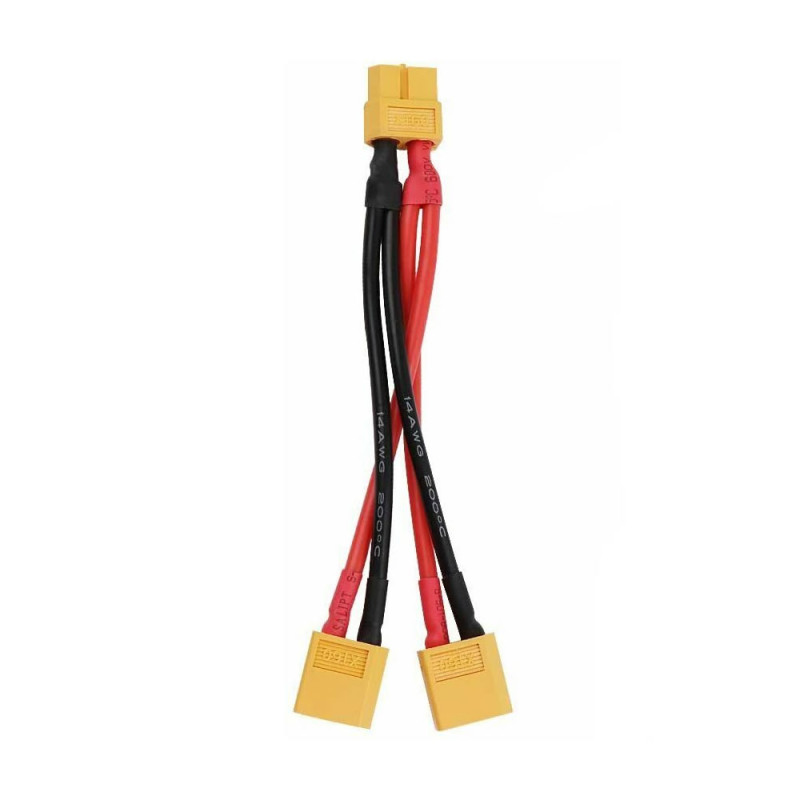

     The XT60 Y Connector is a Y type (fork) splitter cable that connects two batteries of the same voltage in parallel and combines them into a single XT60 output. One end of the cable has 1 female XT60 socket and the two branches have 2 male XT60 sockets; the branches are made of 10cm (100mm) long 16AWG silicone wire. The ends come factory soldered and insulated with heat shrink tubing, so the user connects without soldering.

     When two batteries are connected in parallel the voltage stays the same and the capacity adds up: for example two 2200mAh 11.1V 3S batteries work like a single 4400mAh 11.1V battery with this cable. This roughly doubles the running time of a drone, RC vehicle or robot. For this, both batteries must have the same voltage, cell count and charge-discharge ratings.

     The yellow XT60 housings are polarised; the socket only fits in the correct direction. The red wire is the positive (+) line and the black wire is the negative (-) line. It is used in drones, quadcopters, FPV, RC airplanes, helicopters, cars and boats whose batteries have XT60 sockets.

Key features:

     Doubles the capacity: It connects two batteries of the same voltage in parallel; capacity and running time roughly double while the voltage stays the same (2 x 2200mAh 3S = 4400mAh 3S).

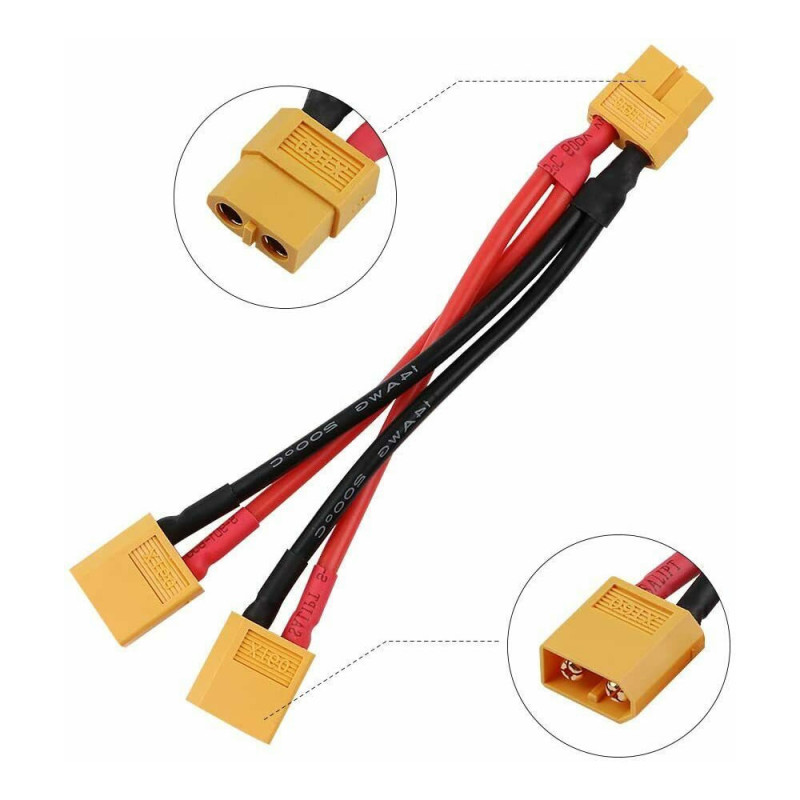

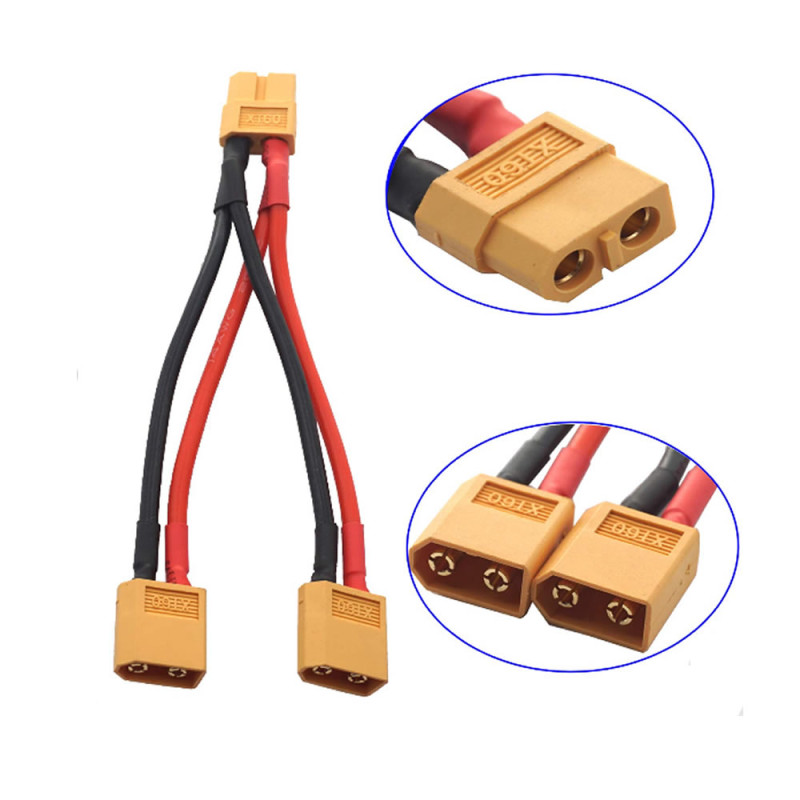

     2 male, 1 female XT60: The two male ends plug into the XT60 female sockets of the two batteries, the single female end plugs into the XT60 male socket of the ESC or device.

     Ready, solder-free connection: The sockets come soldered to the cable and insulated with heat shrink; it is added to an existing XT60 system without cutting wires.

     Flexible silicone wire: The 16AWG silicone insulated wire bends easily and fits into narrow spaces inside the frame.

     Reverse-proof socket: Thanks to the polarised shape of the XT60 housing, the positive and negative ends cannot be mixed up.

Specifications:

• Product type: Y type parallel splitter cable with XT60 sockets
• Model: XT60 Y Konnektör
• Connector type: XT60

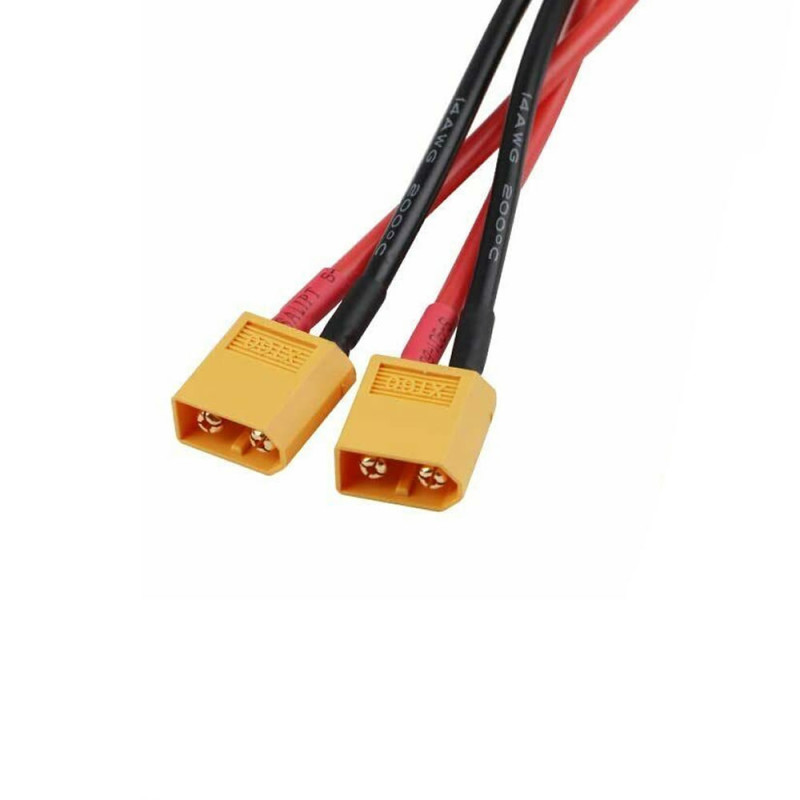

• End layout: 2 male XT60 sockets, 1 female XT60 socket
• Connection type: Parallel (voltage stays the same, capacity adds up)
• Example: 2 x 2200mAh 11.1V 3S battery = 4400mAh 11.1V
• Wire gauge: 16AWG
• Recommended continuous current: 10A maximum
• XT60 connector current rating: about 30A continuous (connector itself; on this cable the limit is the wire gauge)
• Polarity: Red wire positive (+), black wire negative (-)
• Connection: Solder-free, plug and unplug; sockets come soldered to the cable
• End insulation: Heat shrink tubing on the solder joints
• Socket housing: Polarised, reverse-proof yellow plastic housing
• Contacts: Gold coloured plated metal contacts
• Material: Silicone insulated wire, plastic socket housing
• Colour: Yellow sockets, red and black wire

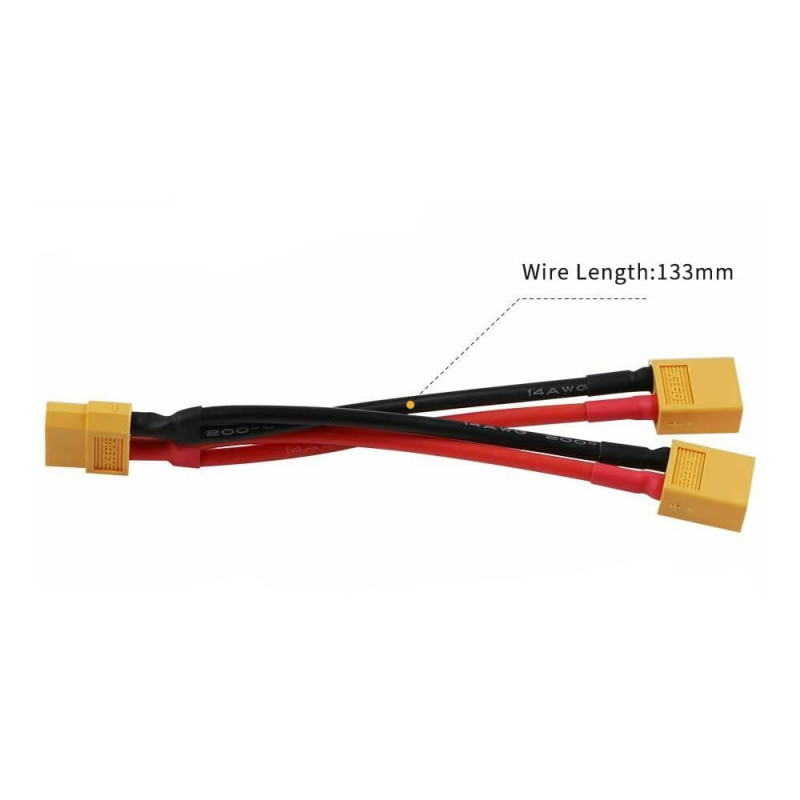

• Cable length: 10cm (100mm)
• Total length: about 135mm
• Weight: about 25gr

Usage information:

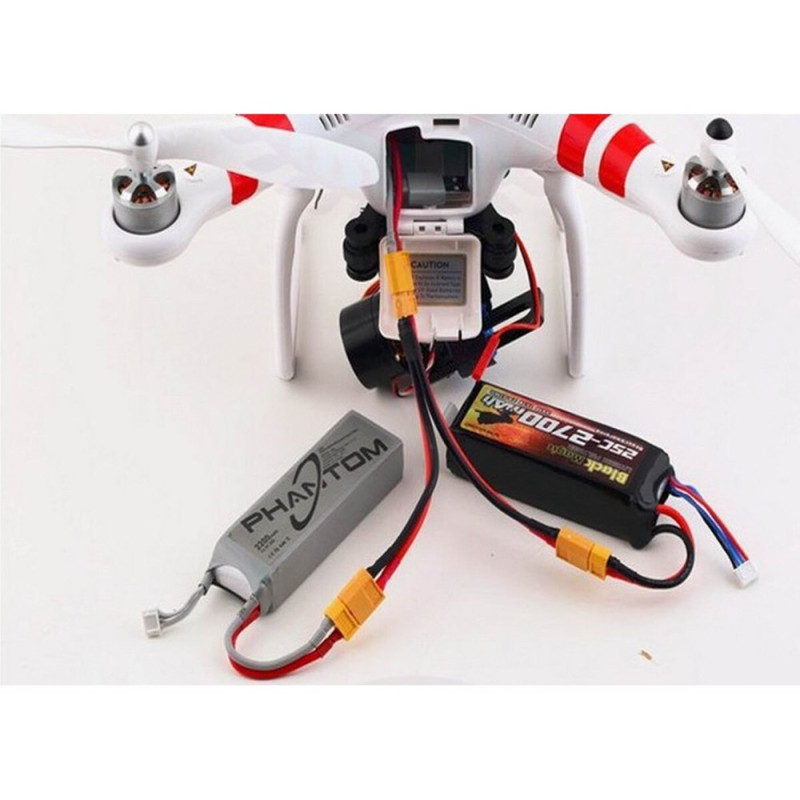

• First measure the voltage of both batteries; they must have the same cell count and voltages very close to each other (fully charged or at the same charge level). Then plug the two male ends into the XT60 sockets of the batteries and the female end into the ESC or device.
• Charge the batteries separately after use and keep them at the same charge-discharge ratings; do not use batteries of different age or capacity together.
• When unplugging, pull by the yellow XT60 housing, not by the wire; the solder joints and heat shrink are not damaged.

Application areas:

•  Extending flight time on drones and quadcopters
•  Dual battery use on FPV drones
•  Increasing battery capacity on RC airplanes and gliders
•  Parallel battery connection on RC helicopters
•  Extending running time on RC cars and tracked vehicles
•  Dual battery use on RC boats
•  Mobile robot and robot vehicle batteries with XT60 sockets
•  Converting a single battery XT60 system to dual battery
•  Long endurance observation and mapping drones


Points to consider:

•  Both batteries must have the same voltage and cell count. If two batteries with different voltages are connected in parallel, a high current flows between them; the battery may heat up and be damaged.
•  This cable is for parallel connection only; it is not used for series connection (increasing voltage).
•  The wire gauge is 16AWG; the recommended continuous current is 10A maximum. Use thicker wire for motors and ESCs drawing higher current.

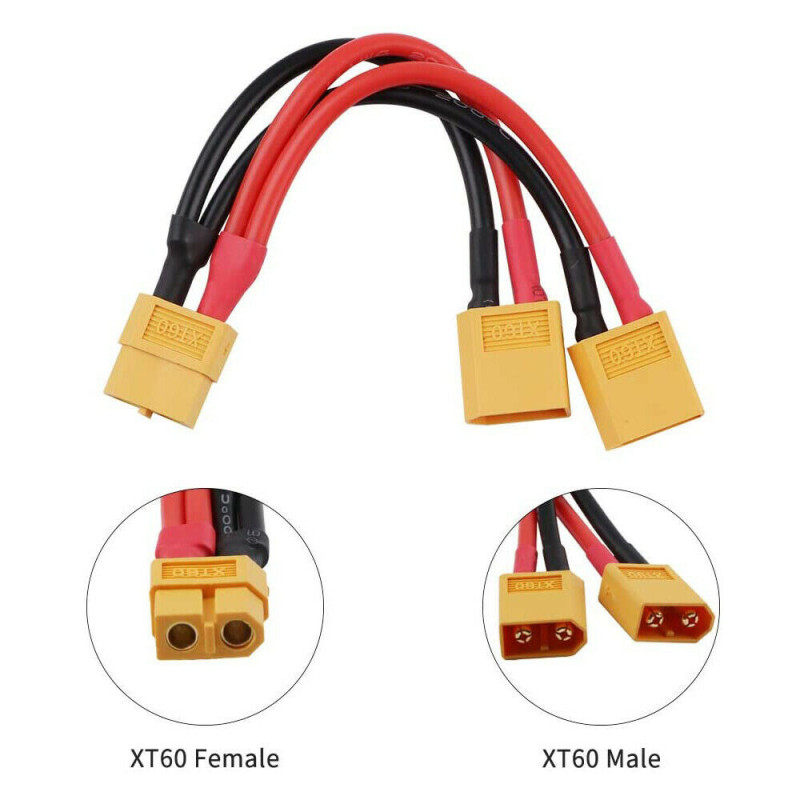

•  Check the socket gender: this cable has 2 male and 1 female ends. Systems whose batteries have male XT60 sockets need a Y cable with 1 male and 2 female ends. The gender is named after the metal contacts, not the plastic housing: the end with pins is male, the end with sockets is female; LiPo batteries usually have a female XT60.
•  Check that the positive (+) and negative (-) ends match correctly before connecting; a short circuit damages the battery and the device.

Package contents:

•  1 Piece XT60 Y Connector Parallel Battery Splitter Cable
•  3 Pieces XT60 sockets (2 male, 1 female) ( Assembled )
•  Note: Batteries and ESC are not included in the package.
