ULINK 2

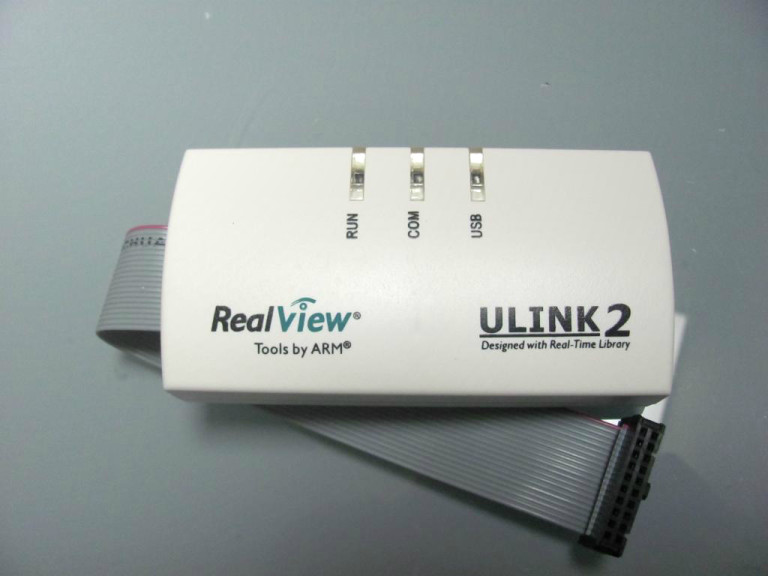

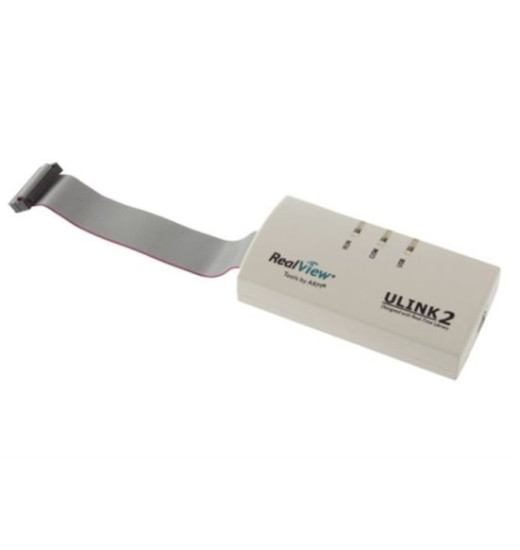

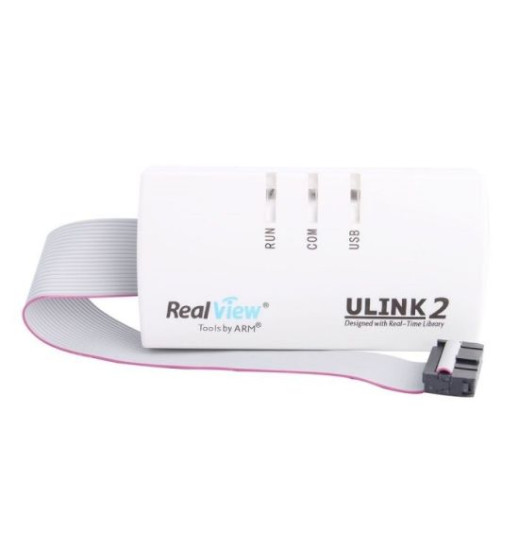

ULINK 2 (Clone) Arm Jtag Programmer and Debugger

     Ulink 2 is used as a programmer and debugger tool for jtag supported mcus. It has JTAG, SWD and OCDS support.  It is a Chinese made clone, it comes in a sealed bag.

Features:

•     Unlimited Breakpoints RAM
•     Max 2 ROM Breakpoints (ARM7/9)
•     Max 6 ROM Breakpoints (Cortex-M3)
•     Execution breakpoints (Set While Executing)
•     Max 2 (R / W Only, With Value)Access Breakpoints (ARM7 / 9)
•     Max 4 (With Value) Access Breakpoints (Cortex-M3)
•     No Trace History
•     JTAG RTCK support (Return Clock)
•     28K Memory R / W (Bytes / sec)
•     25K Flash R / W (Bytes / sec)
•     50 Single-Step (Fast) (Instructions / sec)
•     JTAG speed up to 10MHz
•     Supports various ARM7, ARM9, Cortex-M, 8051, and C166 devices
•     Serial Wire Debug (SWD)
•     Serial Wire Viewer (SWV) Data Trace for Cortex-M up to 1Mbit/s (UART mode)
•     Real-Time Agent with memory R/W during execution, terminal emulation, and serial debug output
•     Support the program to run during the read-write memory, terminal emulation and serial debug output.
•     Seamless integration with the Keil µVision IDE & Debugger
•     Conveniently carried out target hardware on-chip debugging (using on-chip JTAG, SWD, and OCDS), Flash Programming ..
•     Standard Windows USB driver support Plug and Play ULINK2,
•     Support for ARM Cortex-M3-based serial wire debug,
•     Support the program to run during the read-write memory, terminal emulation and serial debug output,
•     Wide target voltage range: 2.7V - 5.5V
•     USB powered (No power supply required)
•     Plug-and-Play installation using standard Windows USB HID drivers
•     Target Connectors 20-pin (0.10") - ARM Standard JTAG Connector

Supported Device Families

•         ARM7
•         ARM9
•         Cortex-M0
•         Cortex-M1
•         Cortex-M3
•         XC800 (8051)
•         µPSD (8051)
•         XC166/XE166/XC2000
•         LPC950 (8051)

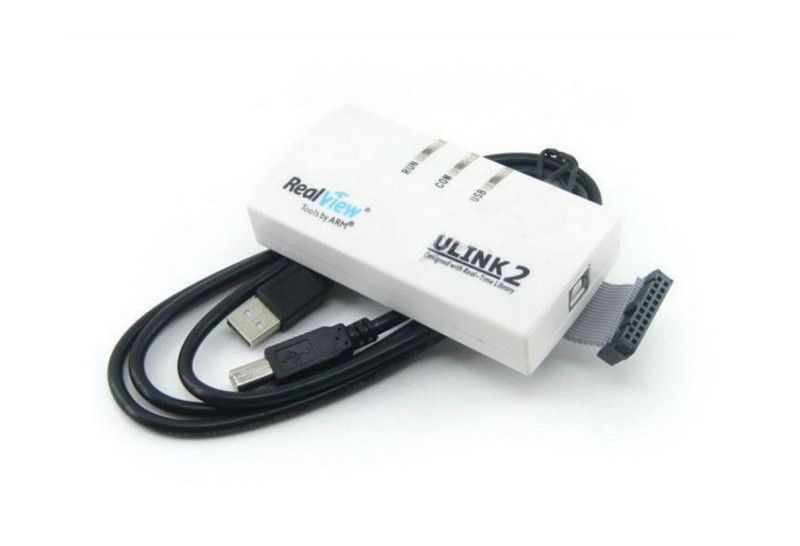

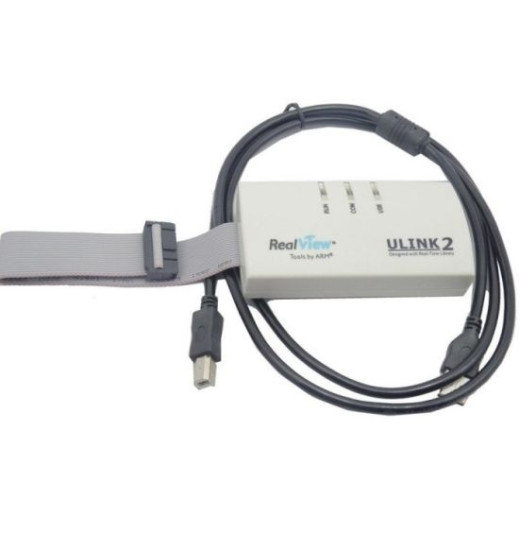

Package Contents:

•     1 pcs Ulink2 USB JTAG Adapter
•     1 pcs 20 Pin JTAG Flat cable
•     1 pcs USB Cable
