Arduino UNO R3 Plastic Plexi Case

UNO R3 Plastic Protection Case

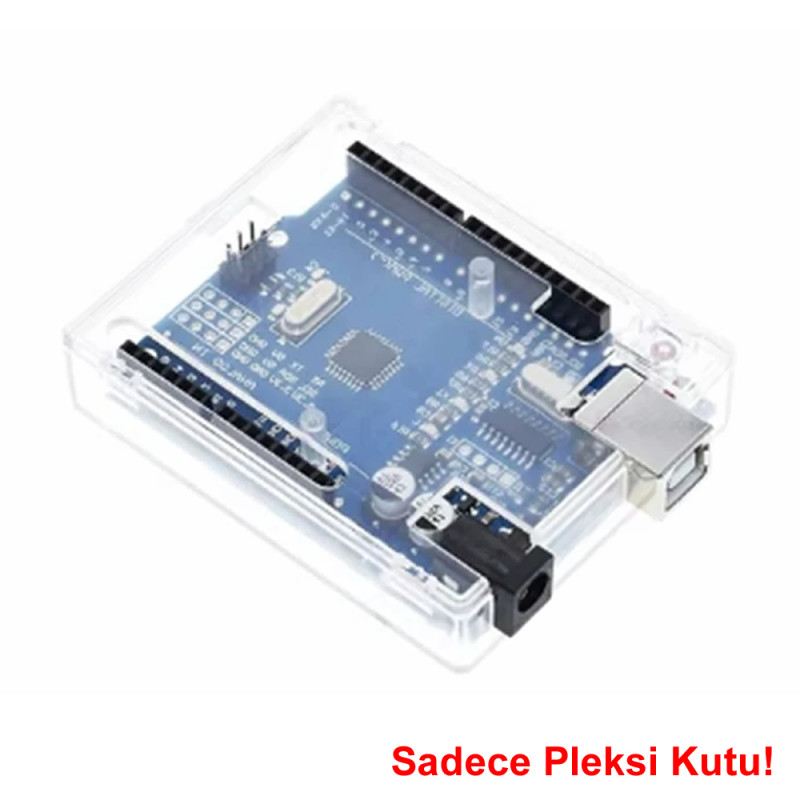

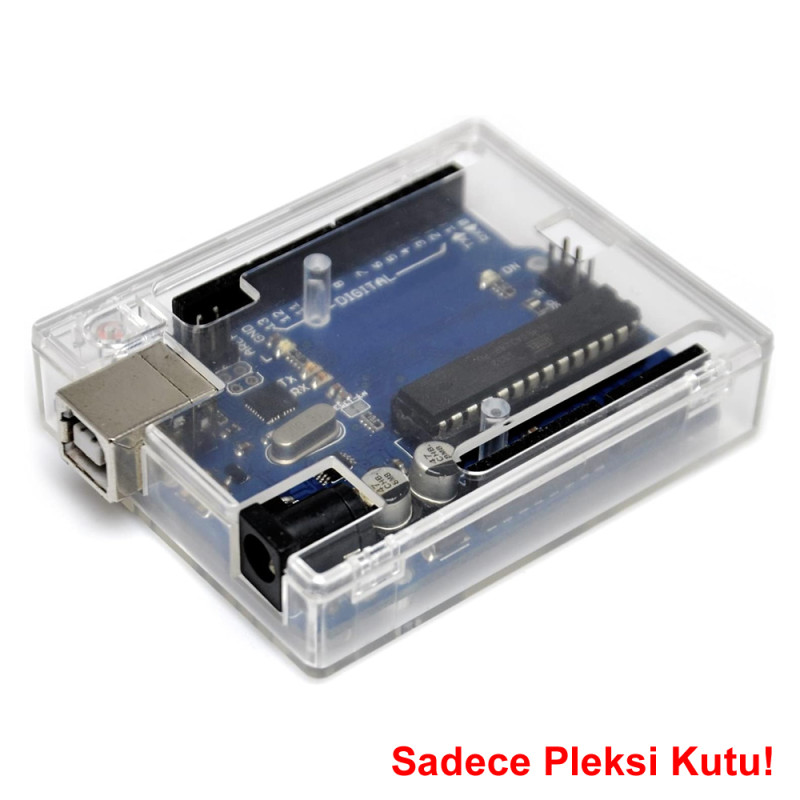

The images are for display purposes.It does not include a UNO R3.

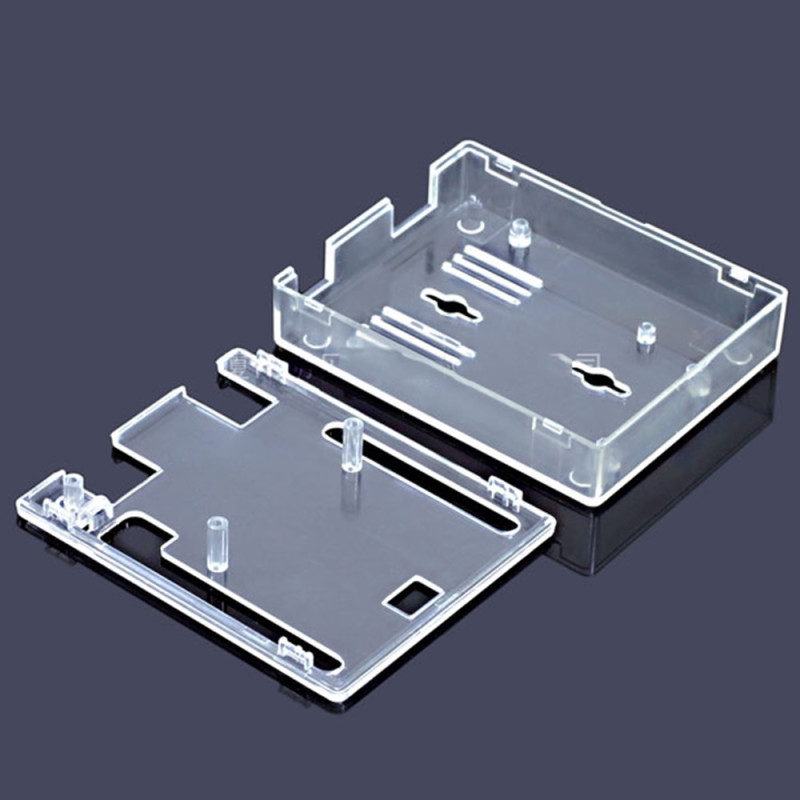

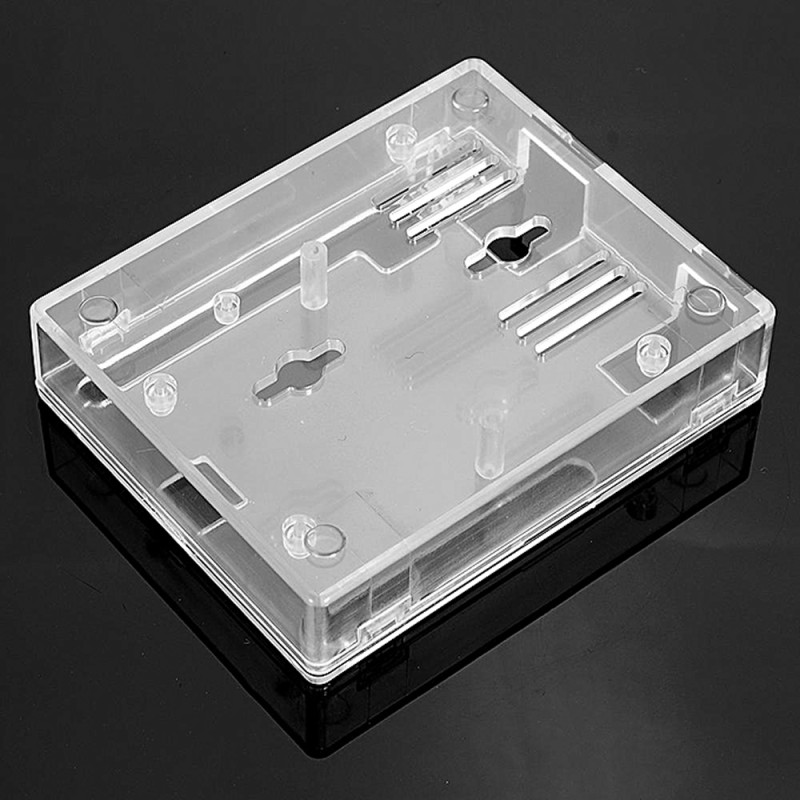

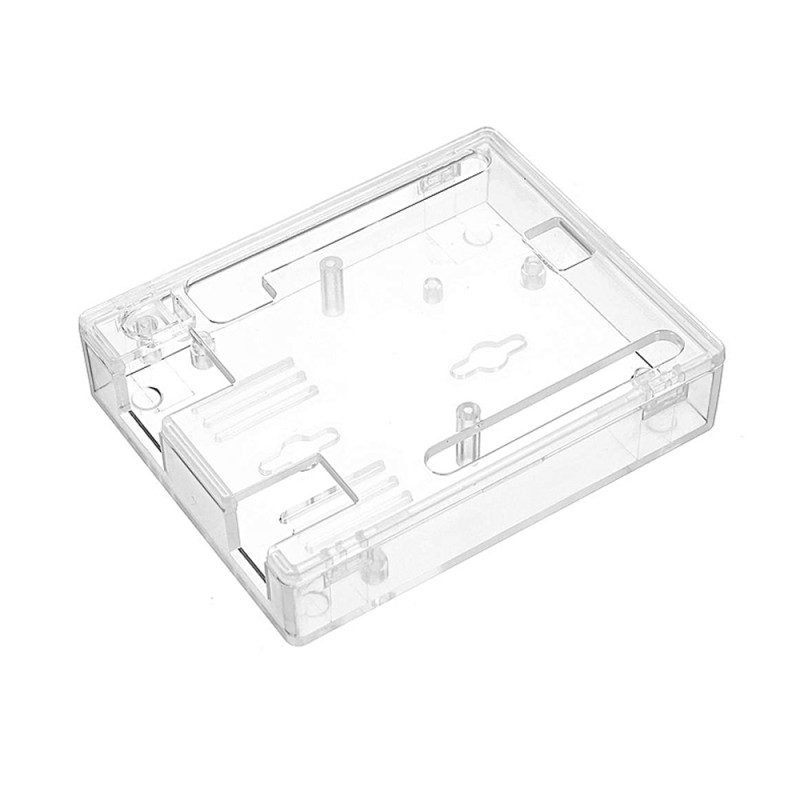

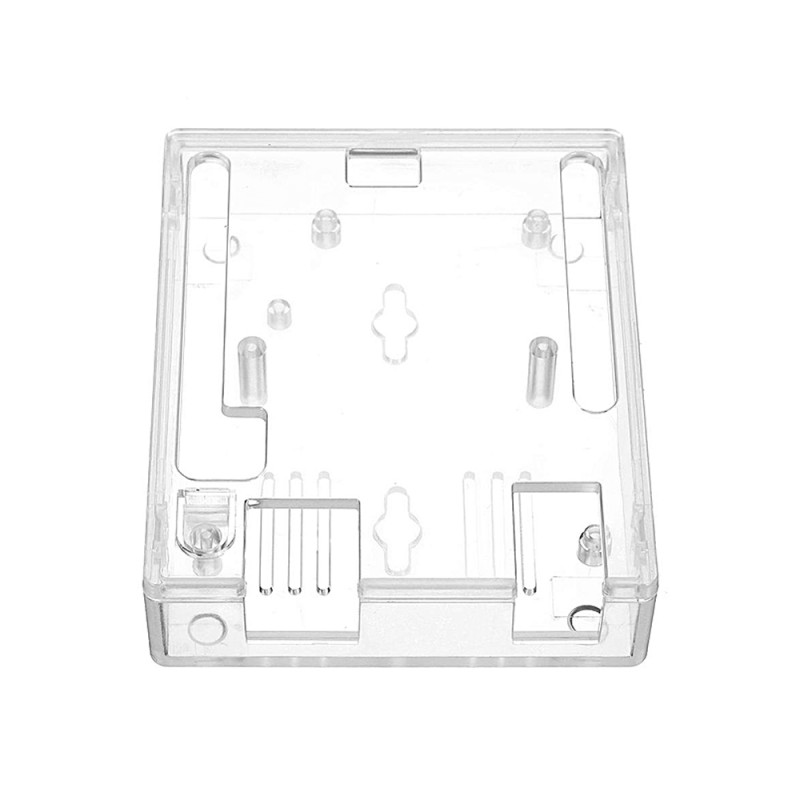

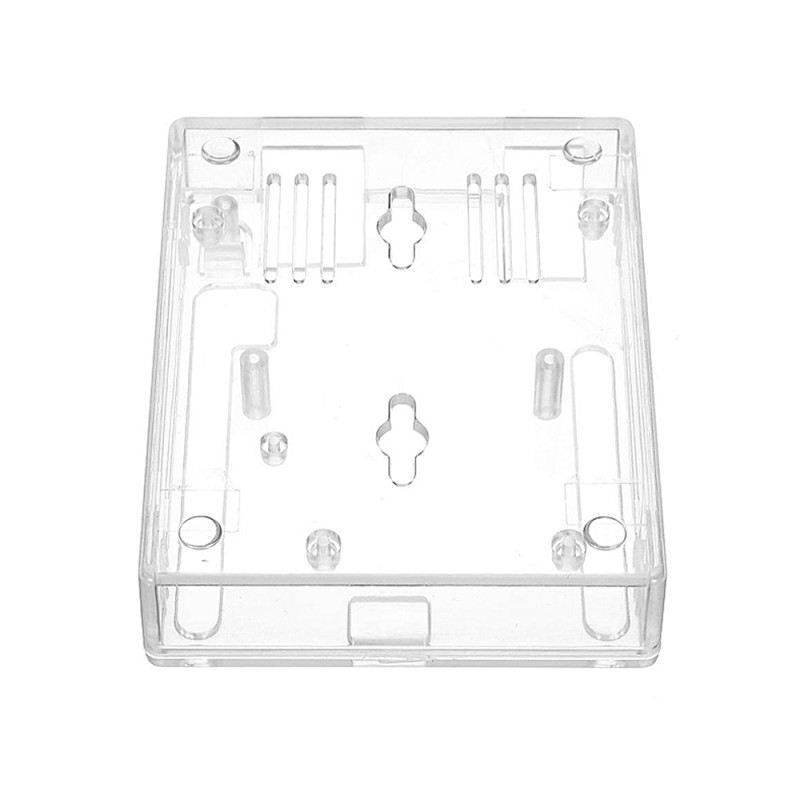

     The UNO R3 Plexi Case is a two-piece (base and lid) transparent plastic protective case made for the 68.6mm x 53.4mm UNO R3 board and UNO R3 compatible boards with the same size and hole pattern. The board sits on the pins of the base, and the lid is pressed on from above to close the case. Its outer size is about 75mm x 60mm x 20mm. The images are for display purposes; the UNO R3 board is not included in the package.

     With the case closed, the USB port, the DC power jack, the reset button and the female pin headers remain accessible; jumper wires plug into the pins through the openings in the lid. The reset button is designed to be pressed through the lid. The grille (slot) holes in the base provide ventilation, and two keyhole slots allow the case to be hung on a wall or panel. Thanks to the transparent body, the power and status LEDs on the board are visible while the case is closed.

     The case protects the underside of a board on the desk from conductive surfaces and dropped screws or wire pieces; when the board is installed in a permanent setup such as a greenhouse, aquarium, irrigation or weather station, it becomes a tidy housing against dust and touch. The product is shipped disassembled (parts separate).

Key features:

     Made to UNO R3 size: The 68.6mm x 53.4mm UNO R3 board sits on the pins of the base; the openings for the USB port, DC power jack and pin headers line up with the board connectors.

     Full access while closed: USB, DC power jack, reset button and female pin headers are used without opening the case; jumper wires plug into the pins through the lid openings.

     Ventilation and wall mounting: The base has grille holes and two keyhole slots; the case can stand on a desk or be hung on a wall or panel with screws.

     Transparent body: The board and its LEDs are visible while the case is closed; the board status can be watched without opening the case.

     Two snap-fit parts: The base and the lid snap together; opening the case is enough to fit or remove the board.

Features:

• Product type: transparent protective case for the UNO R3 board
• Compatible board: UNO R3 and UNO R3 compatible boards with the same size and hole pattern (board size 68.6mm x 53.4mm)
• Construction: 2 parts (base and lid), snap-fit
• USB and power: openings for the USB port and the DC power jack
• Reset button: can be pressed through the lid
• Pin headers: access to the female pin headers through the lid openings
• Ventilation: grille (slot) holes in the base
• Mounting: 2 keyhole slots in the base (wall or panel mounting)
• Board fixing: plastic pins on the base and the lid
• Visibility: transparent body, board LEDs visible with the case closed
• Protection: separates the underside of the board from conductive surfaces, protects against dust and touch
• Board: not included in the package
• Delivery: disassembled (parts separate)
• Material: transparent rigid plastic
• Color: transparent

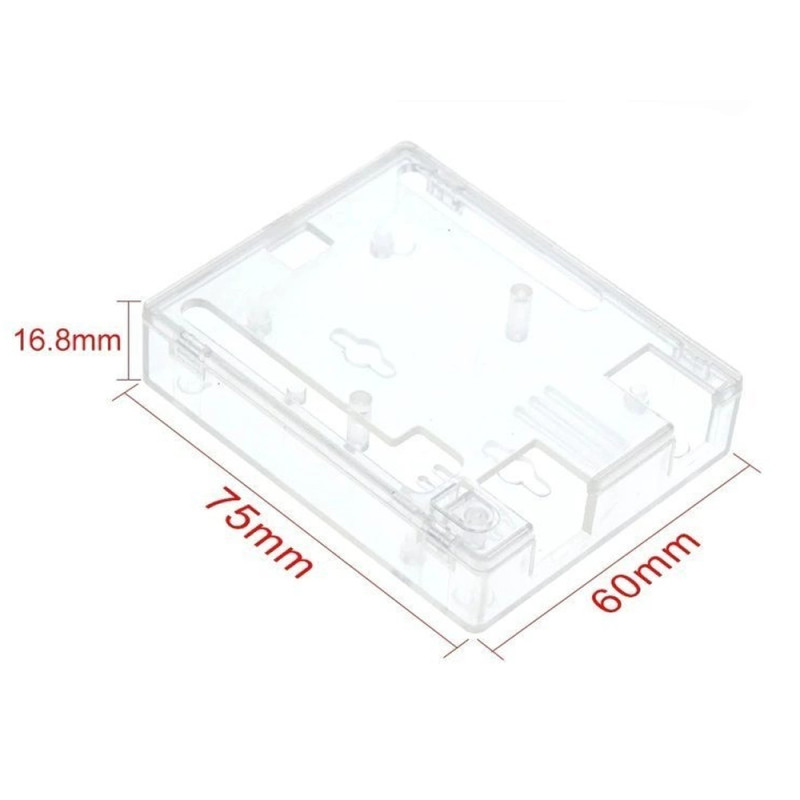

• Dimensions: about 75mm x 60mm x 20mm

Usage information:

• Place the board on the base so that the USB port and the DC power jack face the openings in the base; the mounting holes of the board should sit on the pins of the base.
• Align the lid so that the pin header openings are above the female pin headers of the board and press it gently until the snaps on the edges seat. Do not force the lid; if it does not seat, check the alignment.
• To hang the case on a wall, first remove the board, fit suitable round-head screws into the wall for the keyhole slots, hang the base on the screws and slide it, then fit the board and the lid.

Application areas:

•  Protecting the board in desktop development and test setups
•  Greenhouse temperature and humidity control setups
•  Aquarium light, heater and temperature control
•  Incubator control board housing
•  Garden and pot irrigation setups (indoors)
•  Weather station and ambient measurement setups
•  Home automation control box
•  School and laboratory experiment sets
•  Keeping the board visible in exhibitions, fairs and showcases

Points to consider:

•  The case is made to UNO R3 size. It does not fit boards of a different size such as Mega or Nano, or boards with different connector positions.
•  The lid covers the top of the board; it does not close over a board with a shield (expansion board) fitted. Only jumper wires plug into the pins.
•  The case is not waterproof or moisture-proof. In greenhouse, irrigation and aquarium setups, place it where water cannot splash and no condensation forms.
•  Do not leave the plastic body near heat sources (soldering iron, heater, a closed car in the sun); it may deform.

Package contents:

•  1 pcs UNO R3 Plexi Case ( Disassembled; base and lid )
•  Note: The UNO R3 board, USB cable and wall screws are not included in the package.
