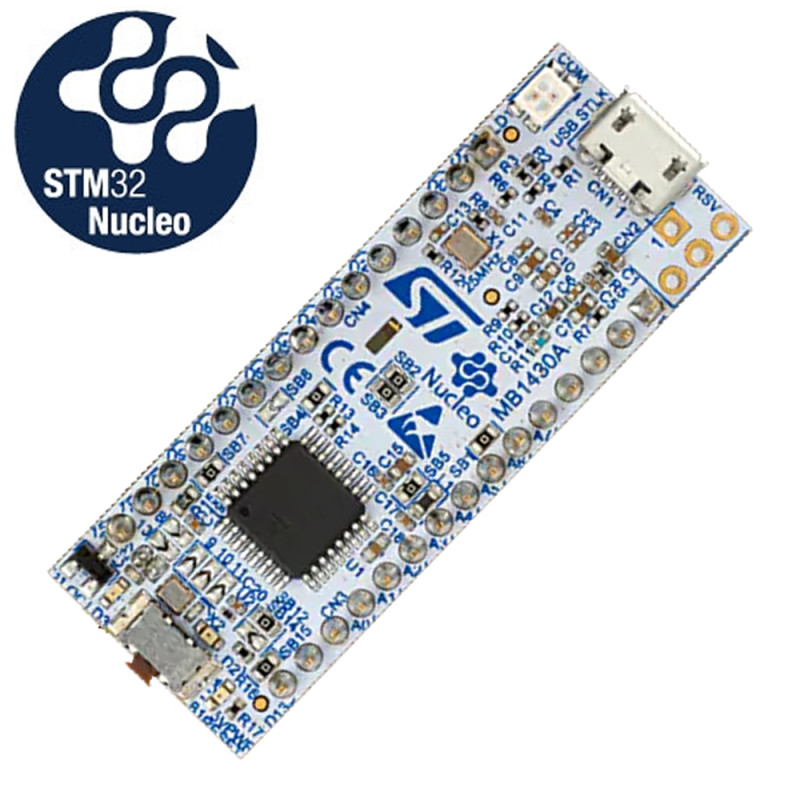

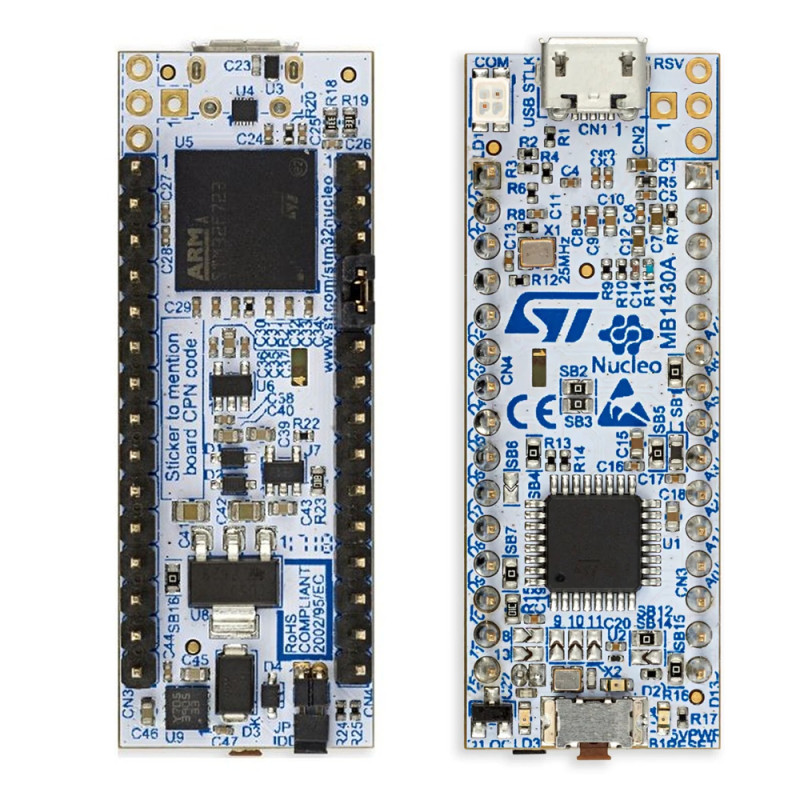

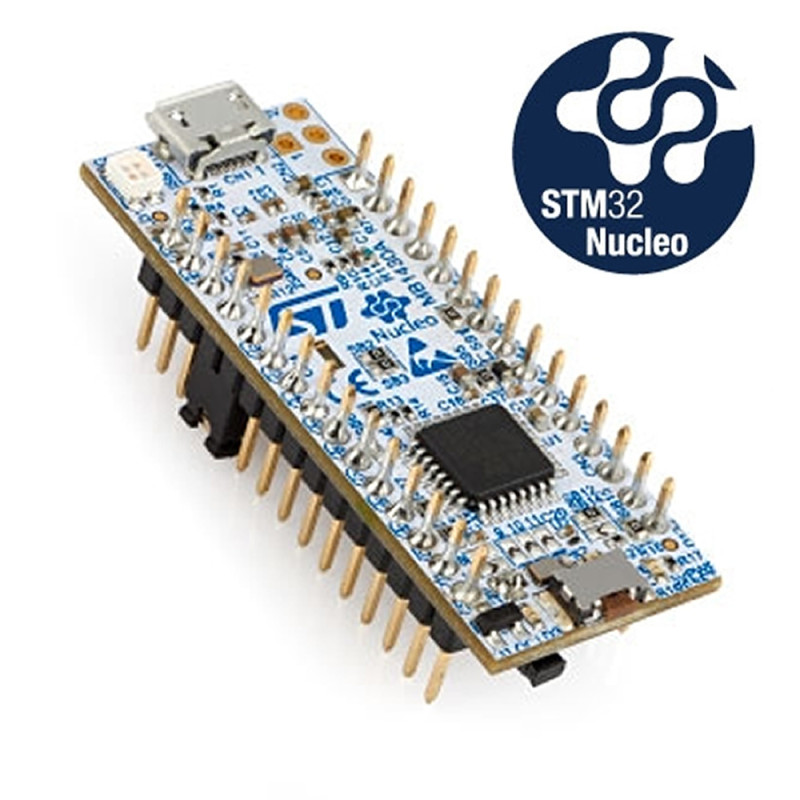

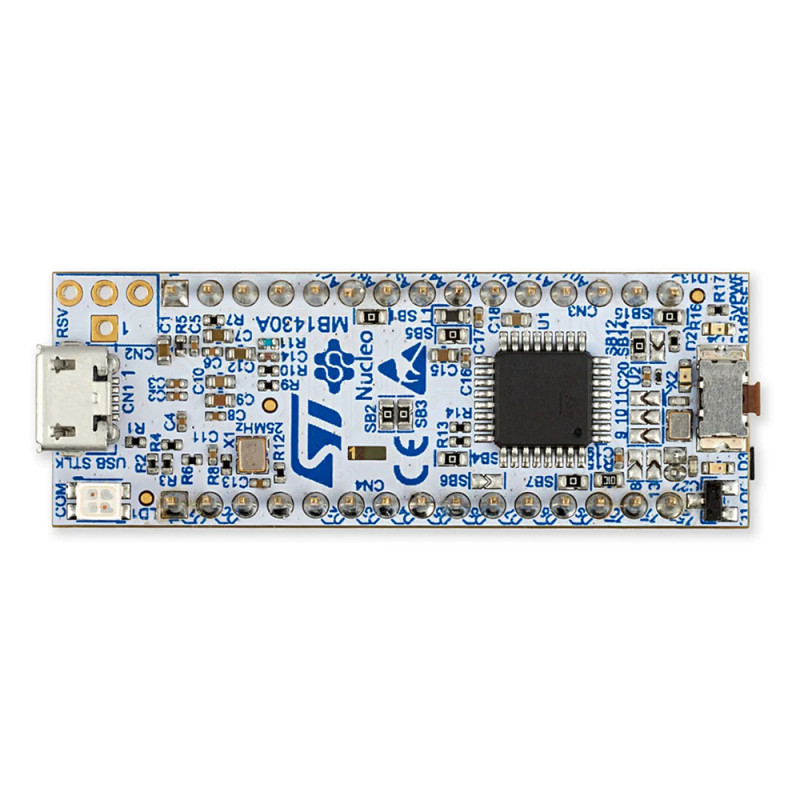

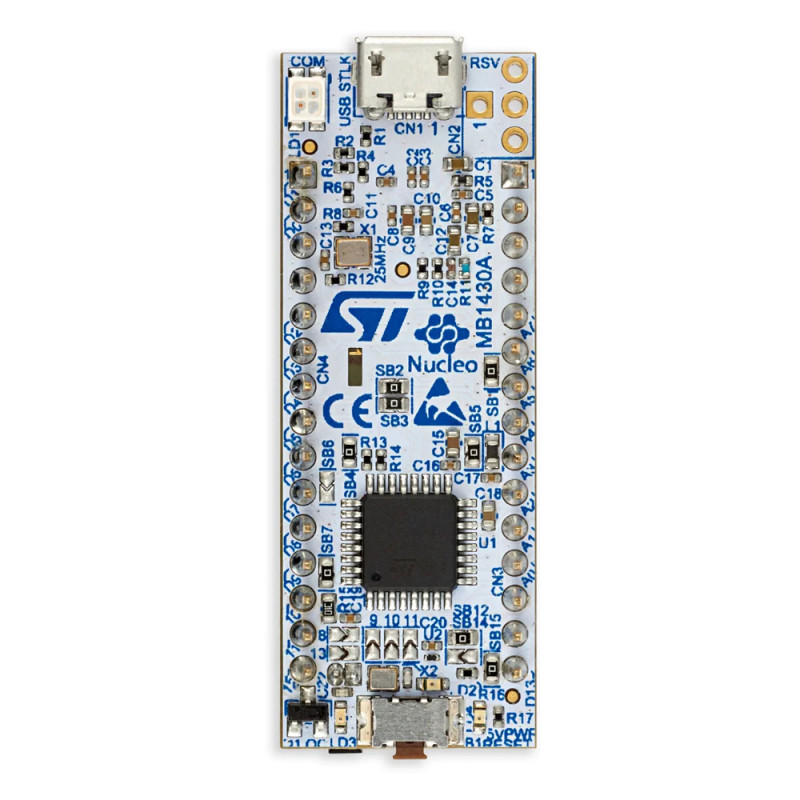

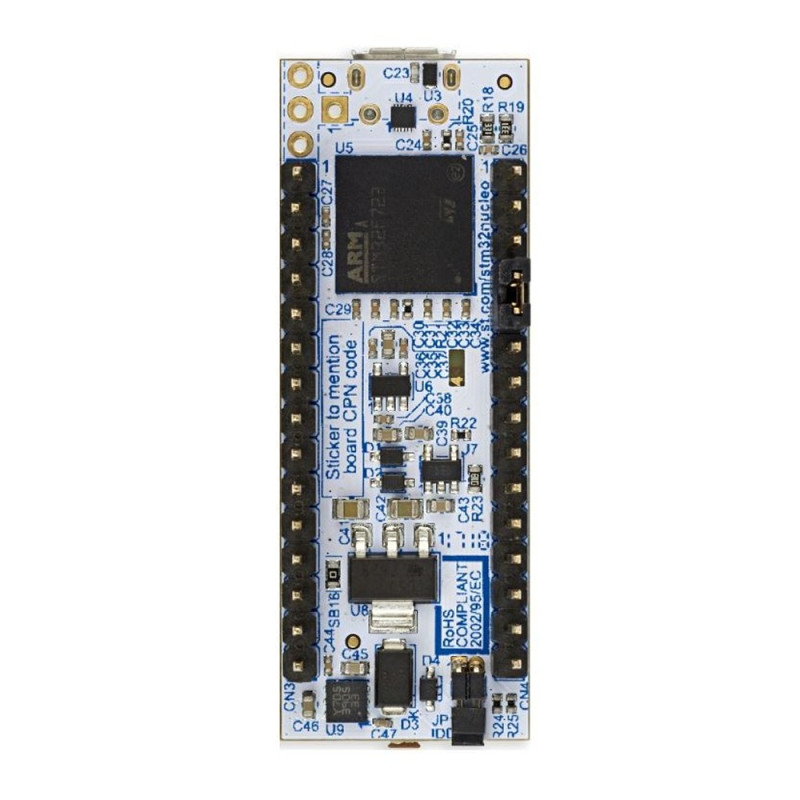

NUCLEO-G431KB

ST NUCLEO-G431KB Nucleo Kit

STM32 Development Board Nucleo-32 STM32G431KB Arm Cortex M4 Mcu ST-LINK Debugger Programmer Arduiino Nano Compatible

     The Nucleo development kit with the STM32 microcontroller allows you to easily try new solutions and build prototypes. The board is equipped with a connector compatible with Arduino Nano. The built-in ST-LINK programmer / debugger is a great help, it can operate in three modes: mass storage, virtual COM port or debugger port. The programmer cooperates in many popular programming environments such as IAR, Keil, STM32CubeIDE and others based on GCC.

    The STM32 Nucleo-32 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller.
[NUCLEO-G431KB]

    The Arduino™ Nano V3 connectivity support allows the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

    The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK debugger/programmer. The STM32 Nucleo-32 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Features:

    Common features

•   STM32G431KB  STM32 ARM 32-bit Cortex-M4 core
•   Maximum frequency: 170 MHz
•   24 MHz crystal oscillator
•   Quartz resonator 32 kHz
•   128 kB of flash memory
•   22 kB of SRAM memory
•   Power supply: 1,71-3,6 V
•   ART accelerator
•   Mathematical hardware accelerators
•   CORDIC for trigonometric functions
•   FMAC for mathematical filtering functions

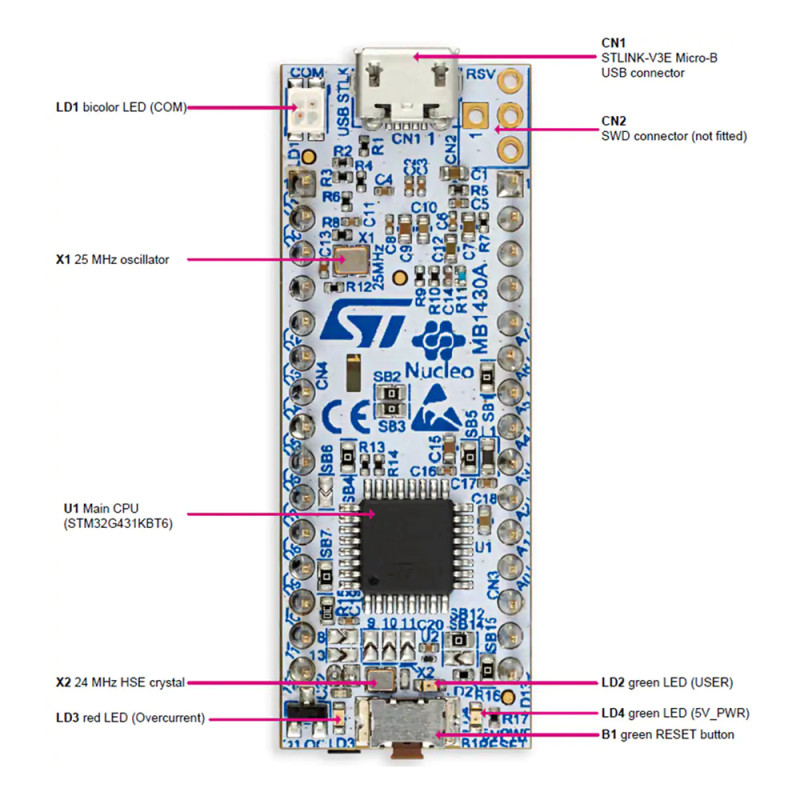

•   1 user LED
•   1 reset push-button
•   26 high-speed I / O ports, of which some tolerate 5 volts
•   2 analog-to-digital converters (ADC) with a resolution of up to 16-bit
•   4 digital-to-analog converters (DAC) with 12-bit resolution
•   1 x FDCAN
•   3 x I2C
•   4 x USART / UART
•   1 x LPUART
•   3 x SPI
•   1 x SAI
•   USB 2.0 full-speed
•   Four power saving modes: Sleep, Stop, Standby and Shutdown

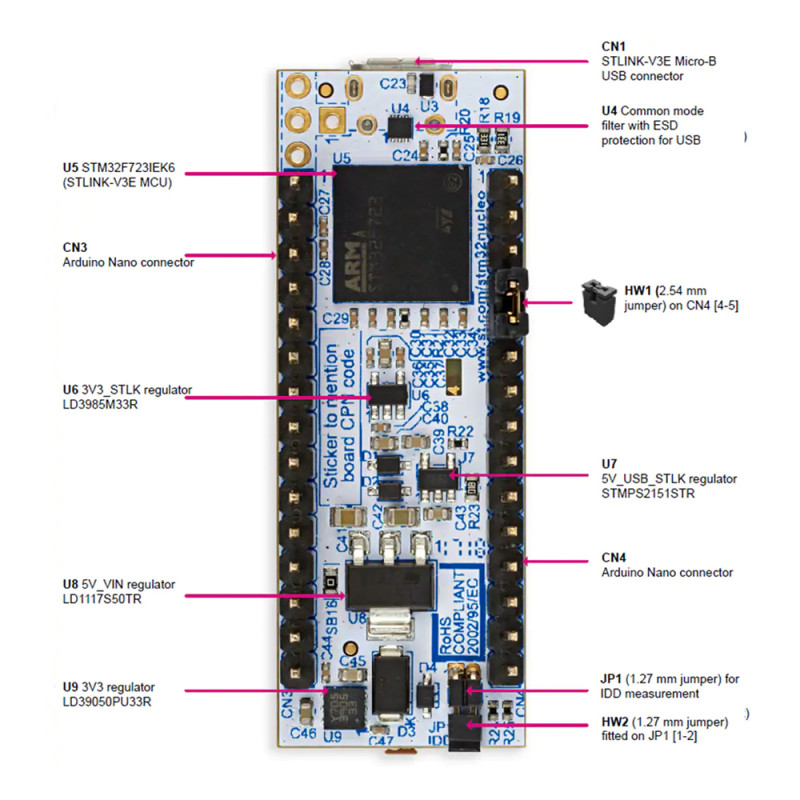

•   Board connectors:Arduino™ Nano V3 expansion connectorMicro-AB USB connector for the ST-LINK
•   Flexible power-supply options: ST-LINK, USB VBUS or external sources
•   Built-in ST-LINK programmer / debugger operating in three modes: mass storage, virtual COM port or debugger port
•   Compatibility with free libraries and sample programs available in STM32Cube
•   Compatible with many development environments such as IAR, Keil and others based on GCC
•   Dimensions: 50.3x18.5 mm

Board-specific features

•    24 MHz crystal oscillator
•    Arm® Mbed Enabled™ compliant


Package Contents:

• 1  pcs NUCLEO-G431KB

Attention: A micro usb cable is not included in the package.
