STM32F4 DISCOVERY

ST STM32F4 Discovery STM32F407G-DISC1 Discovery Kit

STM32F407VG Arm Cortex-M4 Mcu STM32 Development Board ST-LINK V2 Accelerometer Microphone Audio DAC Class D 1 Mbyte of Flash 168 MHz

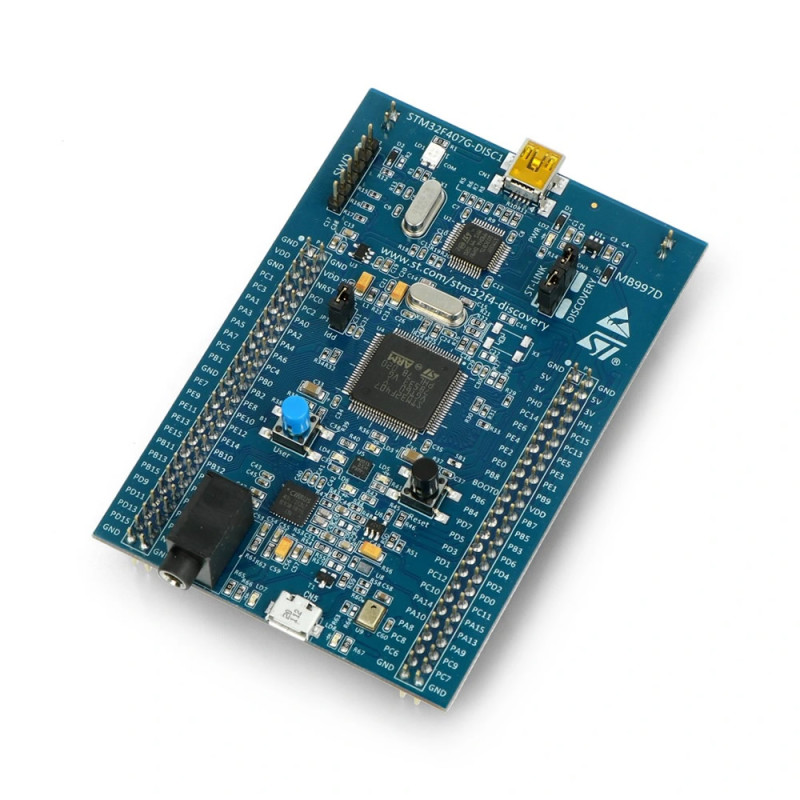

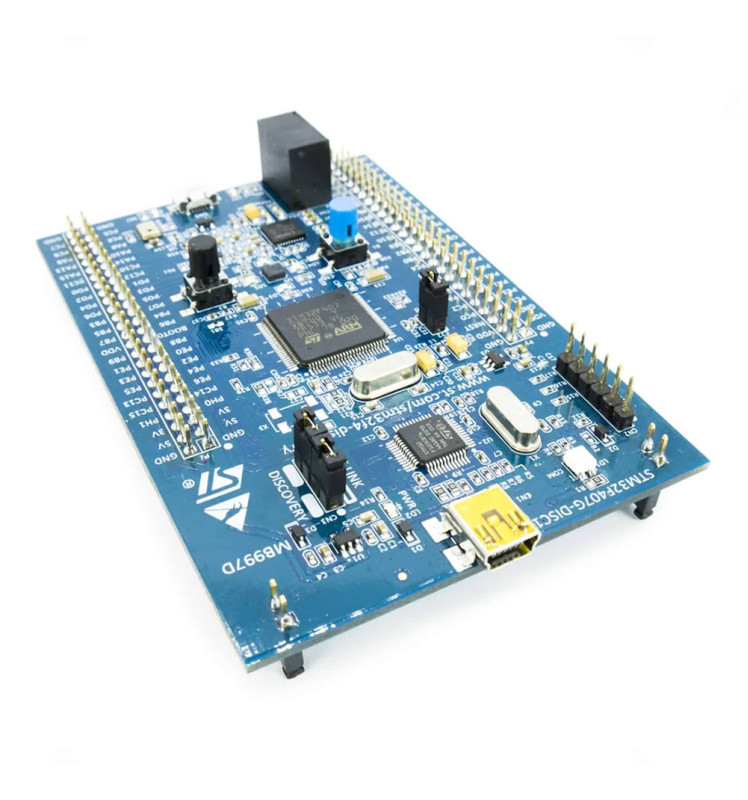

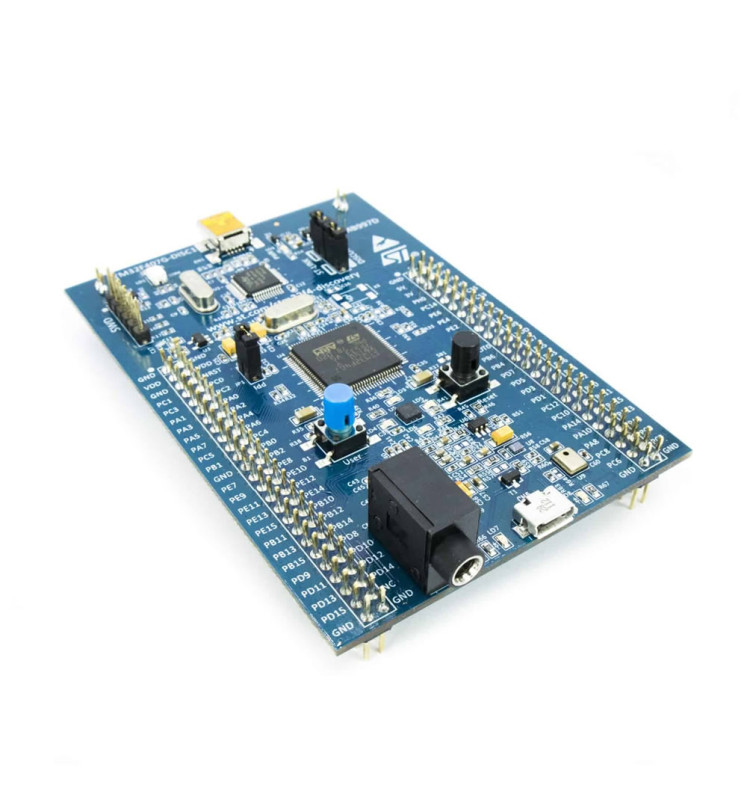

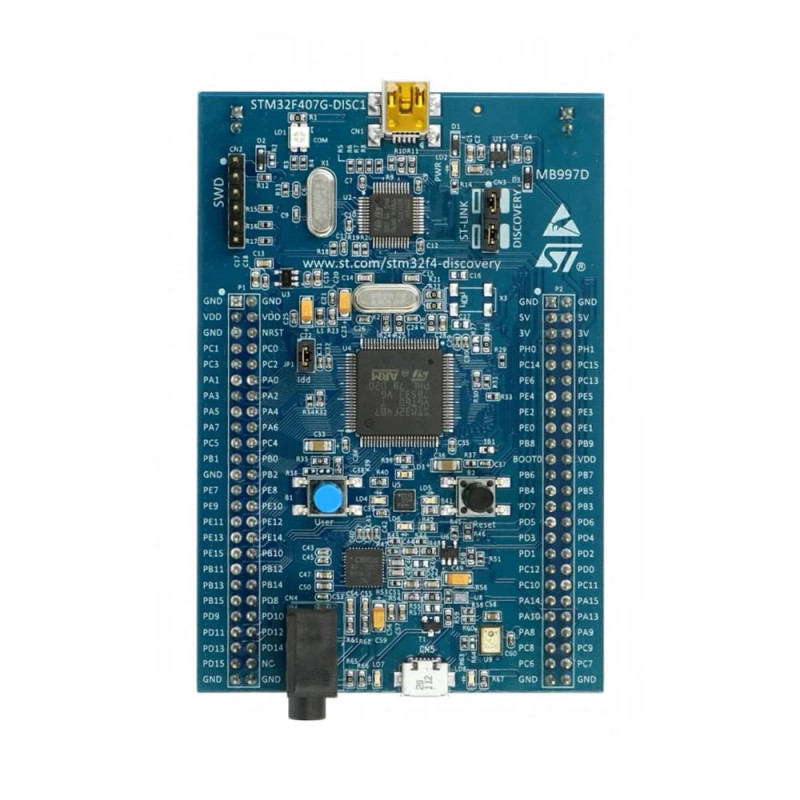

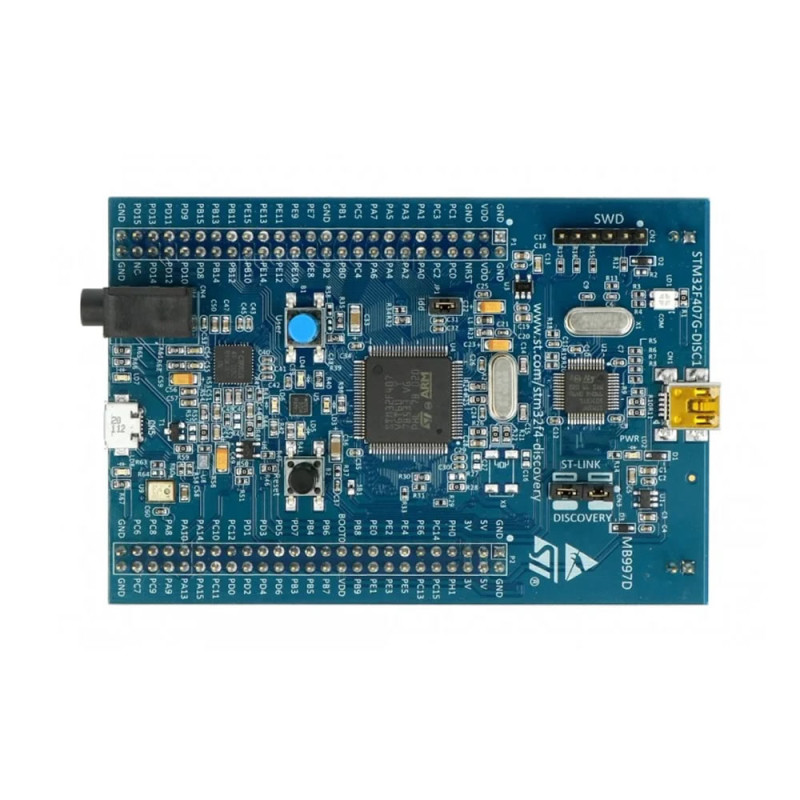

     The STM32F4DISCOVERY Discovery kit leverages the capabilities of the STM32F407 high-performance microcontrollers, to allow users to develop audio applications easily. It includes an ST-LINK/V2-A embedded debug tool, one ST-MEMS digital accelerometer, one digital microphone, one audio DAC with integrated class D speaker driver, LEDs, push-buttons, and a USB OTG Micro-AB connector.

     Based on the STM32F407VGT6, it includes an ST-LINK/V2 embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.

     Alarge number of free ready-to-run application firmware examples are available on www.st.com/stm32f4-discovery to support quick evaluation and development.

    Comprehensive free software including a variety of examples, part of STM32CubeF4 MCU Package, or STSW-STM32068 for using legacy standard libraries

    On-board ST-LINK/V2-A debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
    Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

Key Features

•     STM32F407VGT6 microcontroller
•     32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package
•     On-board ST-LINK/V2 with selection mode switch to use the kit as a standalone ST-LINK/V2 (with SWD connector for programming and debugging)
•     Board power supply: through USB bus or from an external 5 V supply voltage
•     External application power supply: 3 V and 5 V
•     ST MEMS 3-axis accelerometer
•     ST-MEMS audio sensor omni-directional digital microphone
•     CS43L22, audio DAC with integrated class D speaker driver
•     Audio DAC with integrated class D speaker driver
•     Eight LEDs:
  •     LD1 (red/green) for USB communication
  •     LD2 (red) for 3.3 V power on
  •     Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
  •     2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current
•     User and reset push-buttons
•     USB OTG FS with micro-AB connector
•     Stereo headphone output jack
•     2.54 mm pitch extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
•     Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing

Package Contents:

• 1 pcs STM32F4 DISCOVERY Kit

Attention = A mini usb cable is not included in the package.
