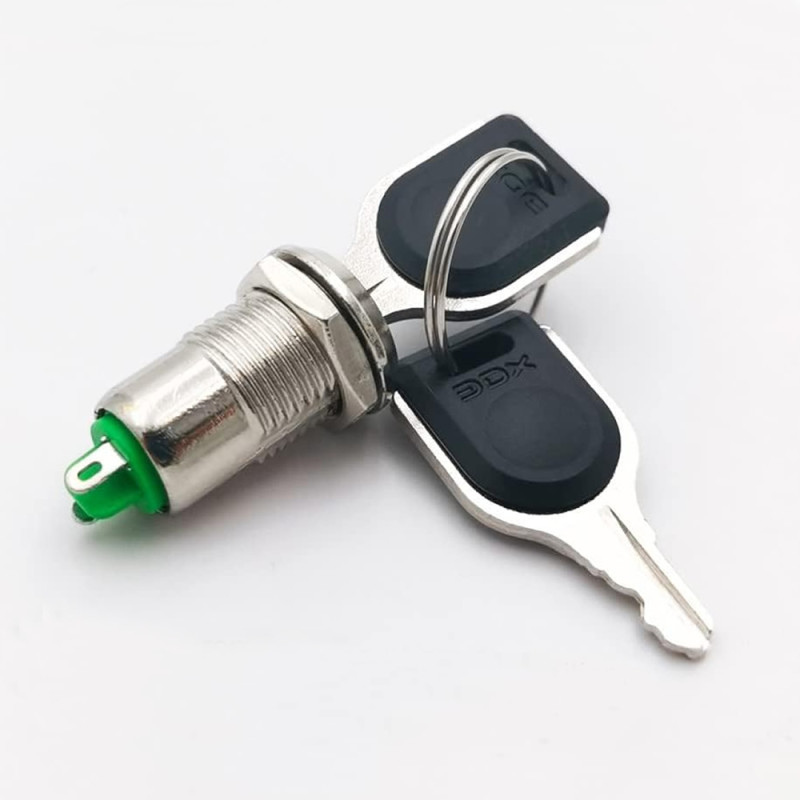

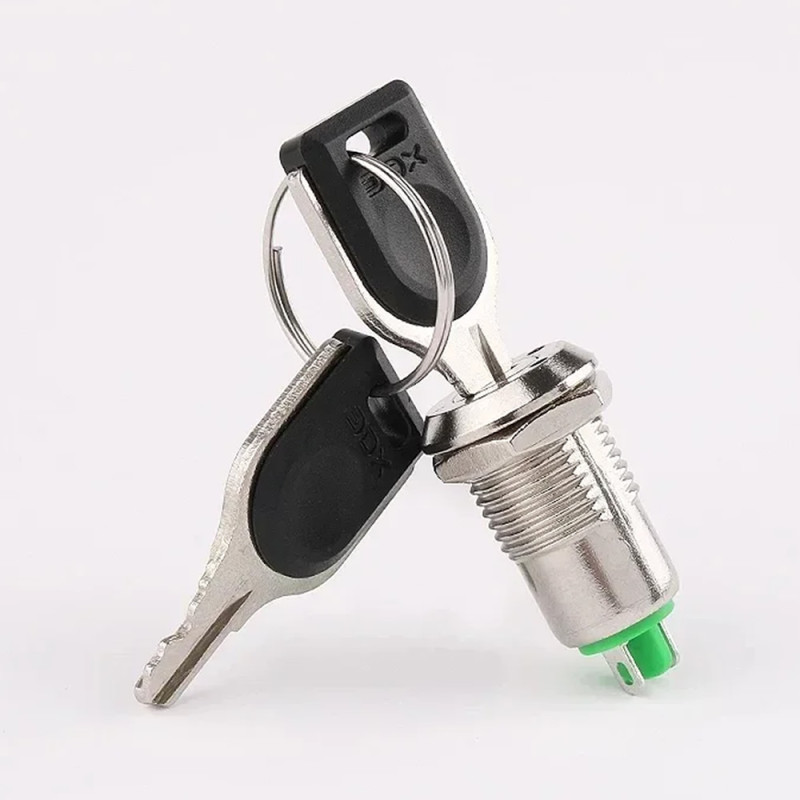

12mm Metal Button with 2 Keys

12mm Metal 2 Pin Key Controlled Button

Panel Mount ON OFF 1A AC 250V Security Lock Electronic Device Machine Start Power Control On Off

     12mm 2 pin locking metal button. It has a key controlled operating mechanism. It has a switching capacity of 3A DC 12V / 1A AC 250V. It is used by mounting on surfaces with a 12mm hole. When the key is turned, the contacts join and the relevant circuit starts working.

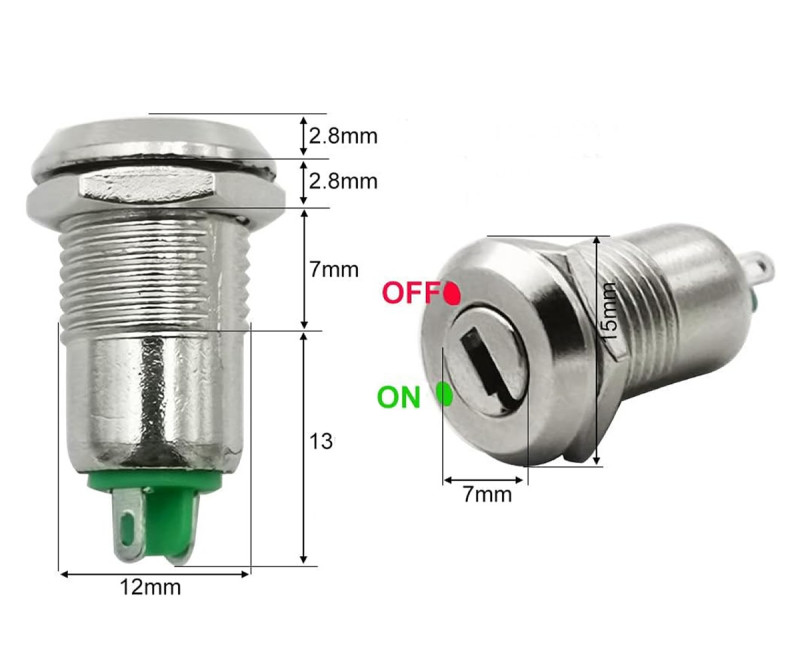

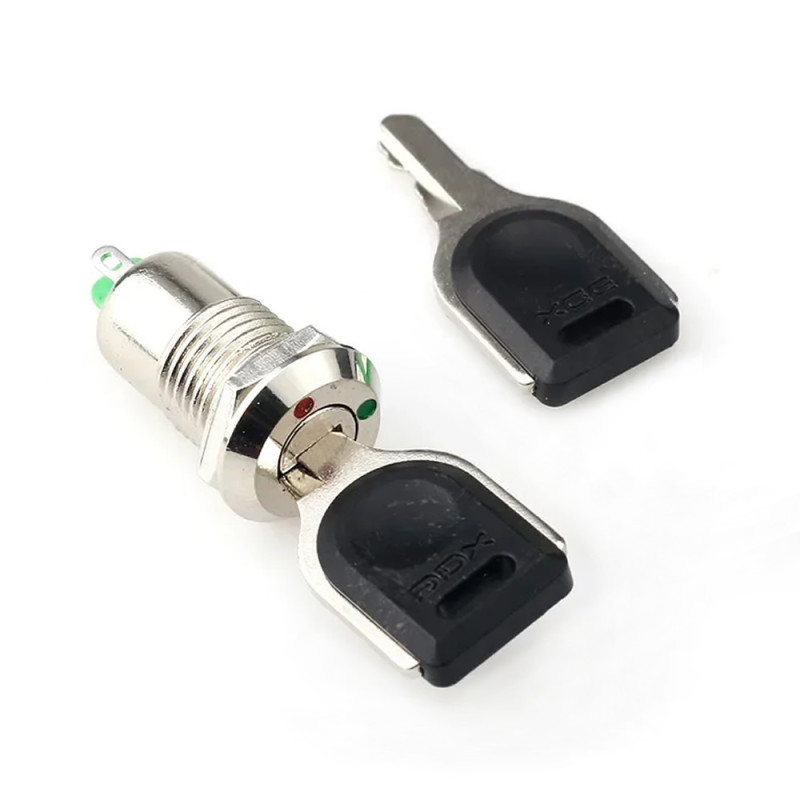

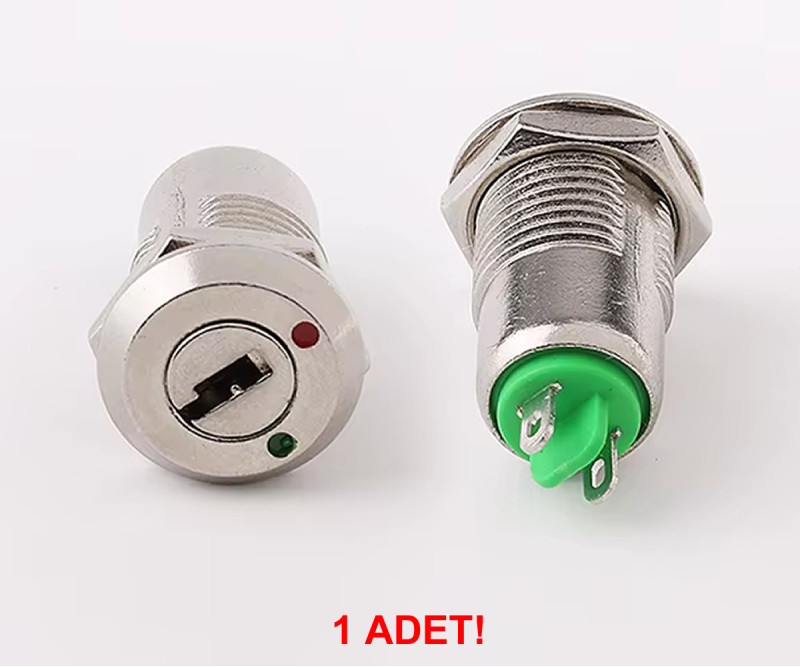

     There are green and red dot marks on the lock. In the red position the key is an open circuit and the target circuit does not work. In the green position the switches are short circuited, the target circuit works. The key can be removed in any position, it does not need to stay on the button.

Features:

• 12mm Metal Button with 2 Keys
• Key controlled
• Operating current voltage capacity:  1A 125VAC  /  0.5A 250VAC  /   3A  DC 12V
• Panel mount
• Number of pins: 2
• Contact form: NO Open circuit
• Action type:  ON ( OFF-ON )
• Material: Metal / Plastic
• Contact resistance:  less than 50mohm
• Operating temperature: -20C  /  +85C
• Color: Metallic Gray
• Mechanical life:   5000 on off cycles

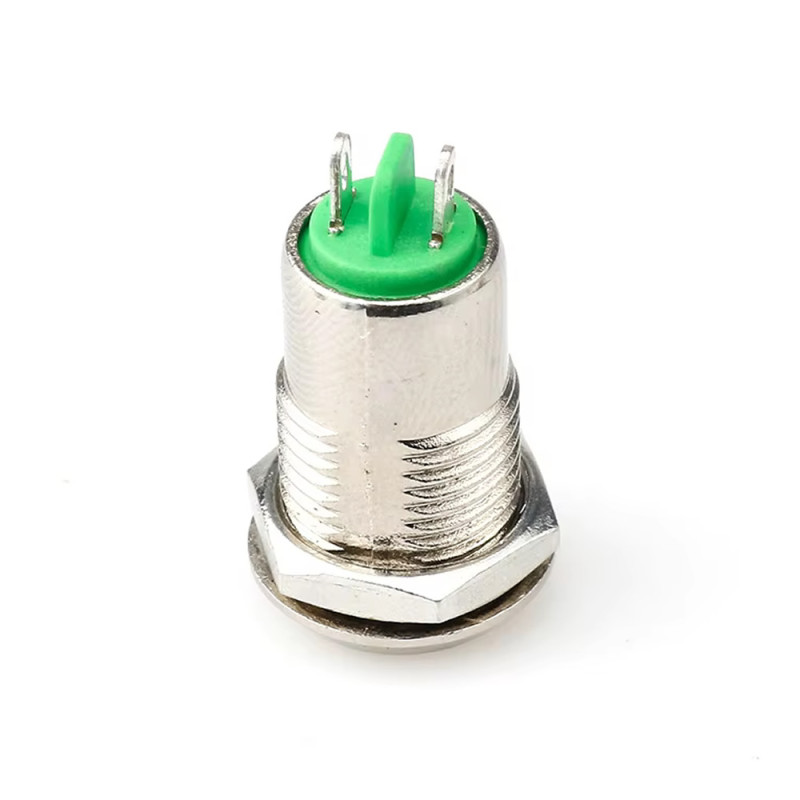

• Solderable terminal connection socket

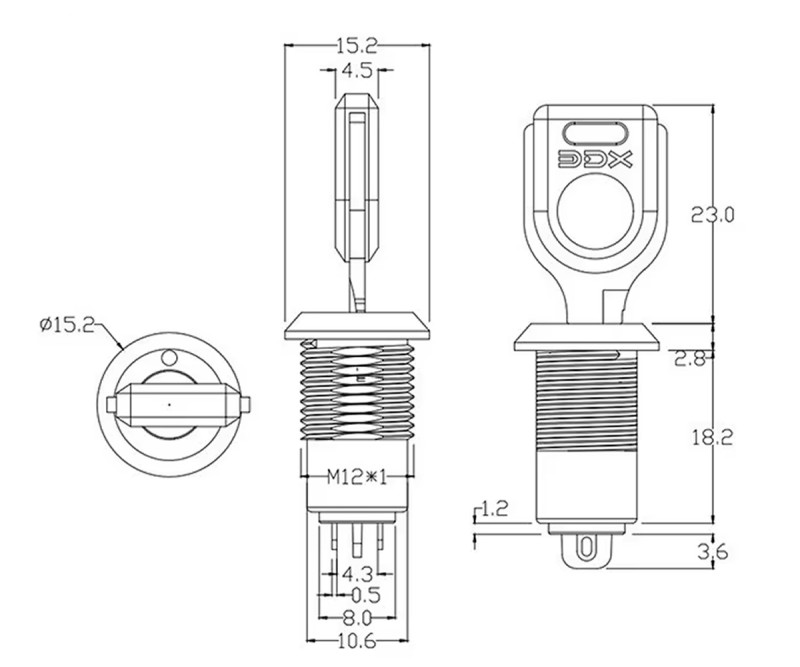

• Mounting hole: 12mm

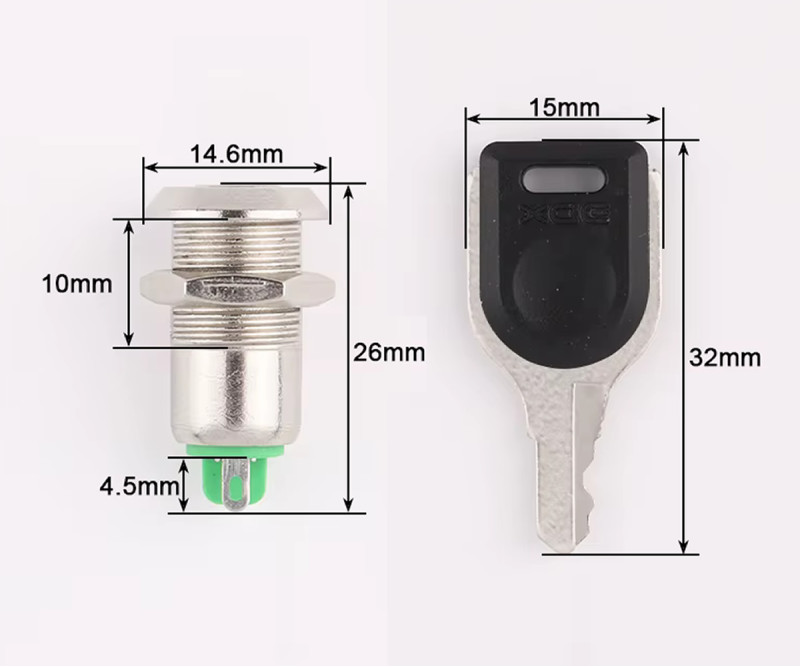

• Button dimensions: 14.5mm x 26mm
• Key dimensions:  15mm x 32mm
• Weight: 14gr

​

Package contents:

• 1 Piece 12mm Metal Button with 2 Keys
