3590S 103L 10Kohm Potentiometer

3590S-2-103L 10Kohm 10 Turn Potentiometer

Panel Mount Precision 360 Degree Rotary Shaft Adjustable Resistor Trimmer Rheostat Volume Brightness Voltage Adjustment

If it is forced further when the rotation reaches the end, the pot will be damaged. This must be taken into account during use.

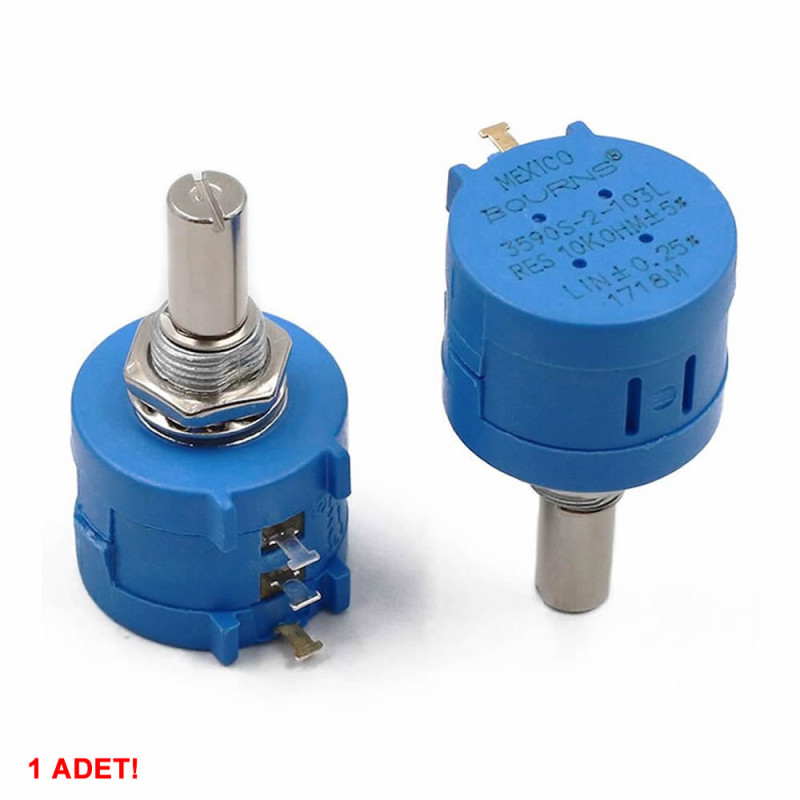

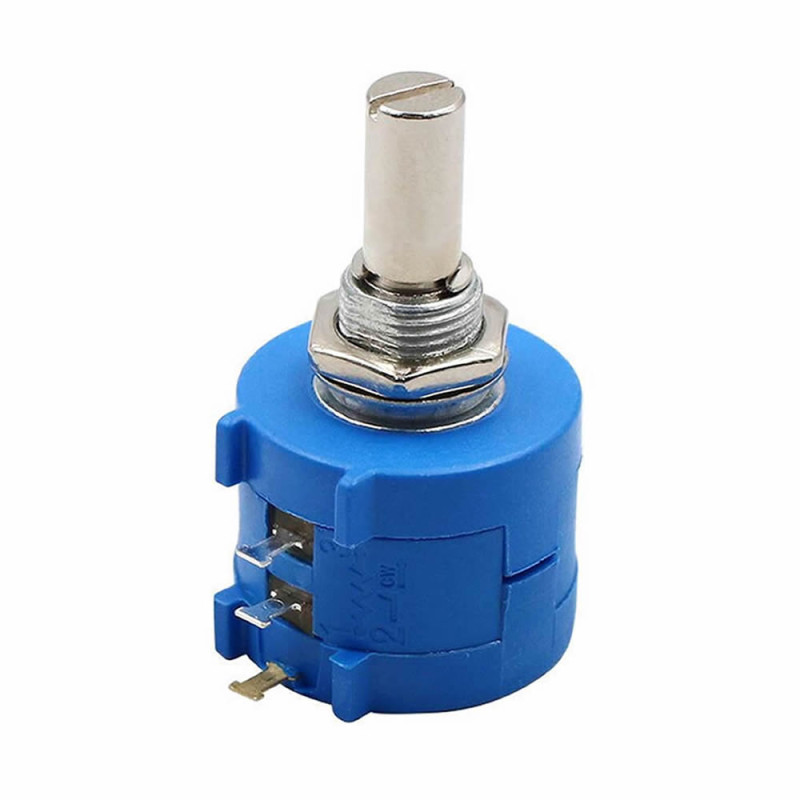

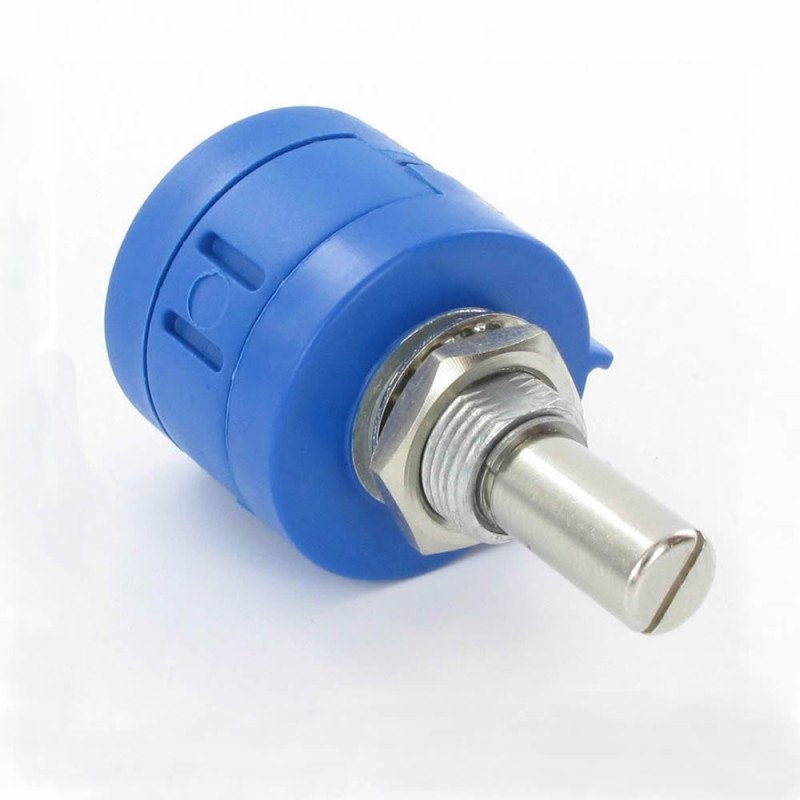

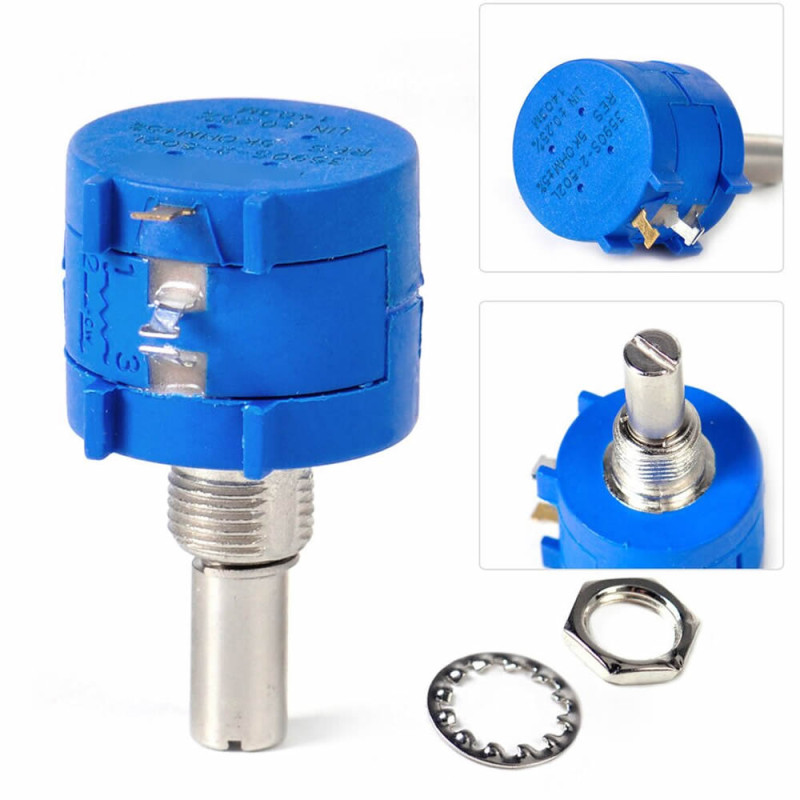

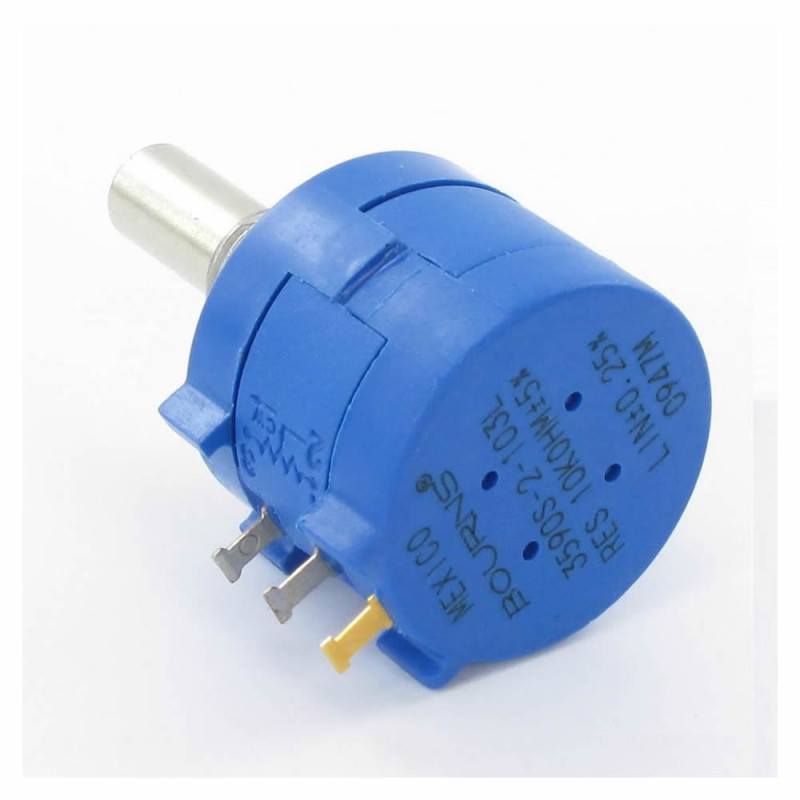

     3590S-2-103L 10kohm precision multi-turn rotary potentiometer. It has a 360 degree rotation angle. It can rotate 10 full turns. It is widely used in applications such as increasing and decreasing volume, voltage, brightness etc., and in areas such as various measurement and test applications.

Features:

• Model: 3590S-2-103L  Precision Potentiometer
• Rotary type shaft
• 10k Ohm resistance
• Power 2W
• Tolerance:   5%
• Linearity:  +-0.25%
• 10 turns
• Rotation angle 360 x10
• 3 Pin connection legs
• Material: Metal / Plastic
• Color: Blue / Gray
• High quality and precision
• Easy mounting
• Operating temperature:  -10C  /  85C
• Panel hole: 10mm
• Shaft diameter: 6mm
• Shaft length: 21mm

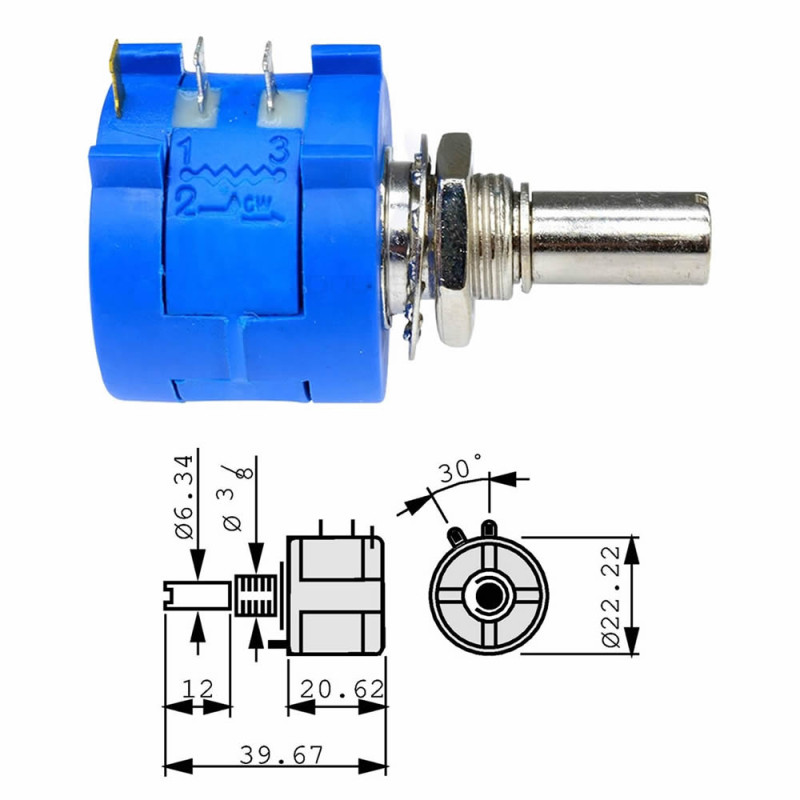

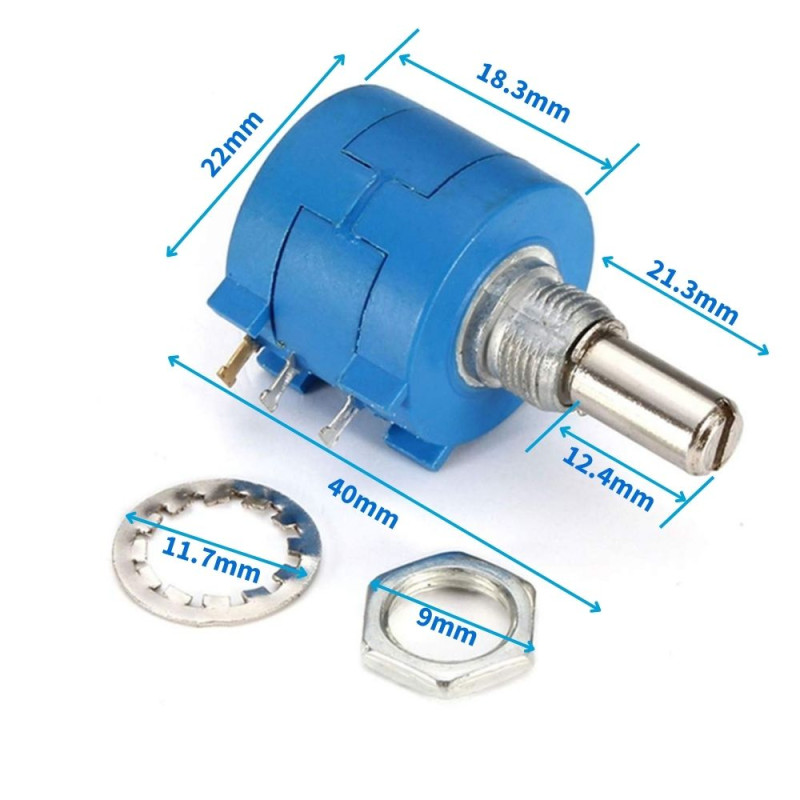

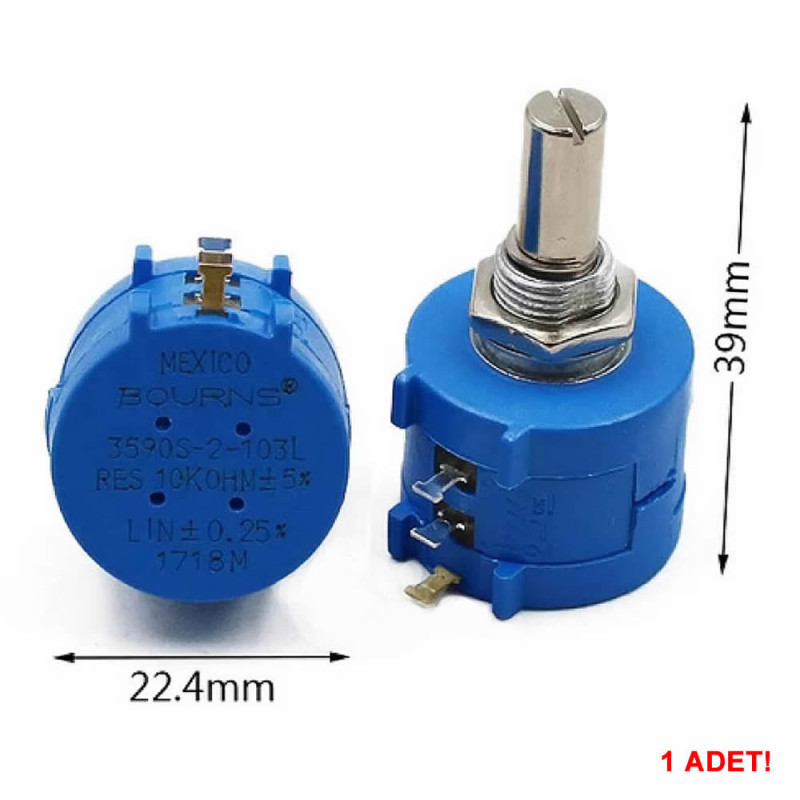

• Dimensions:  23mm x 40mm
• Weight: 20gr

Package Contents:

•  1 Piece 3590S-2-103L 10Kohm Multi-Turn Potentiometer

.
