USBTiny USBtinyISP AVR Programmer

USBTiny USBtinyISP AVR Programmer

AVR ISP Programmer Arduino Bootloader Loader UNO MEGA

     USBtinyISP is an AVR microcontroller programming board. It is used to load programs to AVR mcus. It is the programmer officially supported by the Arduino IDE software. You can use it to load a bootloader. You can use it together with the Avrdude software.

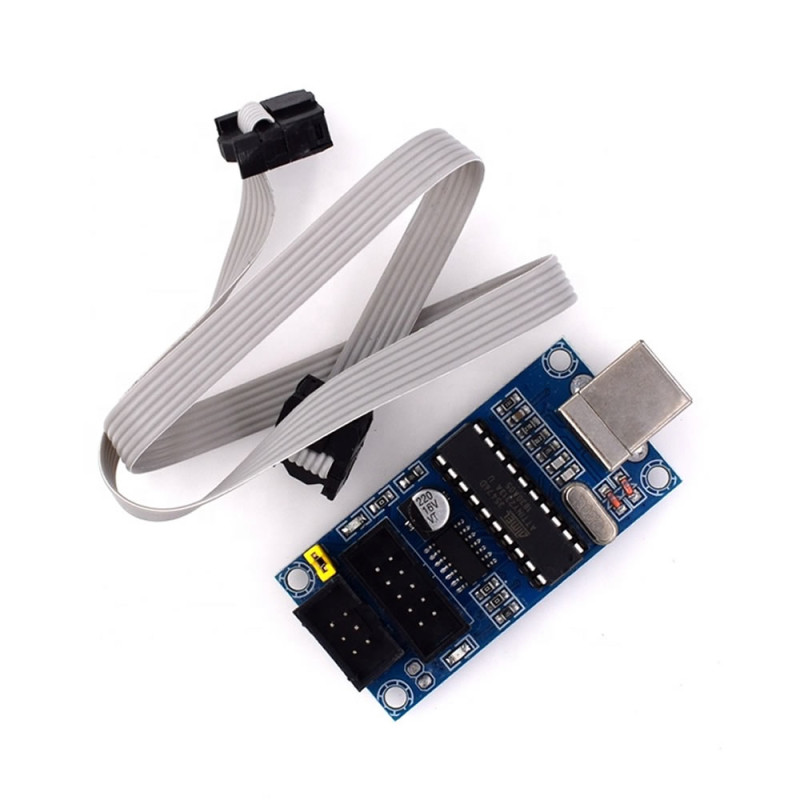

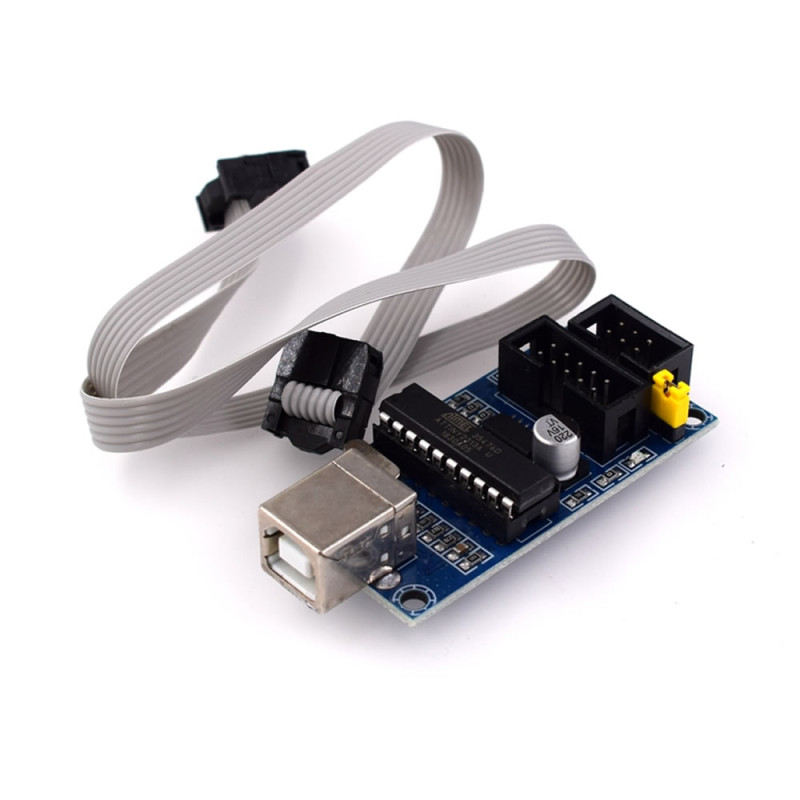

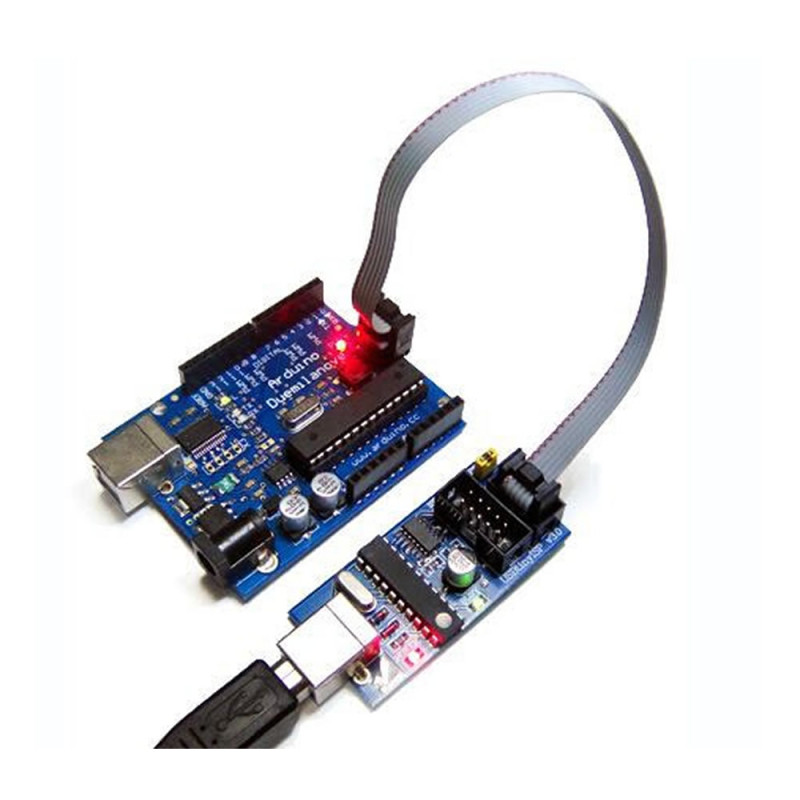

     It has a 2x3 pin socket that can be plugged into the Arduino. A usb cable and 2x3 pin flat cable come with the product. It takes its power over the USB port. There is no need for an additional source. It can also power the arduino you connect. When you select the appropriate hardware from the bootloader loading section under the arduino ide and select USBtinyISP as the programmer, the bootloader will be loaded to your arduino automatically.

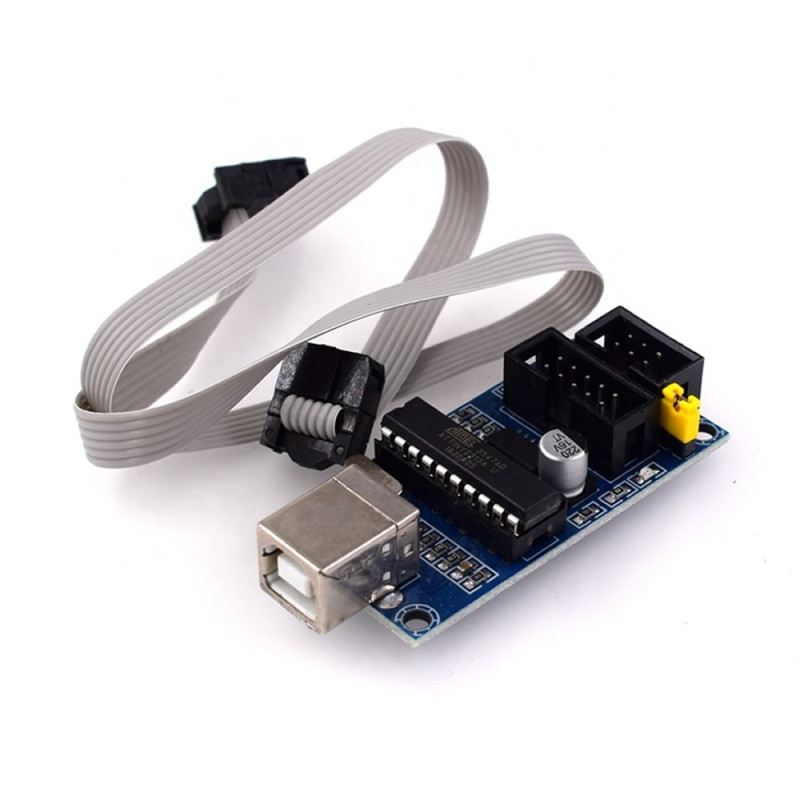

     If there is power on the target circuit, remove the yellow jumper on the programmer.

Features:

•     The programmer officially supported by the Arduino Ide
•     Can be used with Avrdude.
•     Can program Atmel avr mcus.
•     Can load programs up to 64kb.
•     Usb socket is used for programming and power supply

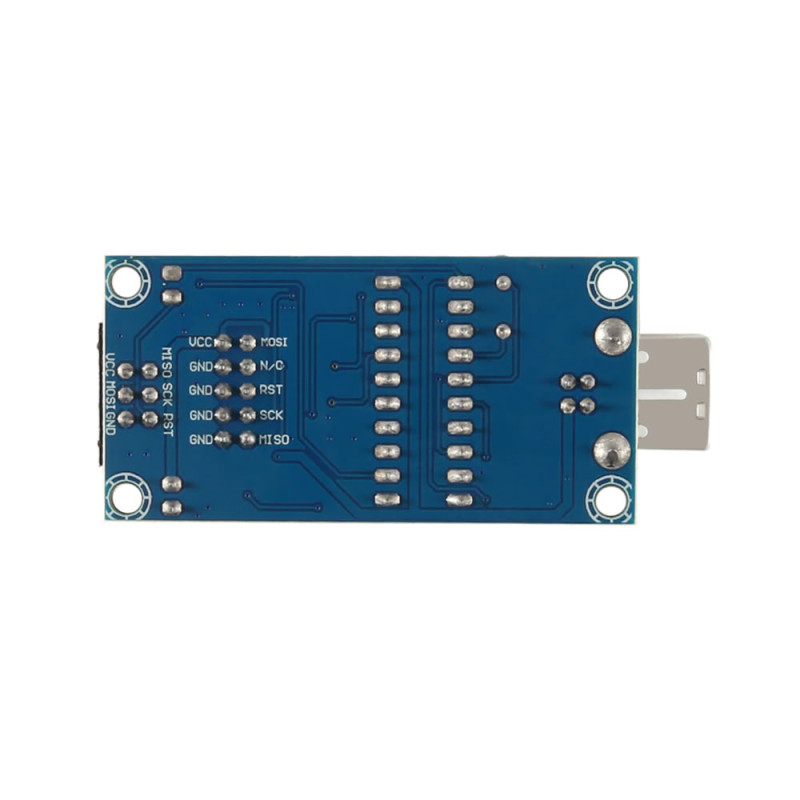

•     10 pin and 6 pin programming connection socket support
•     Arduino bootloader loading support
•     Ability to follow the programming status with 2 indicator leds

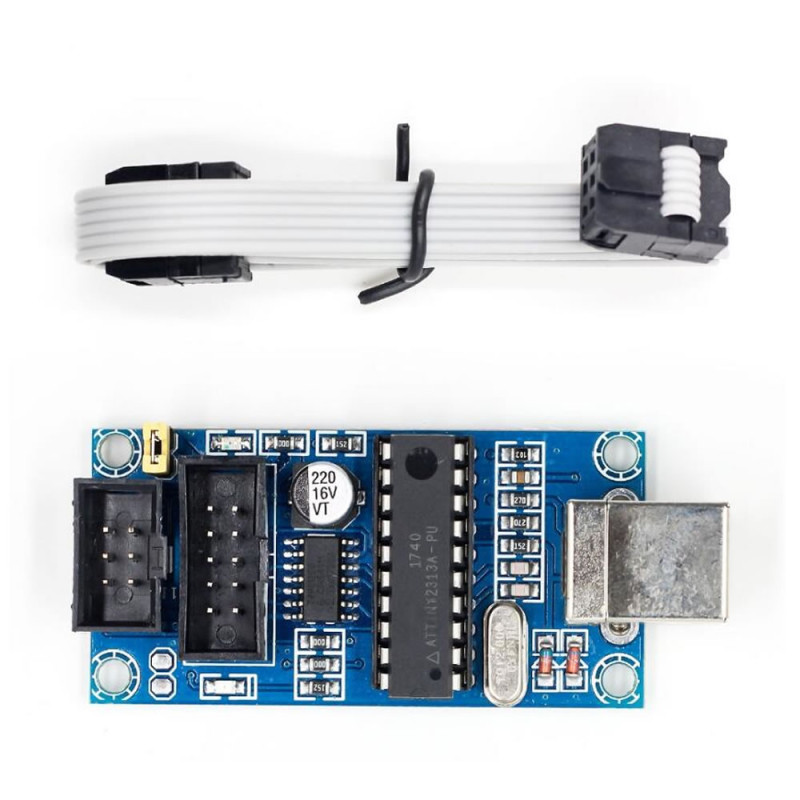

•     Stable operation with 220uf capacity
•     4 Mounting holes

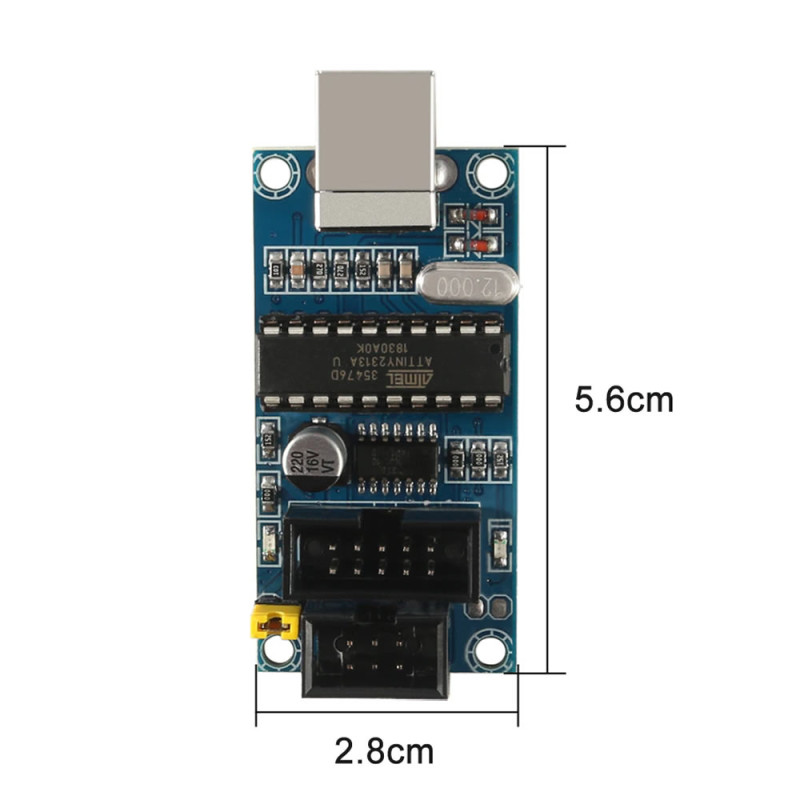

•     Dimensions: 28.8mm x 61.6mm

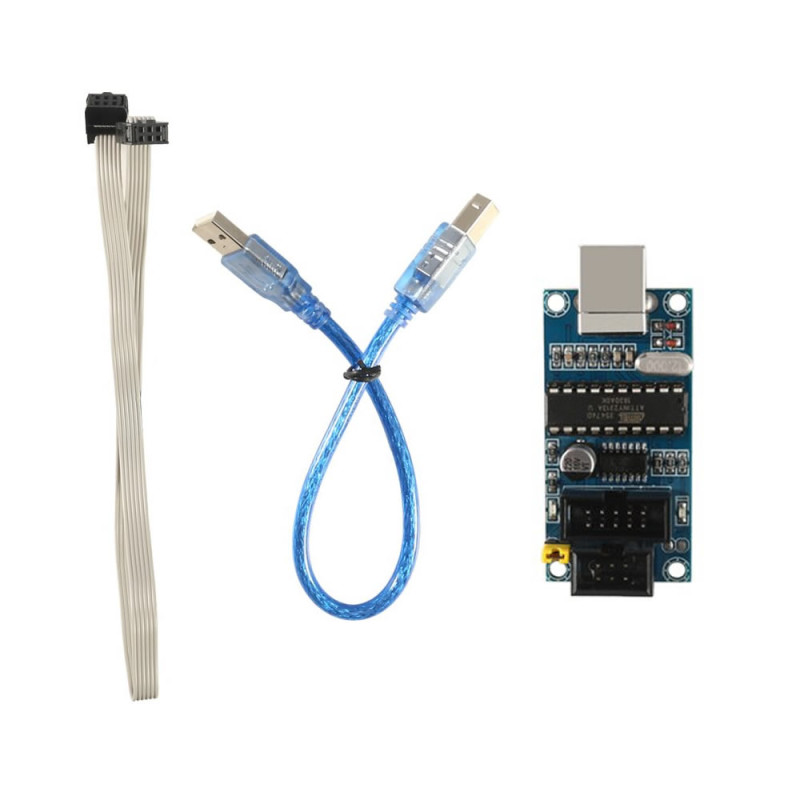

Package contents :

• 1 Piece USBtinyISP programmer
• 1 Piece Usb Cable
• 1 Piece 3x3 Pin Connection Cable
