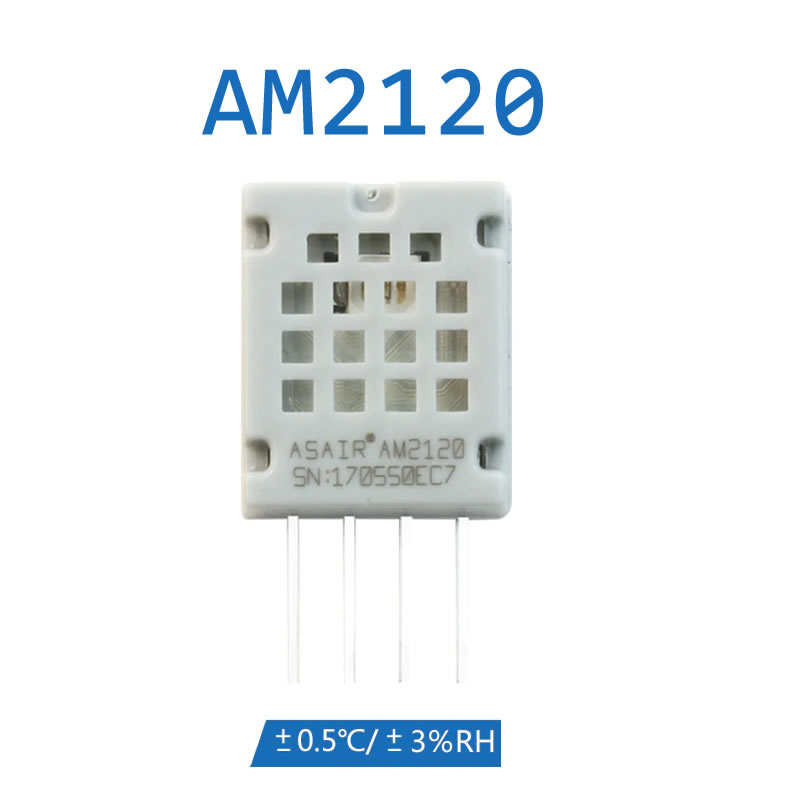

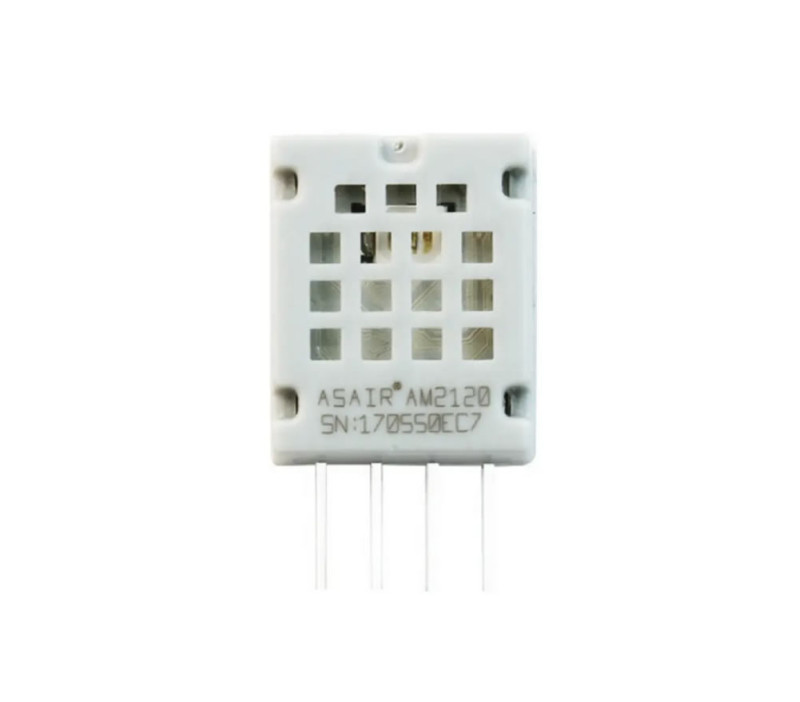

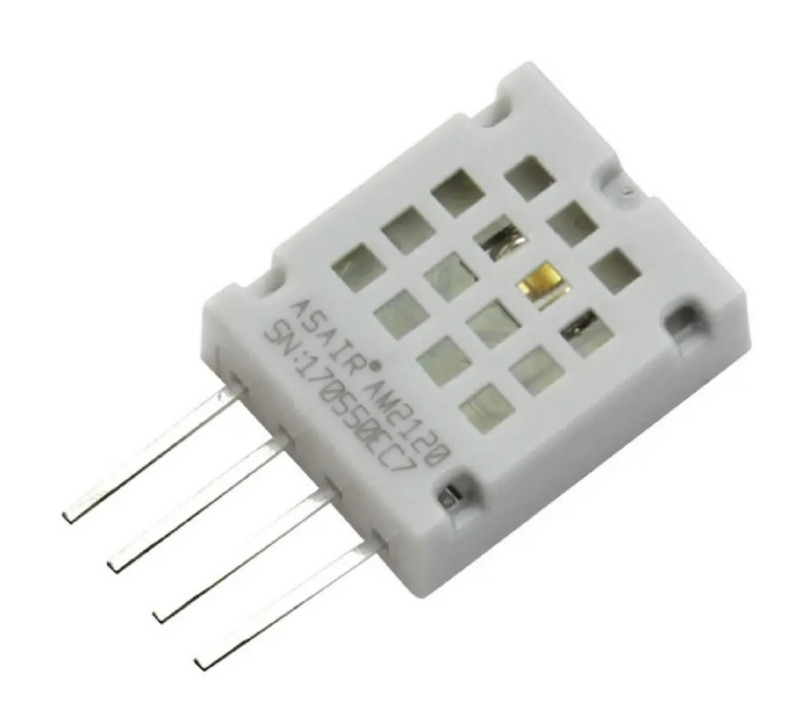

AM2120 Temperature and Humidity Sensor Module

AM2120 Temperature and Humidity Sensor Module

It is a temperature and humidity detection sensor using the AM2120 sensor from Asair Aosong.

Description:
     AM2120 Digital Temperature and Humidity Sensor is a temperature and humidity composite sensor with its calibrated digital signal output. Special temperature and humidity acquisition technology is adopted to ensure the product has high reliability and excellent long-term stability. The sensor consists of a capacitive humidity sensor and a high accuracy integrated temperature sensor connected to a high performance microprocessor. The product has the advantages of excellent quality, ultra-quick response, strong anti-interference ability and high cost performance.
     AM2120 adopts single bus communication mode and standard single bus interface, which makes system integration easy and quick. Ultra-small size, extremely low power consumption, signal transmission distance can reach more than 20 meters, making it the best choice for all kinds of applications and even the most demanding applications. By directly outputting digital information such as humidity, temperature and calibration after temperature compensation, users can get accurate temperature and humidity information without secondary calculation of digital output and temperature compensation of humidity. The product is 4 leads, easy to connect, special packaging forms can be provided according to user needs.

Features:

• - Complete interchange
• - Low cost
• - Long-term stability
• - Relative Humidity and Temperature Measurement
• - Extra Long Signal Transmission Distance
• - Digital signal output
• - Accurate calibration
• - Very low power consumption
• - Standard single bus digital interface.

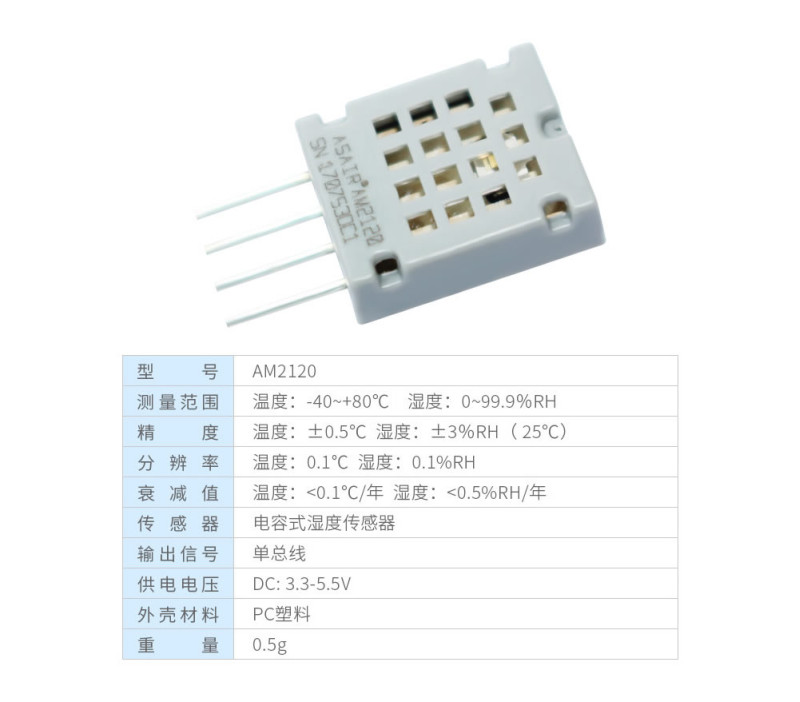

Specification:

• Model: AM2120
• Supply voltage( V) : 3.3V - 5.5V
• Type: Digital Thermometer and Hygrometer
• Accuracy Level: 0.1
• Resolution: 0.1
• Material: PC Plastics
• Temperature measurement limit: - 40 ~+80 (℃)
• Accuracy of temperature measurement: +-0.5 (℃)
• Temperature resolution: 0.1 (℃)
• Humidity measurement limit: 0-99.9% (RH)
• Accuracy of humidity measurement: +-3%(RH)
• Humidity resolution: 0.1% (RH)
• Output: Standard Single Bus

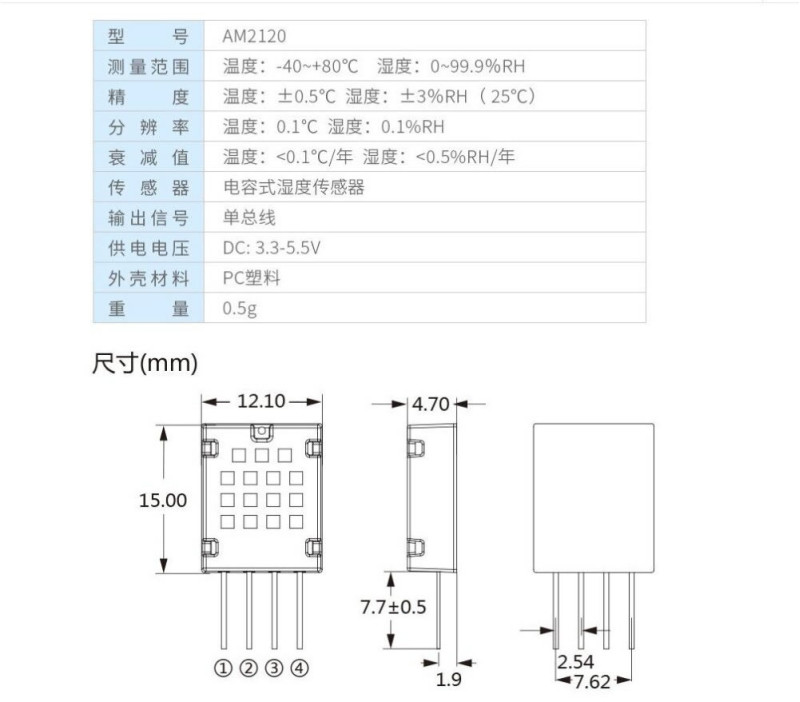

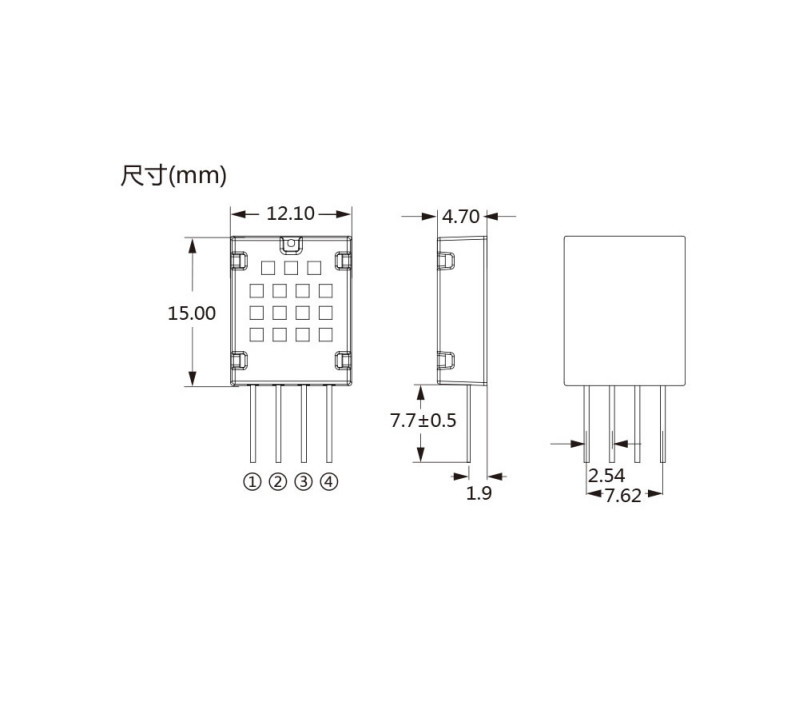

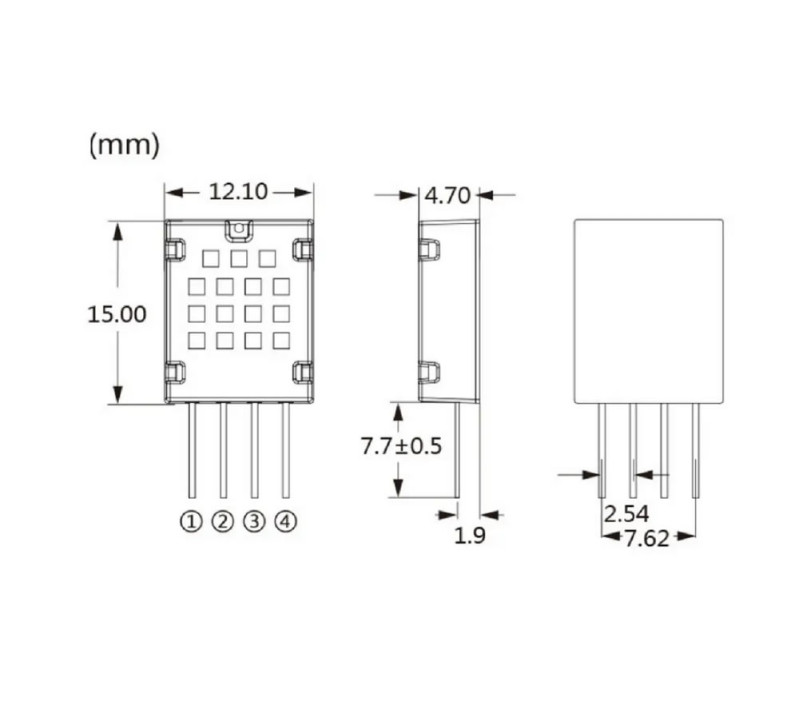

• Size: 15*12.1*4.5 (mm)
• Weight: 5 gr

Package Contents:

• 1 pcs AM2120 Temperature and Humidity Sensor Module
