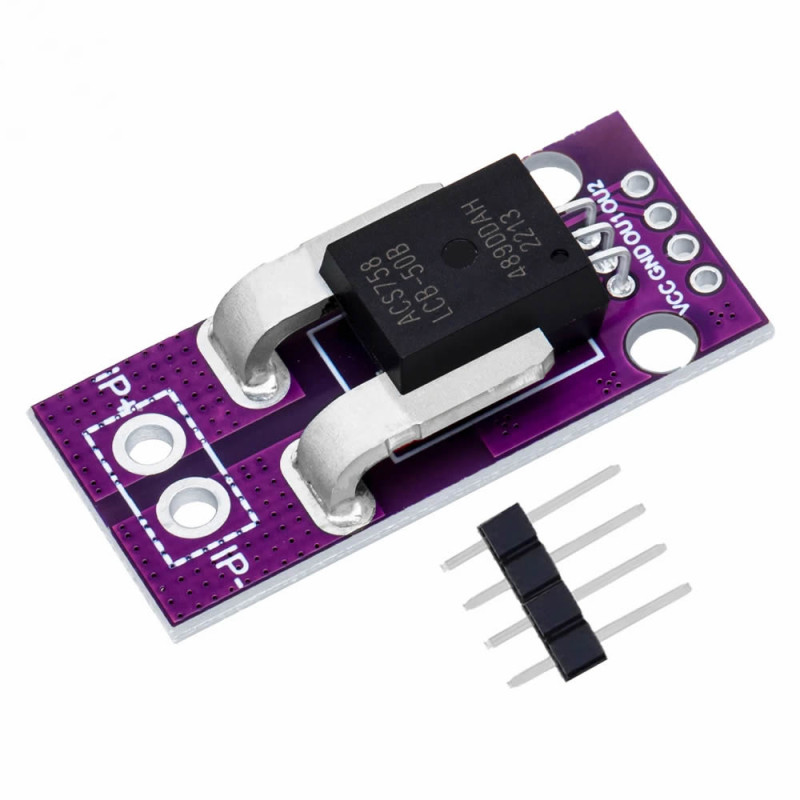

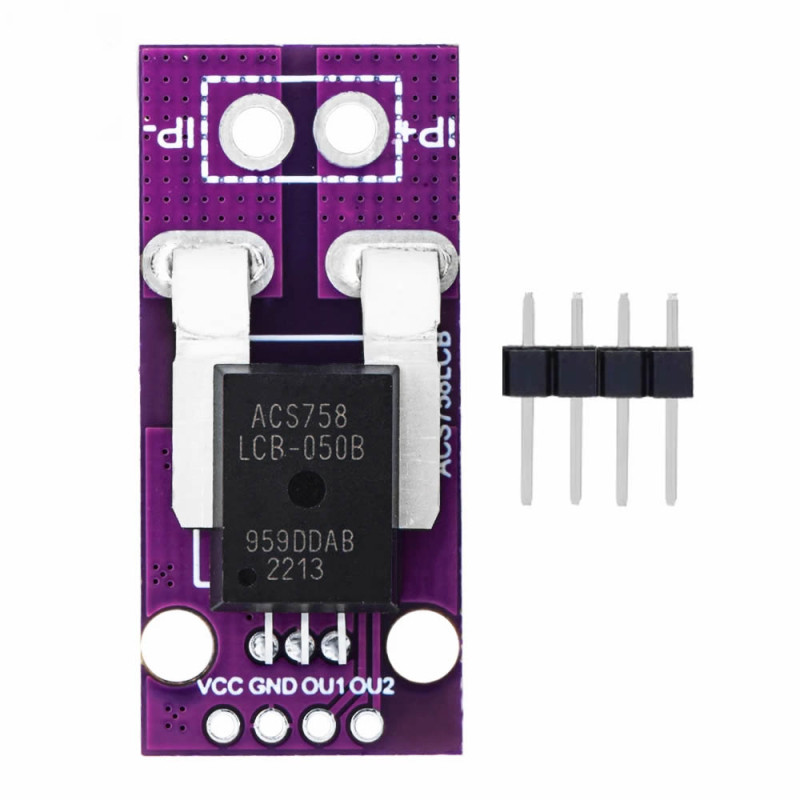

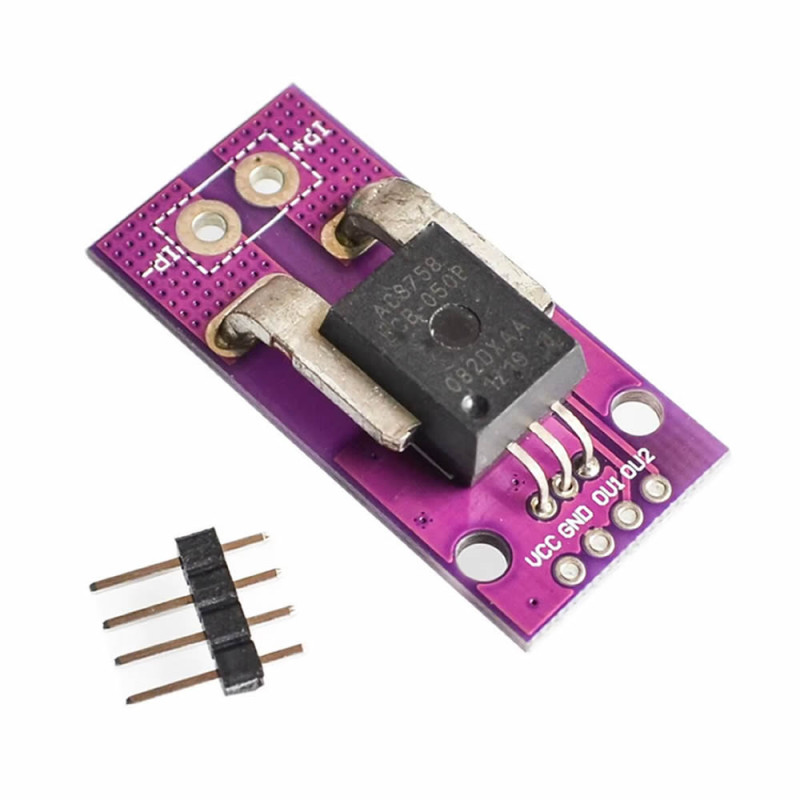

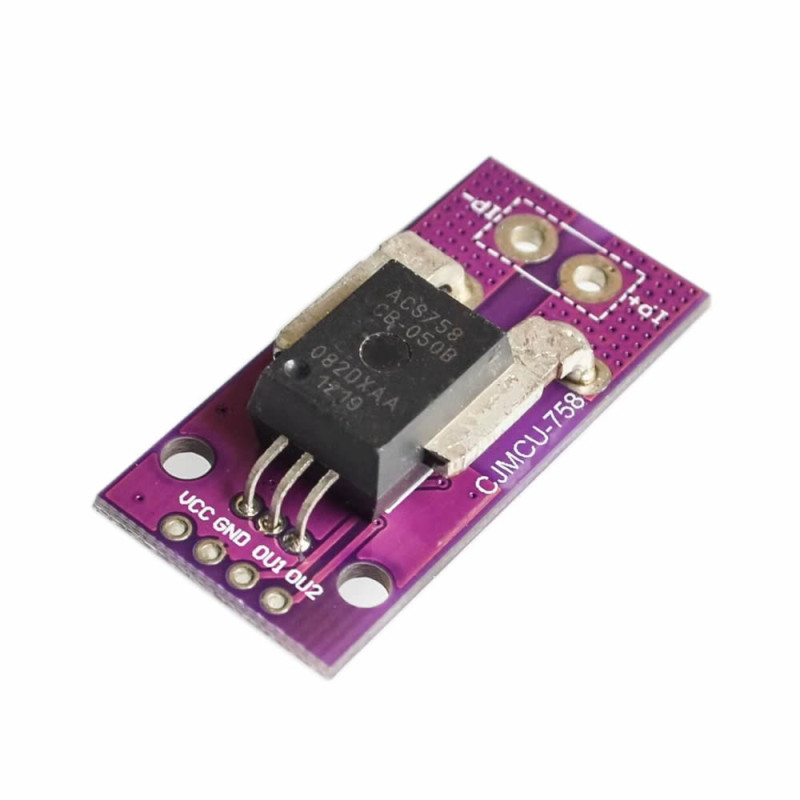

ACS758 50A Sensor Module

ACS758 50A Sensor Module

AC DC Bidirectional Power Supply Motor Control Analog Voltage Output High Precision Magnetic Field Based Measurement Sensor

     It is an ACS758 50A current measurement sensor module. It can measure AC and DC currents. It measures current with the technique of measuring the magnetic field generated on the power line. Thanks to this measurement method, high isolation protection is achieved during the current measurement process. It is used in applications such as motor control applications, load sensing, detection and protection of high current flow.

     This sensor can also measure the current flowing in both directions on the conductor. In this way, for example, it is also possible to measure noise in any direction that has occurred on the line. Its internal resistance is typically 100uohm, providing low power loss. In addition, the thick copper conductor design makes it possible for the device to operate under high overcurrent conditions.

    Features:

•    ACS758 50A Sensor Module
•    Operating voltage: DC 3.3V 5V
•    Analog voltage output proportional to the input supply
•    Measurement current: 50A Maximum
•    Measurement current type:  AC / DC
•    Sensitivity: 40 mV/A
•    Frequency: 120kHz
•    Internal resistance:  100uohm
•    Advanced temperature resistance
•    Magnetic field based current measurement technology
•    Color: Purple
•    Operating voltage:   -20C  /  85C

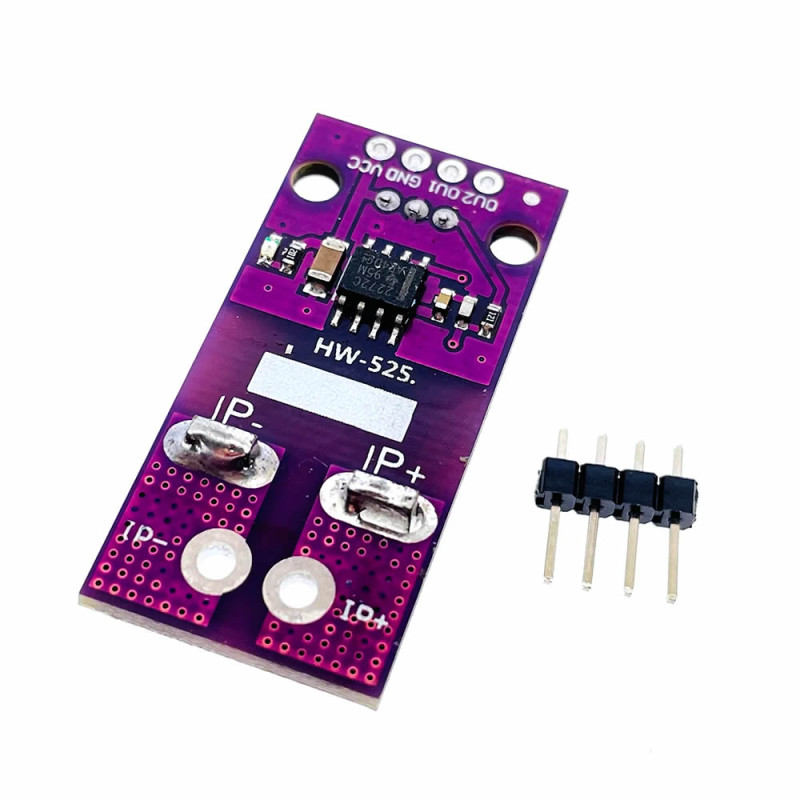

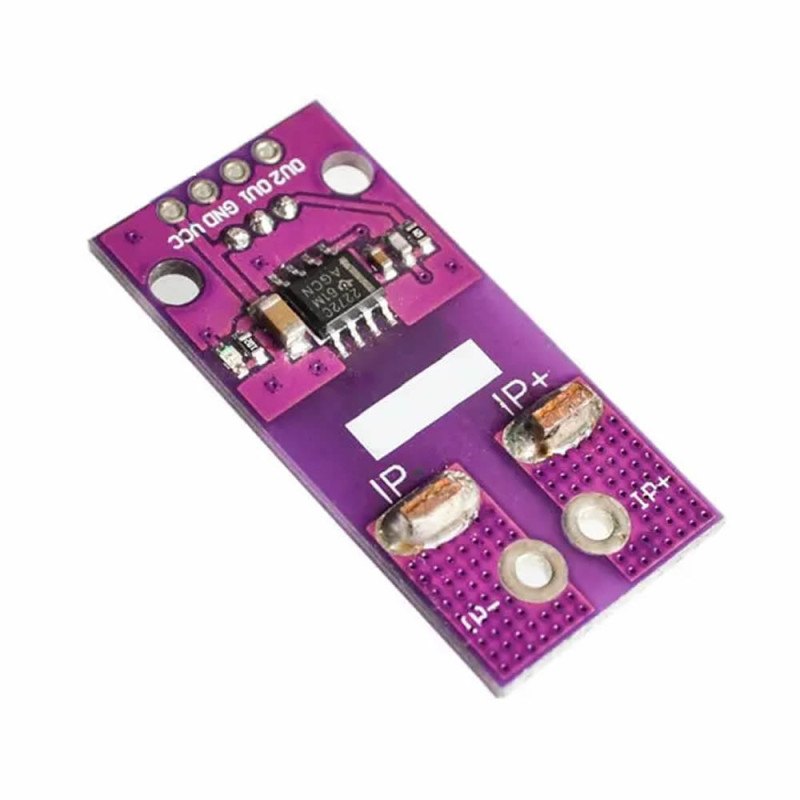

•    Two mounting holes

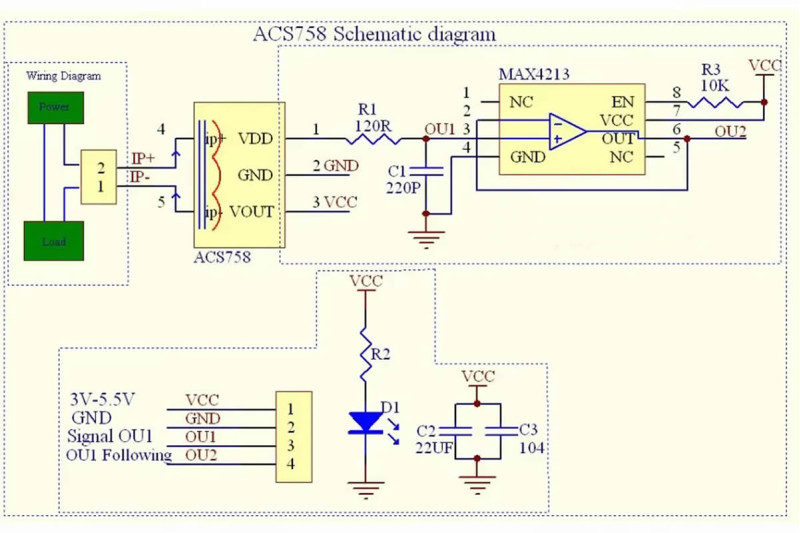

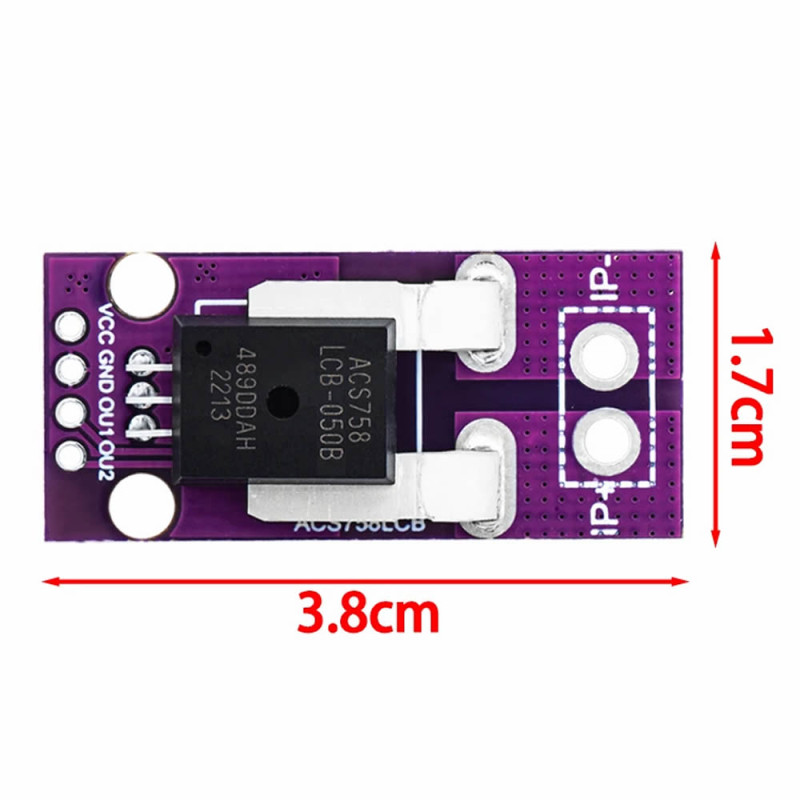

•    Dimensions:  17mm x 38mm
•    Weight:  7gr

Package contents:

•     1 pcs ACS758 50A Sensor Module
•     4 pin male header socket.
