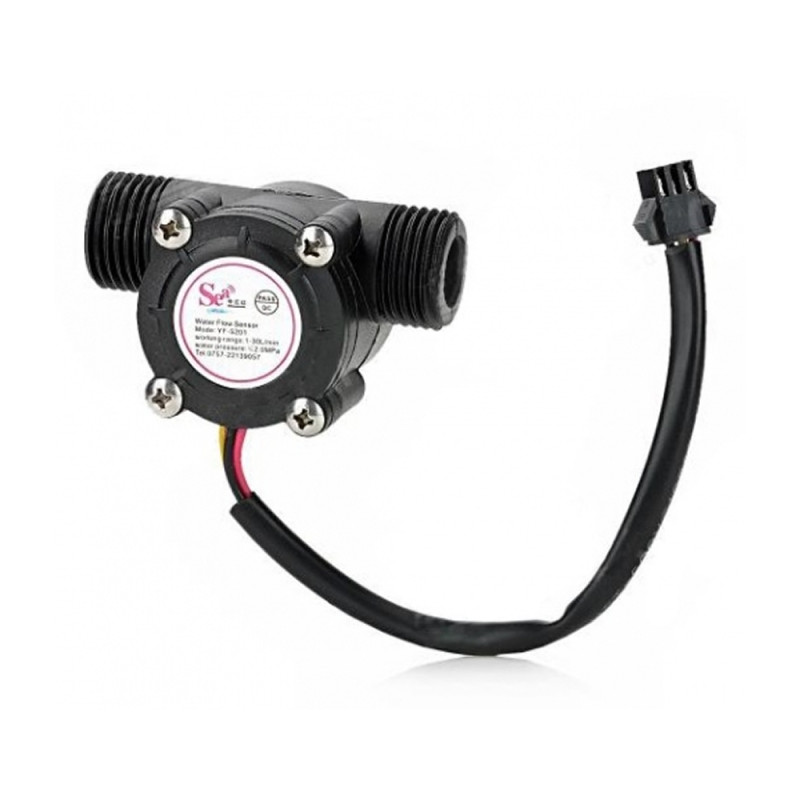

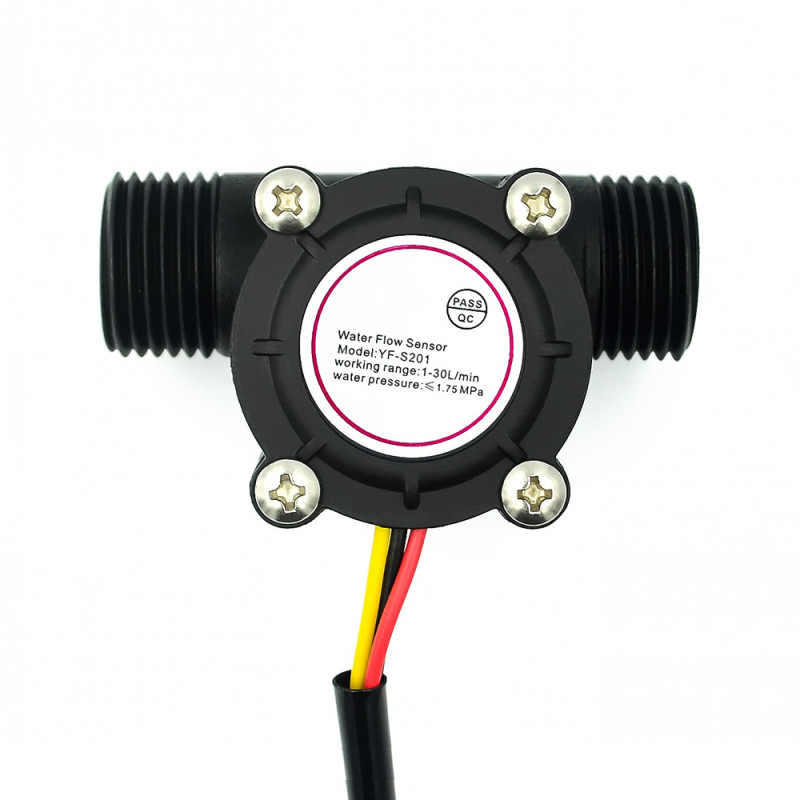

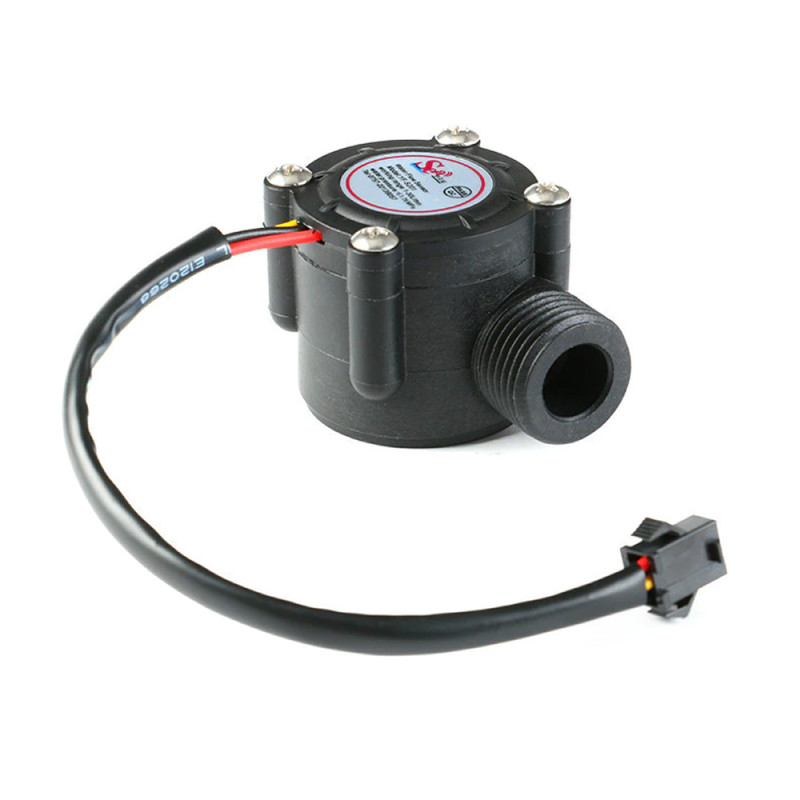

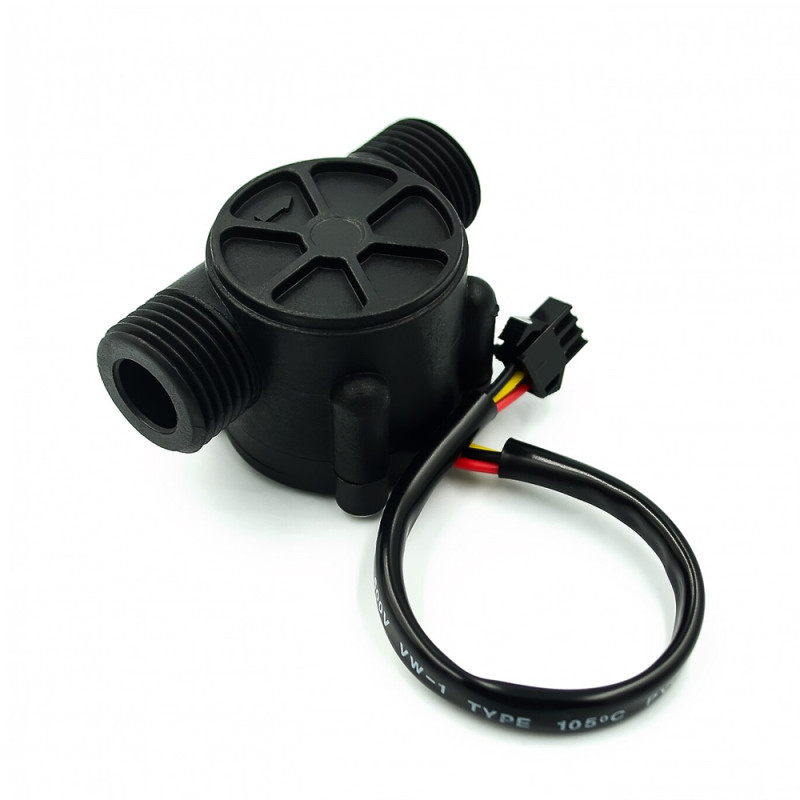

YF-S201 Water Flow Sensor

YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
YF-S201 Water Flow Sensor
0 reviews • Write a review
230.40TL
Ex Tax: 192.00TL
  • Stok Durumu: Stok Var
  • Marka: OEM
  • Model: YF-S201 Sensör
  • SKU: RBZ.100.787
Add to Cart
Hemen Al Soru Sor
Add to Wish List Compare this Product
Tags: YF-S201 , Water , Flow Sensor , Liquid , Current , Sensor , 1-30L/min , 2.0MPa , Water Meter , Flow Meter , Calorimeter



YF-S201 Water Flow Sensor

Liquid Flow Sensor 1-30L/min 2.0MPa Water Meter Flow Meter Calorimeter

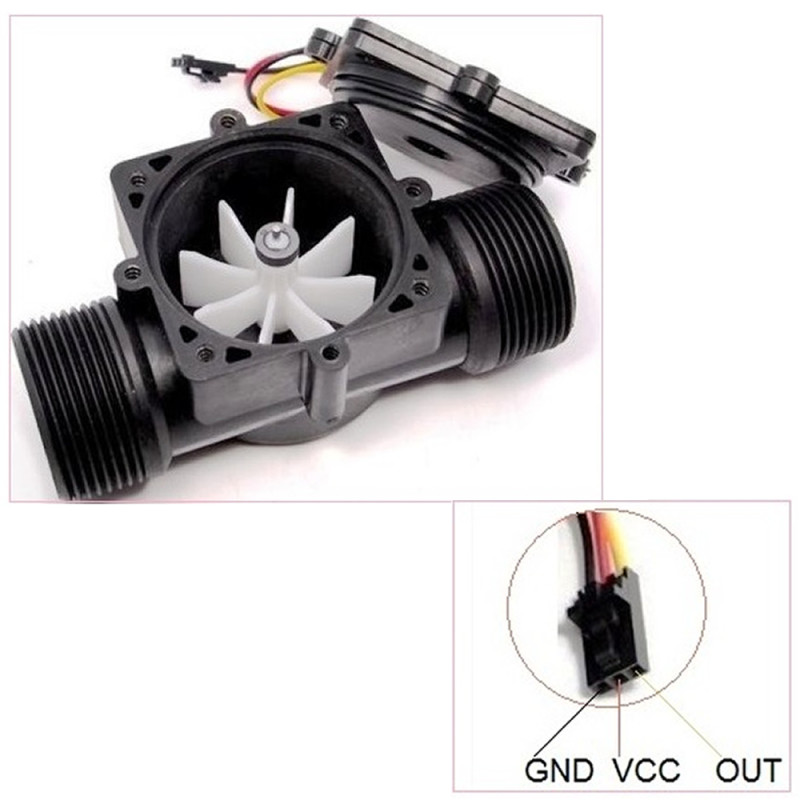

     The water flow and hydraulic pressure sensor is a sensor that outputs the revolution count of the impeller rotating thanks to the water flowing through it. The impeller revolution count is measured by the hall-effect magnetic sensors located inside the sensor. Since it has a digital output, it can be used with many microcontroller platforms, primarily Arduino. It can easily be preferred for measuring the amount of liquid flowing in a coffee machine or a garden irrigation system.


Features:
  • External thread diameter: 1/2”
  • Operating voltage: DC 5V-24V
  • Current: 15 mA ( DC 5V )
  • Communication: Digital ( Pulse )
  • Flow rate: 1-30L/minute
  • Water Pressure:  ≤ 2.0Mpa
  • Fast application with easy mounting
  • High performance sealing
  • High quality magnetic sensor
  • Material: Plastic / Metal
  • Color: Black

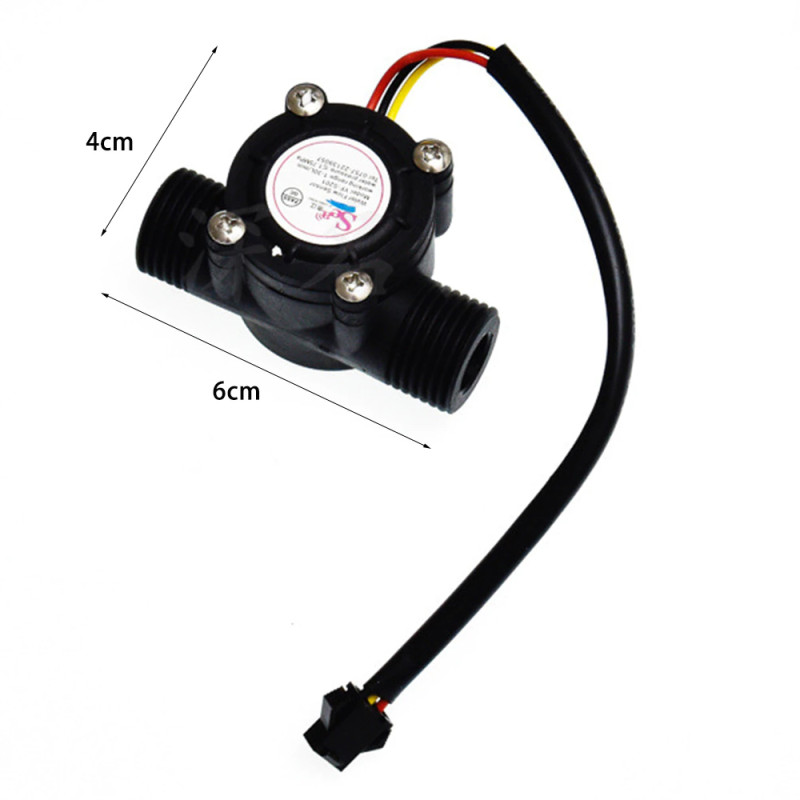

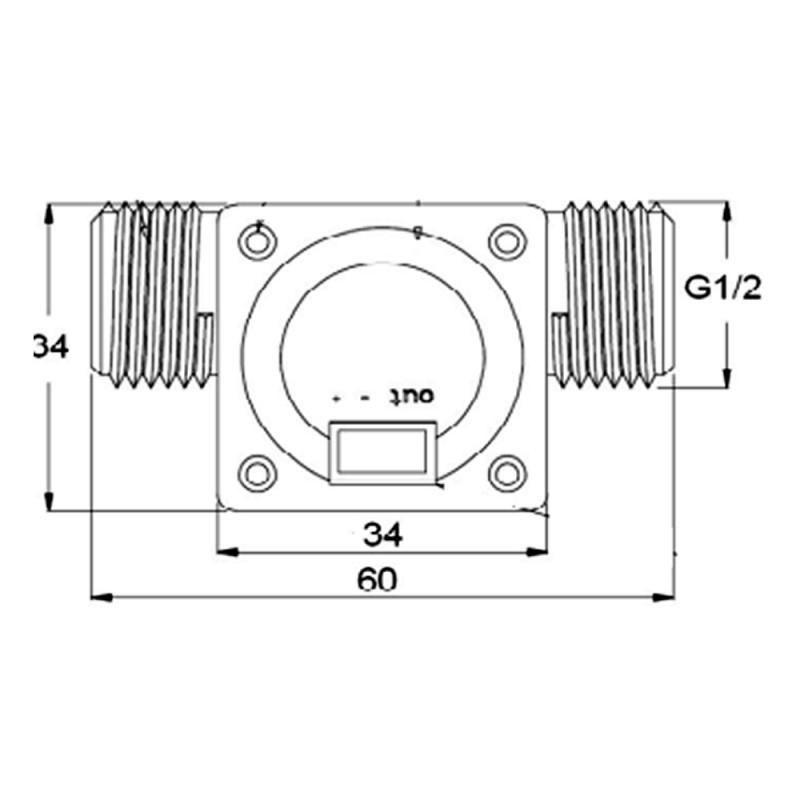

  • Dimensions: 62mm x 36mm x 34mm
  • Cable length:  15cm
  • Weight: 50gr

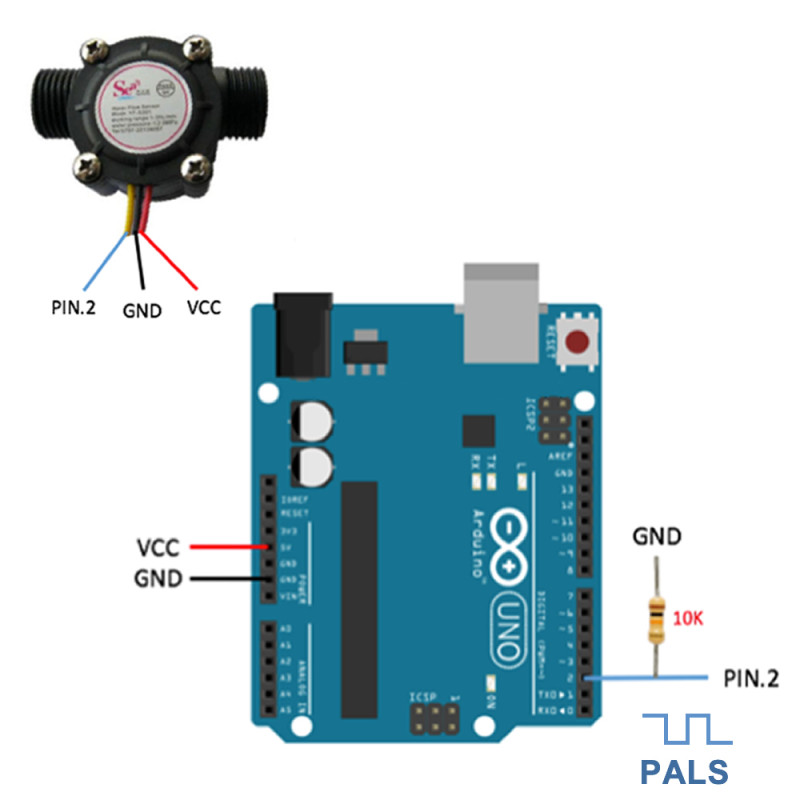

Pin Description:

  • Red: Supply + connection
  • Black: Supply - connection ( Ground )
  • Yellow: Pulse signal connection



Package contents:

  • 1 Piece YF-S201 Sensor
