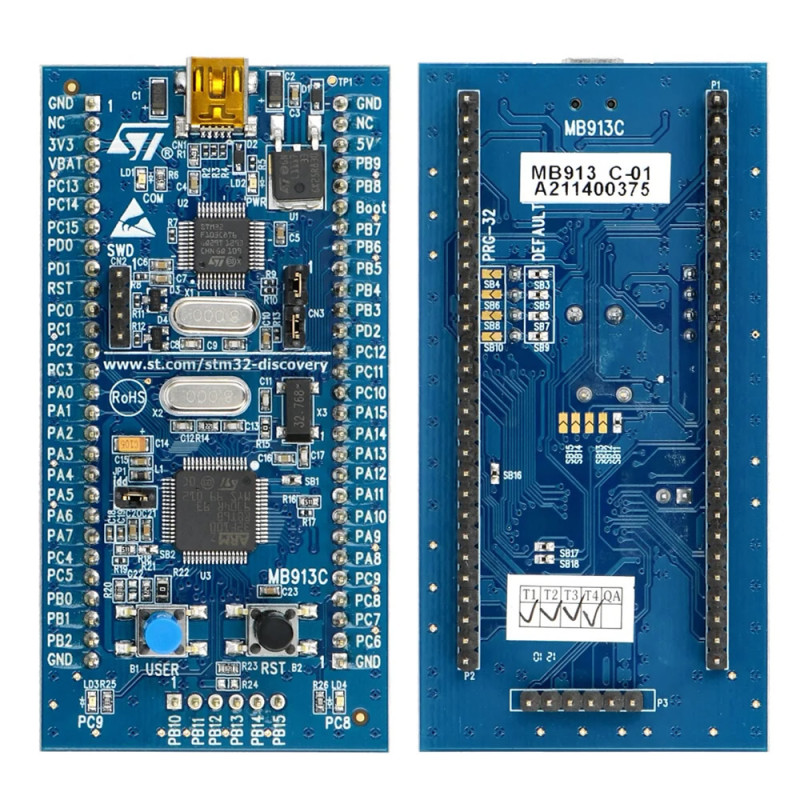

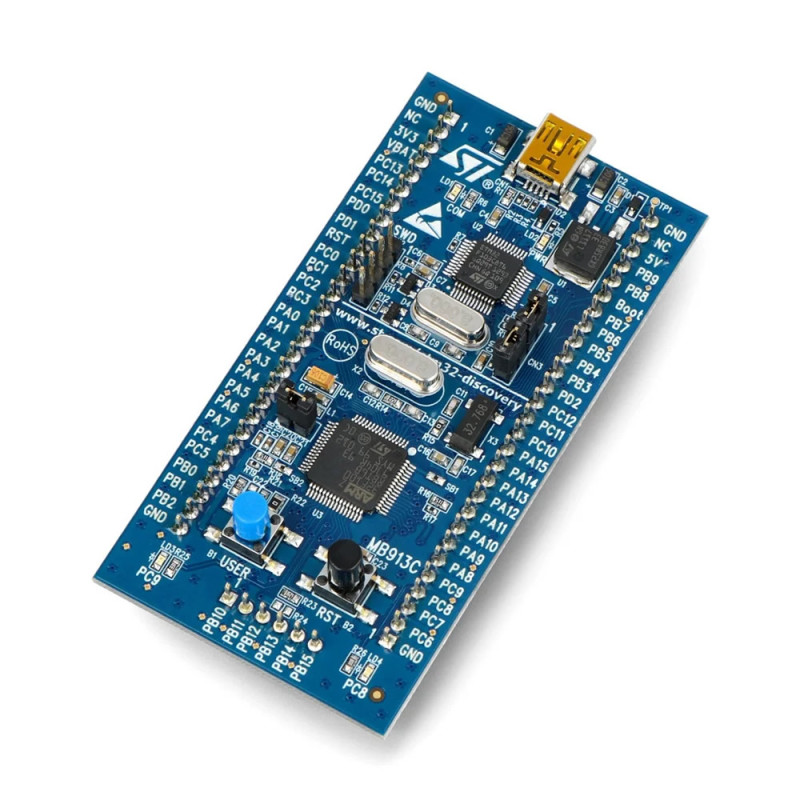

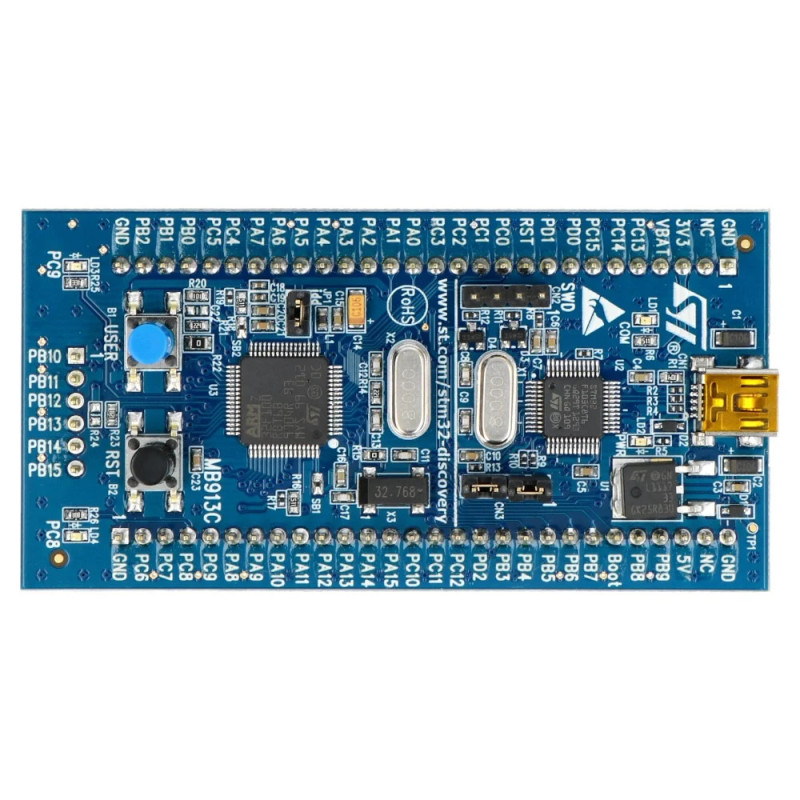

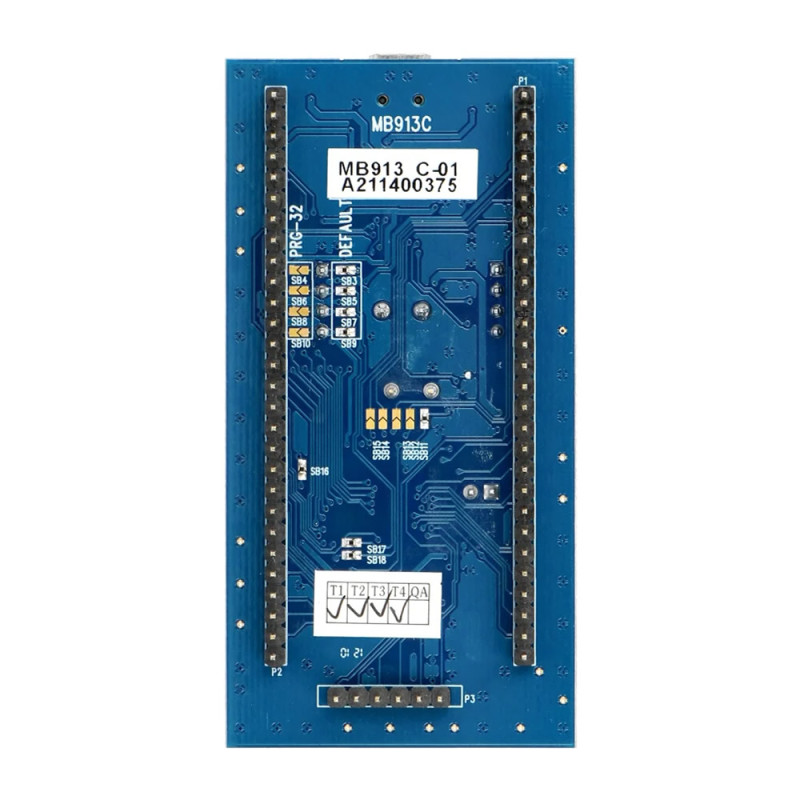

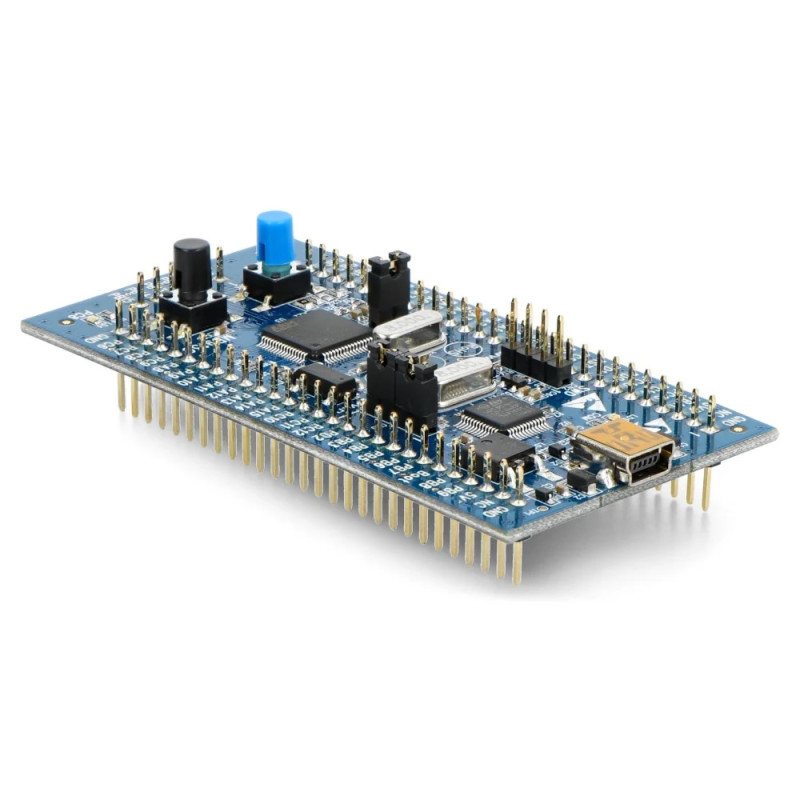

STM32VLDISCOVERY Development Kit

ST STM32VLDISCOVERY Discovery Kit

Development Board STM32F100RB Cortex M3 Arm 24 MHz Mcu MB913C ST-LINK V2 Jtag Programmer 128Kb Flash Motor Control CEC Functions

     STM32VLDISCOVERY is a low-cost and fast way to discover the STM32 series. It includes everything needed for beginners and experienced users to get started quickly. The STM32 Discovery includes an STM32F100 microcontroller in a 64-pin LQFP and an in-circuit ST-Link debugger/programmer for debugging Discovery applications and board applications. A large number of free ready-to-run application firmware examples are available to support quick development using the LEDs, button and extension header for connection to other boards or devices.

     The STM32VLDISCOVERY is the cheapest and quickest way to discover STM32F100 Value line microcontrollers. It includes everything required for beginners and experienced users to get started quickly. The STM32VLDISCOVERY discovery kit includes an STM32F100 Value line microcontroller in a 64-pin LQFP and an in-circuit ST-LINK debugger/programmer to debug discovery applications and other target board applications.

     The STM32VLDISCOVERY is a low-cost and quick way to discover the STM32 value line. It includes everything required for beginners and experienced users to get started quickly. The STM32 value line Discovery includes an STM32F100 value line microcontroller in a 64-pin LQFP and an incircuit ST-Link debugger / programmer to debug Discovery applications and other target board applications. A large number of free ready-to-run application firmware examples are available on www.st.com/stm32-discovery to support quick evaluation and development using the LEDs, button and extension header for connection to other boards or devices.

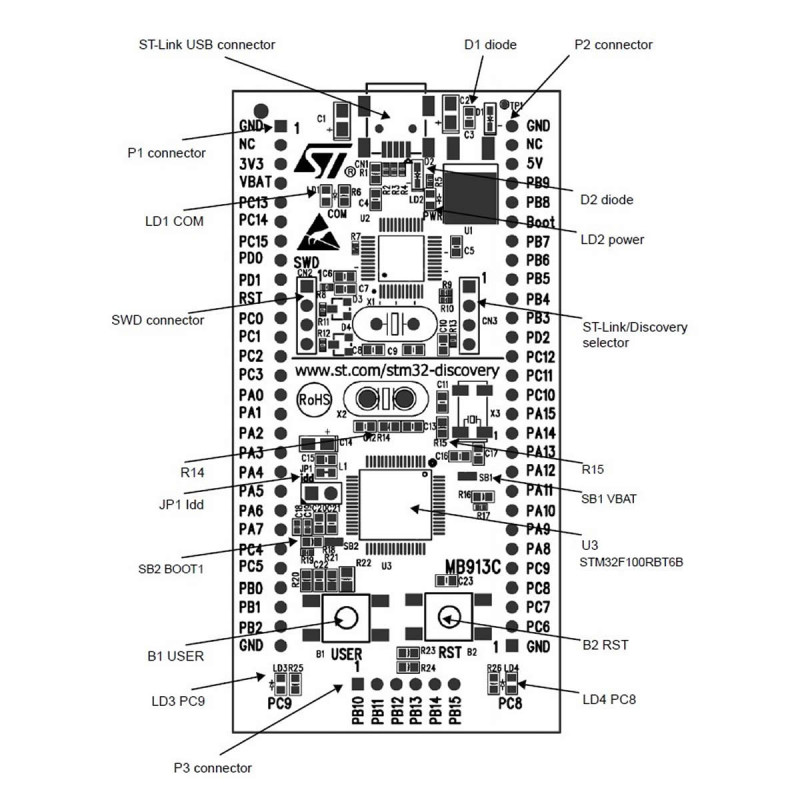

Features

•     STM32F100RBT6B microcontroller, 128 KB Flash memory, 8 KB RAM in 64-pin LQFP
•     Clock frequency: 24 MHz (30 DMIPS)
•     On-board ST-LINK with selection mode switch to use the kit as a stand-alone ST-LINK (with SWD connector)
•     Designed to be powered by USB or an external supply of 5 V or 3.3 V
•     Can supply target application with 3 V and 5 V
•     Two user LEDs (green and blue)
•     One user push-button
•     12-channel ADC (12-bit)
•     2x DAC (12 bits)
•     2x SPI
•     I2C
•     3 USART
•     7 DMA channels
•     Extension header for all QFP64 I/Os for quick connection to prototyping board or easy probing
•     Comprehensive free software including a variety of examples, part of STSW-STM32078 package

Package Contents:

• 1 Piece STM32VLDISCOVERY

Attention = A mini usb cable does not come in the package.
