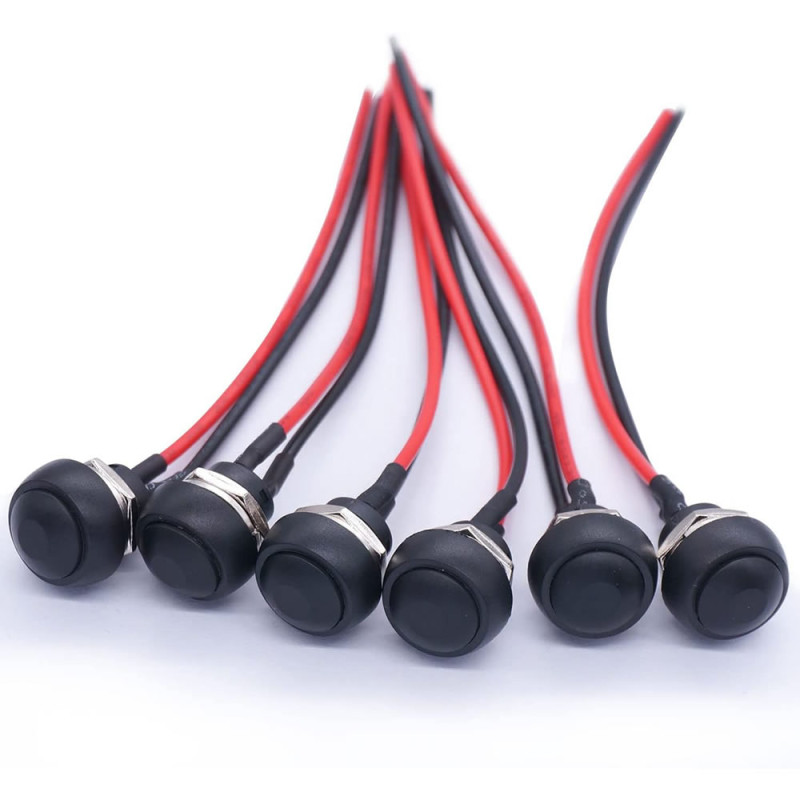

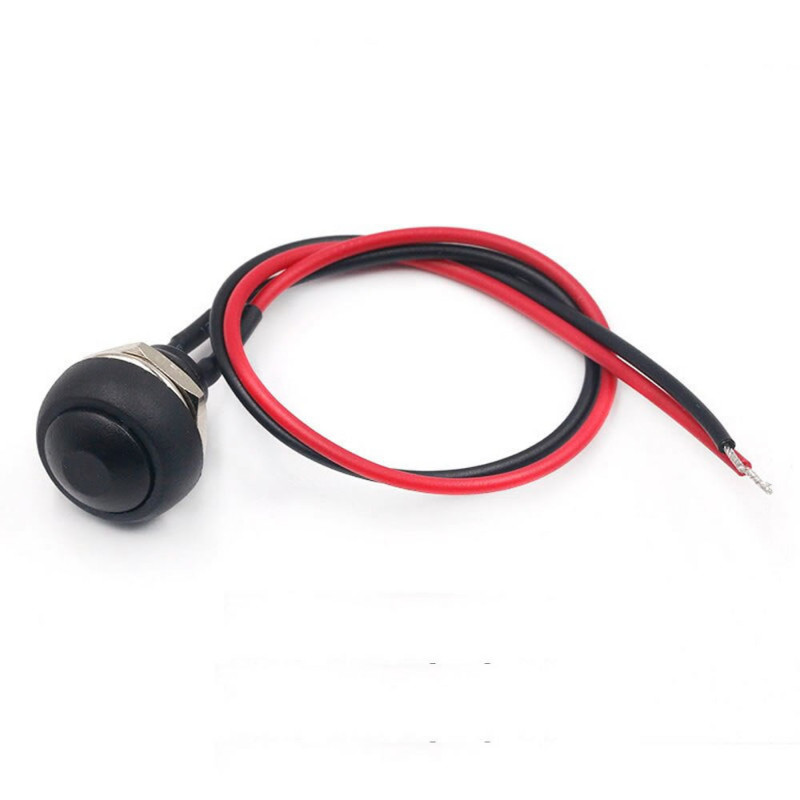

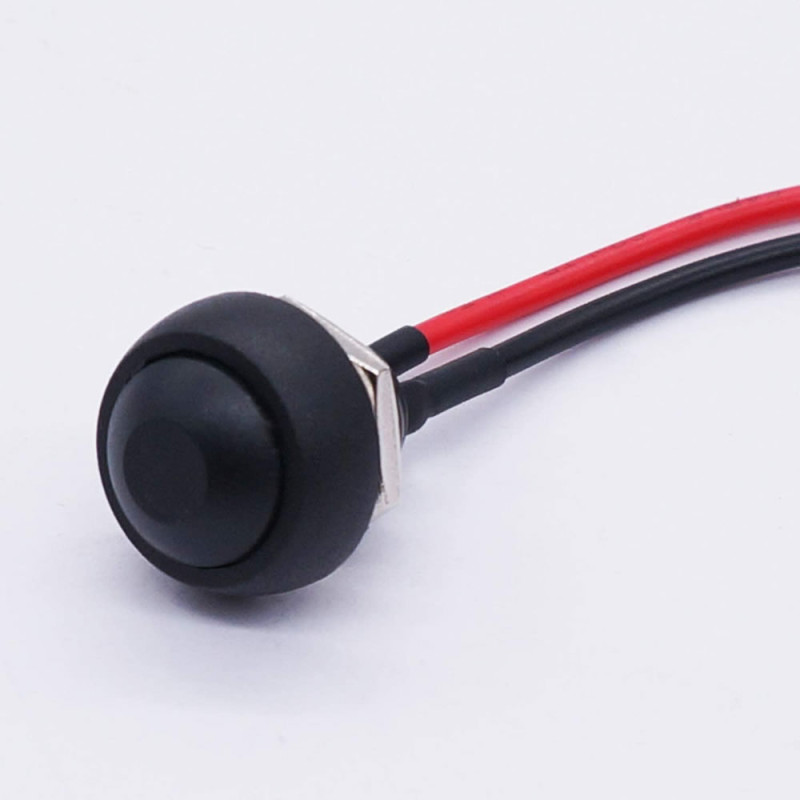

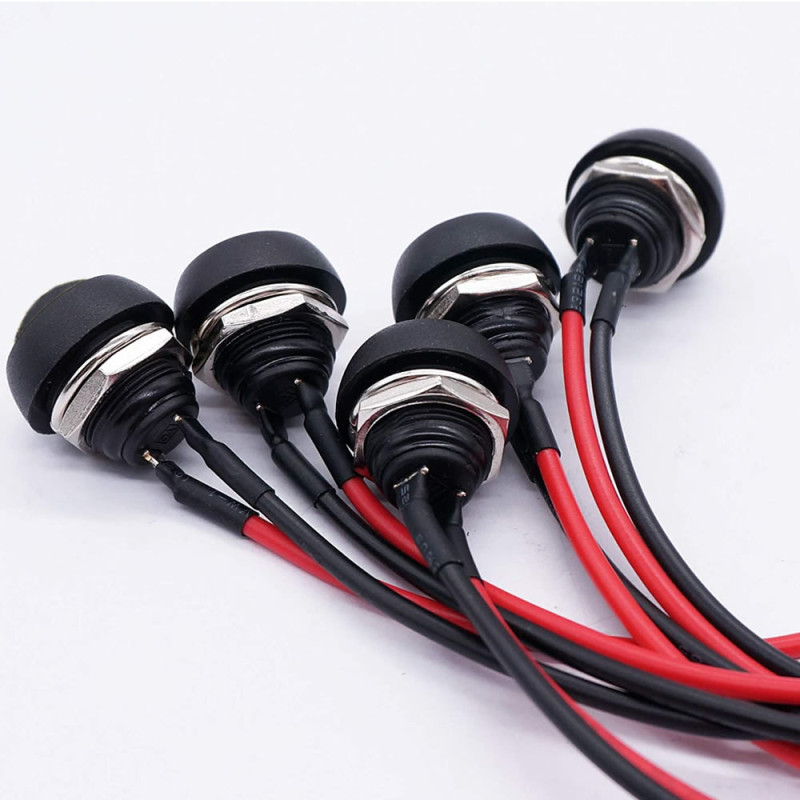

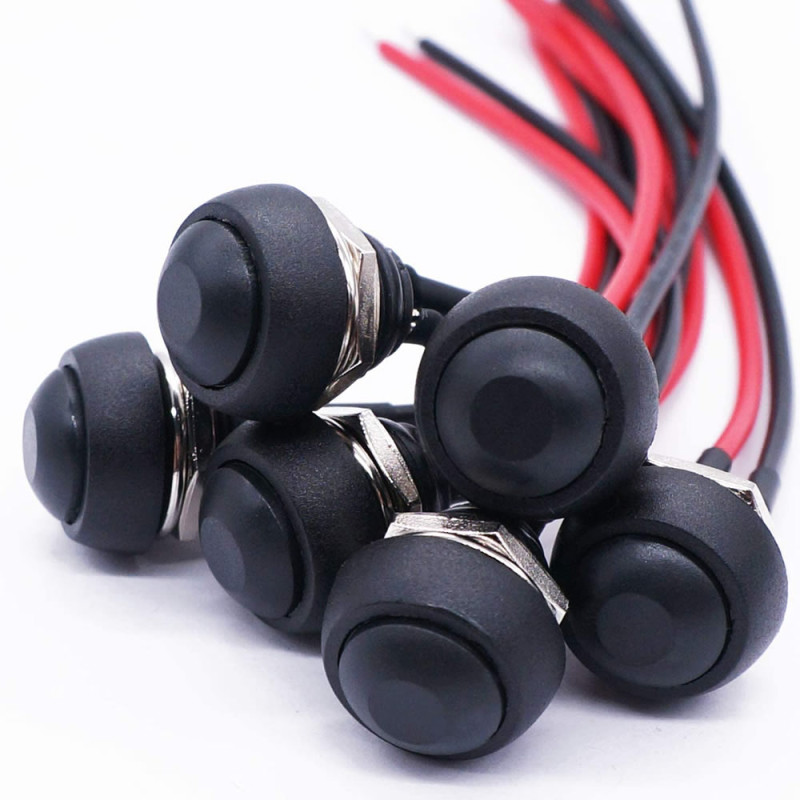

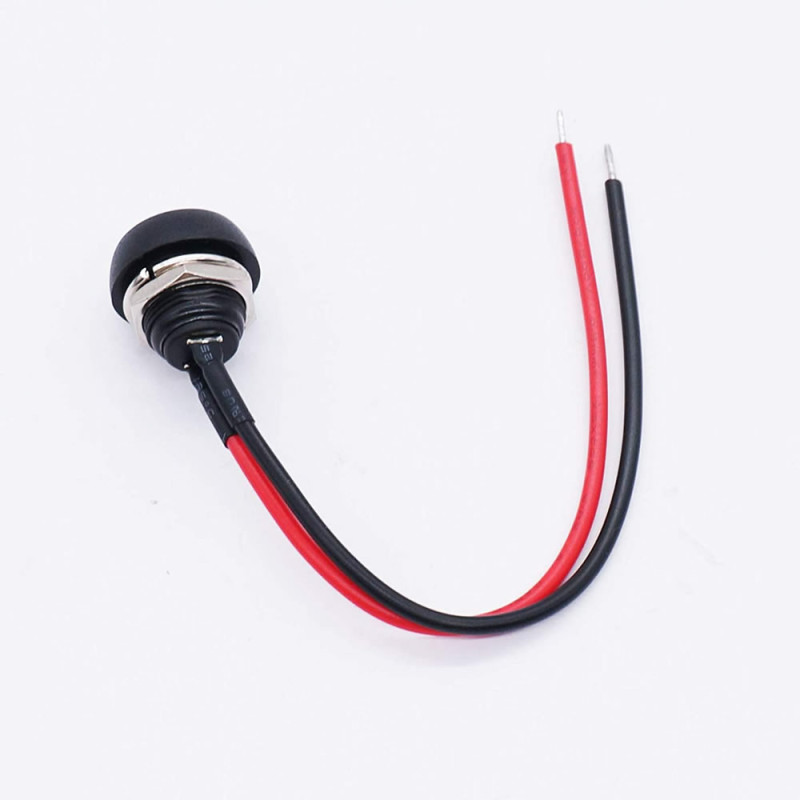

12mm PBS-33B Push Button with 20cm Cable

12mm PBS-33B 2 Pin Push Button Black with 20cm Cable

ON OFF 1A 250V Mini Round Waterproof Switch Momentary Switch

     2 pin black push button switch. It has 1A 250V switching capacity. NO is normally open circuit. When the button is pressed, the switch becomes short circuit. When pressing ends, it becomes open circuit again. It is shipped with a 20cm cable soldered and insulated with heat shrink tubing.

Features:

• 2 Pin push button  ( Momentary )
• Model: PBS-33B
• Cable length: 20cm
• The cable is produced in red and black colors for ease of use.
• Maximum current capacity: 1A 250V   / 3A 125V
• Contact form: NO Open circuit
• Number of pins: 2
• Action type: Push to ON ( OFF-ON )
• Material: Plastic /  Metal
• Contact resistance: <50mw
• Insulation protection: 1500VAC/1min
• Operating temperature:  -25C  /  +85C
• Color: Black
• Life: more than 10000

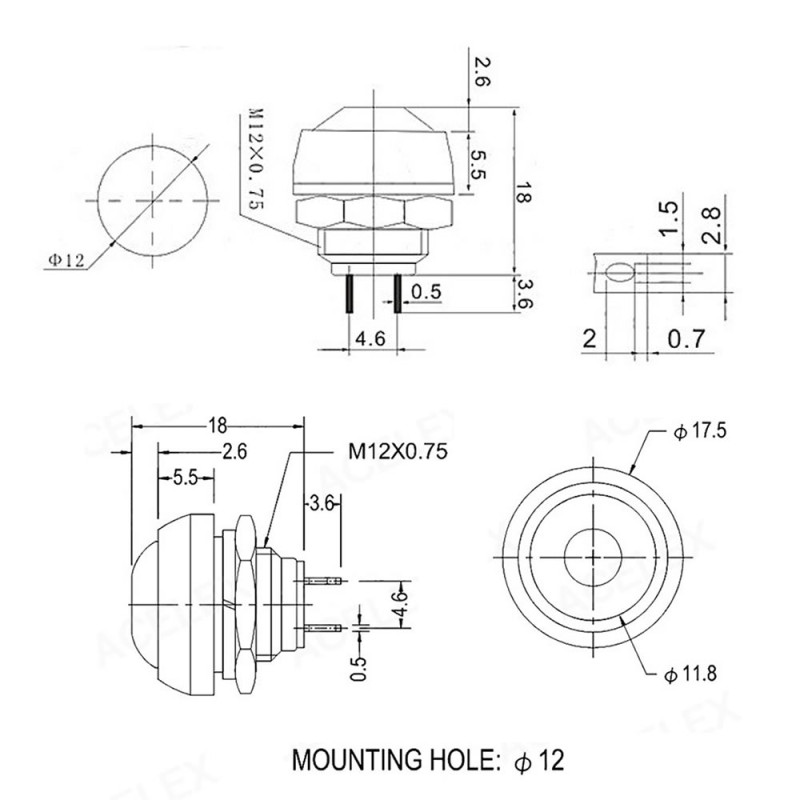

• Mounting hole: 12mm

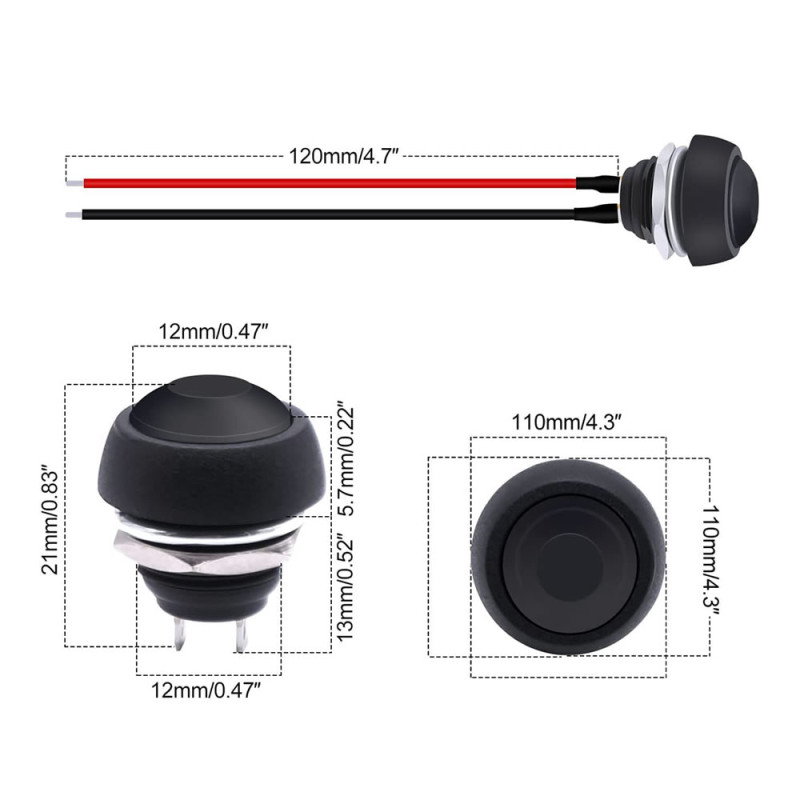

• Dimensions: 18x17,5mm
• Weight: 6gr

Package Contents:

• 1 Piece 12mm PBS-33B Push Button with 20cm Cable
