CY8CKIT-145-40XX

Infineon CY8CKIT-145-40XX PSoC 4 Development Board Kit

ARM Cortex-M0 48Mhz 32KB Flash 5 Segment Cap Slider 3 Cap Button Kitprog2 Programmer Debugger

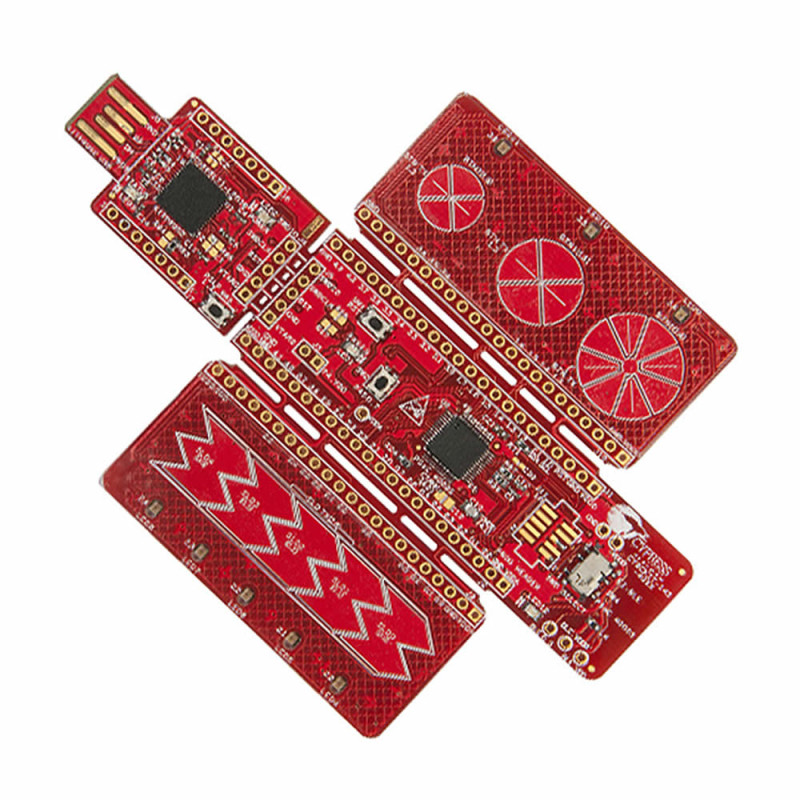

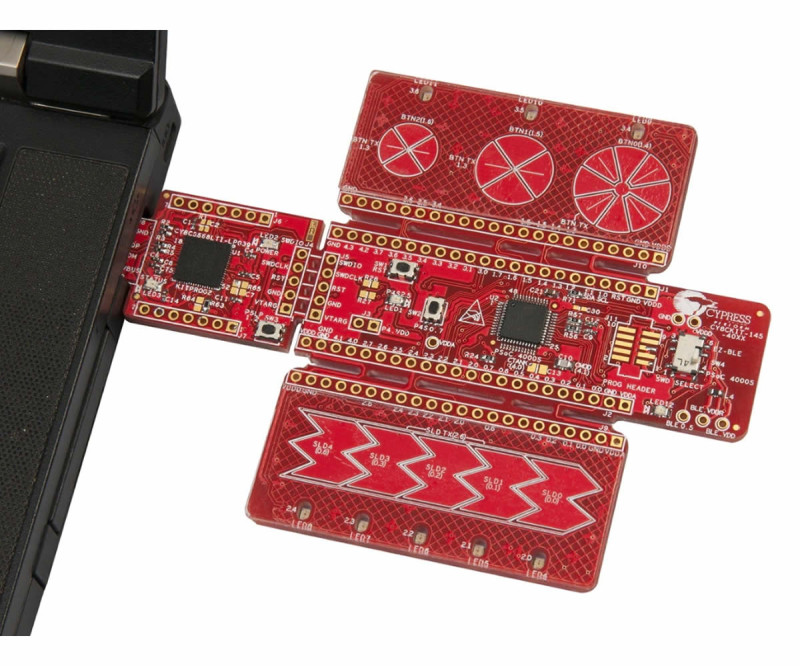

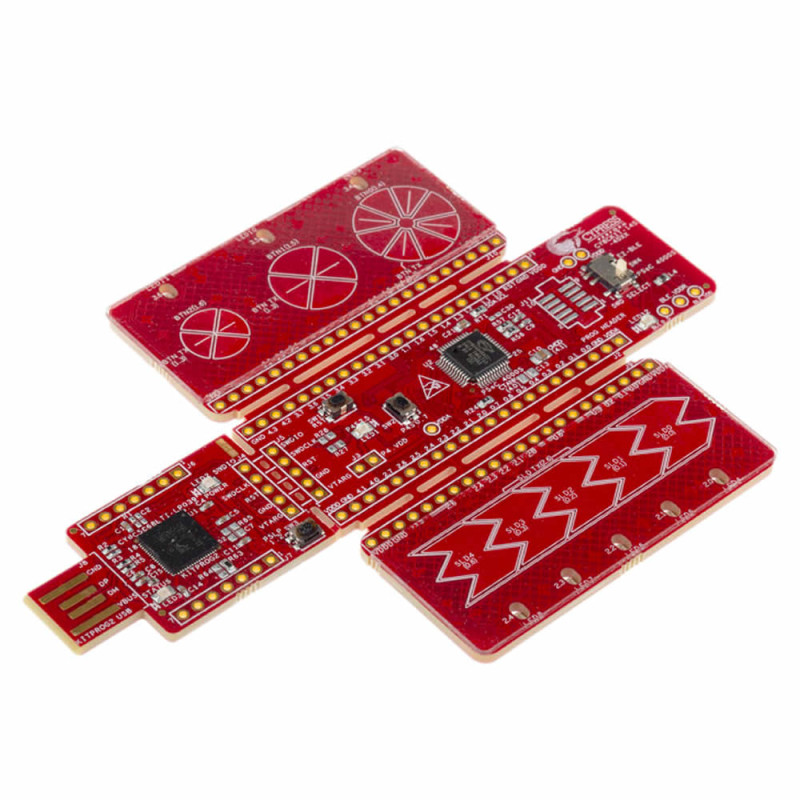

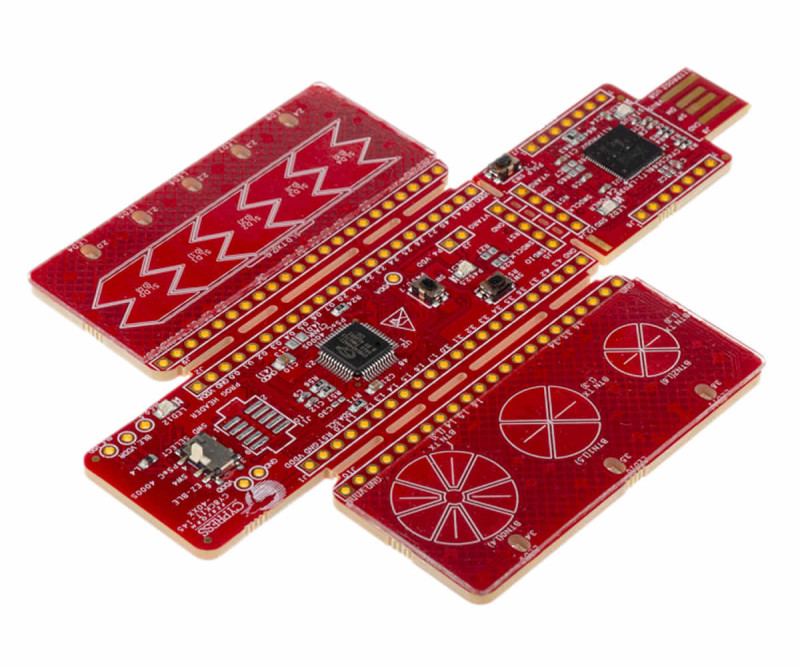

     The PSoC 4000S Prototyping Kit enables you to evaluate and develop with the fourth-generation, low-power capsense solution using the PSoC 4000S device. The kit is designed with a snap-away form-factor, allowing users to separate the KitProg (on-board Programmer and Debugger) from the target board and use it independently.

     Infineon's first PSoC 4 with an ARM Cortex-M0+ core. The PSoC 4000S device features the fourth-generation, low-power capsense solution with up to 32KB flash, 4KB SRAM, 6 Programmable Analog Blocks, 7 Programmable Digital Blocks and 36 general purpose I/Os, all capable of capsense and 16 Smart I/Os.

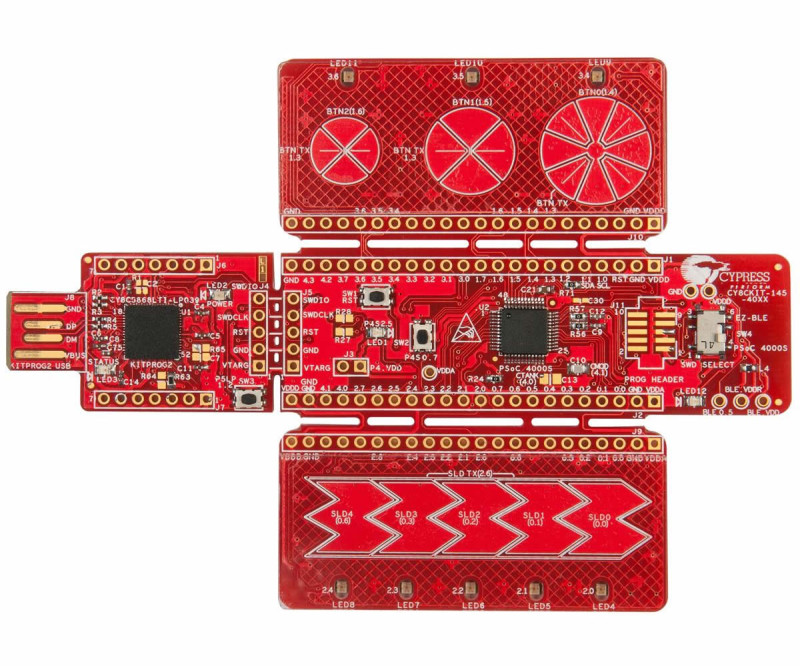

     The PSoC 4000S Prototyping kit features the fourth-generation capacitive-sensing solution that "just works" in noisy environment and in the presence of liquids. This kit enables you to quickly evaluate and develop with capsense using the two capacitive boards, one featuring three capacitive buttons and the second featuring a five-segment capacitive slider, both capable of Self- and Mutual-Capacitive Sensing

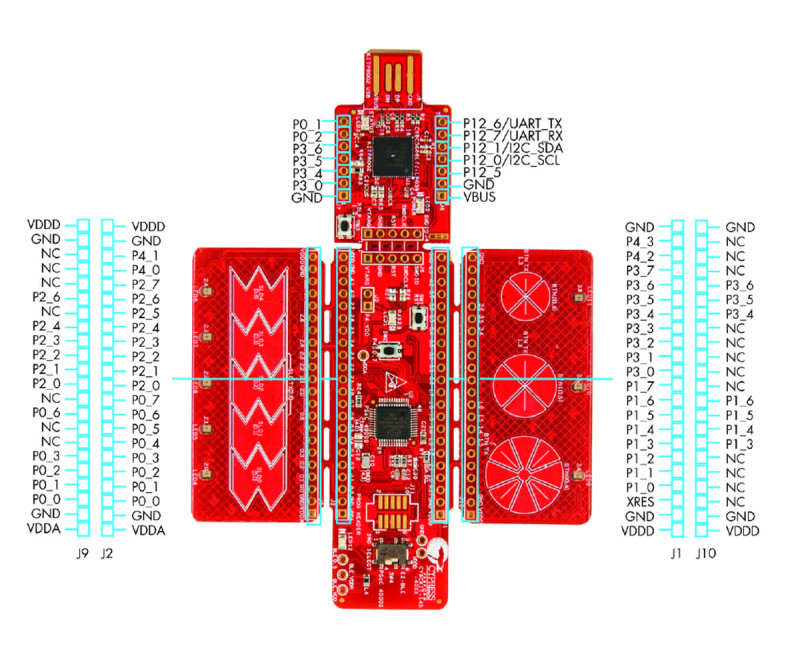

     The PSoC 4000S Prototyping Kit provides easy access to all the device I/Os in a breadboard-compatible format and includes an EZ-BLE PRoC module, an LED and a push button. This kit also contains an on-board Programmer and Debugger, designed using PSoC 5LP, that can support industry standard programming interface like CMSIS-DAP and Drag-and-Drop programing.

Features:

•  3 CapSense buttons
•  5-Segment CapSense slider
•  LEDs to provide feedback
•  Onboard CMOD, CTANK, CintA and CintB capacitors to enable CapSense development
•  Bypass capacitor to ensure high-quality analog-to-digital conversions (No Load by default)
•  A push button to provide a simple user input
•  Load capacitors to connect the 32-kHz external crystal oscillator
•  Cypress EZ-BLE PRoC Module
•  5V operation

CY8C4045AZI-S413

Software

•     PSoC Creator

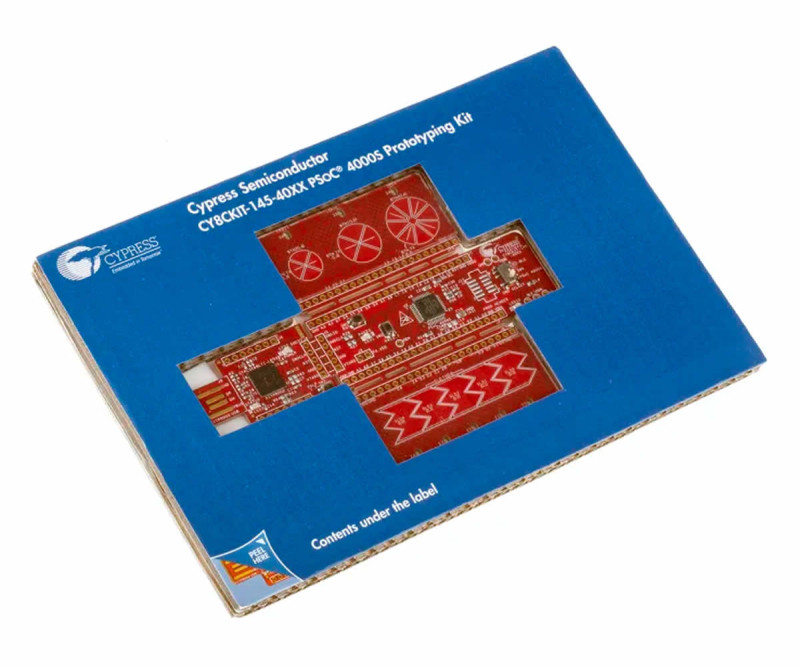

Kit Contents:

•    1 Piece  CY8CKIT-145-40XX
