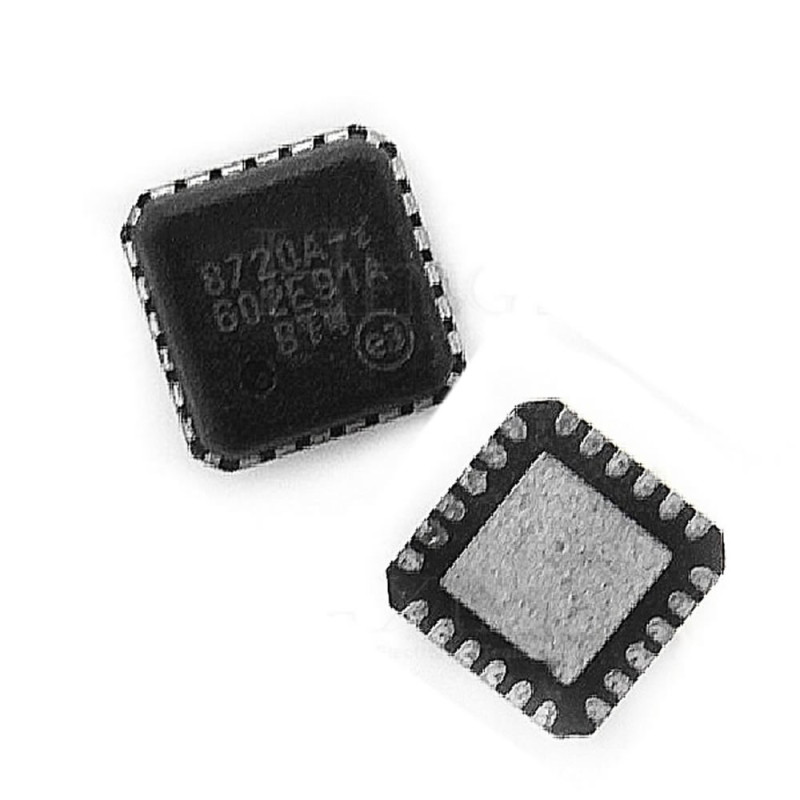

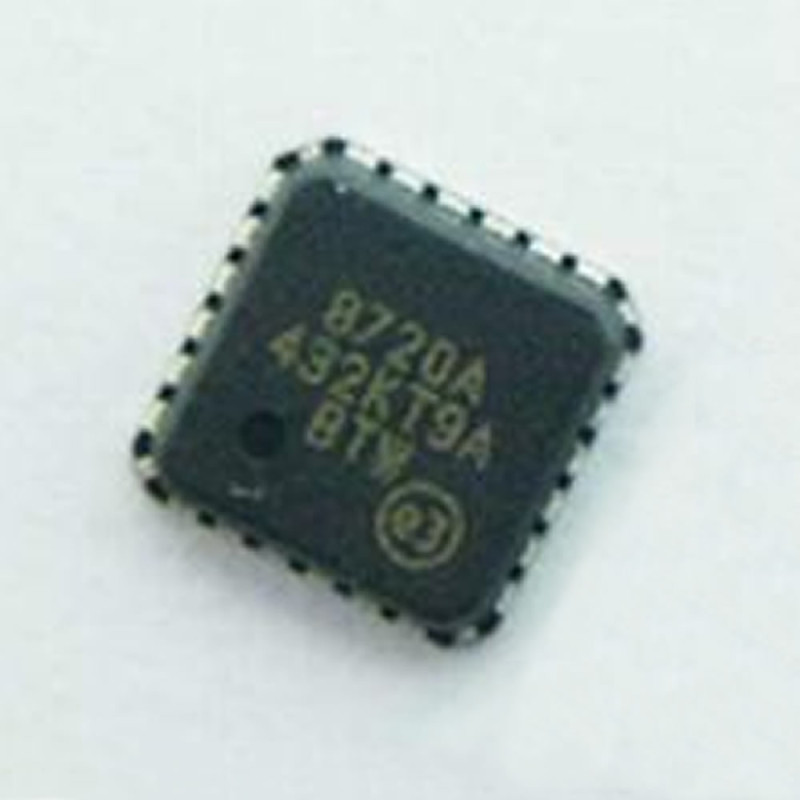

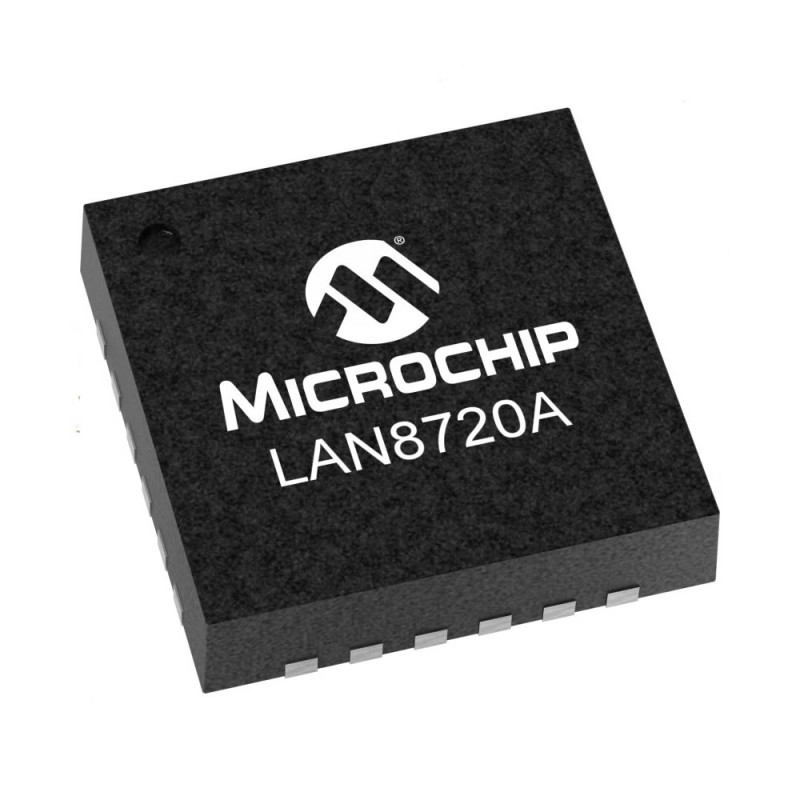

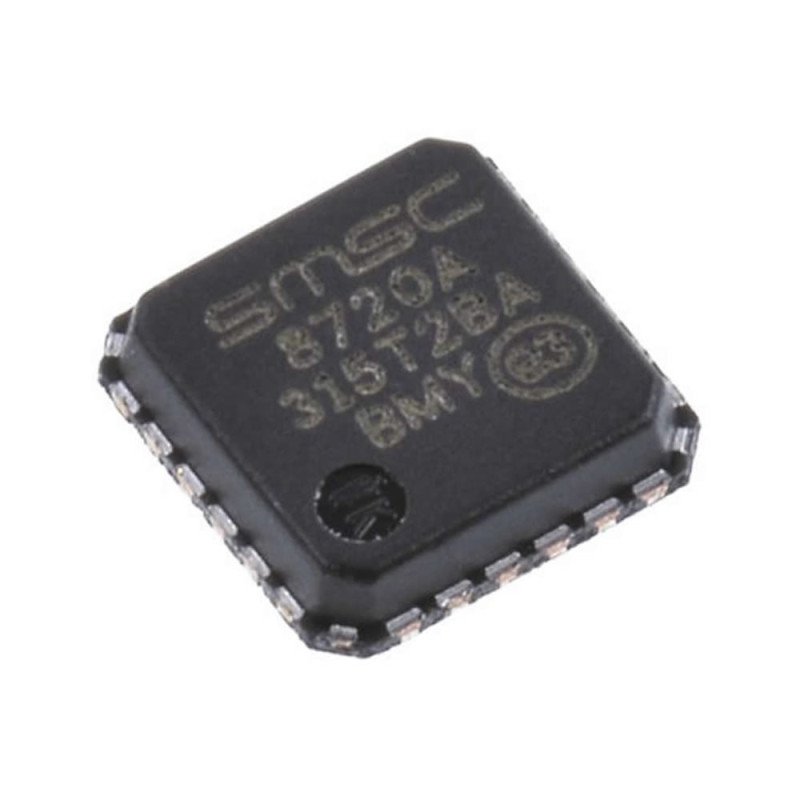

LAN8720A-CP-TR Ethernet Transceiver

LAN8720A Ethernet Communication IC Internet

10/100 Base-T/TX Ethernet Transceiver with RMII Interface

     Microchip's LAN8720A/LAN8720Ai are high-performance, small-footprint, low-power 10BASE-T/100BASE-TX transceivers specifically designed for today's consumer electronics, industrial and enterprise applications. The LAN8720A/LAN8720Ai are the industry's smallest footprint solutions with up to 40% lower power consumption than existing Microchip transceivers. The LAN8720A/LAN8720Ai have an integrated voltage regulator and ESD protection components to help reduce Bill of Material (BOM) costs.

     The LAN8720A/LAN8720Ai connect via an RMII interface. These devices support HP Auto-MDIX†, employ Microchip's proprietary flexPWR technology and are available in both extended commercial (0° to 85°C) and industrial (-40° to 85°C) temperature range options.

     Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in*.

Features

Highlights

• Integrated 1.2V linear regulator
• Incorporates flexPWR® technology
  • Industry leading power consumption
    • Up to 40% reduction from existing Microchip solutions
  • Flexible I/O voltage range from 3.6V to 1.6V
  • Extremely low energy detect standby mode
• Low-Cost 25MHz crystal for MII/RMII
• Industrial and extended commercial temperature range options available
• Compact package options:
  • LAN8720A: 4x4mm 24-pin QFN and SQFN package (RMII only)

Target Applications

• High-definition TV (HDTVs)
• Set-top Boxes (STBs)
• Digital Video Recorders (DVRs)
• Personal Video Recorders (PVRs)
• Network Printers and Servers
• Gaming Consoles
• Telecommunications
• POS Terminals
• Industrial

• Type    Transceiver
• Protocol    RMII
• Number of Drivers/Receivers    4/4
• Duplex    Full
• Receiver Hysteresis    -
• Data Rate    -
• Voltage - Supply    1.6 V ~ 3.6 V
• Operating Temperature    0°C ~ 85°C
• Mounting Type    Surface Mount
• Package / Case    24-VFQFN Exposed Pad
• Supplier Device Package    24-QFN (4x4)

Package Contents:

• 1 Piece LAN8720A-CP-TR Ethernet Transceiver
