LM317 Module

LM317 Adjustable Voltage Power Supply Module

DC DC Linear Regulator 2A Voltage Step Down

     The Lm317 is a linear voltage regulator. It is used to step down voltage. It releases the power generated between the input and output voltages into the air as heat. It is cooled passively by means of the heatsink on it. If you use it in applications with a very high voltage difference, an external heatsink may be needed.

​Features:

• LM317 DC-DC adjustable linear voltage regulator
• Output Current: 1.5A /  2.2A
• Input Voltage:  DC 40V Maximum
• Output Voltage: Adjustable  DC  1.2V - 37V
• Operating Temperature: -10C - +100C

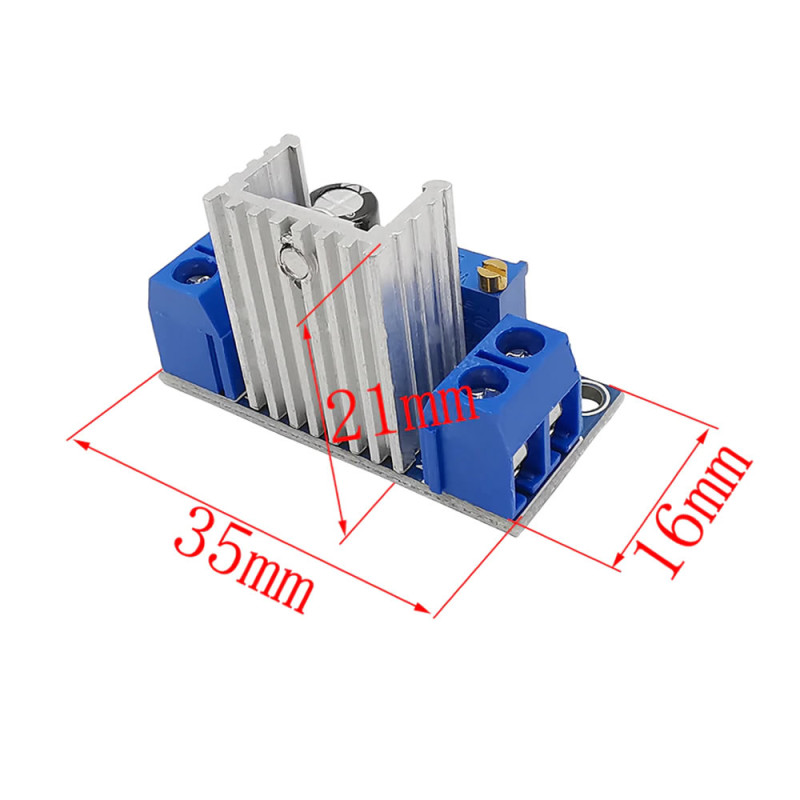

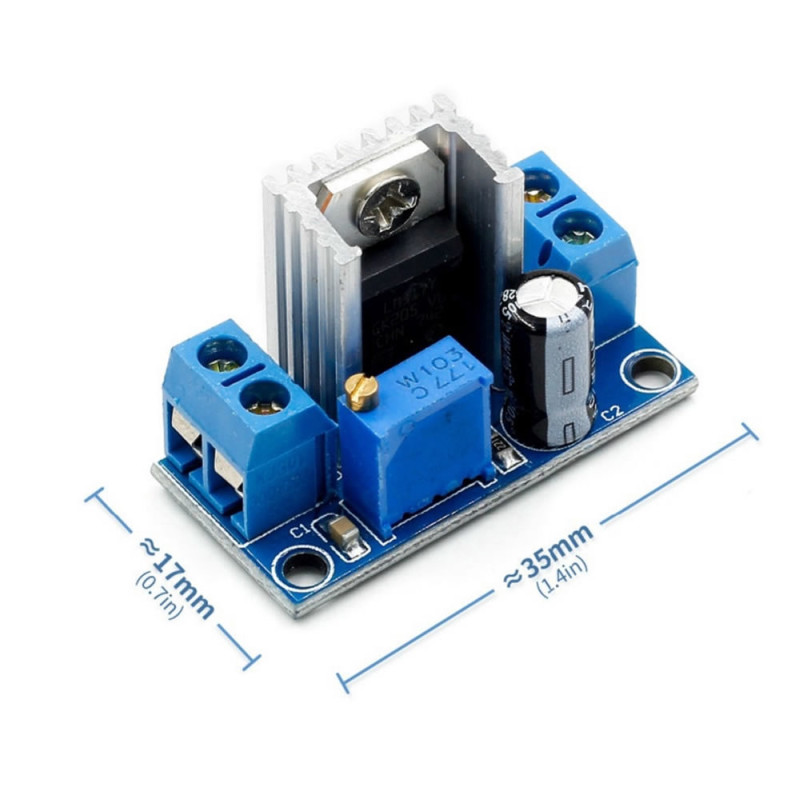

• Dimensions: 35 (mm) x 17 (mm)

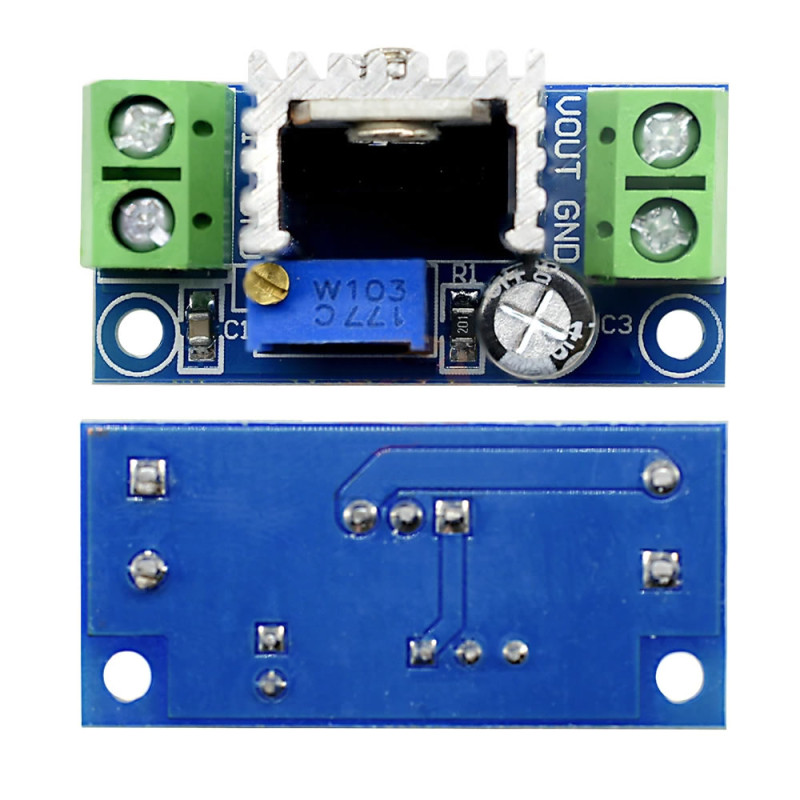

Pin Descriptions:

• Vin: Input Supply Positive Terminal
• GND: Ground
• Vout: Output Pin

Package Contents:

• 1 Piece LM317 Module
