LM35 Temperature Sensor

LM35 Analog Temperature Heat Sensor

0C 100C DC 4V / 30V  0.5C Accuracy TO92 Thermometer

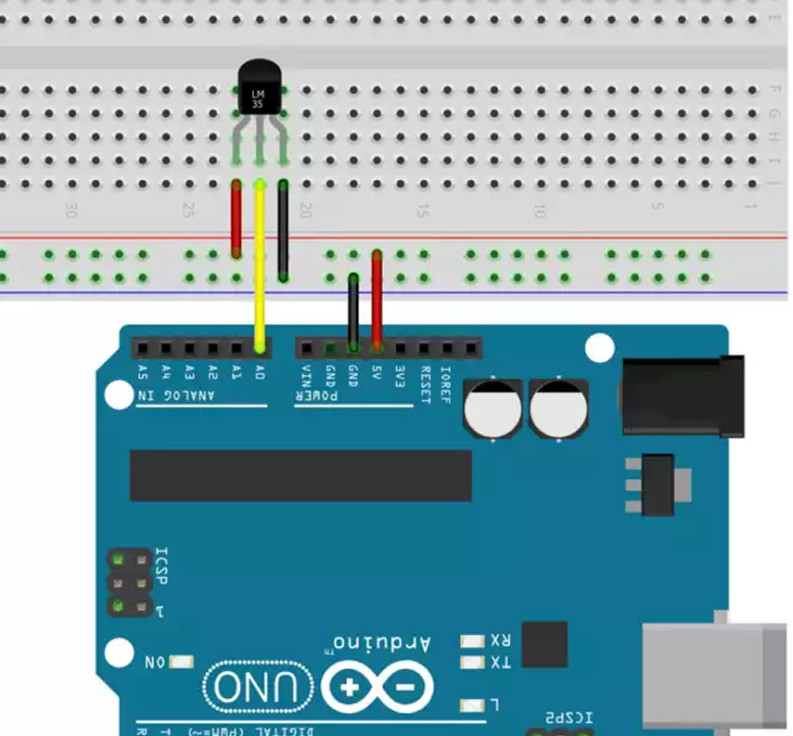

     LM35 is a quality and low cost temperature sensor with analog output.  The measuring range is between -55C and 150C. The measuring sensitivity is 10mV/degree. It can be easily connected to Arduino or any microcontroller.


Features:

•     Analog temperature sensor
•     Resolution: Linear 10mV
•     Temperature measuring range: 0C 100C
•     Accuracy: 0.5C  ( +25C )
•     Precision:  +-1.5C
•     Operating voltage: DC 4V / 30V
•     Operating current: 60uA
•     Output: Linear Analog Voltage Depending on Temperature
•     It is calibrated in Celsius.
•     Suitable for remote temperature measuring applications
•     Low cost
•     Low impedance output: 0.1 Ω for 1 mA Load

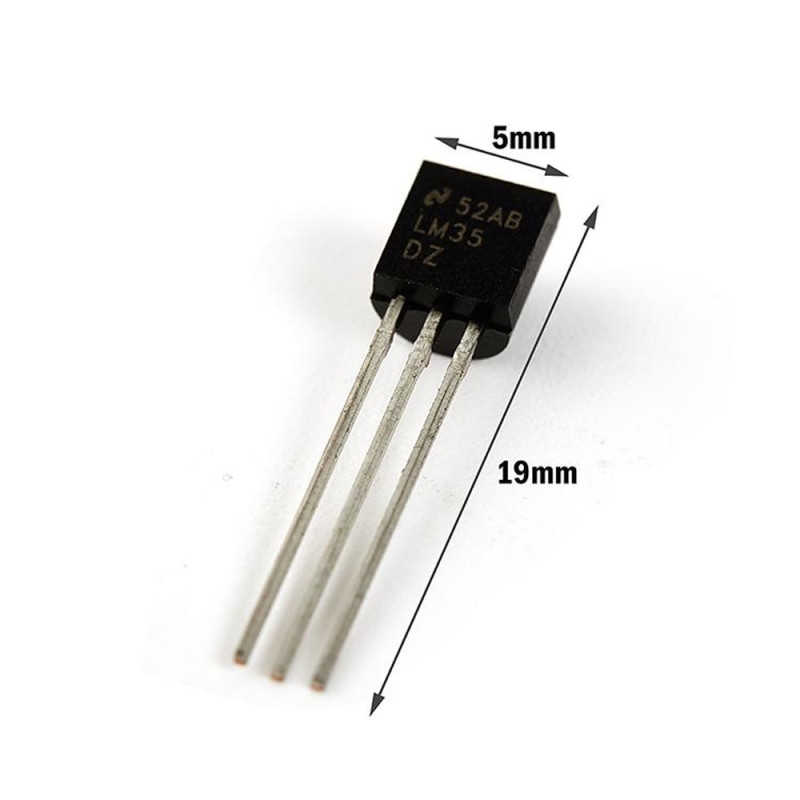

•     Package: TO92

Package Contents:

•      1 Piece LM35 Temperature Sensor
