P22A 1000V 20A Multimeter Probe

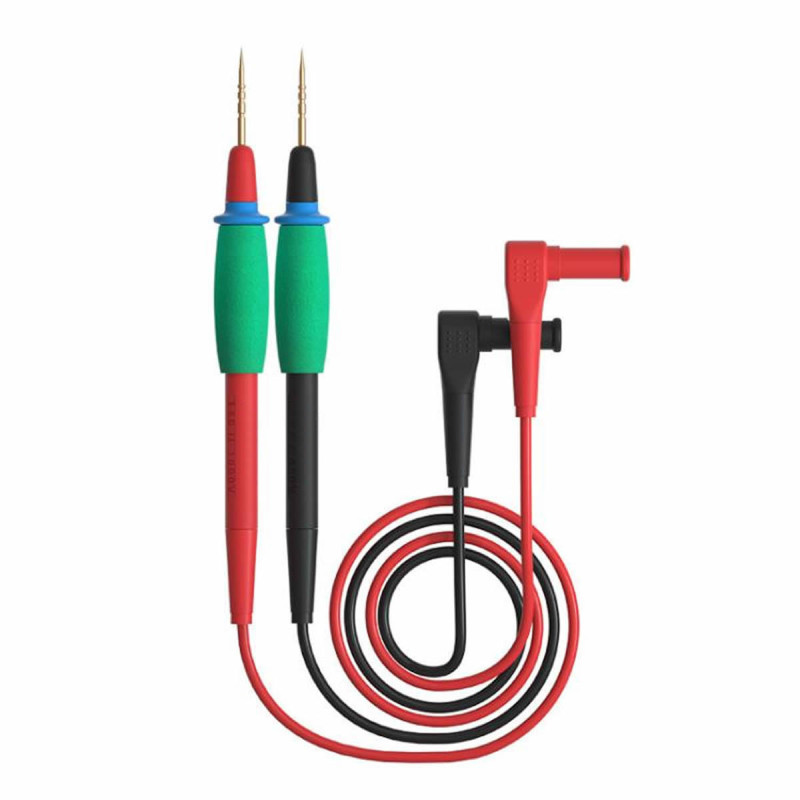

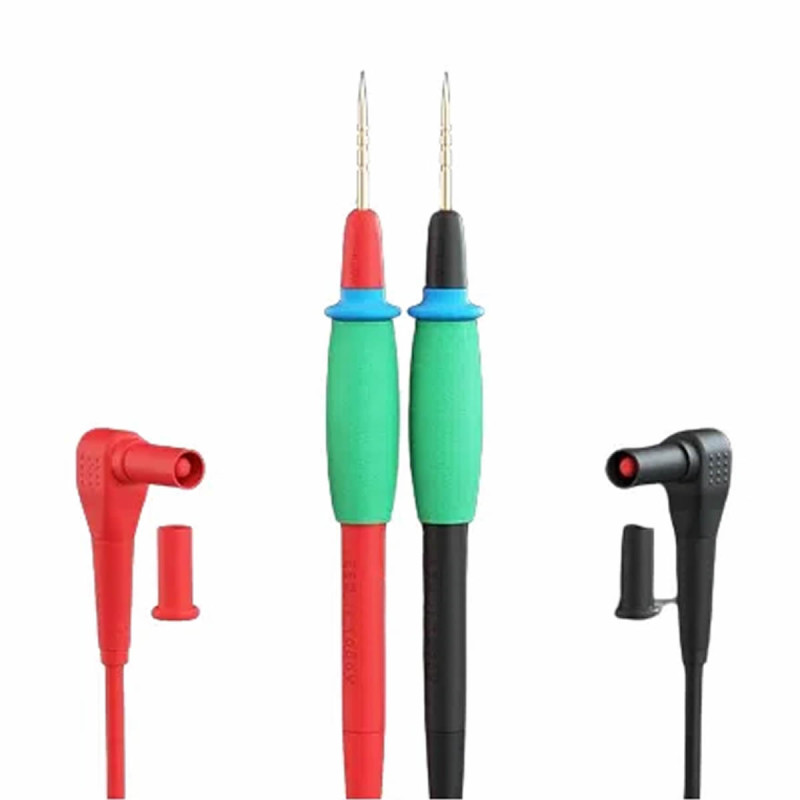

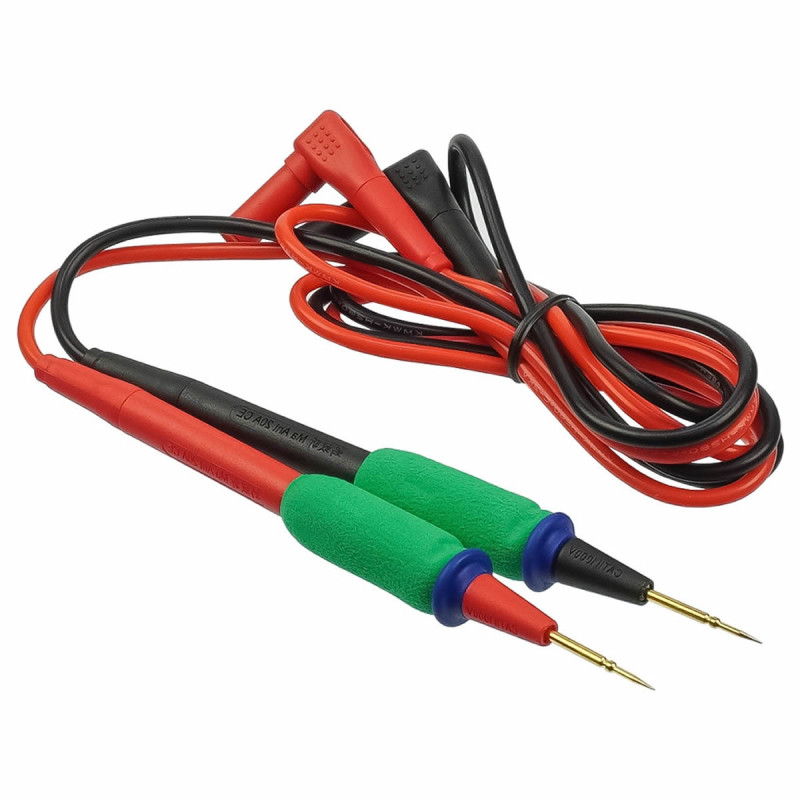

1 Pair P22A 1000V 20A Multimeter Probe

Replaceable Needle Tip 1 Meter Flexible Quality Cable Voltmeter Avometer Integrated Circuit Resistor Coil Capacitance Measurement Test Equipment

The probe tip is empty, 4 tips are attached to the probe like a screw.

     It is a multimeter compatible probe with 1000V 20A replaceable needle tips. The probe tip is of the screw-on type. The 2 pairs of tips that come with it can be attached and removed. It has cables made of quality flexible copper wire. It is silicone coated, flexible and durable. It has good conductivity performance. It comes as a pair in 2 colors, red and black. It has a cable length of 100cm. It has probe sponges that absorb sweat and other liquids.

     Thanks to its hard and needle tipped structure, it allows precise measurement in narrow and small areas. It offers long lasting use with its tips that have advanced corrosion resistance. Its soft silicone cable provides high flexibility, wear resistance, heat resistance and strong tensile strength. It maintains its performance in the temperature range of -20C to 100C, is resistant to burning, does not harden in the winter months and has a high overcurrent carrying capacity. Thanks to the universal multimeter probe plug, it is compatible with most multimeters and offers a wide range of use. The insulating silicone non-slip designed grip handle provides a comfortable and secure hold in the hand. The replaceable sponge protectors on the probe are soft, wear resistant and heat resistant. It increases comfort with its water absorbing structure. A structure reinforced against breakage is used at the cable exit section and high conductivity is achieved thanks to the multi stranded tin plated copper wire inner structure.

Features:

• Model: P22A
• Operating voltage: 1000V max
• Operating current: 20A max

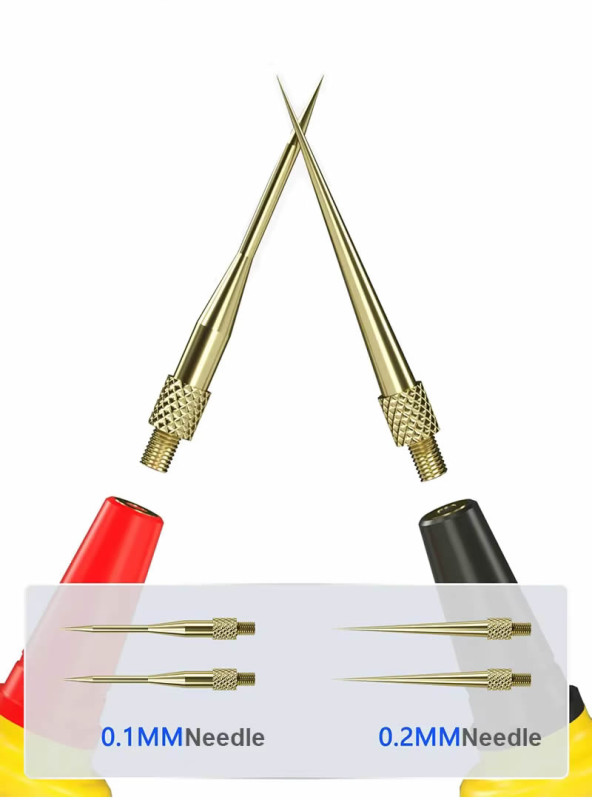

• Screw mount type replaceable probe tips
• Probe material: 316 stainless steel
• CAT II standard cable
• Since the cable section of the probe is quality and soft silicone, it does not break easily.
• Replaceable sponge protectors on the probe.
• The socket section is insulated.
• Soft copper cable, fully conductive sturdy probe tips
• Red: Positive
• Black: Negative
• Material: Metal / Plastic
• Color: Black, Red
• Operating temperature:  -20C  /  100C
• Probe tip length:  25mm
• Probe length:  125mm
• Cable thickness: 3.5mm
• Cable length: 100cm
• Weight:  75gr  (105gr)

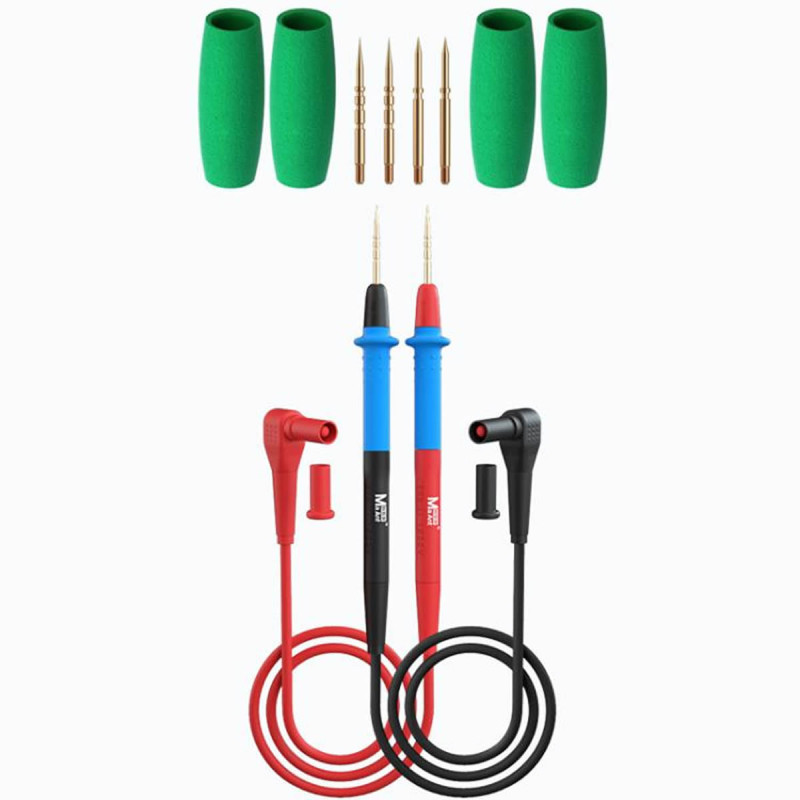

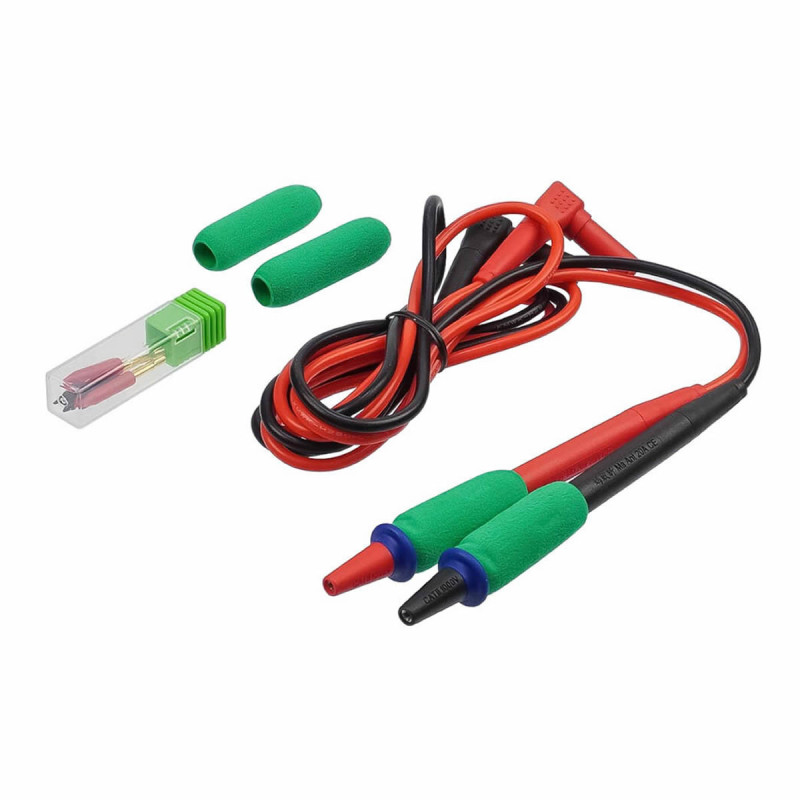

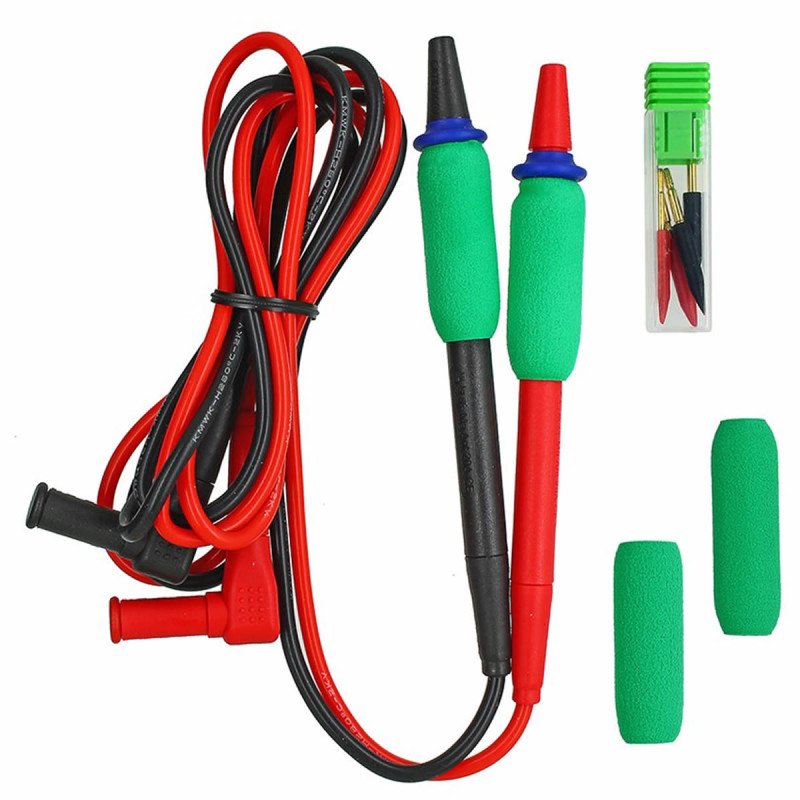

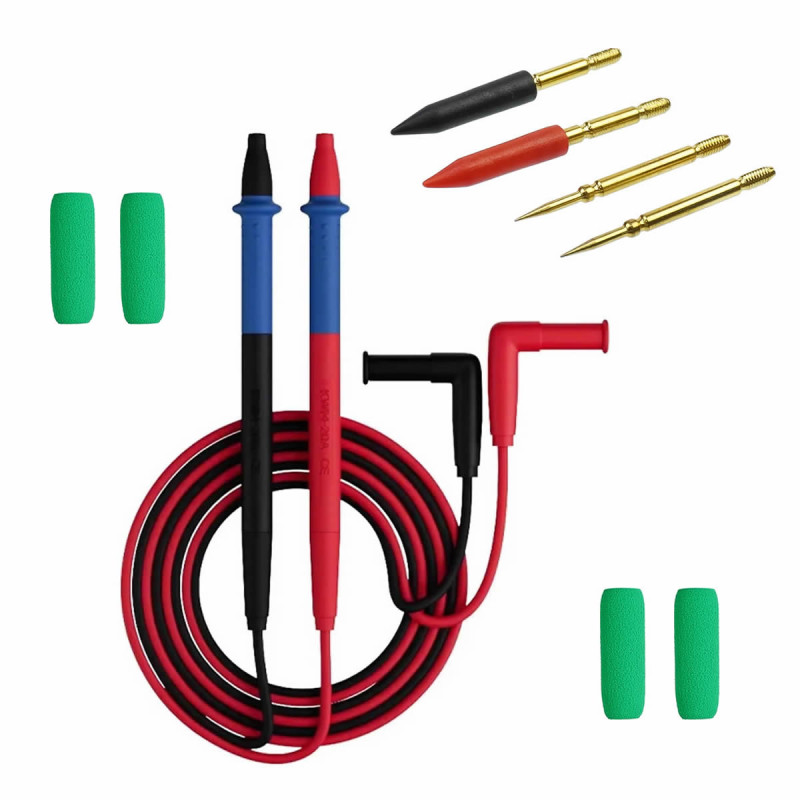

Package contents:

•  1 Pair P22A 1000V 20A Multimeter Probe
•  4 Pieces multimeter needle type probe tip
•  4 Pieces probe sponge
