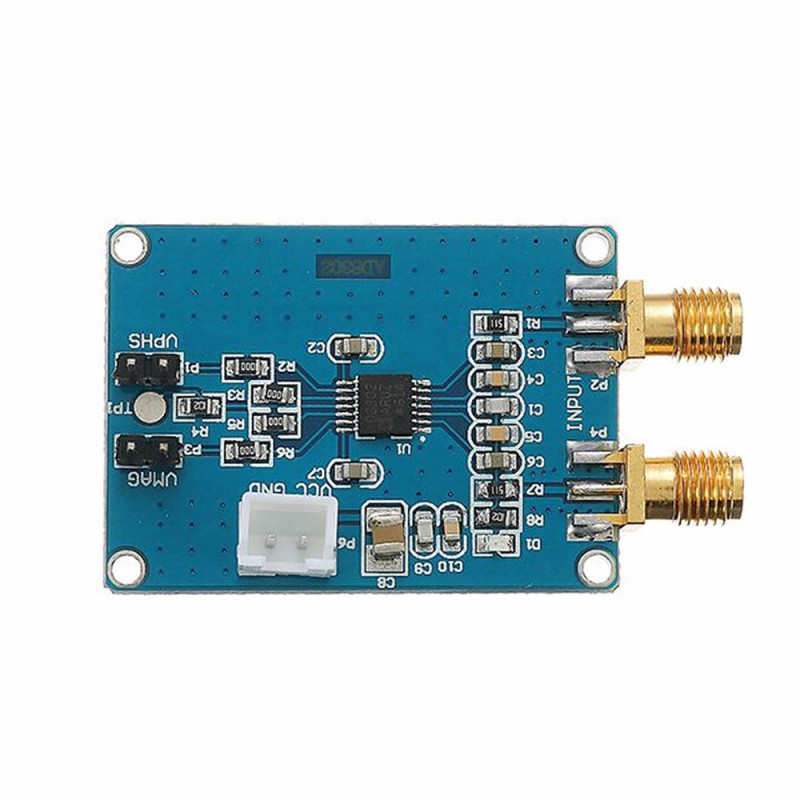

AD8302 RF Gain Phase Detection Module

AD8302 RF Gain Phase Detection Module

2.7GHz Wideband 2 Channel Demodulating Logarithmic Amplifier Phase Detector RF/IF PA Linearization Precision RF Power Control

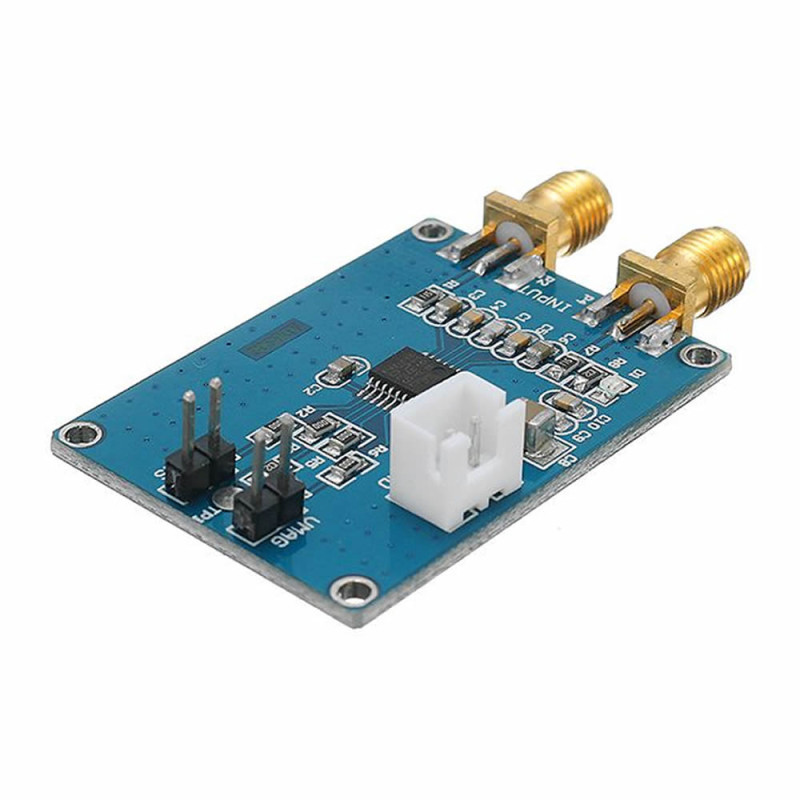

     The AD8302 IC is used in this product, which comes as a module. AD8302 is the gain and phase detector IC of Analog Devices. It can be used with signals in a wide frequency band up to 2.7ghz. It can perform loss gain measurement. It has 2 channel rf signal inputs with SMA female sockets.

Features:

•      IC: AD8302
•      Operating voltage: DC  2.7V  /  5.5V
•      Number of channels: 2
•      Dual demodulating logarithmic gain and phase detector
•      Performs gain/loss measurement
•      Operating frequency:  0 / 2.7GHz Maximum
•      Phase measurement range:   0 degrees /  180 degrees
•      Reference voltage output: DC  1.8V
•      Input range:  -60dBm / 0dBm ( 50 ohm )
•      Gain measurement range:  - 30 to + 30 dB
•      Small signal bandwidth: DC to 30 MHz
•      Accurate gain measurement scaling: 30mV/dB
•      Accurate phase measurement scaling:  10mV/Degree
•      Measurement mode support
•      Control mode support
•      Level comparison mode support
•      Precision RF power control
•      Remote system identification and monitoring

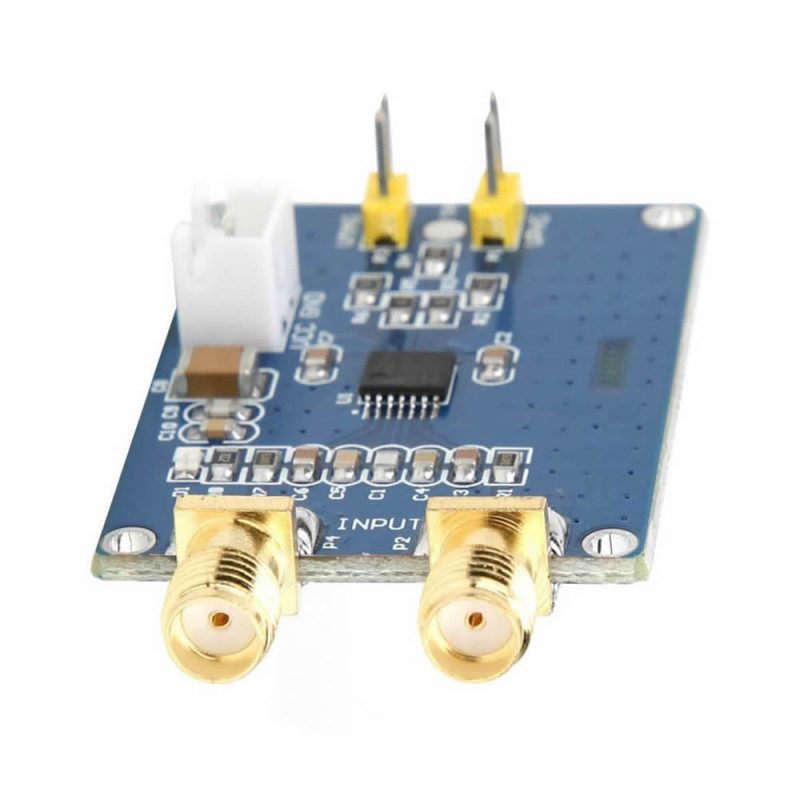

•      2 pieces of sma female rf signal input socket
•      Power indicator led.

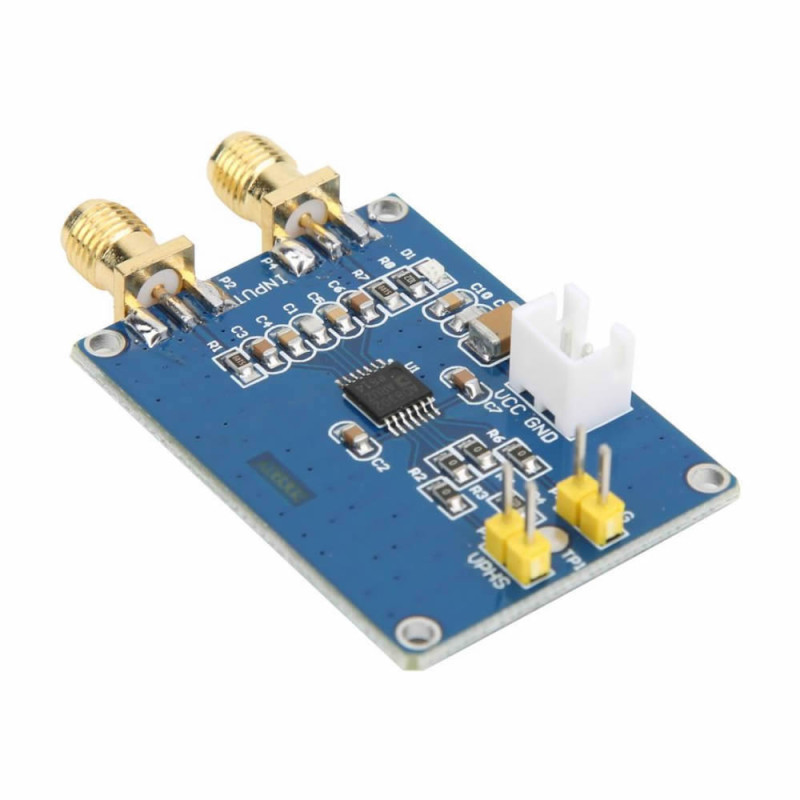

•      It has a 2 Pin power input socket. ( No cable is included with the product )

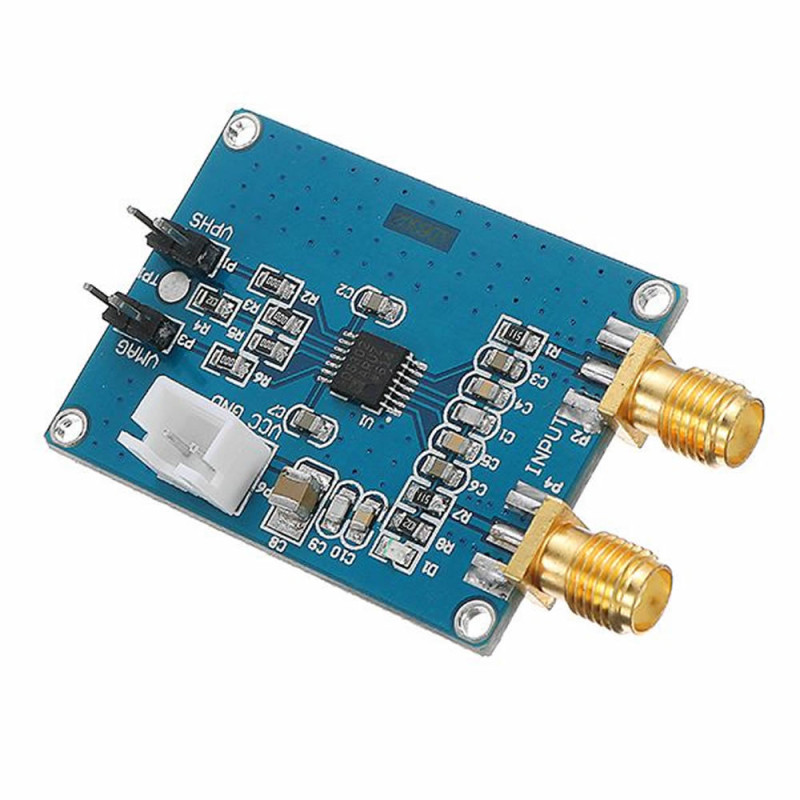

•      2 pieces of VMAG VPHS output socket as 2 pin male header

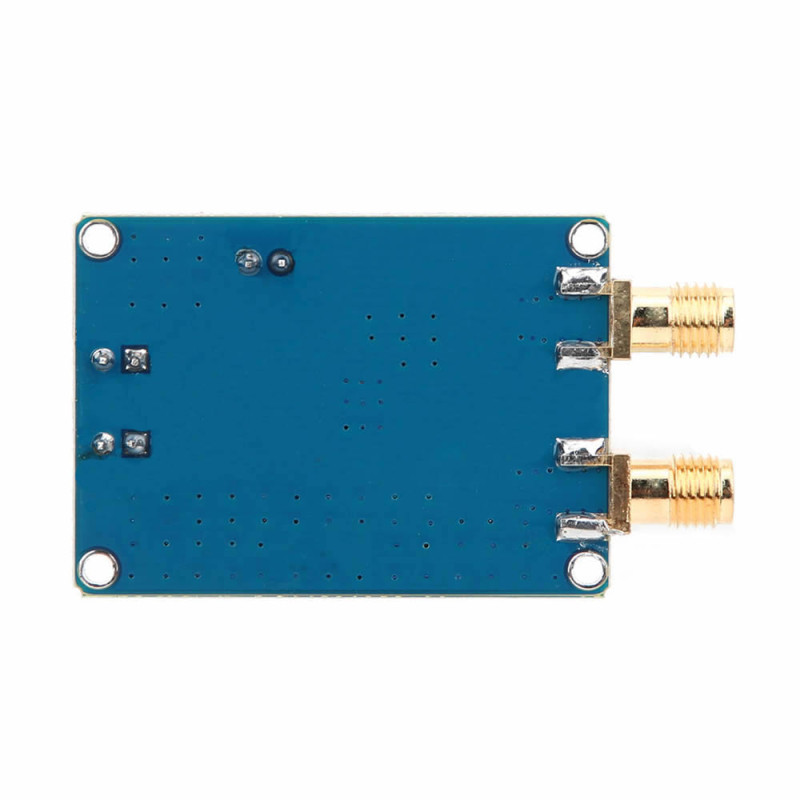

•      It has 4 pieces of 2.2mm mounting hole
•      Operating temperature:  -10C  /  +80C
•      Color: Blue

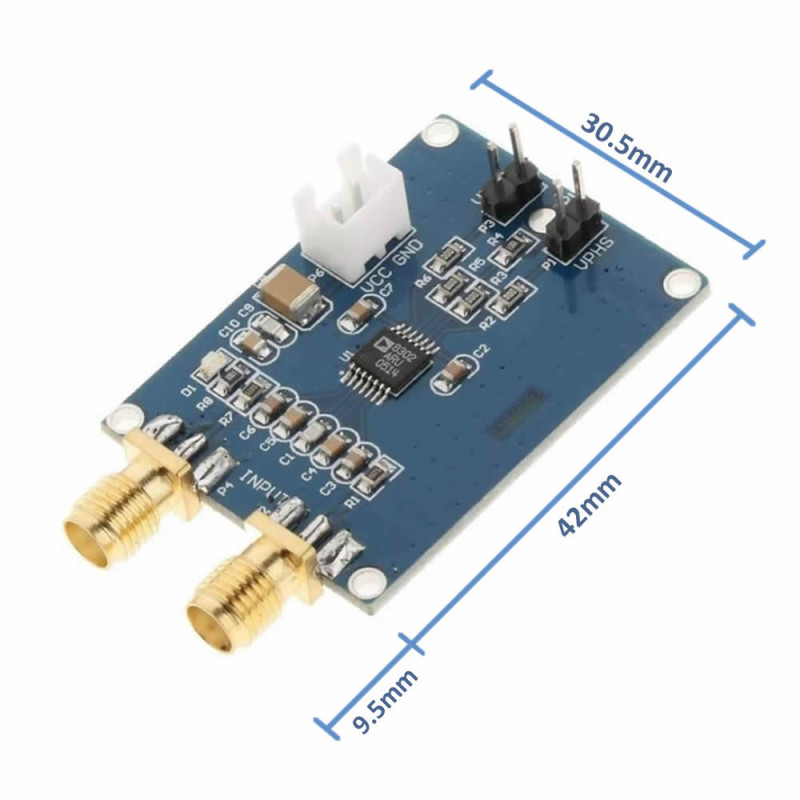

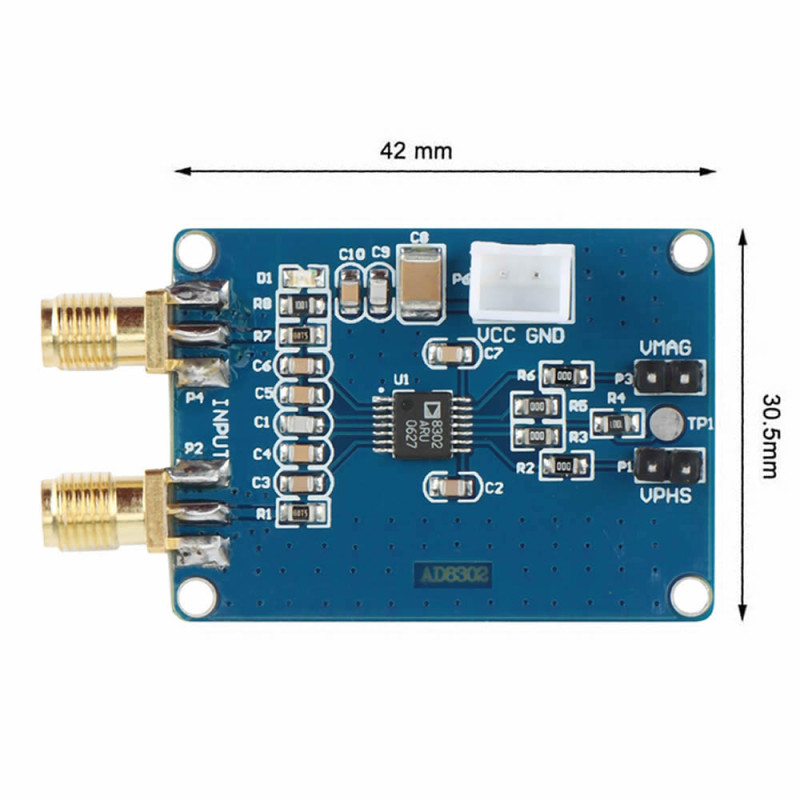

•      Dimensions: 30mm x 42mm
•      Weight: 9gr

Package contents :

•    1  Piece AD8302 Phase Detection Module
