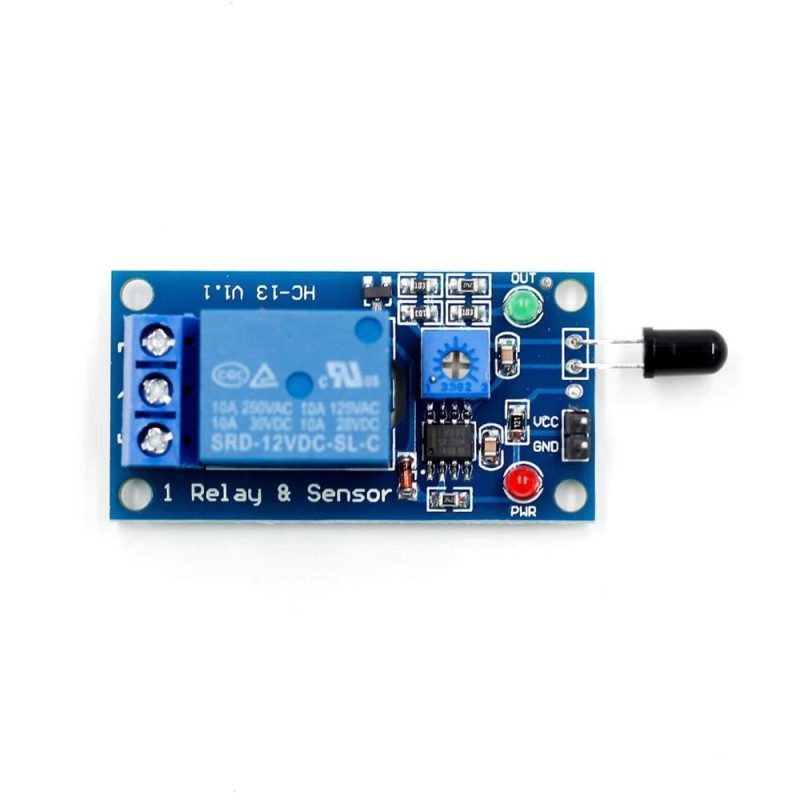

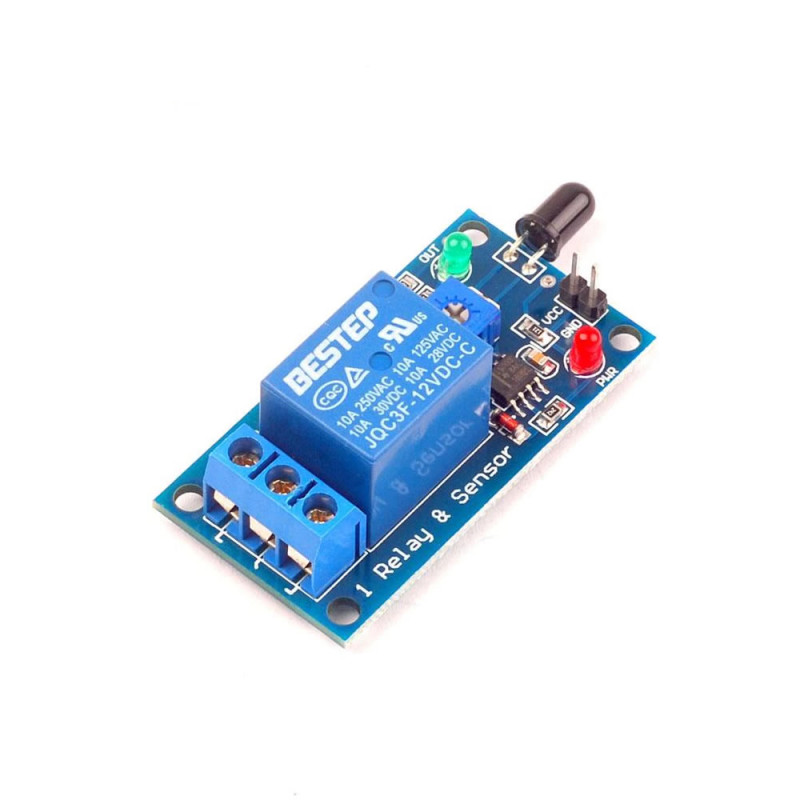

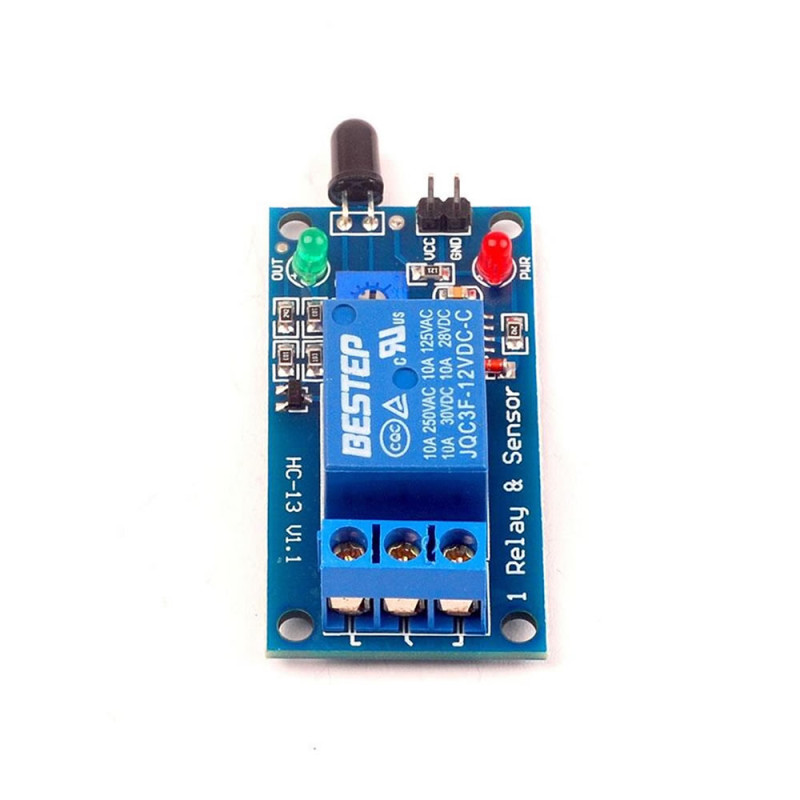

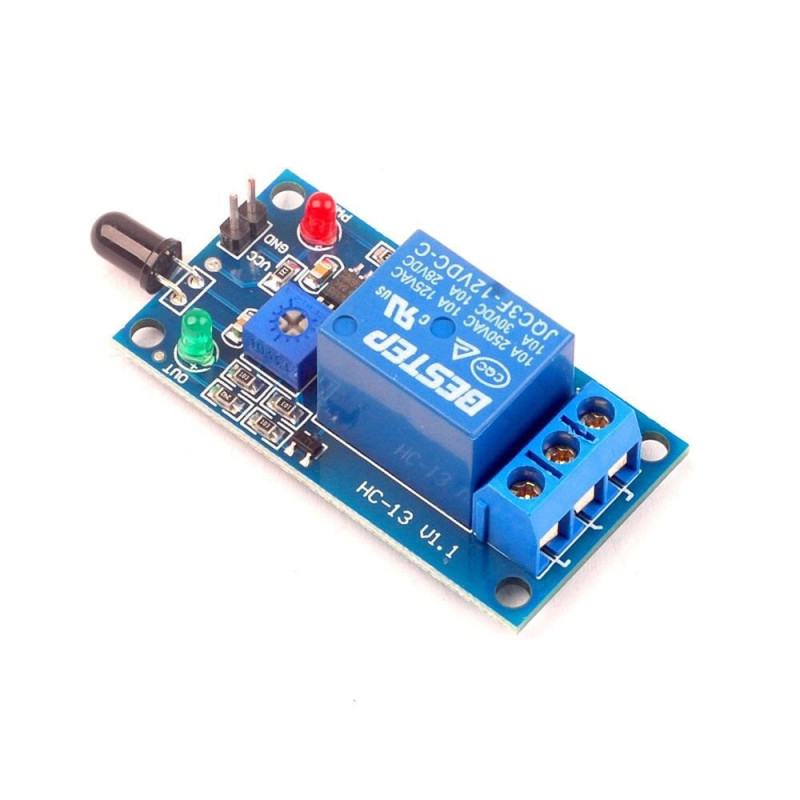

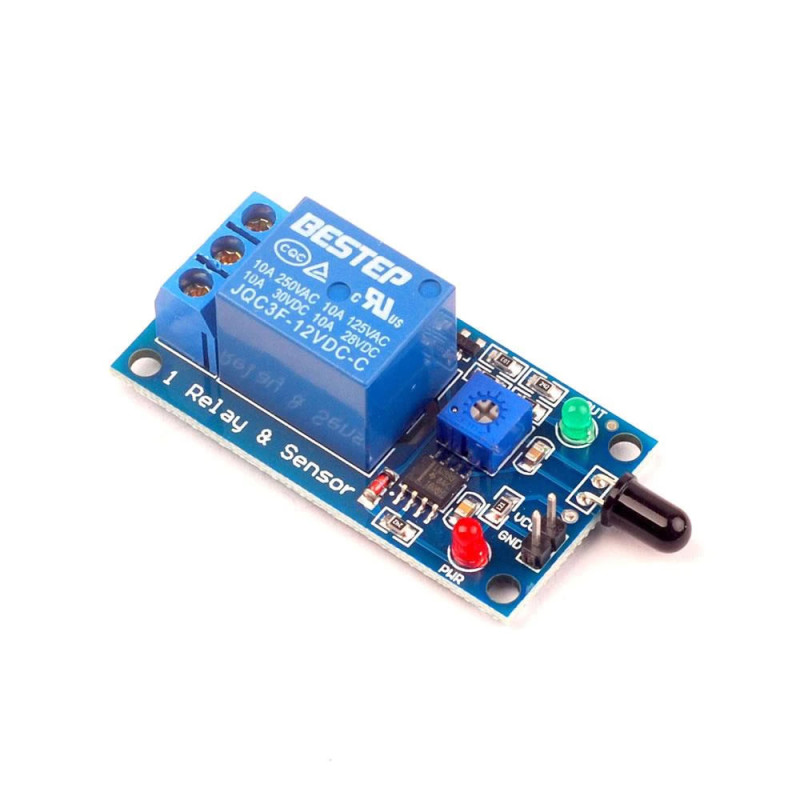

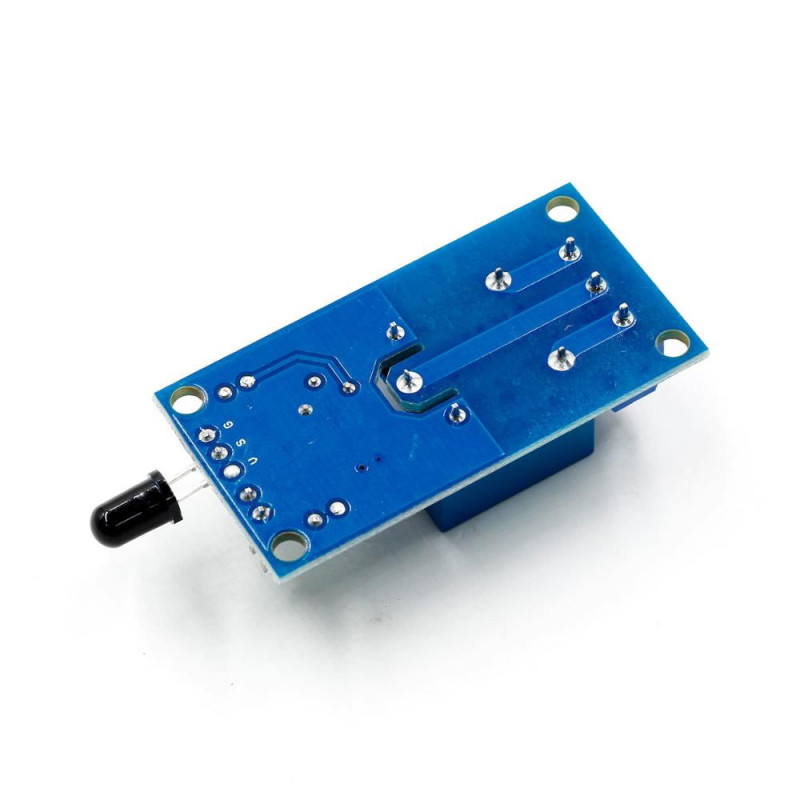

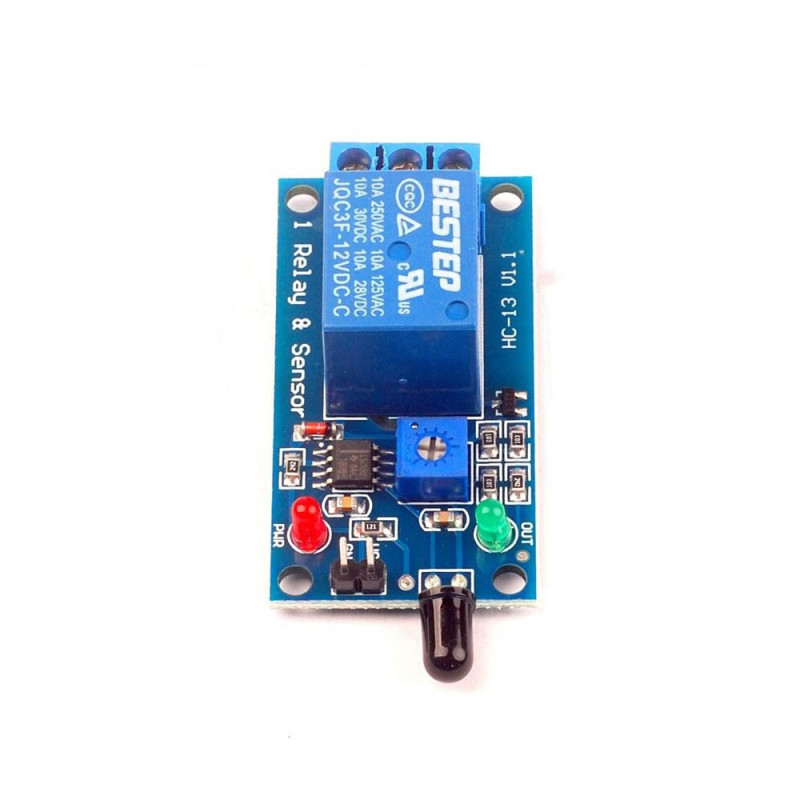

12V Relay Flame Fire Detection Sensor Module

12V Relay Flame Fire Detection Sensor Module

Fire Alarm 80cm 760nm/1100nm 60 Degrees

Detecting a small flame source (lighter flame etc.) from a very long distance is not easy!!

     It is a sensor board that gives output to the relay when it detects fire. It is ideal for projects such as fire alarms and fire extinguishing robots. It operates with DC 12V. It can detect light (flame) with a wavelength between 760nm and 1100nm from a maximum distance of 80cm and at an angle of 60 degrees. Its sensitivity can be adjusted via the potentiometer on it. Loads of 250V/10A AC or 30V/10A DC can be switched with the relay.

Application Areas:

• Fire detection
• Flame fighting robots
• Fire alarm sensor

Features:

• Operating voltage: DC 12V
• Operating current: 150mA
• Detection distance: 80cm Maximum
• Spectrum range : 760nm to 1100nm
• Viewing angle : 0 - 60 degrees
• Sensitivity adjustment pot
• Relay : AC 250VAC 10A    /  DC 30V 10A
• NO NC COM output terminal.
• 4 Mounting holes

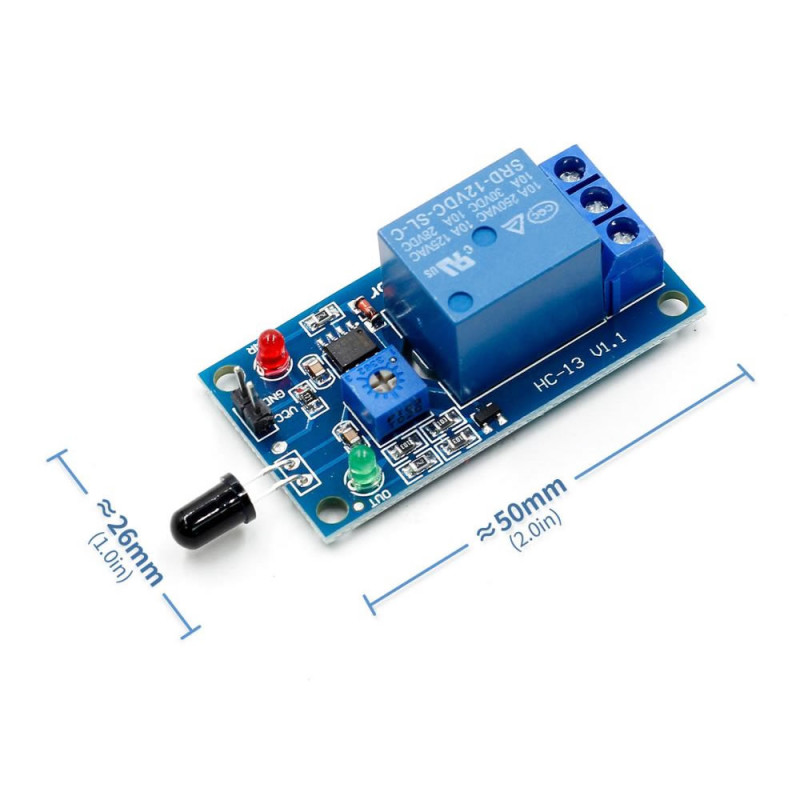

• Dimensions: 50mm x 26mm
• Weight: 16gr

Package Contents:

• 1 pcs 12V Relay Flame Fire Detection Sensor Module
