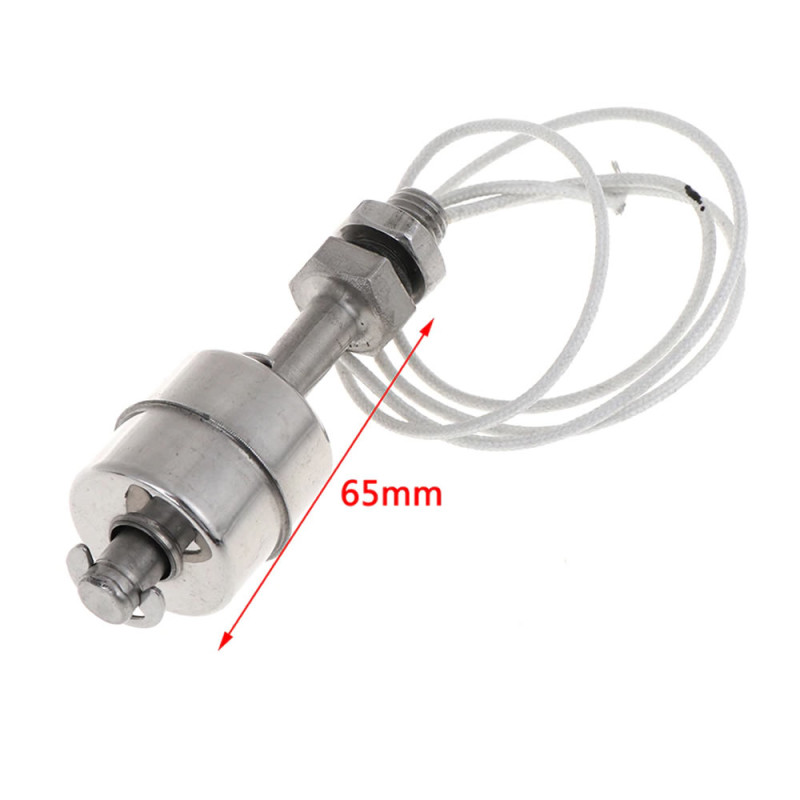

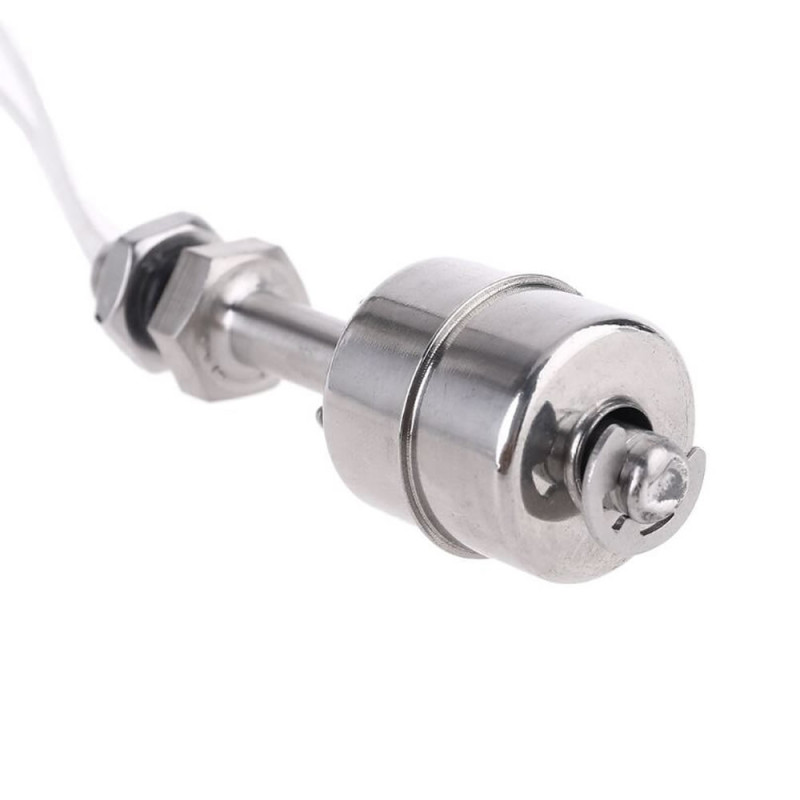

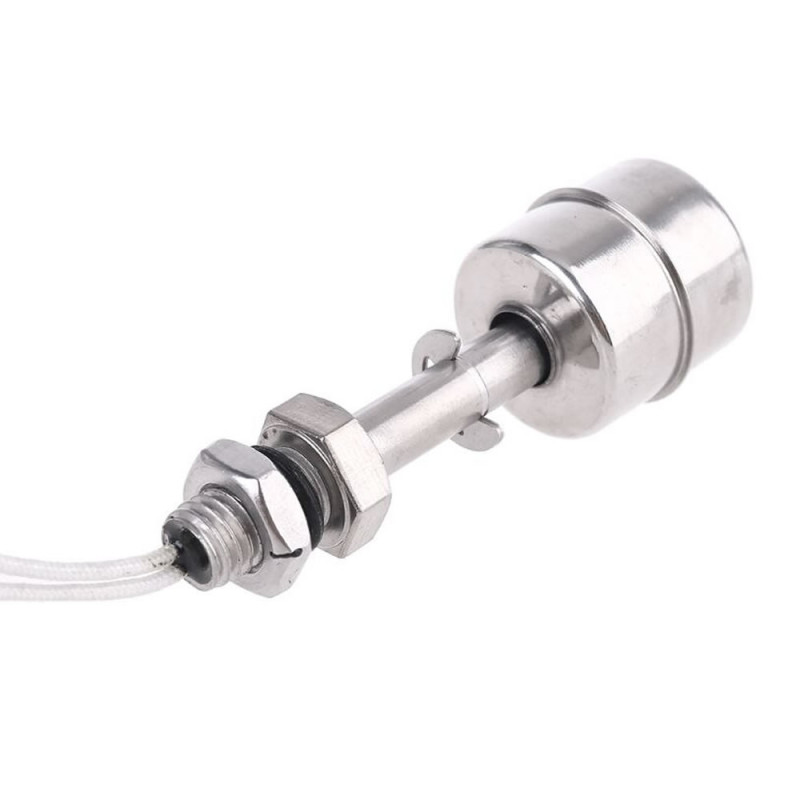

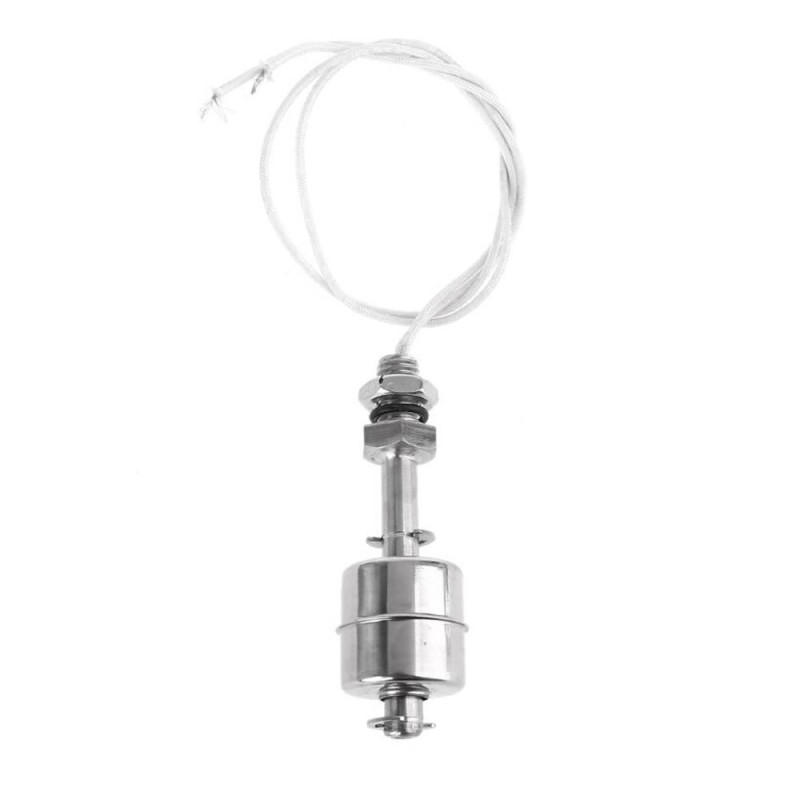

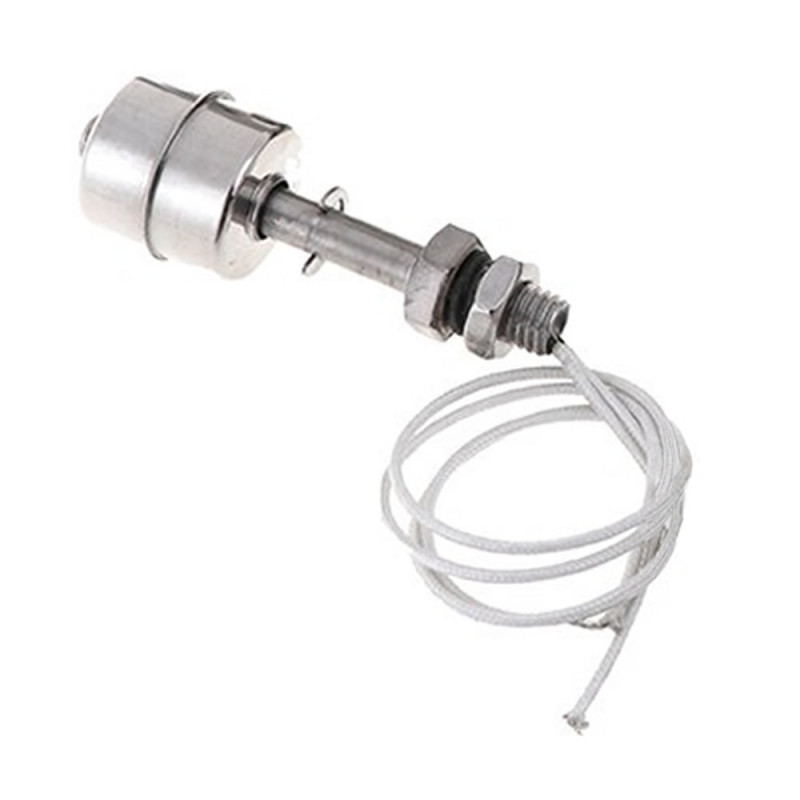

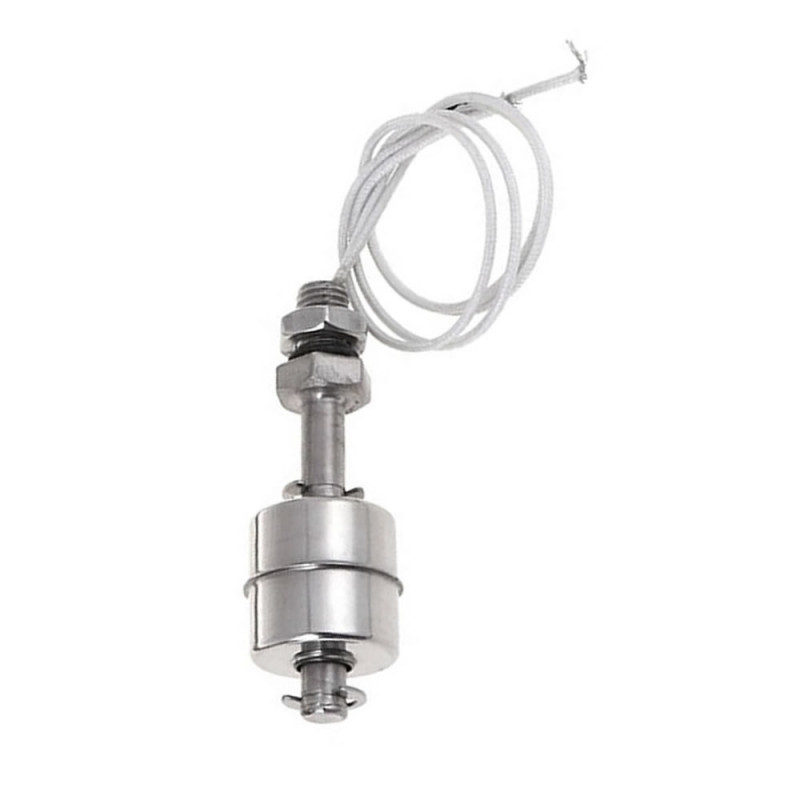

Metal Water Level Sensor 65mm

     It is used to detect the liquid level in liquid filled tanks. It can activate devices such as a pump, indicator, alarm and the like. With the liquid level sensor you can detect whether your tanks are full or empty. The sensor gives output as a dry contact. It can be normally open or normally closed depending on the position you place it in. It is used for detecting the liquid level in applications such as Aquariums, Hydroponic Systems, Salt Water Tanks, Washing/Dish Washing Machines, Filtration Systems and the like.

     The stainless water level float triggers the reed relay inside the product depending on the movement of the float relative to the liquid height, making use of the buoyancy of liquids. It is lightweight and highly reliable with a simple working principle. It is mounted vertically to the liquid tank. It is easily mounted to surfaces with an M10 type connection.

•     Metal liquid level sensor vertical type 65mm
•     Switching power max: 10W  SPST
•     Maximum switching voltage: 100V ( AC /DC )
•     Maximum switching current: 0.5A  (The product is damaged at high current.)
•     Temperature range:  -30C  /   +125C
•     Cable length:  30cm
•     Suitable for metric 10 connection
•     Mounting type:  Vertical
•     Mounting hole: 10mm
•     Color: Silver

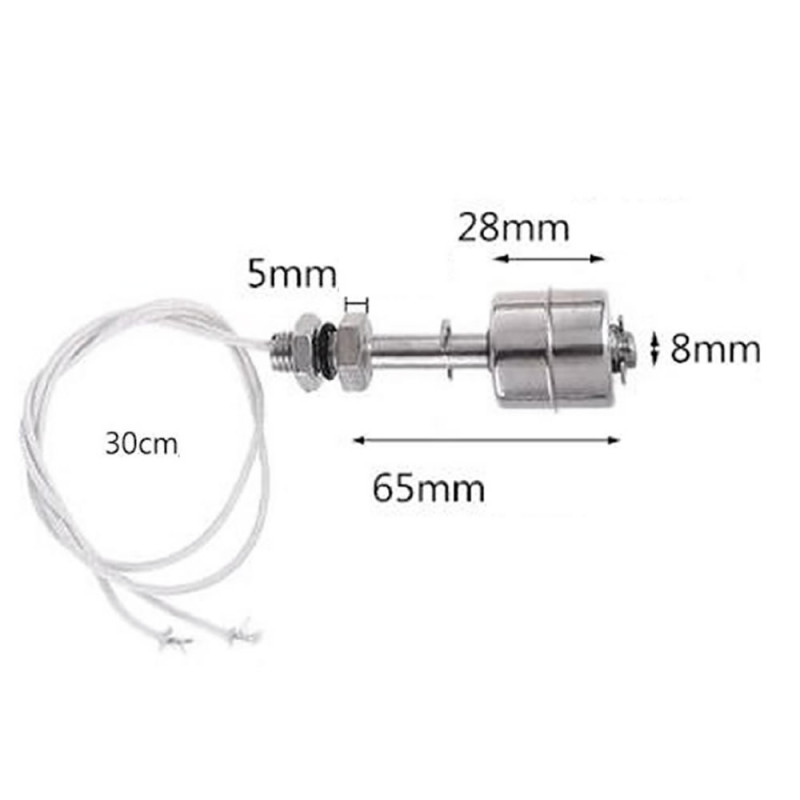

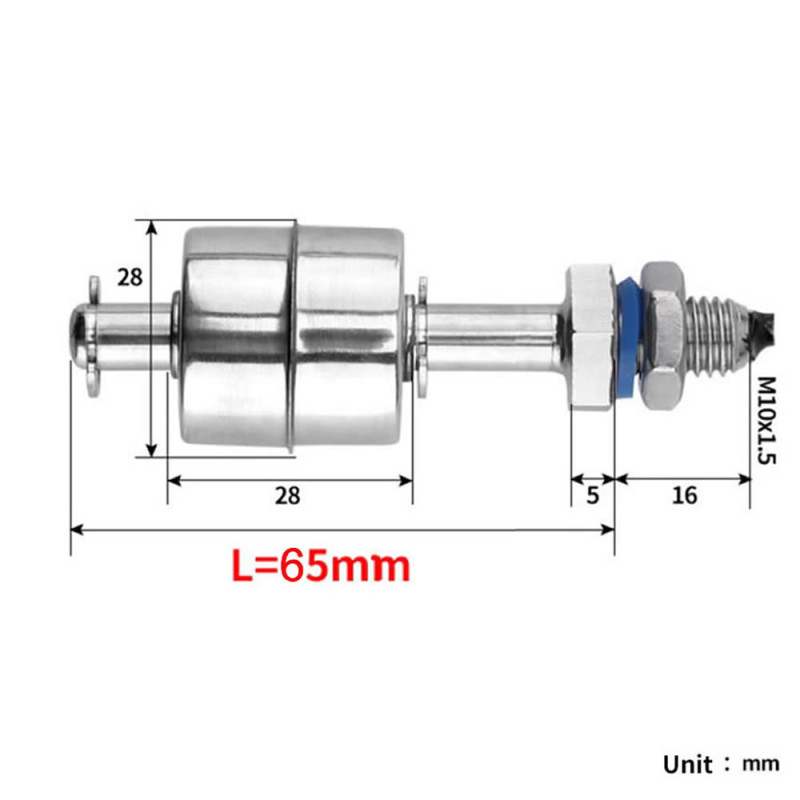

•     Body length:  65mm
•     Dimensions: 8cm x 2.8cm
•     Weight:  40gr

Package Contents:

•      1 Piece Metal Water Level Sensor 65mm
