DRV8833 Stepper Motor Driver Module

DRV8833 Stepper Motor Driver Module

DC 10V 1.2A PWM Dual H Bridge 2 Dc Motor 3D Printer Robot CNC Line Follower Sumo Car

     The DRV8833 IC contains 2 h bridge drivers. It can drive 2 DC motors or 1 stepper motor. It can supply 1.2A of current from each bridge. It can supply 2A of current momentarily. It can deliver a total of 4A momentary current. After levels of about 0.6A in total, the IC needs to be cooled.

     Motor direction and speed can be controlled. It has overcurrent protection, short circuit protection, undervoltage lockout and overheating protections. It has a sleep mode. The speed and direction of the DC motors can be controlled independently of each other.

Features:

•     IC: DRV8833
•     Operating voltage: DC 2.7V  /  10.8V
•     Operating current: 1.2A per motor  ( 2A momentary )  ( A heatsink must be used. )
•     Motor outputs can be combined. 2.4A motor current ( 4A momentary ) ( A heatsink must be used. )
•     Dual H bridge motor driver
•     Can drive 2 dc motors
•     Can drive 1 stepper motor
•     Can drive the motor clockwise and counterclockwise.
•     Operating frequency:  Maximum 100kHz
•     Control signal voltage level: DC 3V / 5V
•     Overcurrent protection
•     Overtemperature protection
•     Reverse voltage connection protection
•     Color: Purple
•     Operating temperature:  -10C  /  80C
•     Empty connection sockets on the board edges 2.54mm
•     Dimensions:  18mm x 26mm
•     Weight:  3gr

Package Contents :

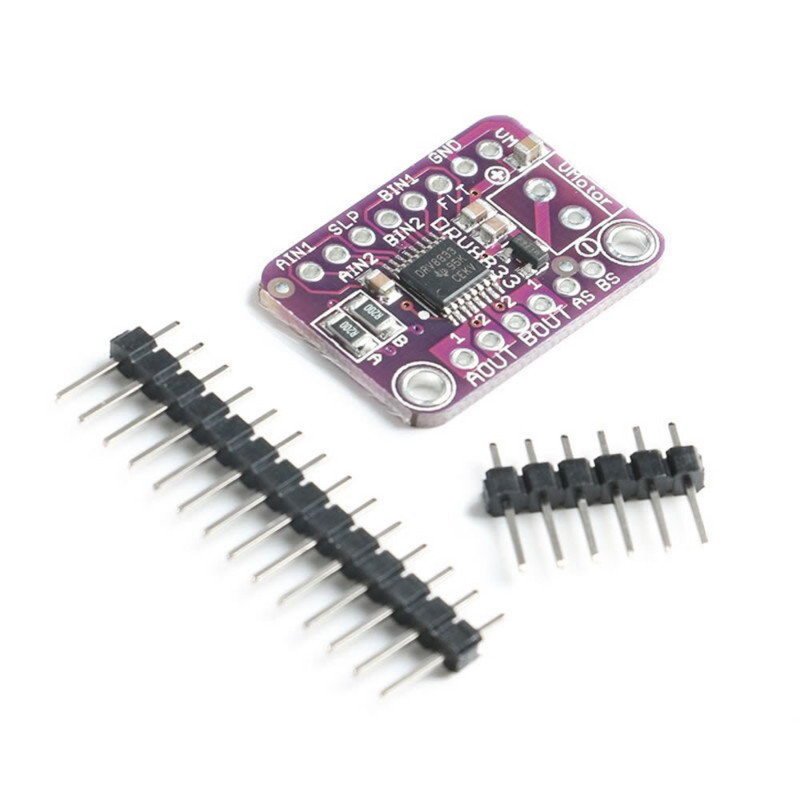

•        1 Piece DRV8833 Stepper Motor Driver Module
•        1 Piece 8 pin male header unsoldered
•        1 Piece 6 pin male header unsolder
