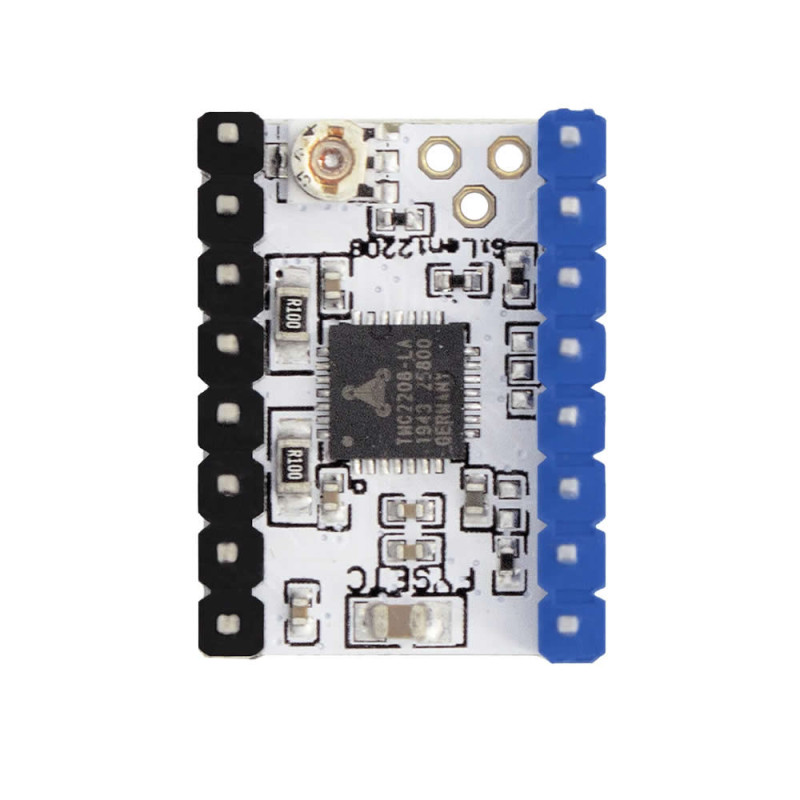

TMC2208 Stepper Motor Driver

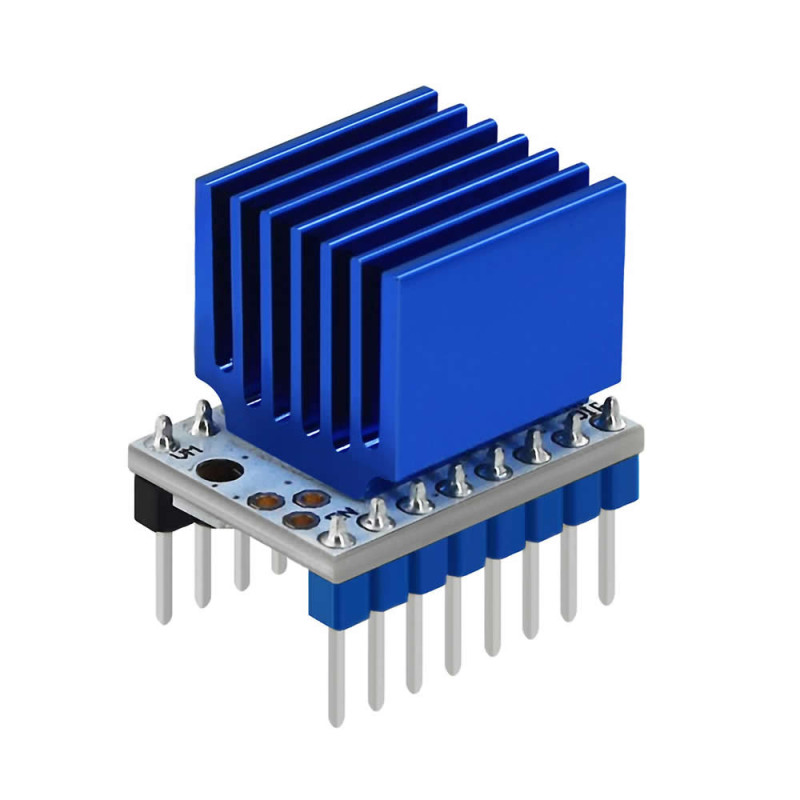

MKS Trinamic TMC2208 V1.2 Stepper Motor Driver with Heatsink

MakerBase 1/256 Step 1.4A CNC 3D Printer Robot Reprap MKS GEN Ramps Prusa Mendel Ultimaker

     Stepper motor driver board developed with the TMC2208 IC from Trinamic. It has features developed for devices such as 3D printers, cameras and scanners. It has an integrated microstep indexer. Thanks to StealthChop2 current control technology it runs very quietly. It can be controlled with UART communication.

     The product model is MKS V2.0. It has low RDSon.  The N channel mosfets are designed as an H bridge. It can supply a maximum current of 2A. It must be used with a heatsink when used at high current. It can operate with a supply between DC 5-36V. It supports up to 1/256 microstep.

     The MicroPlyer  SpreadCycle StealthChop2  technologies developed by Trinamic are available on this IC

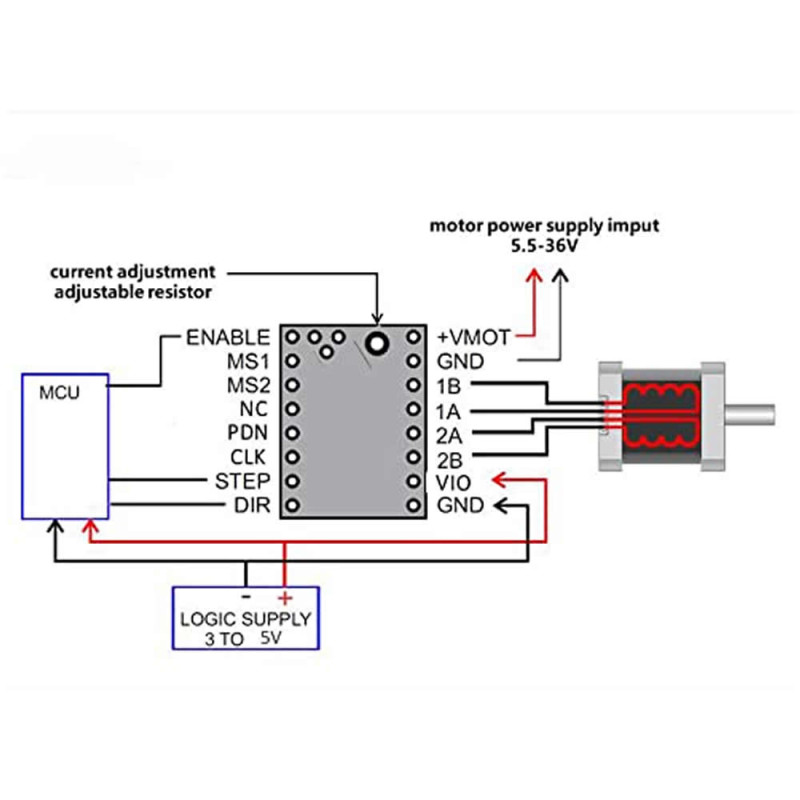

     Adjustment method: You can change the settings with the TMC2208 configurator and program it via the UART interface.

Features:

•  Manufacturer: Makerbase
•  IC: Trinamic TMC2208
•  Logic supply voltage ( VIO ):   DC 3V to 5V
•  Internal voltage regulator is available
•  Motor supply ( VM ): 4.75V to 36V
•  Current per phase: 1.4A RMS  /  2A peak   ( A heatsink must be used. )
•  Control method: Step/Dir  / UART
•  Native step count:  1/16
•  Microplayer step count: 1/256
•  RDSon    - 0.3ohm and below
•  MicroPlyer
•  SpreadCycle
•  StealthChop2
•  Color: white
•  Operating temperature: -10C  /  75C
•  8x 2 pin male header sockets.

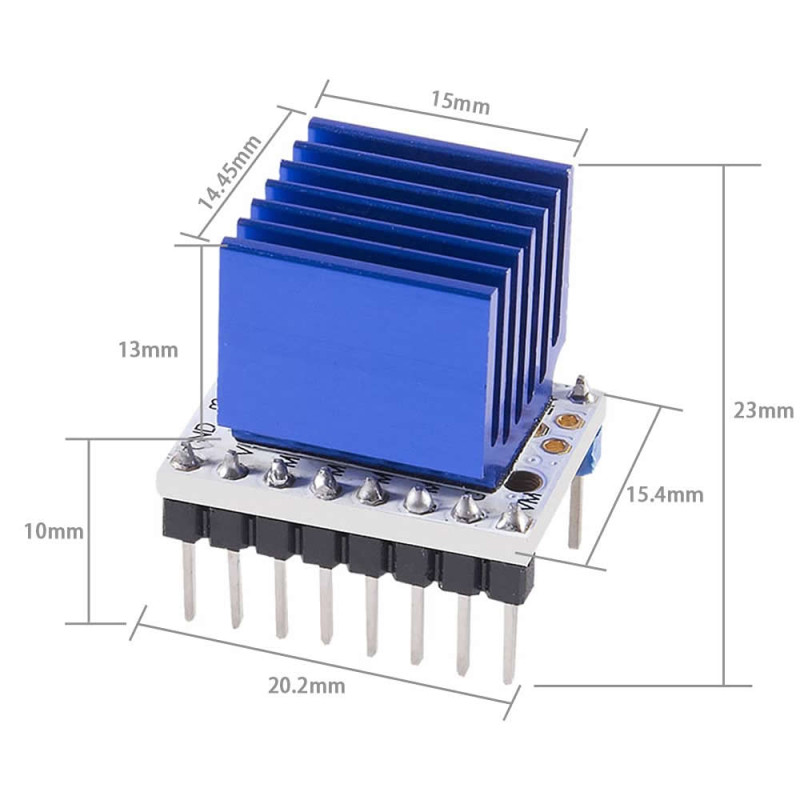

•  Dimensions: 15mm x 20mm
•  Weight: 8gr ( with heatsink )

Package Contents :

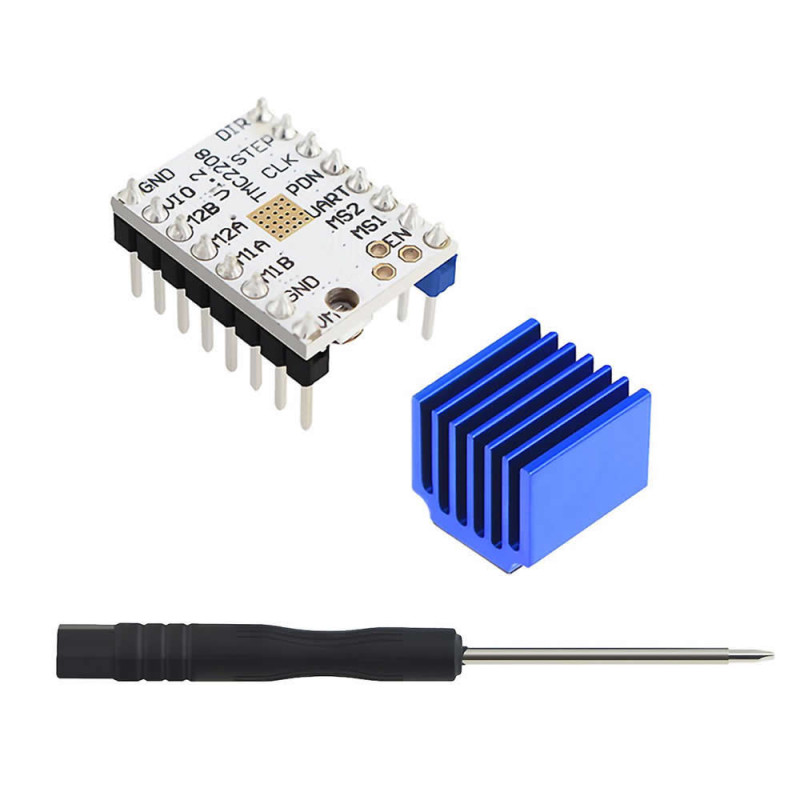

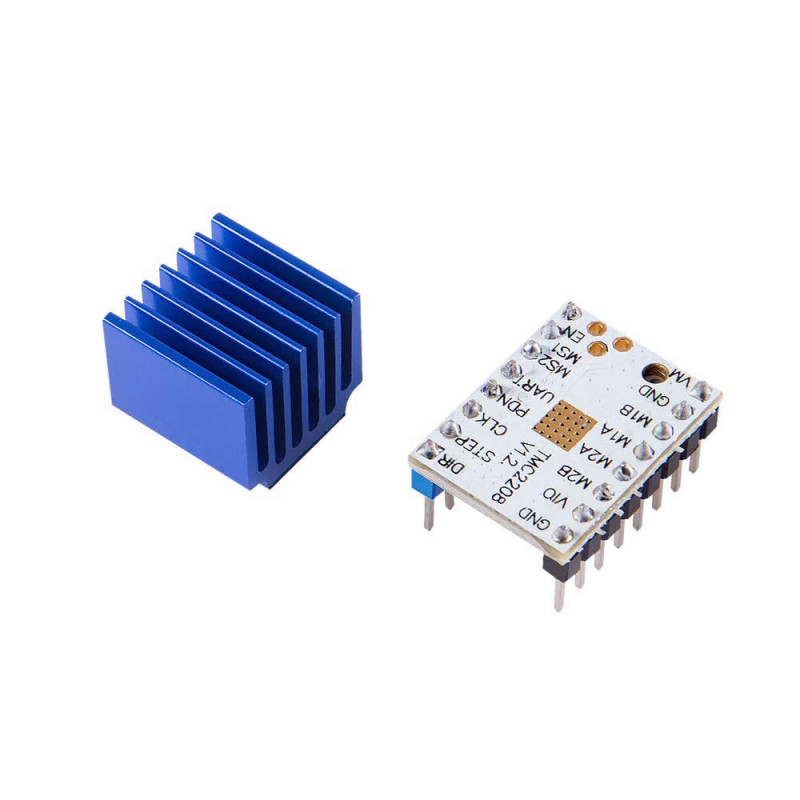

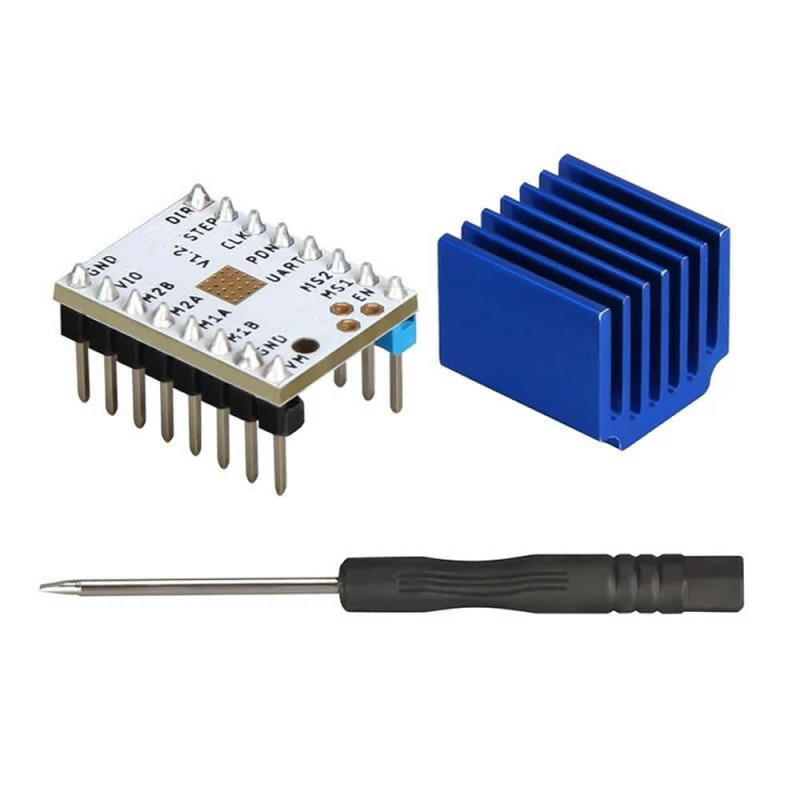

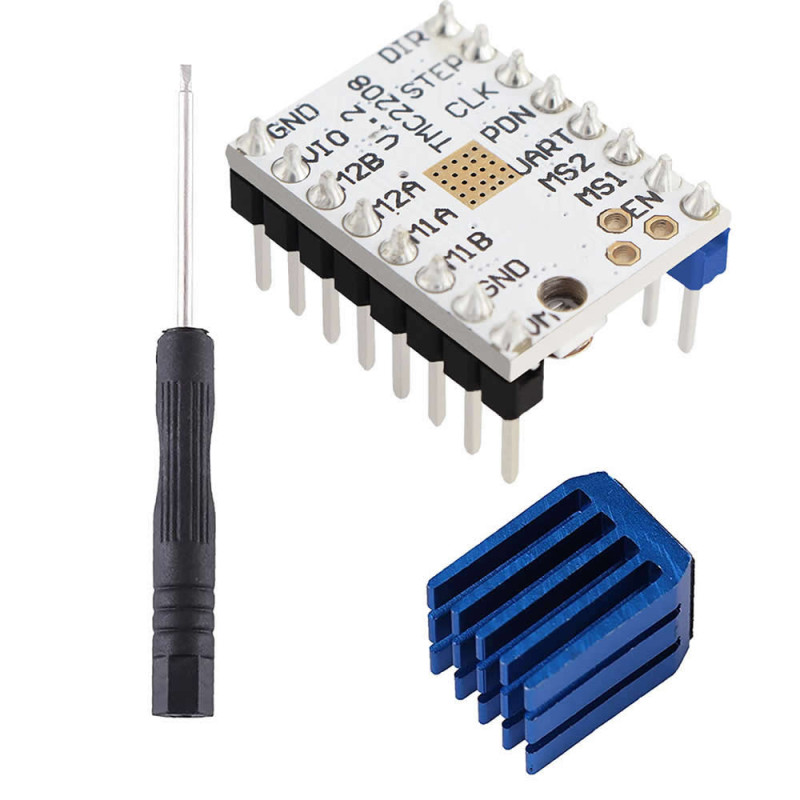

•    1 Piece  TMC2208 Stepper Motor Driver
