40A 50V DC Motor Driver Boxed

40A 50V DC Motor Driver Boxed Speed Control Circuit

0/100% Pot Controlled Pwm Adjustable Voltage Module Fan Pump DC Dimmer

     Motors can draw 5 times their normal current at the moment they are strained. You need to select the motor driver accordingly. If you do not select a driver according to the current it can draw during strain, the product will break down immediately.

     It is a maximum DC 50V 40A motor driver circuit. The motor speed is adjusted with a potentiometer. You can change it between 0V starting from 1V below your input voltage.

Features:

• Supply: DC 10-50V
• Current: 40A  ( 30A should not be exceeded in continuous use )
• Maximum output power: 12V:480W (max) / 24V:960W (max) / 36V:1440W (max) / 50V:2000W (max)
• Speed Adjustment: 0% / 100%
• Operating frequency: 200Khz
• 100kohm Speed control adjustment pot.

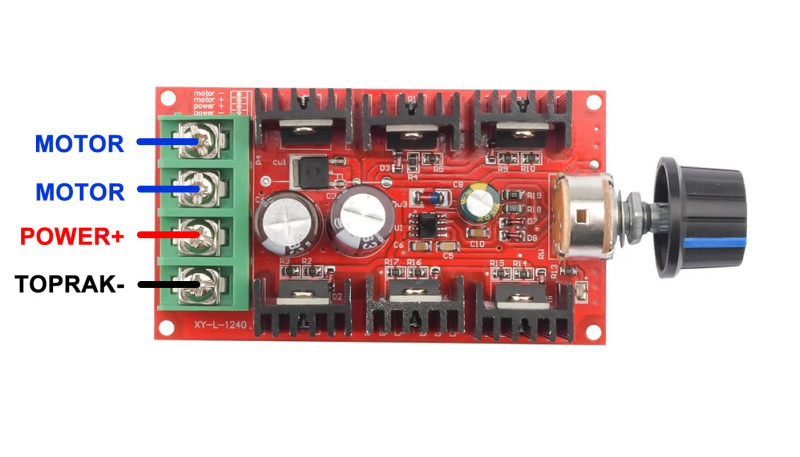

• Terminal block sockets for voltage input and output
• Operating temperature:   -10C  /  +65C

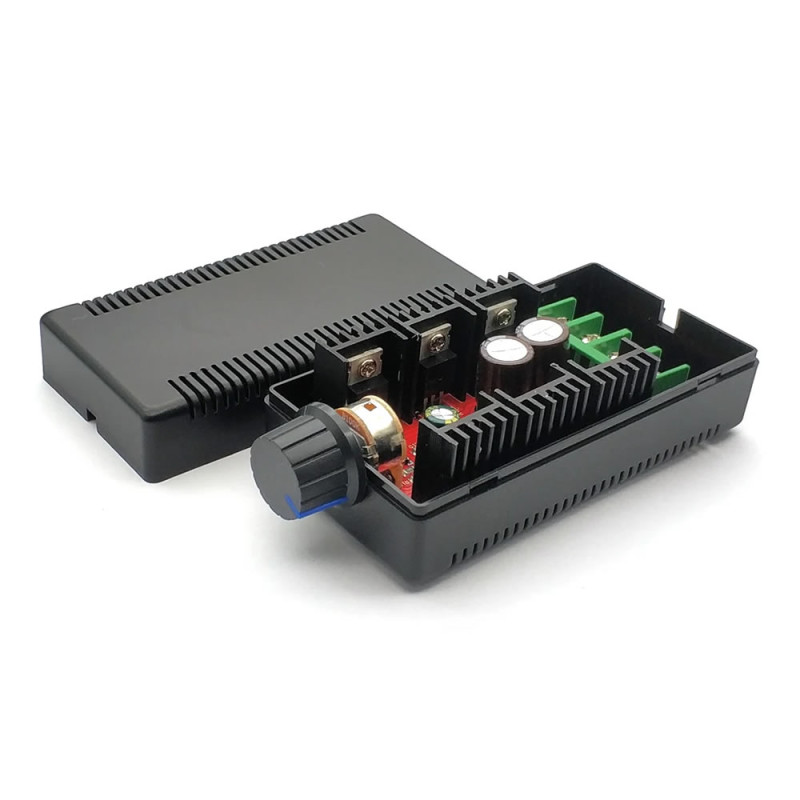

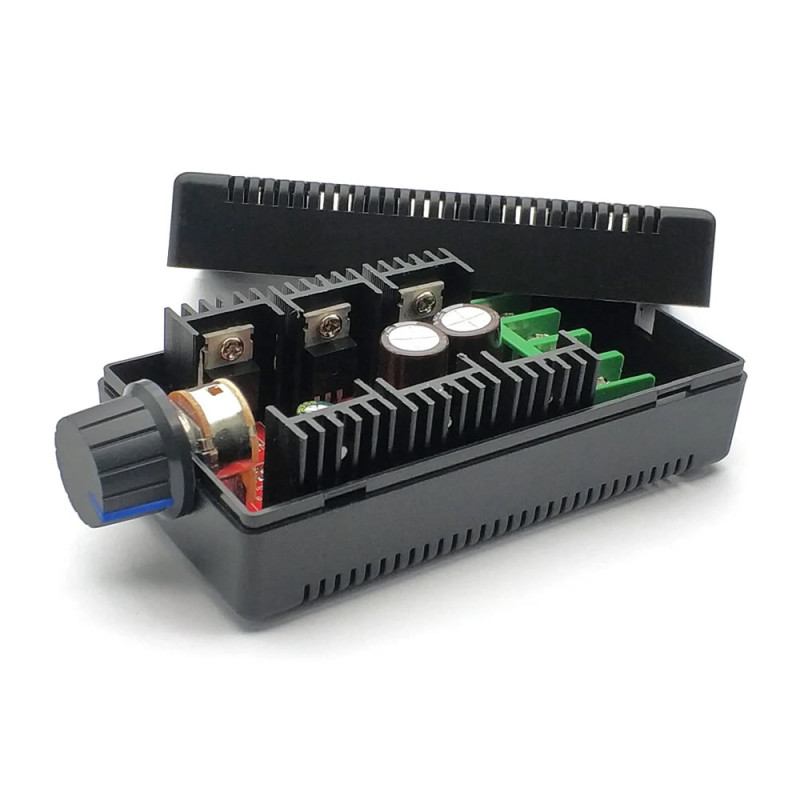

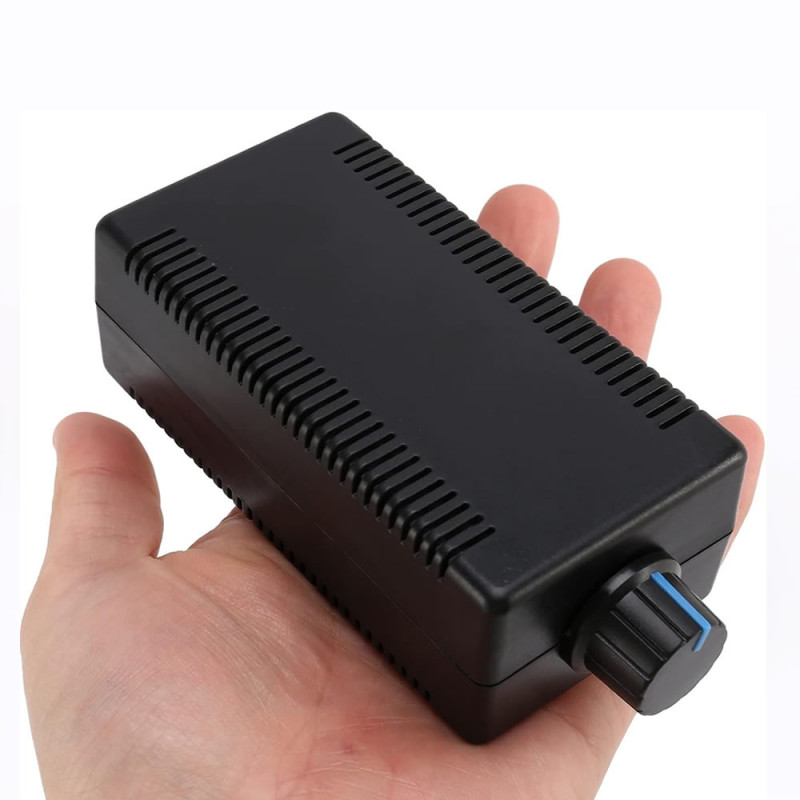

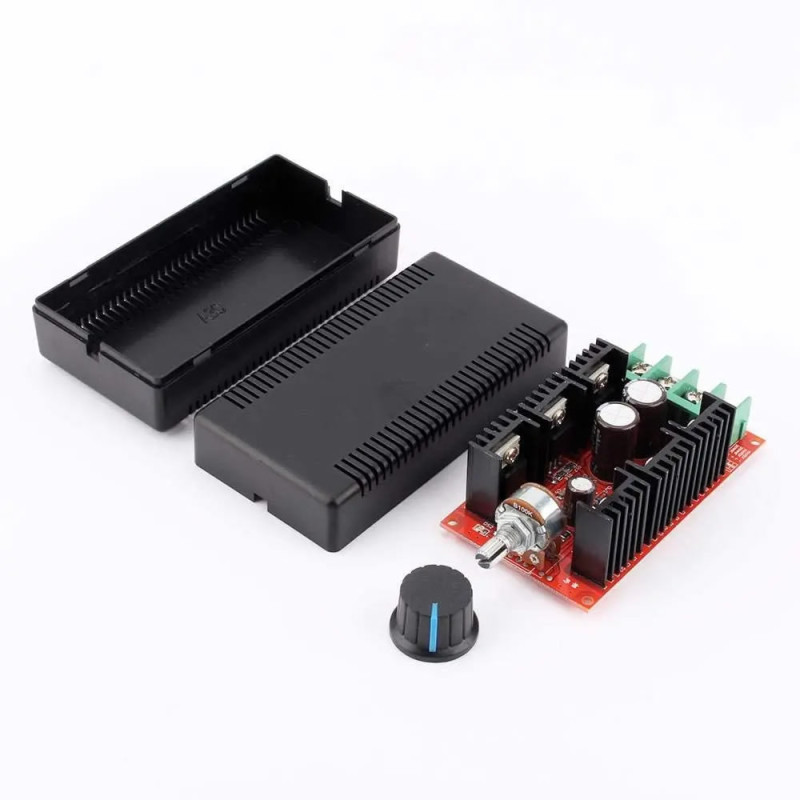

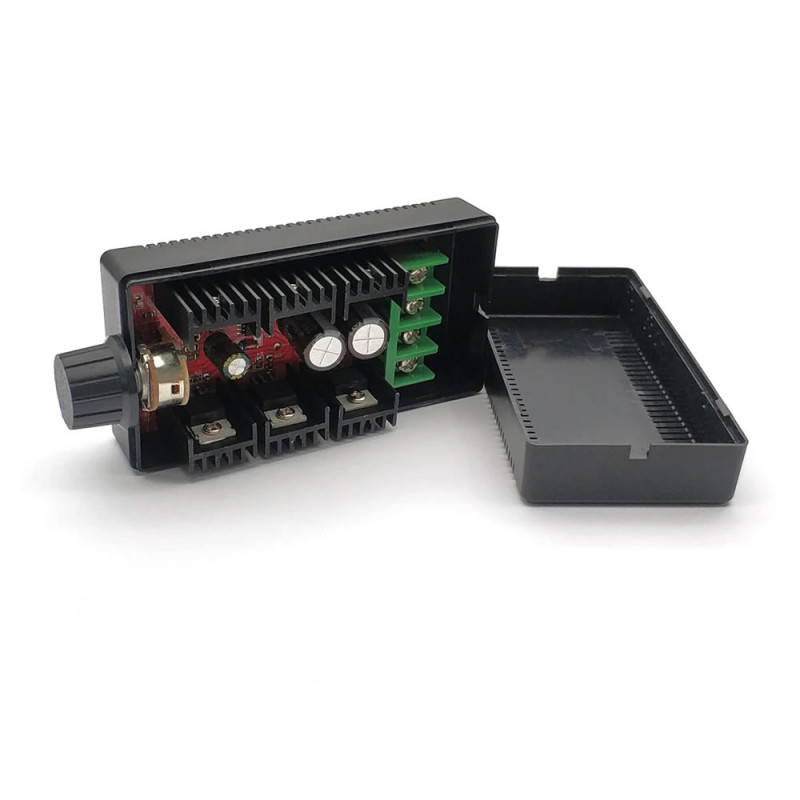

• Plastic box

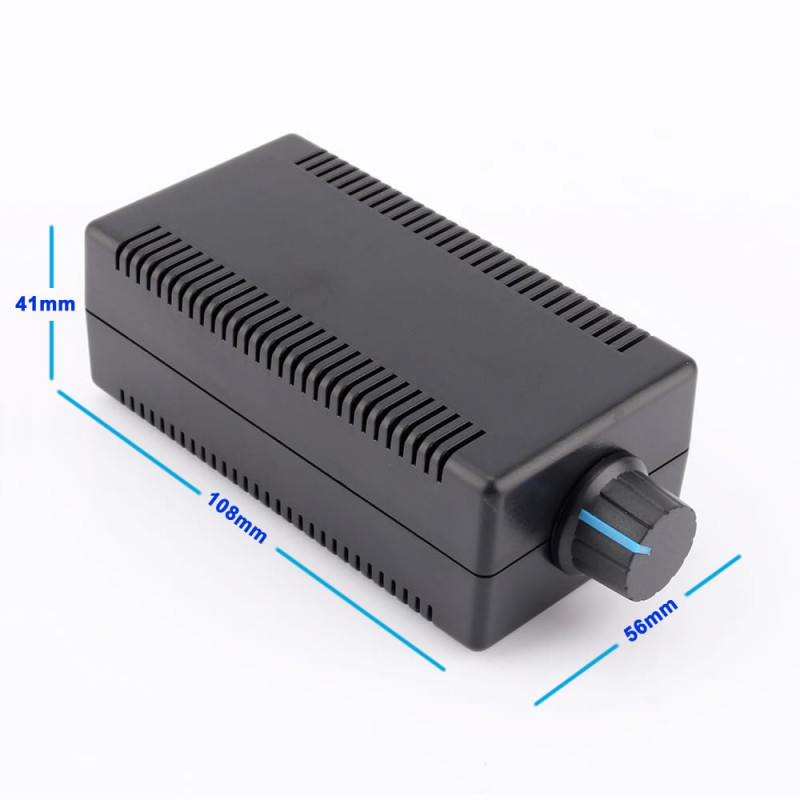

• Dimensions: 56mm x 108mm x 41mm
• Weight: 130gr

Warnings:

•      Speed adjustment is made with the speed control pot. Speed adjustment is achieved by changing the voltage to be transmitted to the motor between 0V and the max input voltage. There will definitely be torque losses at low voltages. It is not suitable for those who want the motor torque to remain at maximum along with the decrease in speed to use this type of Chinese made product.
•      You cannot use this product with AC 220V voltage.
•      The output voltage cannot be higher than the input voltage.

There is no reverse connection protection The supply must be connected correctly

    Package contents:

• 1 Piece 40A 50V DC Motor Driver Boxed
