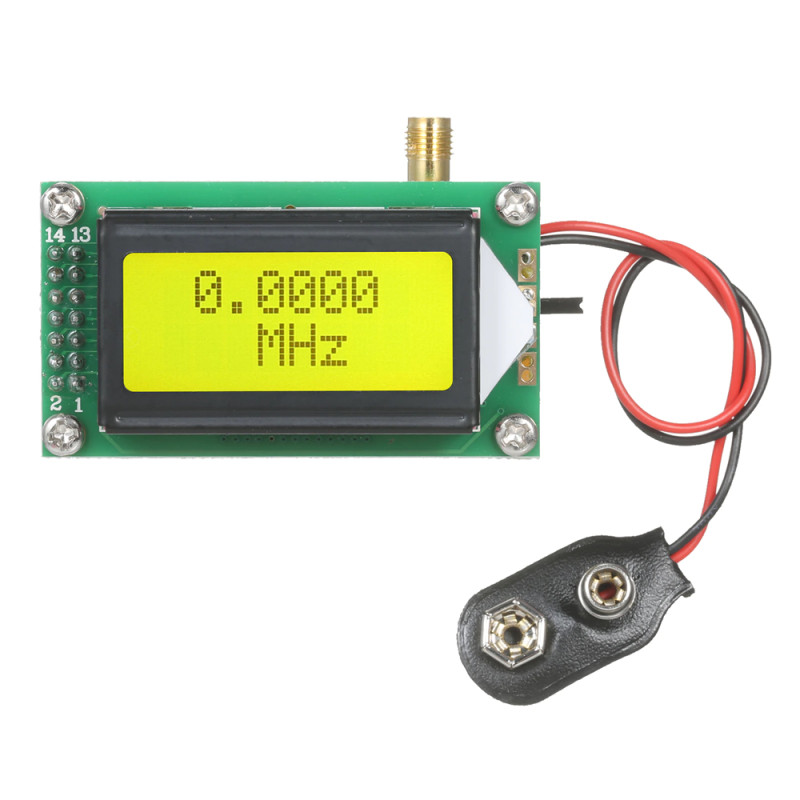

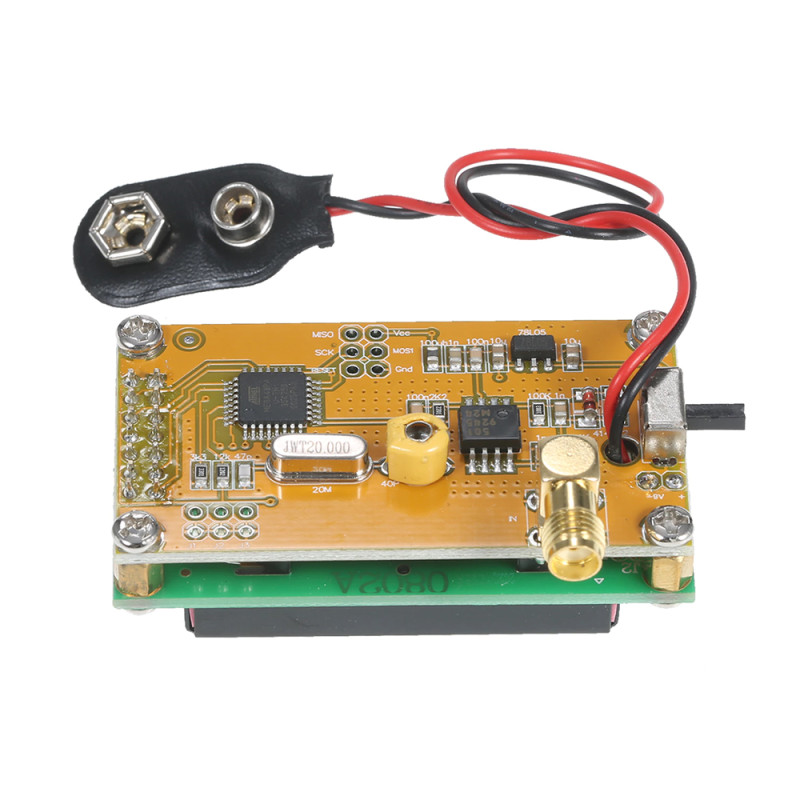

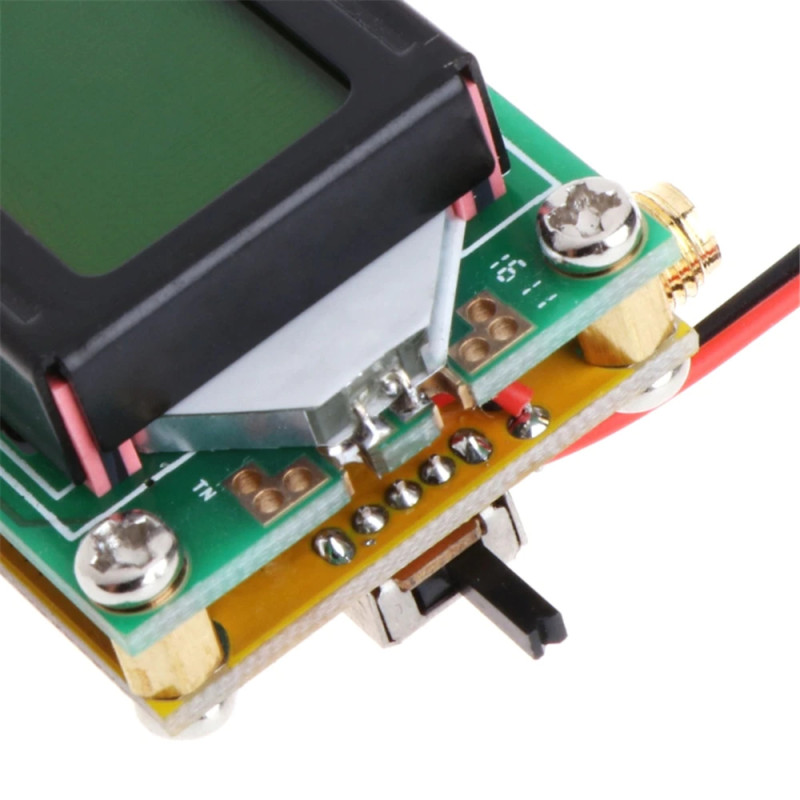

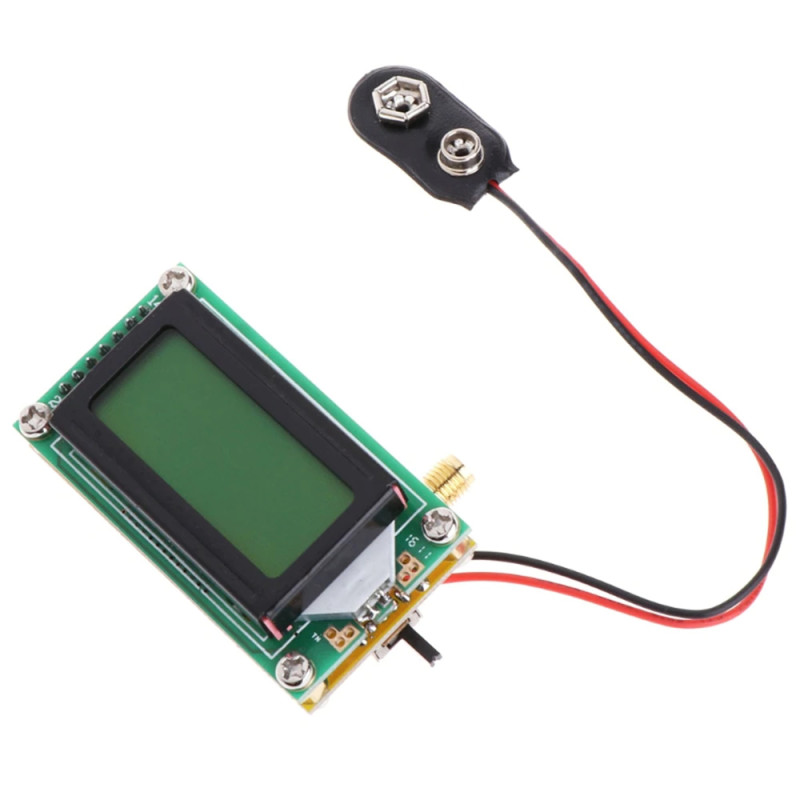

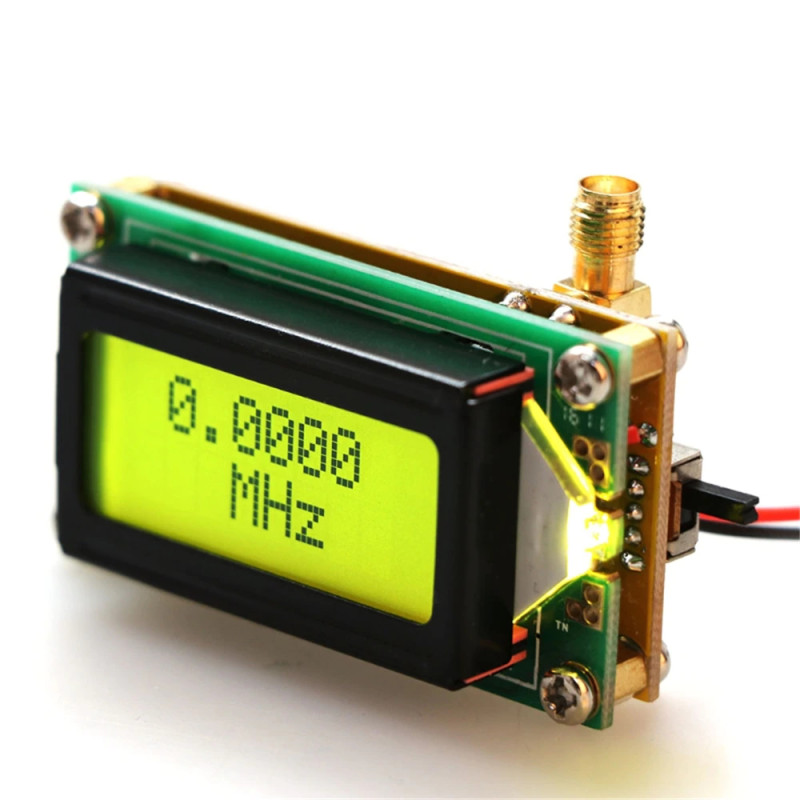

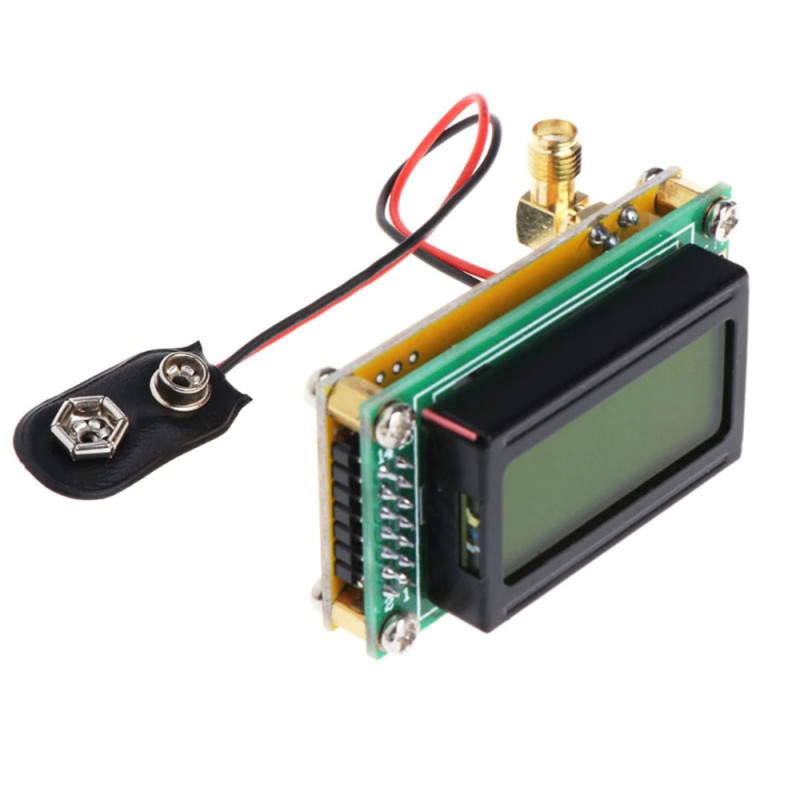

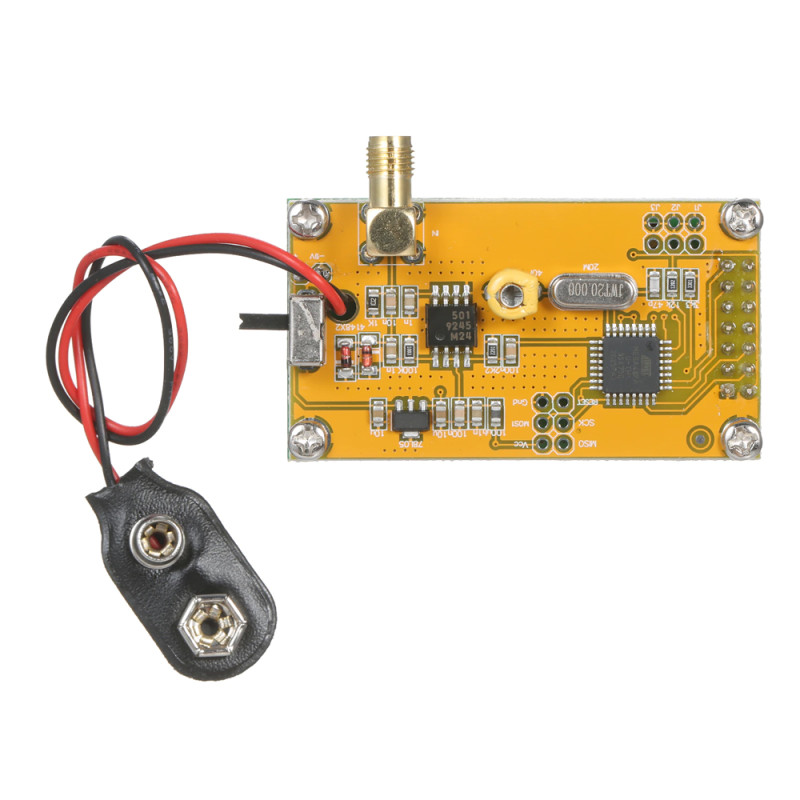

1Mhz-500MHz RF Frequency Counter

1Mhz-500MHz RF Frequency Counter

9V 0802 LCD Screen Digital RF Radio FM AM Signal Meter Test Measurement High Frequency High Accuracy Hertz Transceiver Wireless

The resolution ( margin of error ) is 100hz. The product measures signals above 1Mhz.

     The product works with a 9V battery. A battery is not included with the product. High sensitivity, the frequency information is shown on the 0802 character lcd screen. The signal input is made with a female sma socket. By attaching a high gain antenna to this section, the frequencies of rf signals can also be measured.

Features:

• Operating voltage: 9V battery
• On off switch.
• Frequency range:  1Mhz to 500 MHz
• Resolution: 100Hz
• Frequency adjustment capacitance ( there are those who use it by replacing it with 10pf )
• Green Yellow 0802 Lcd screen
• Sma female connection socket.
• Input signal voltage level:0.5-5V ( If a higher voltage is applied the product will be damaged )
• Input signal impedance: 20ohm / 200ohm ( 50ohm signal gives the best result )
• Low power consumption

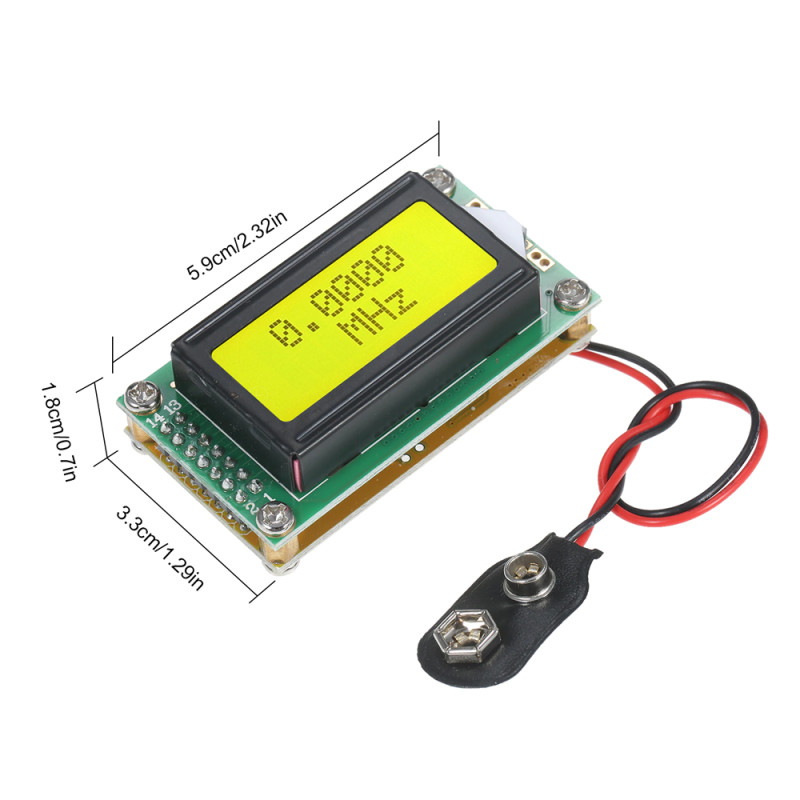

• Dimensions: 60mm x 33mm x 18mm
• Screen: 38mm x 16mm
• Weight: 45gr

Package Contents:

• 1 Piece 1Mhz-500MHz RF Frequency Counter
