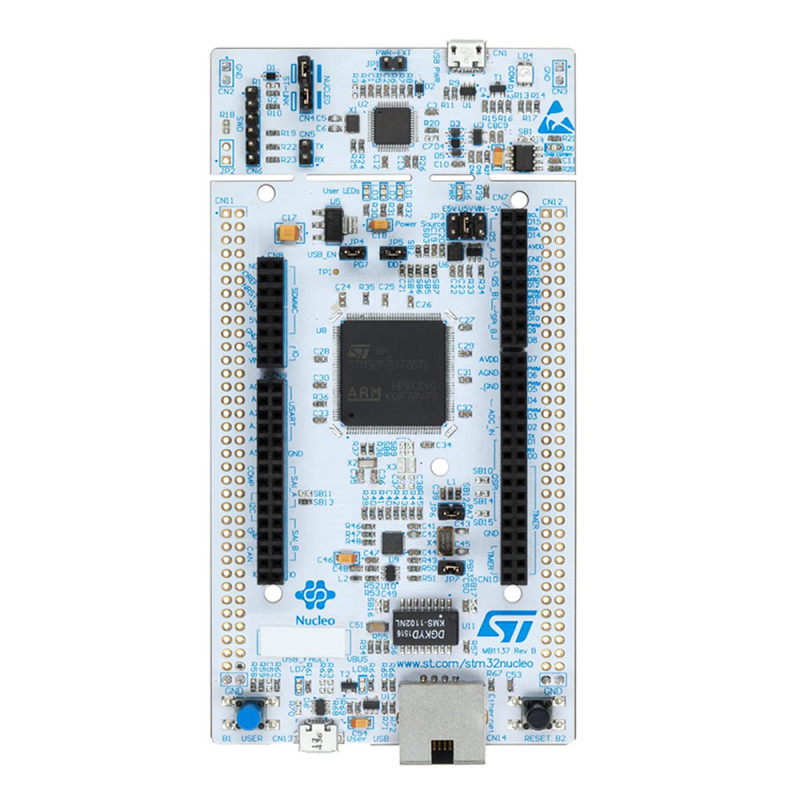

NUCLEO-F767ZI

St NUCLEO-F767ZI  NUCLEO F767ZI

STM32F767ZI Development Kit ST-LINK V2  32 Bit ARM Cortex M7 216MHz 2 MB Flash 512KB SRAM Arduino

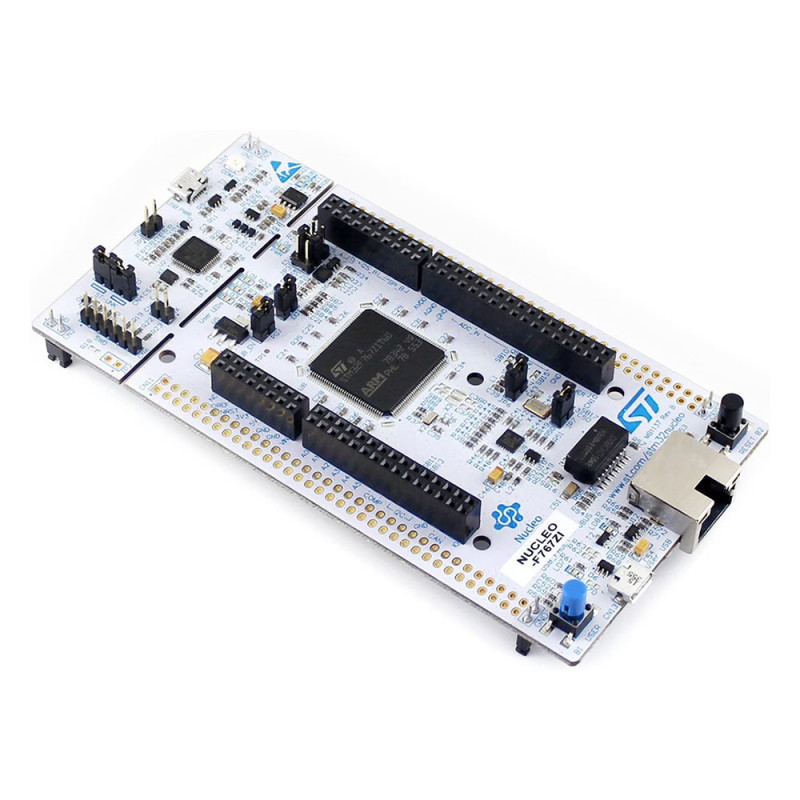

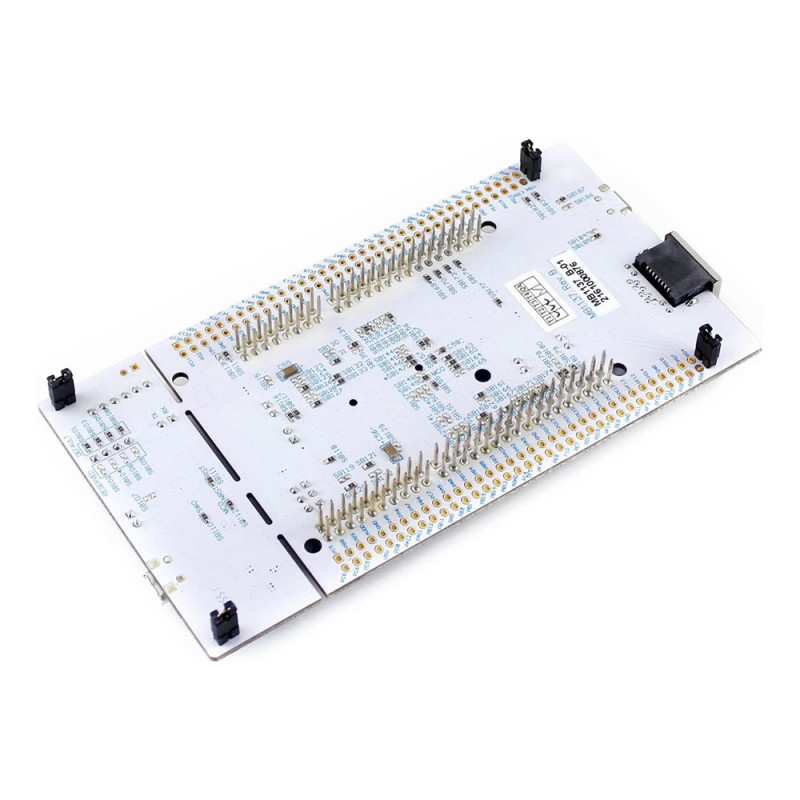

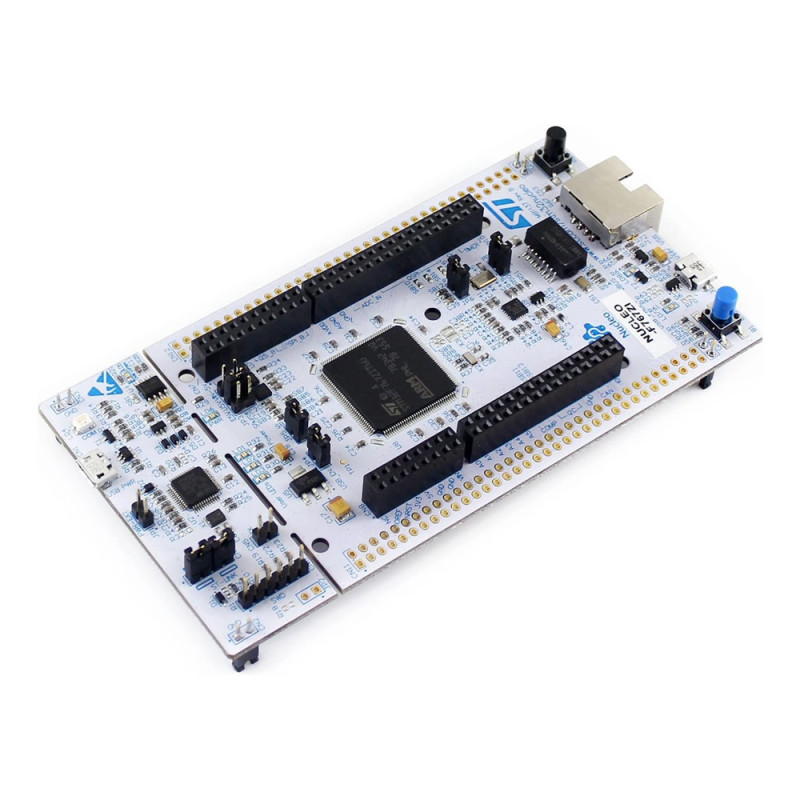

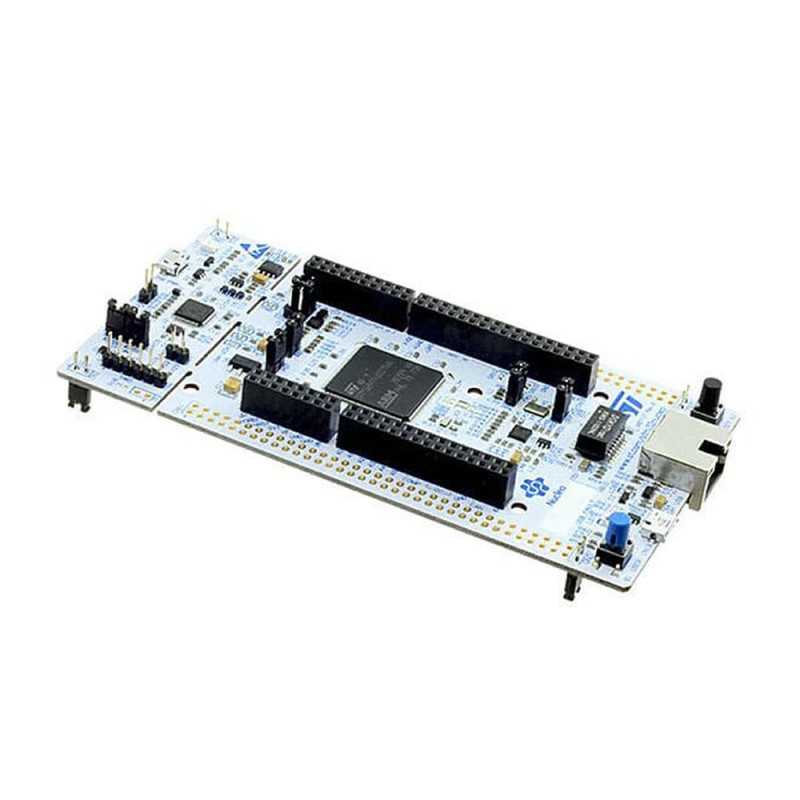

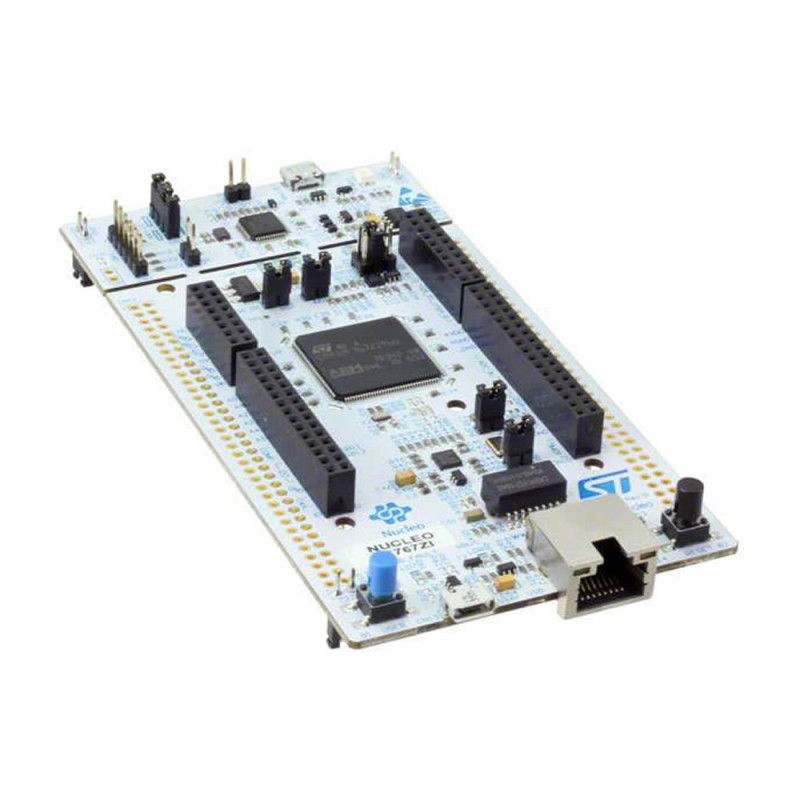

     The STM32 Nucleo-144 board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The ST Zio connector, which is an extension of Arduino™ Uno V3, provides access to more peripherals and ST morpho headers make it easy to expand the functionality of the Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo-144 board does not require any separate probe, as it integrates the ST-LINK/V2-1 debugger/programmer and it comes with the STM32 comprehensive software HAL library, together with various packaged software examples, as well as a direct access to the ARM®mbed™online resources at http://mbed.org.

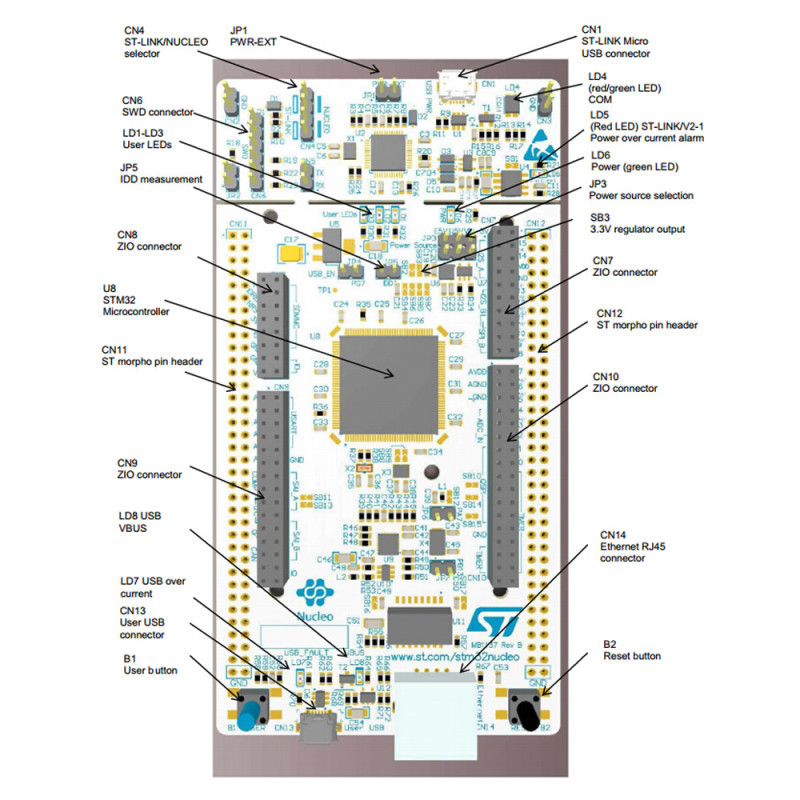

Key Features

•     STM32 microcontroller in LQFP144 package
•     Two types of extension resources:
•         ST Zio connector including: support for Arduino™ Uno V3 connectivity (A0 to A5, D0 to D15) and additional signals exposing a wide range of peripherals
•         ST morpho extension pin header footprints for full access to all STM32 I/Os
•     ARM® mbed™ -enabled (see http://mbed.org)
•     On-board ST-LINK/V2-1 debugger/programmer with SWD connector:
•         Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
•         USB re-enumeration capability. Three different interfaces supported on USB: virtual COM port, mass storage, debug port
•     Flexible board power supply:
•         5 V from ST-LINK/V2-1 USB VBUS
•         External power sources: 3.3 V and 7 - 12 V on ST Zio or ST morpho connectors, 5 V on ST morpho connector
•     USB OTG or full-speed device with Micro-AB connector (depending on STM32 support)
•     IEEE-802.3-2002 compliant Ethernet connector (depending on STM32 support)
•     Three user LEDs
•     Two push-buttons: USER and RESET
•     LSE crystal:
•         32.768 KHz crystal oscillator
•     Comprehensive free software HAL library including a variety of software examples
•     Support of wide choice of Integrated Development Environments (IDEs) including IAR™ , Keil® , GCC-based IDEs, ARM® mbed™

Microcontroller features

•     STM32F746ZGT6 in LQFP144 package
•     ARM®32-bit Cortex®-M7 + DPFPU + Chrom-ART™ Accelerator
•     216 MHz max CPU frequency
•     VDD from 1.7 V to 3.6 V
•     2 MB Flash
•     512KB SRAM

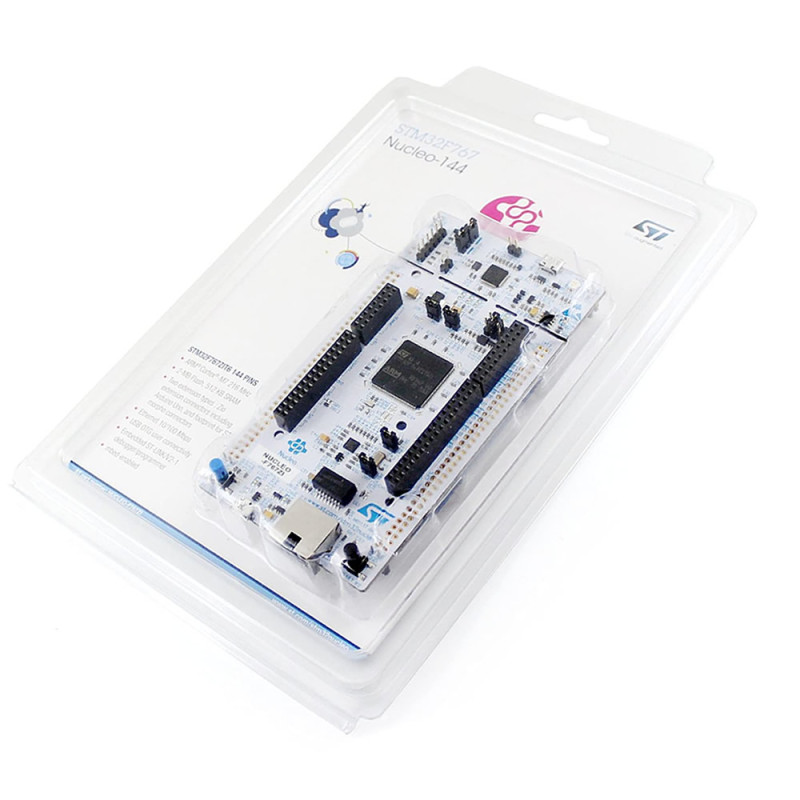

Package Contents:

• 1 Piece NUCLEO-F767ZI  Kit

Attention: A usb cable does not come in the package.
