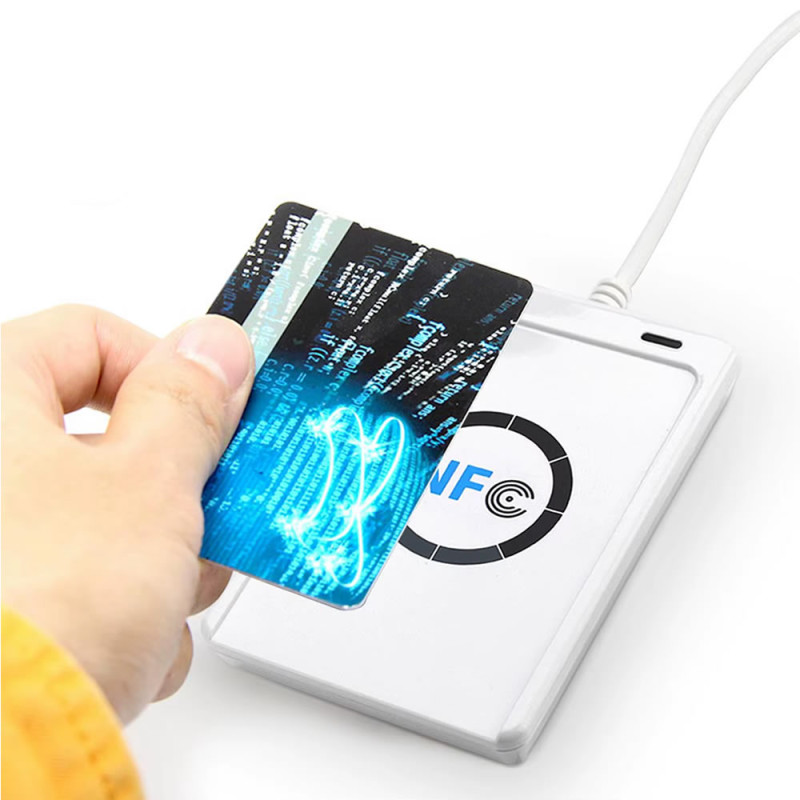

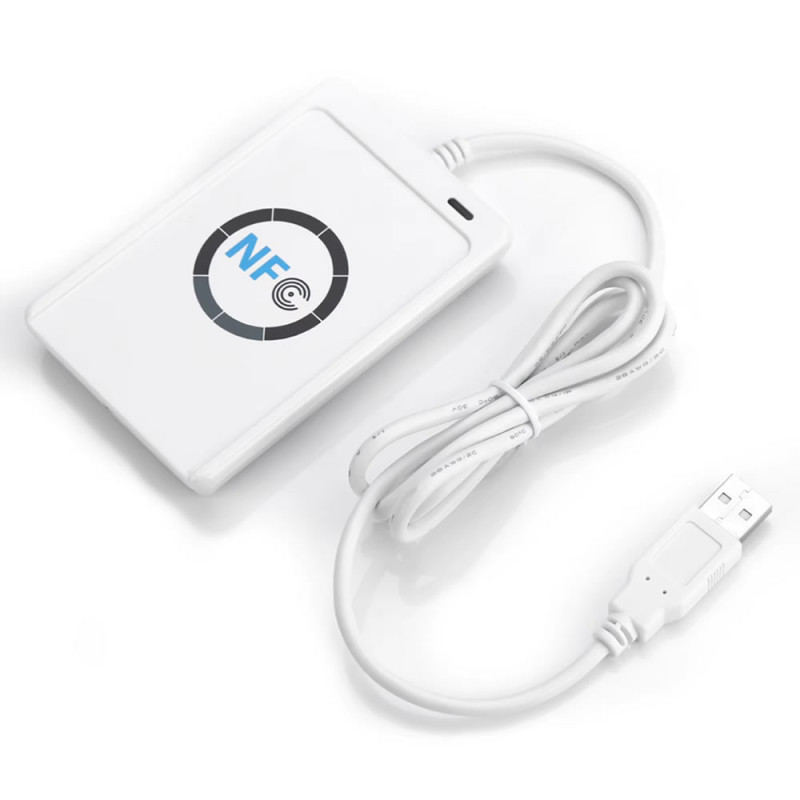

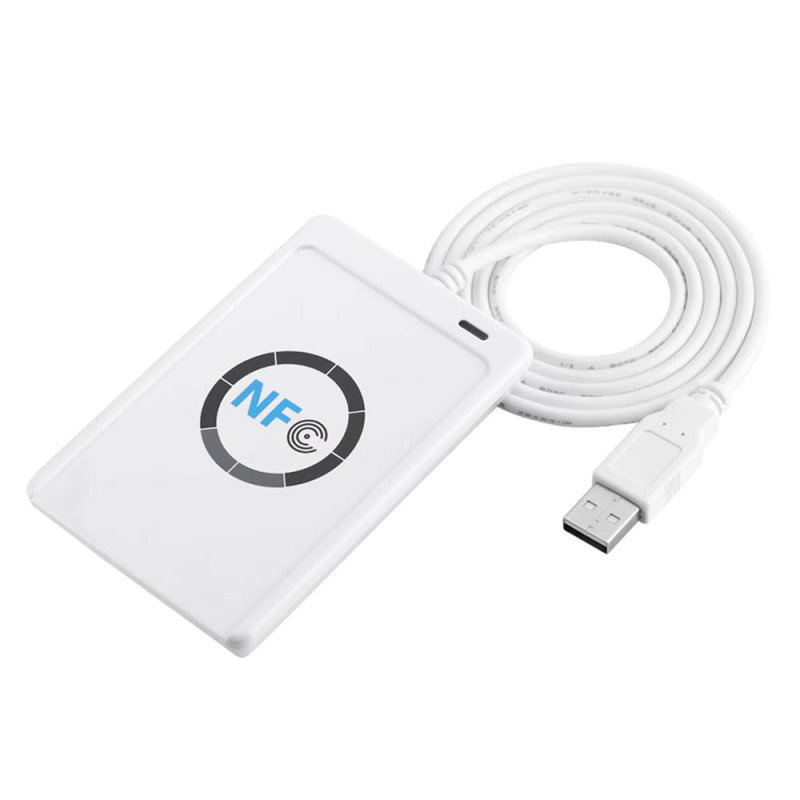

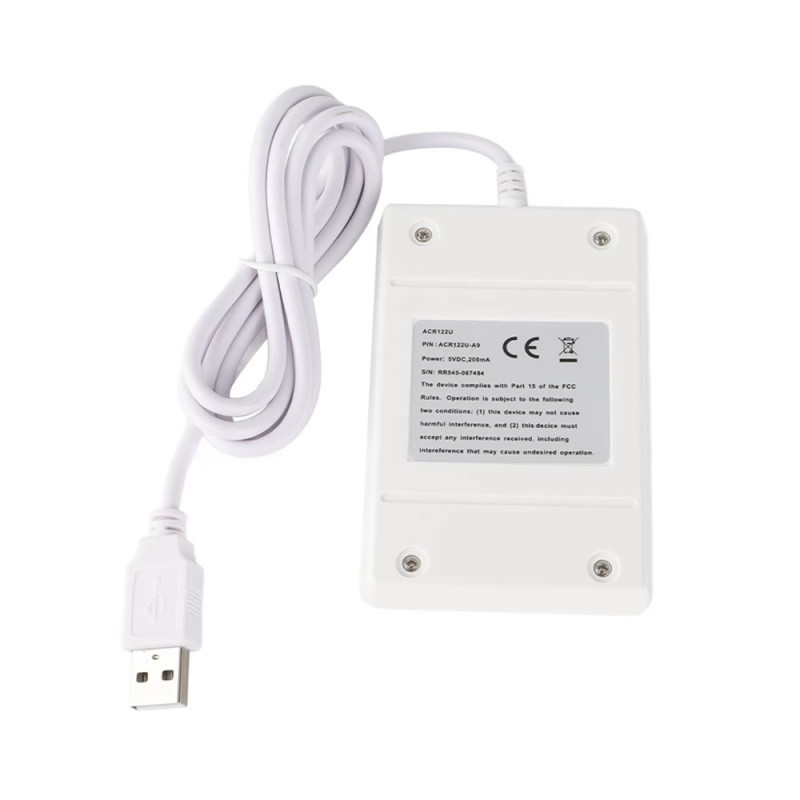

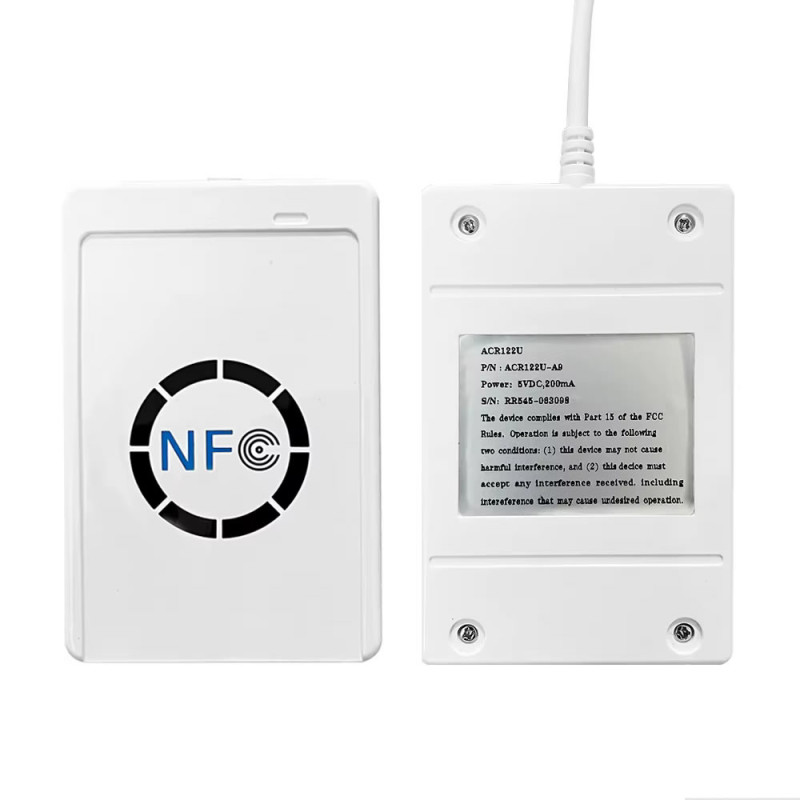

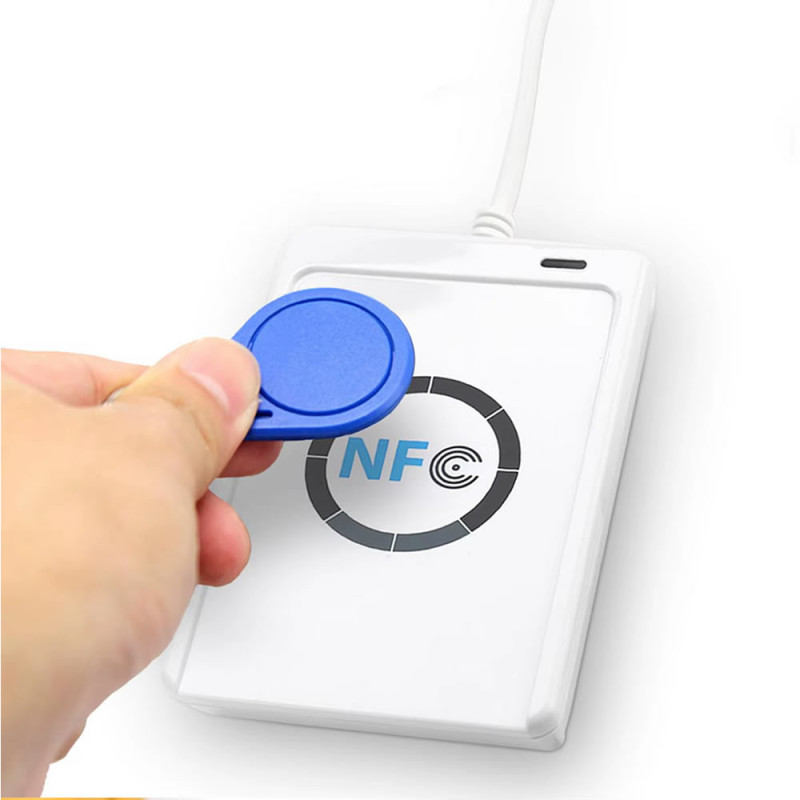

ACR122U 13.56Mhz Rfid Reader Writer

ACR122U 13.56Mhz Rfid Reader Writer
 Usb Copier Nfc Magnetic Card Keychain Tag Reader Personnel Tracking Door Entry Control Counter Proximity

     It is a circuit that can read, write and copy rfid cards, keychains, tags etc. products at 13.56Mhz frequencies. It connects to the computer via Usb.

RFID product selection information:

     There are two types of rfid products, 13.56Mhz and 125Khz. If there are numbers on your cards or keychains, your system is 125Khz. If there is no writing, it is 13.56Mhz. You need to make your product selection accordingly. This product can read both types of rfid products.

Features:

•   ACR122U 13.56Mhz Rfid Reader Writer
•   Communication: Usb port
•   13.56MHz supported protocols:  S50 / S70 / Ntag203 etc. 14443A, ISO14443A, IEC18092 S11, S13
•   Rfid frequency: 13.56Mhz
•   Operating voltage: Usb  (DC 5V)
•   Reading distance: 1-8 cm  (Varies according to the reader device and operating mode)
•   Card number: First 10 digits
•   Two color led indicator. Red standby, green read
•   Buzzer audible alert support
•   Operating system: Windows XP/Win 7/10/11
•   Operating temperature:  -10C  /  50C
•   Color: White
•   Usb cable length: 1 Meter

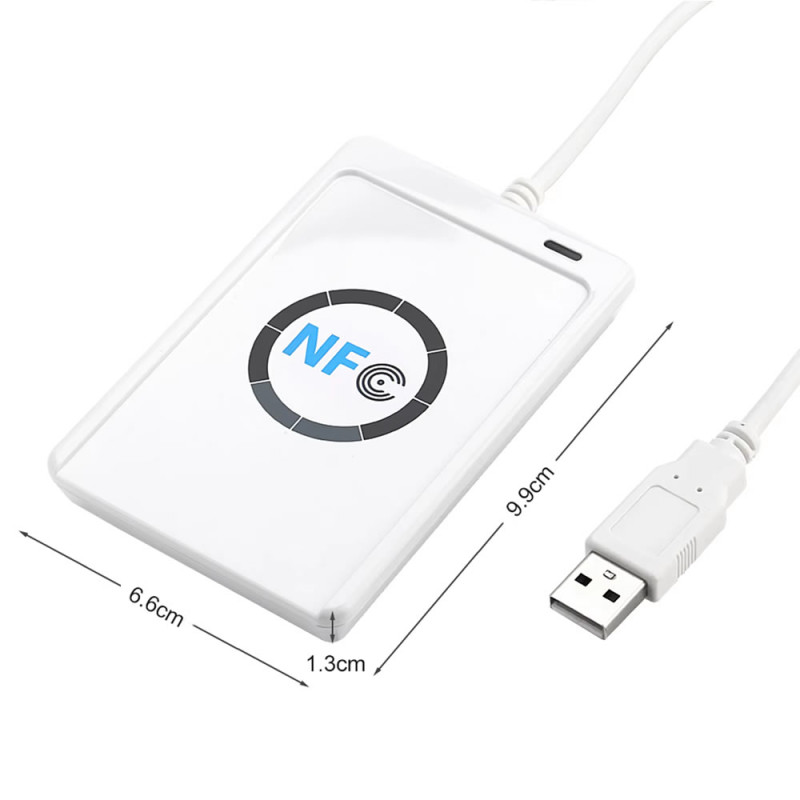

•   Dimensions:  66mm x 99mm x 13mm
•   Weight:  75gr

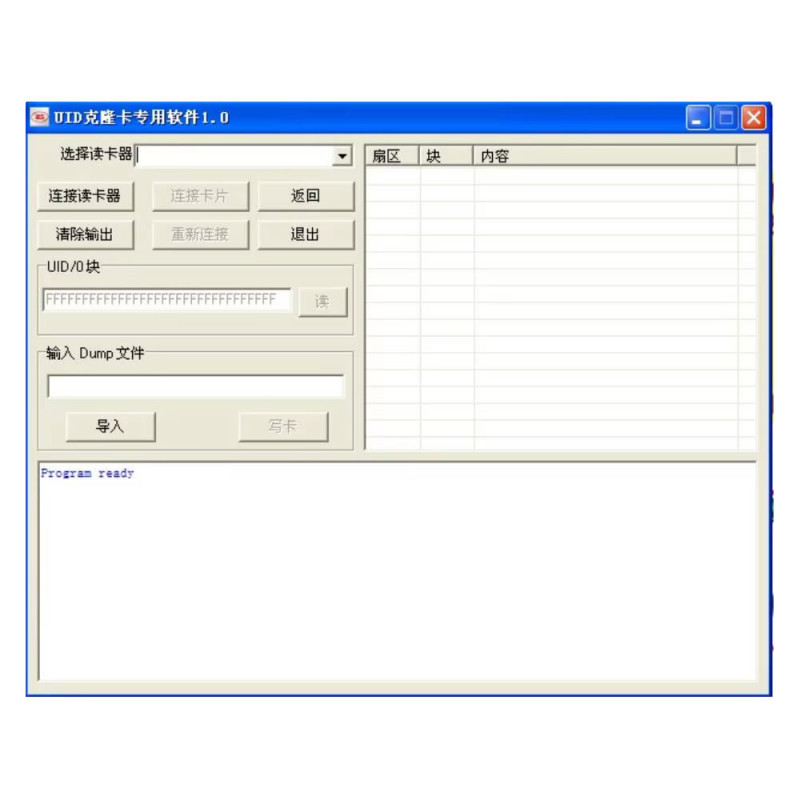

Software:

• drive.google.com/drive/folders/16I6t3MpN5OUY4bdB9jk0rWNYBFN3-x5c?usp=sharing

Package contents:

•    1 Piece  ACR122U 13.56Mhz Rfid Reader Writer

.
