PAM8610 2x 10W Amplifier Module

PAM8610 2x 10W Stereo Amplifier Module

DC 6-15V Class D Amplifier Circuit Volume Control Potentiometer  4 8 Ohm Speaker DVD TV Cinema Entertainment Musical Instrument

The audio outputs cannot be short circuited to each other or to ground. The product outputs will be damaged.

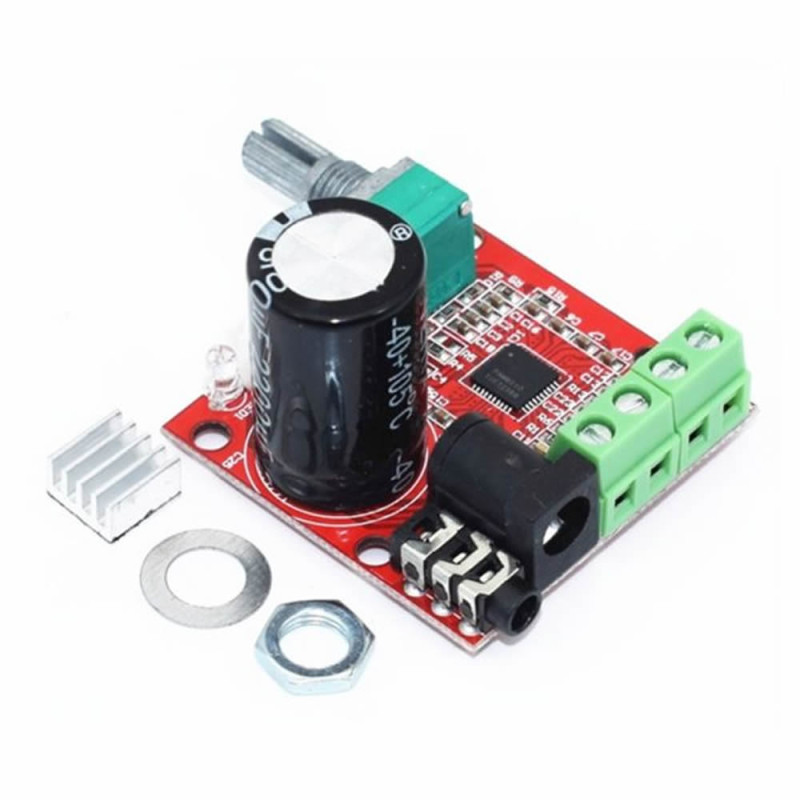

For the circuit to operate, the supply jumper that comes with the product must be installed. It can be seen in image number 8

     This module, using the PAM8610 class D amplifier IC, can deliver 15W output on 2 channels. It is compatible with 4 and 8 ohm speakers. With its small dimensions and its structure requiring no external circuit component, it can easily be used in your projects.

Features:

•     IC: PAM8610
•     Operating voltage: DC  12V ( 6V / 15V )
•     Operating current: 2A
•     Output power: 2 x 15watt
•     Class: Class: D
•     Speaker type: 4 / 8ohm ( Speakers above 20W per channel must be used. )
•     Efficiency: % 90
•     Harmonic Distortion: <% 0,1
•     Low noise: 90dB
•     Input impedance: 20K
•     Supply short circuit protection
•     Overcurrent protection
•     Instantaneous noise suppression
•     Over temperature protection
•     3.5mm audio input socket
•     Color: Red
•     Operating temperature:  -10C  /  85C
•     Volume adjustment potentiometer
•     Audio on off socket ( In open circuit state audio is output, if short circuited the audio is muted. )
•     Power on off socket
•     4 Pieces M3 mounting hole
•     2.1mm standard adapter socket.
•     4 way terminal block socket for speaker connection
•     Dimensions: 40mm x 40mm
•     Weight: 27gr

Package contents :

•    1 Piece  PAM8610 2x15W PAM8610 Amplifier Module

.
