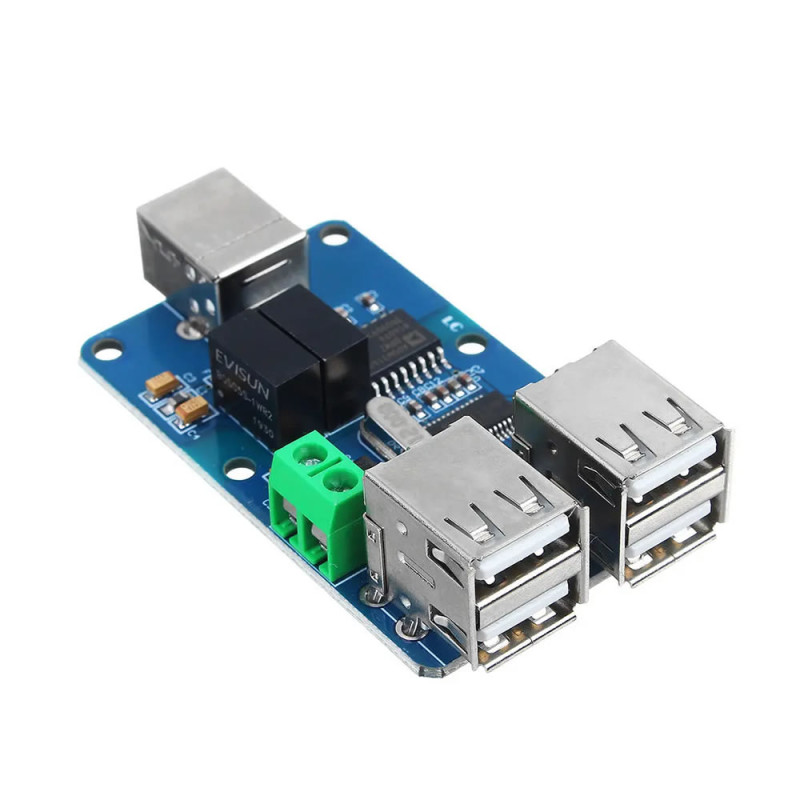

ADUM3160 4 Port USB Module

ADUM3160 4 Port USB Module

     It is an isolation module developed for the protection of the USB port. A USB to USB converter module developed using the ADUM3160 IC. In applications operating with high voltage, there is a possibility of damage to your computers and similar devices that have a USB port. This module is used to eliminate this danger.

     It has 1500V isolation. It converts 1 USB input port into a 4 port USB output with isolation. It provides 1.5Mbps - 12Mbps speed support. It has hotswap and plug and play support.

Features:

• 4 Channel isolated USB converter / multiplier
• USB2.0 compatible
• 1500V Isolation Voltage. :
• USB speed support: 1.5mbps - 12Mbps ( Does not support higher speed USB communication types.)
• Power supply: Supplied from the PC USB port
• External supply: DC 5V adapter via terminal block socket. If you connect a higher voltage adapter, the USB products you connect to the device will be damaged.
• Reverse connection protection is available for the external power supply.
• When the power supply is provided from the PC, the USB port consumption can be used as minimum 400ma per channel. If you need a higher output power than the power that can be supplied from the input USB port in total ( 2W ), you need to supply the product with an external 5V adapter.
• The product does not require a driver. It will be detected automatically by the PC as plug and play.
• Each USB port has an esd protection IC.
•  The isolation is only between the input port and the output ports. The output ports do not have isolation among themselves.
• Communication indicator led for 4 output USB ports.
• Operating temperature: -40  to 85

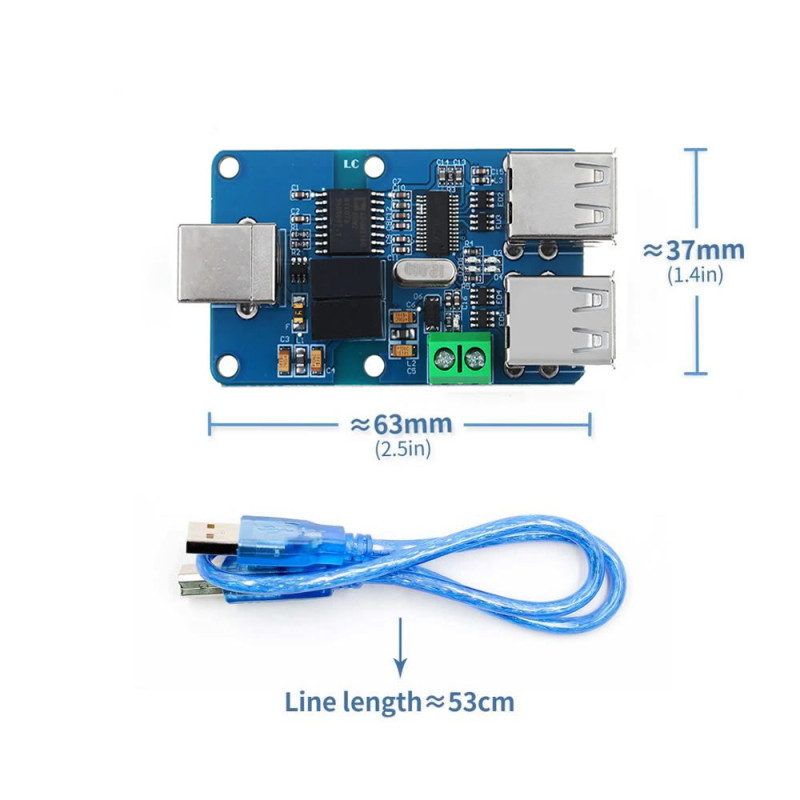

• Dimensions: 7,2cm x 3.7cm x 2cm

Package Contents:

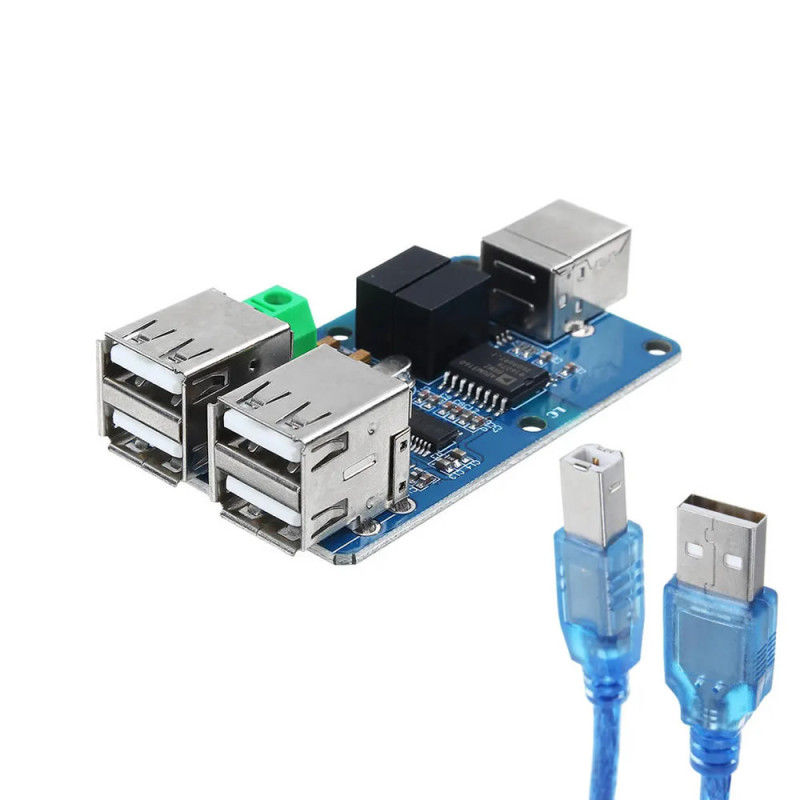

• 1 Piece ADUM3160 4 Port USB Module
• 1 Piece USB Connection Cable
