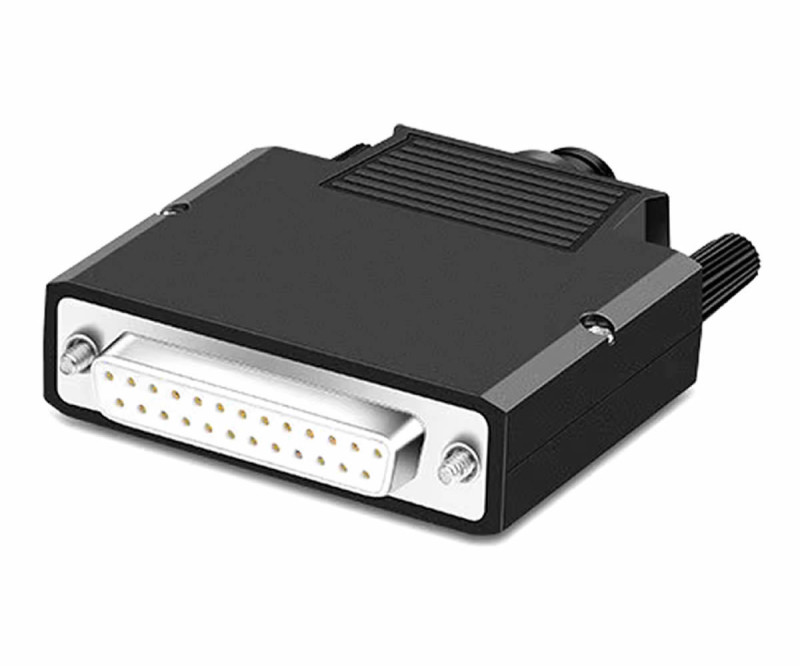

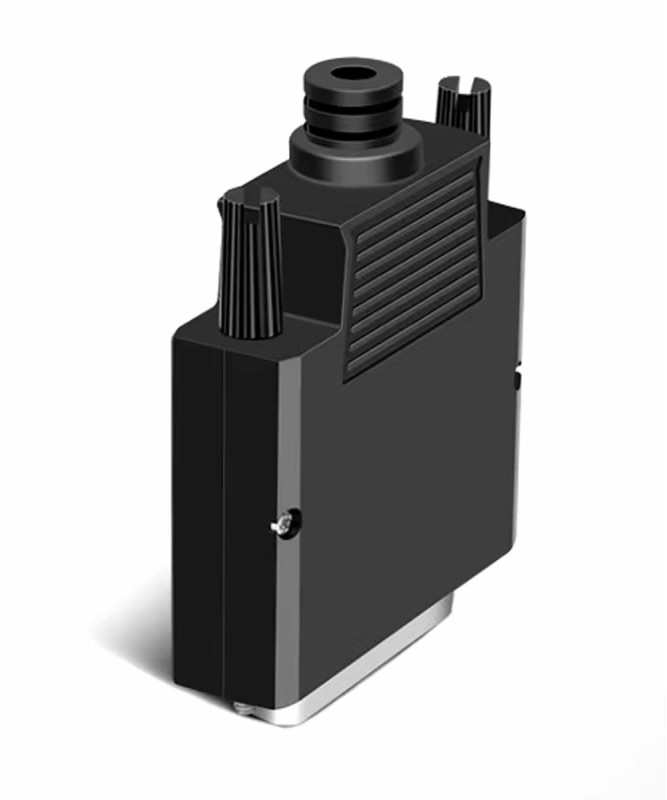

Boxed DB25 to Dip Adapter Female
374.40TL
Ex Tax: 312.00TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: Kutulu DB25 to Dip Adaptör Dişi
- SKU: RBZ.101.472
Boxed DB25 to Dip Adapter Female Terminal Socket
25 Pin D-Sub Parallel Port Communication Uart DC 3V 5V Computer Modem Satellite Receiver GSM Barcode Cash Register Firmware Update
It is a converter that allows easy connection to the DB25 female socket pins with terminal blocks. There are 5 pin 2 row terminal blocks. You can easily mount the cable without soldering. It can be used in parallel port communication systems. It is widely used in many electronic devices such as computers, modems, satellite receivers, industrial devices, automation etc.
It has a plastic box. A plastic part and 2 screws come with it for fixing the cables. Cables with 10mm diameter can be used.
Features:
- Boxed db25 to dip adapter female
- Output socket type: Db25 female

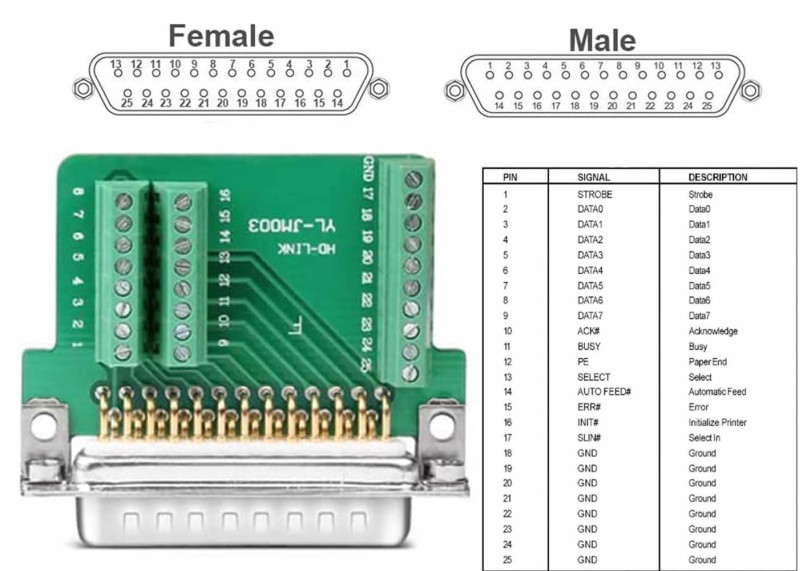

- Number of pins: 25 Pin
- Current: 1A Maximum

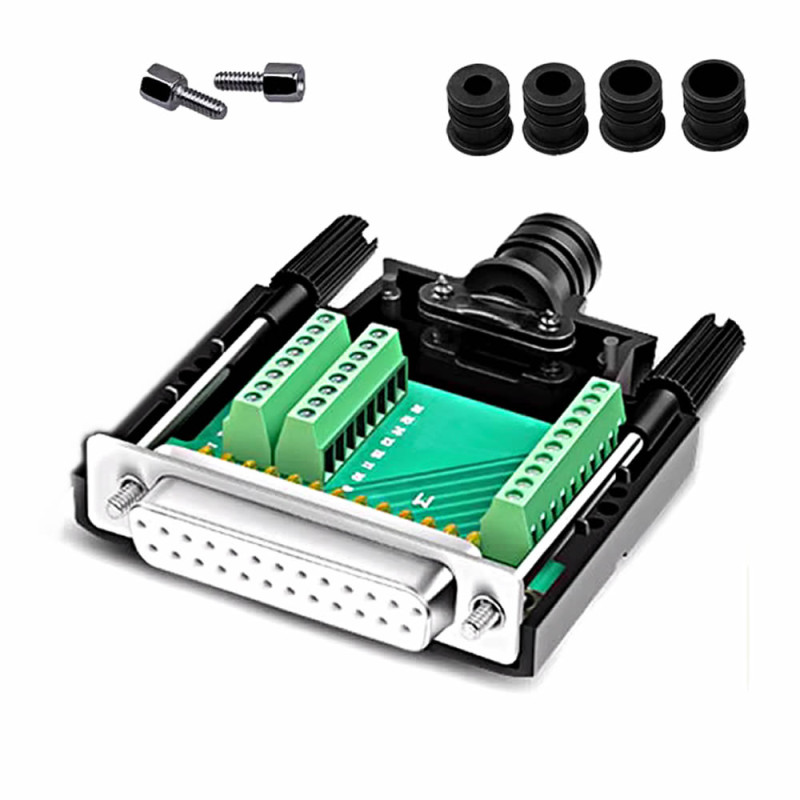

- Terminal block sockets

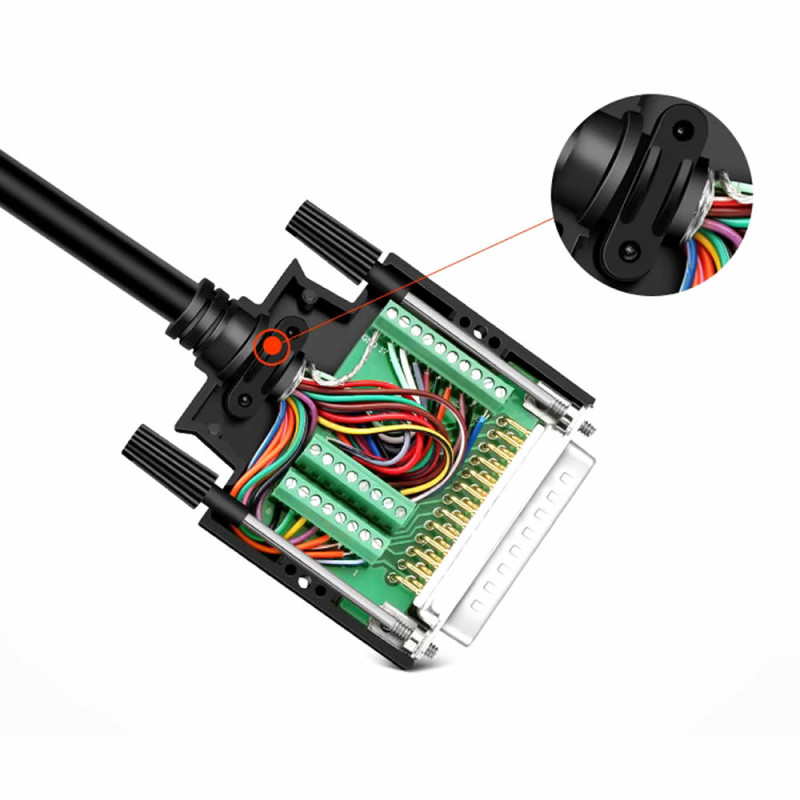

- Solderless easy installation
- Quality plastic box
- Plastic box is fixed with screws
- Material: Metal / Plastic
- Color: Black / Green
- Operating temperature: -40C / 65C
- Dimensions: 57mm x 64.4mm x 16.5mm
- Cable thickness: 10mm / 26-16 AWG
- Weight: 52gr

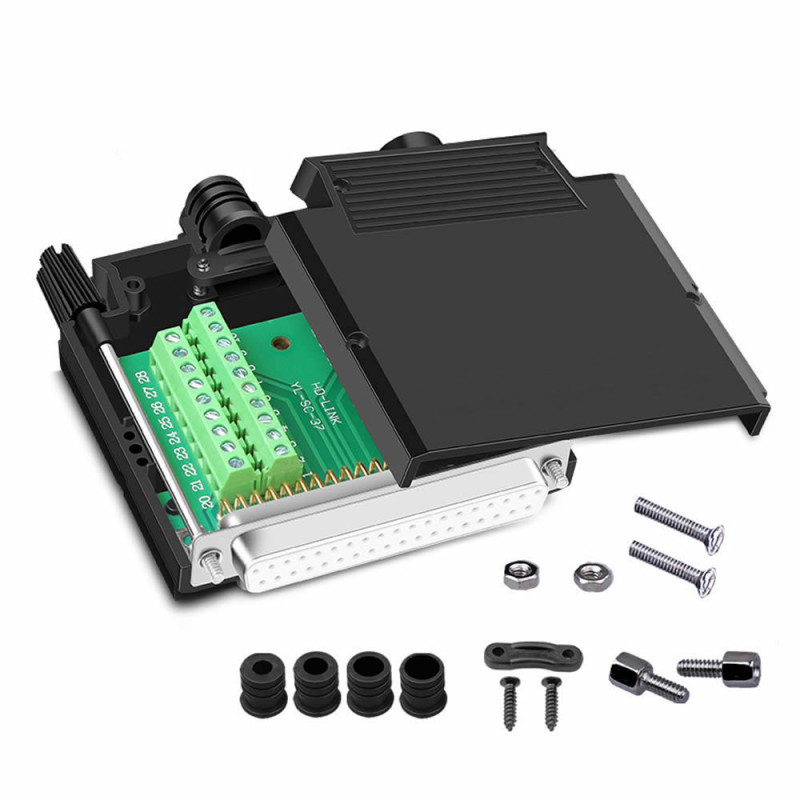

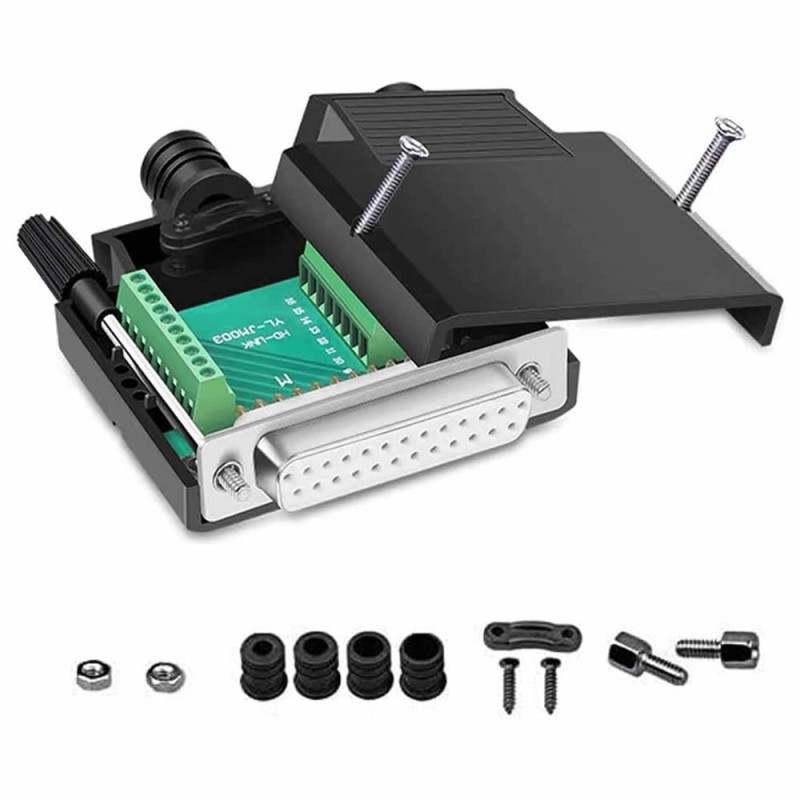

Package contents:
- 1 Pcs Boxed DB25 to Dip Adapter Female
- 4 Pcs screws
- 1 Pcs cable fixing plastic part
