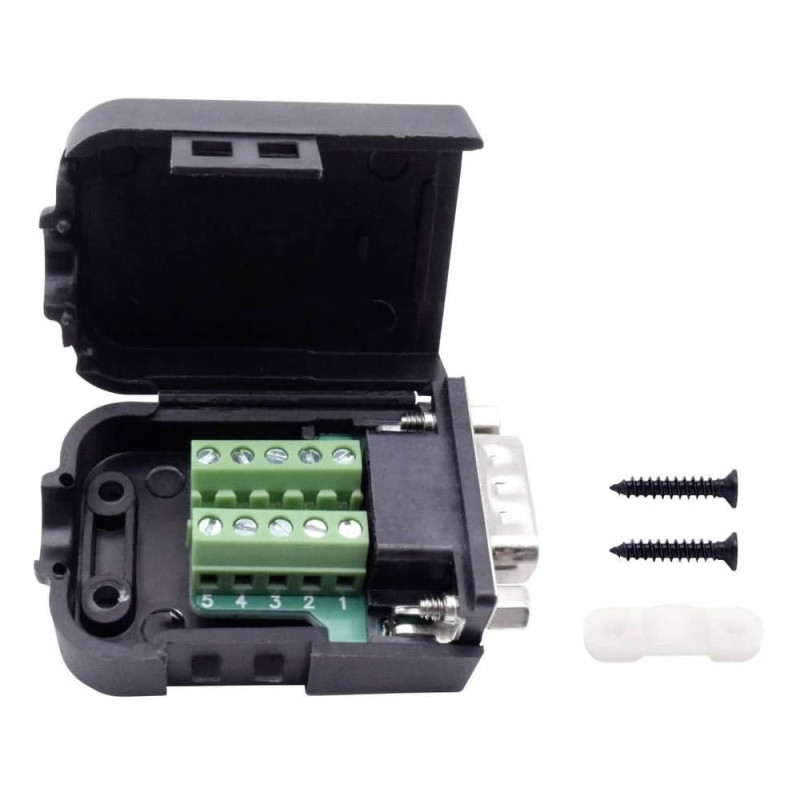

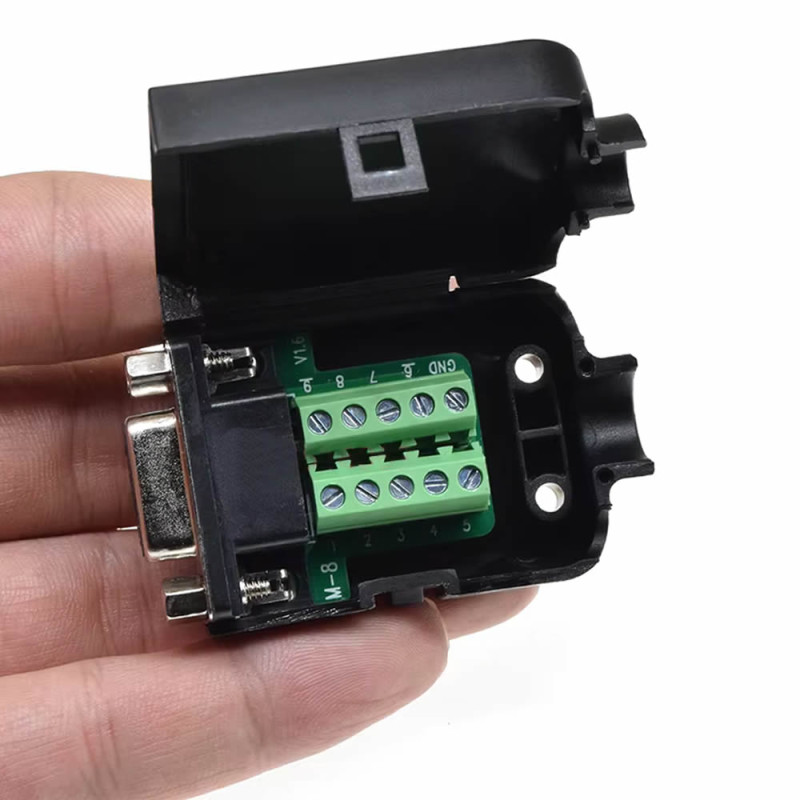

Boxed DB9 to Dip Adapter Female

Boxed DB9 to Dip Adapter Female Terminal Socket

9 Pin D-Sub Serial Port  RS232 RS485 Communication Uart DC 3V 5V Computer Modem Satellite Receiver GSM Firmware Update

     It is a converter that allows easy connection to DB9 female socket pins with terminal blocks. There are 5 pin 2 row terminal blocks. You can easily mount the cable without soldering. It can be used in Rs232 rs485 communication systems. It is widely used in many electronic devices such as computers, modems, satellite receivers, industrial devices, automation etc.

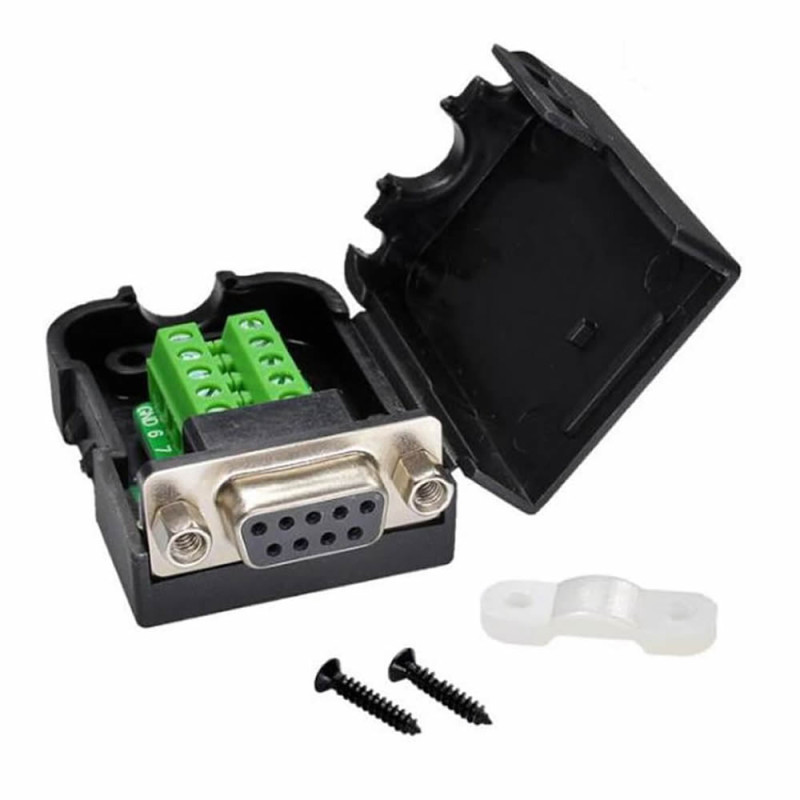

     It has a plastic box. A plastic part and 2 screws come with it to fix the cables. Cables with a 10mm diameter can be used.

Features:

• Boxed DB9 to Dip Adapter Female
• Output socket type: DB9 Female

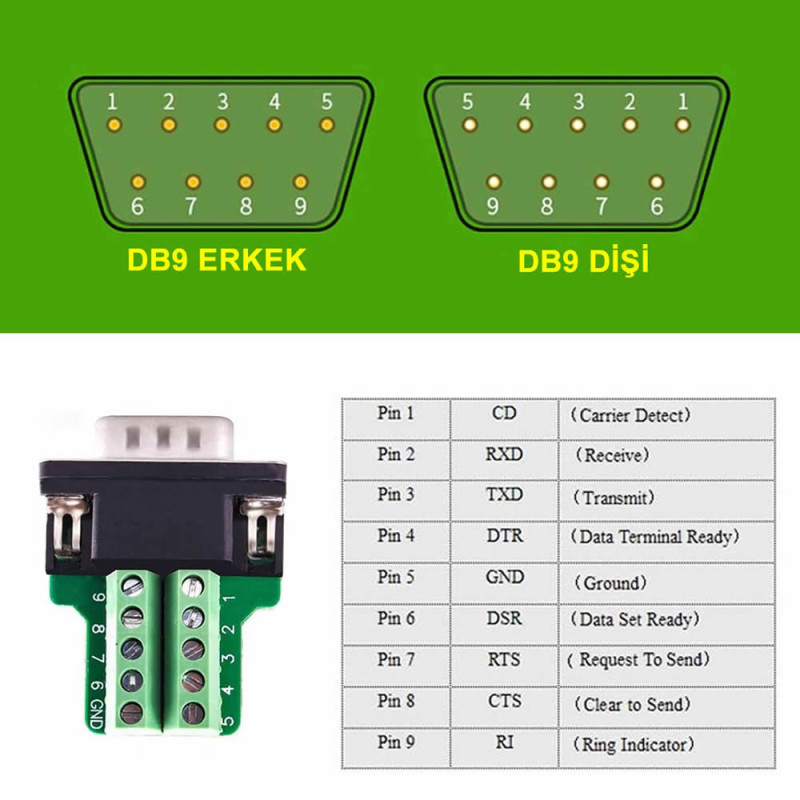

• 9 Pin rs232  socket.
• Current: Maximum 1A

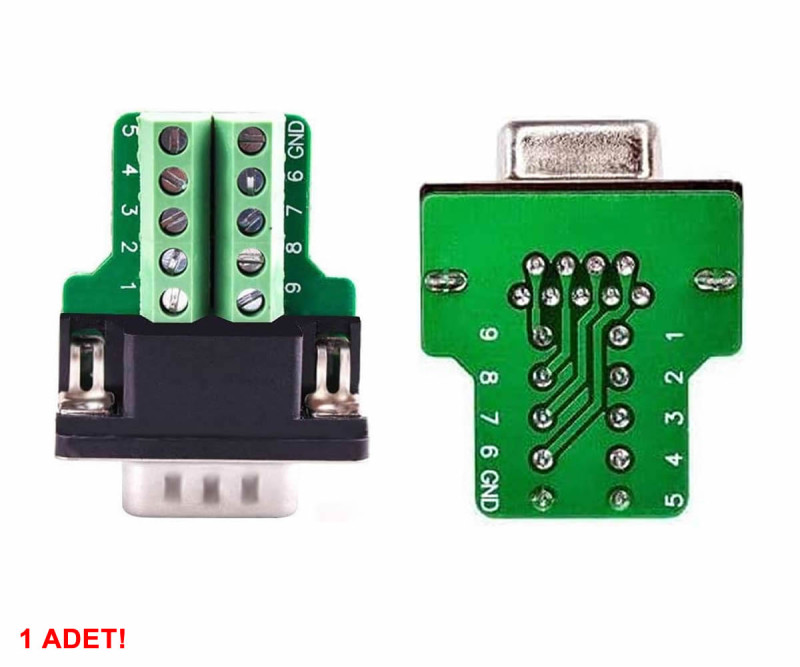

• 2 Pieces 5 way terminal block sockets
• Solderless easy assembly
• Quality plastic box

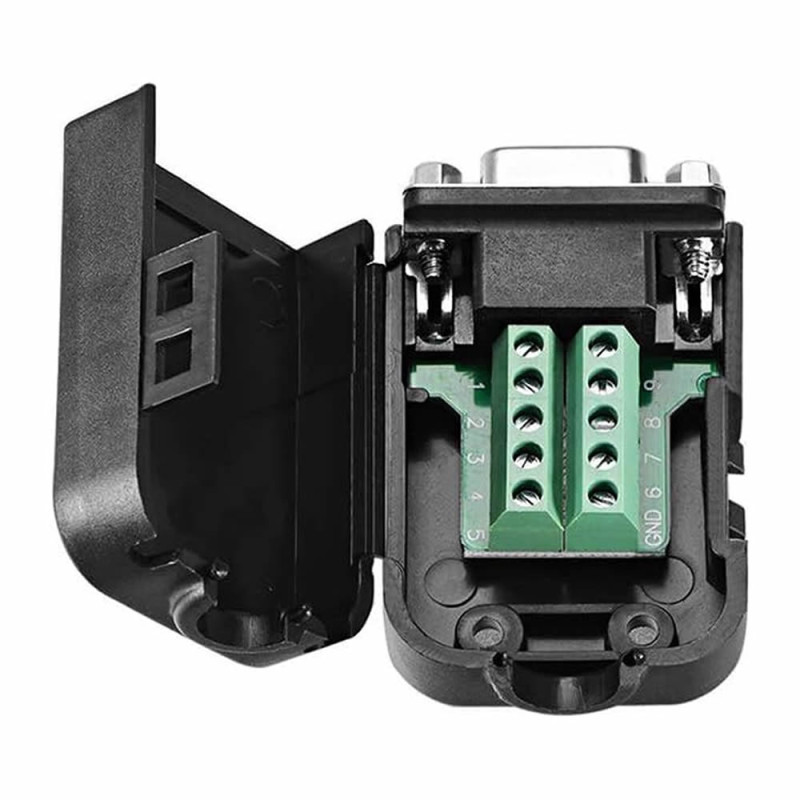

• The plastic box has clips, it opens and closes easily.
• Material: Metal / Plastic
• Color: Black / Green
• Operating temperature:  -40C  /  65C

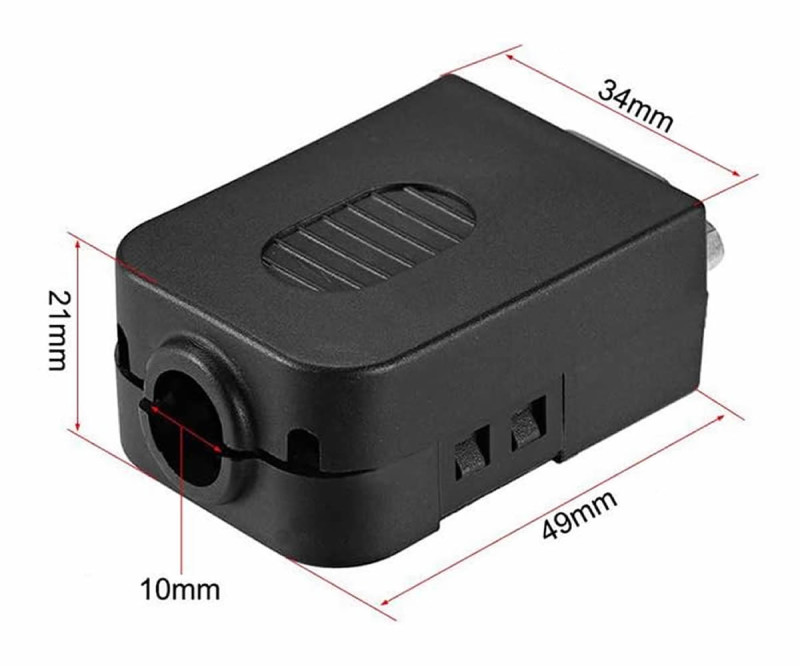

• Dimensions: 34mm x 55mm x 21mm
• Cable thickness:  10mm
• Weight: 26gr

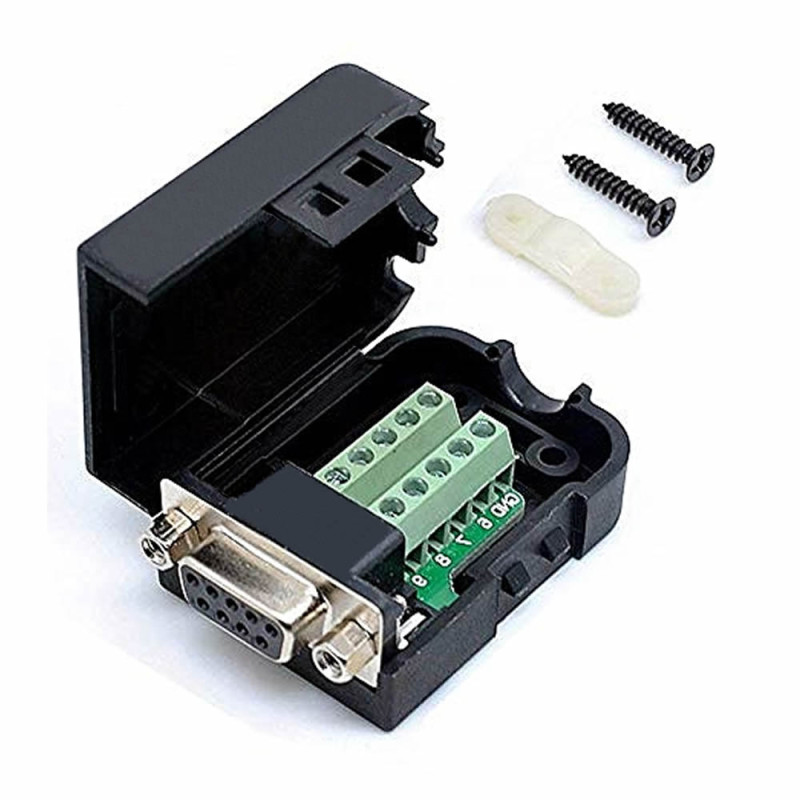

Package contents:

•   1 Piece Boxed DB9 to Dip Adapter Female
•   2 Pieces screws
•   1 Piece cable fixing plastic part
