12V 90Rpm JGY370 Geared DC Motor
529.20TL
441.00TL + KDV
10 or more 449.82TL
Buy 10 or more of this item and the unit price drops by 15%; pay by bank transfer for a total 20% discount.
- Stok Durumu: Stok Var
- Marka: OEM
- SKU: RBZ.100.607

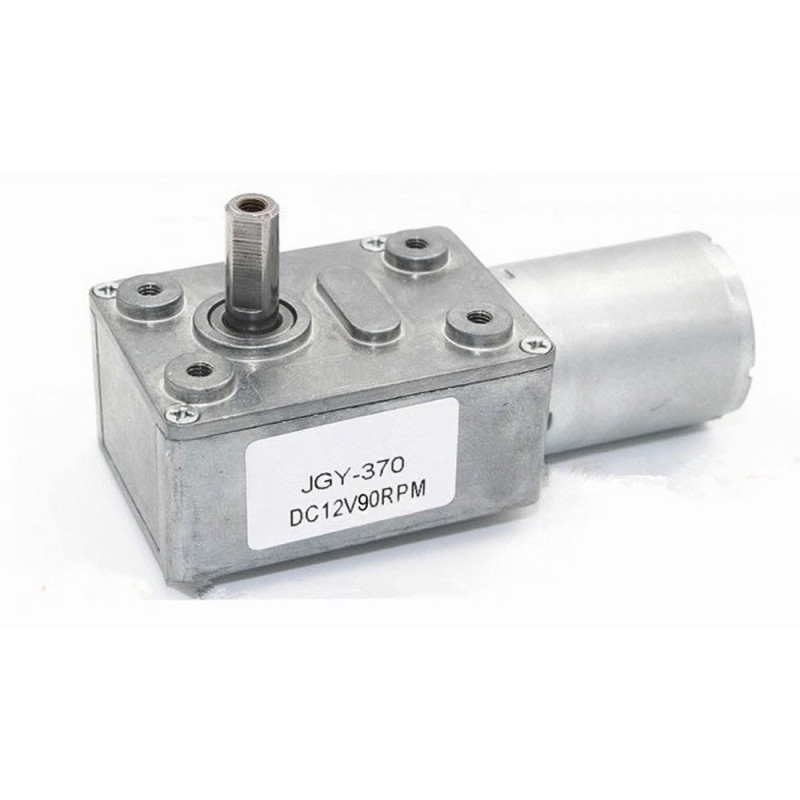

JGY370 DC 12V 90 Rpm Geared DC Motor
2 Direction Rotation L Type 0.5kg.cm High Torque Metal Gear Automation Window Door Curtain Rotating Display Case Product Coffee Machine Towel Damper Robot Car
DC 12V geared dc motor with L type shaft. It has high torque power and low speed. It can rotate in two directions. It has a lock mechanism that prevents rotation opposite to the electrically set direction. It is widely used in many areas such as automation, window, door, curtain, rotating, display case, product, coffee, machine, towel, damper, robot, car etc.
Specifications:
- Model: JGY370 L Type Shaft
- Operating voltage: DC 12V ( 6V / 18V )
- No-load current: 0.06A
- Load current: 1A / 2A
- No-load speed: 90 rpm ( makes 90 full turns in 1 minute ) ( DC 12V )
- Torque: 0.5kg.cm
- Shaft Type: D Type
- M3 type connection can be made to the shaft. ( If you will definitely use it, confirm this feature by asking a question. This feature may not be present in some batches.)
- Material: Metal
- Operating temperature: -20C / 80C
- Dimensions: 32mm x 80mm ( image number 8 )
- Shaft size: 6mm ( D:5.5mm ) x 14mm
- Weight: 150gr
Package Contents:
- 1 Piece JGY370 12V 90 Rpm Geared DC Motor
.
