Jlink Stlink Ulink Arm SWD Emulator Programmer Debugger Connection Board 20/14/10/6/4 Pin

     It converts the socket connection of Jtag programmers to sockets with different pin counts and orders. It is used with jtag programmers such as Jlink Stlink Ulink. These programmers have a standard 20 pin 2.54mm jtag output. However, sockets with fewer pins or narrower pin pitch are used on the target boards to be programmed. Designers use programming connection sockets that can go down to 4 pins on their boards due to lack of space or simpler design goals.

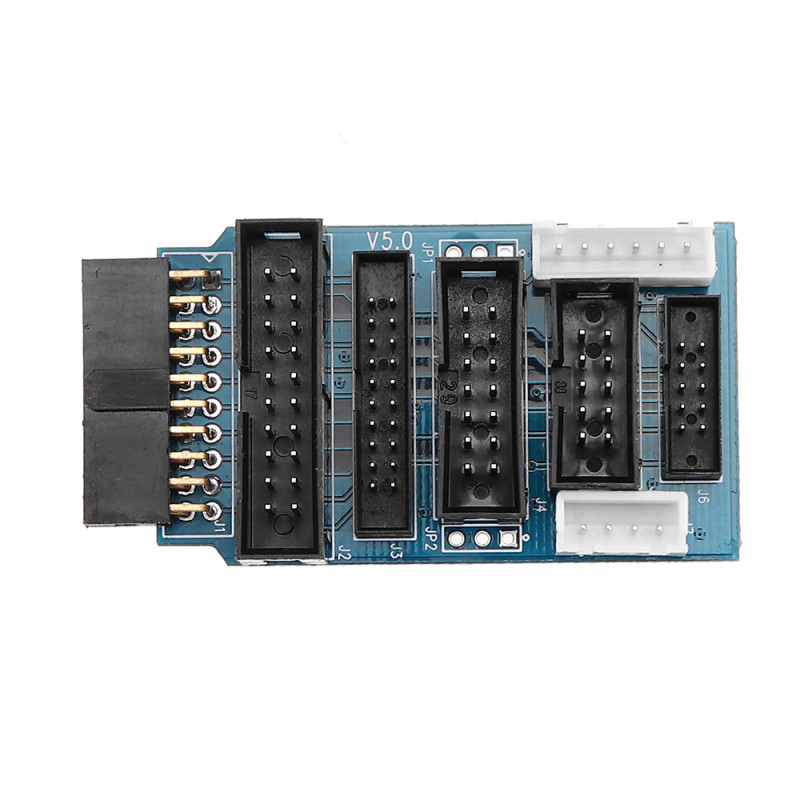

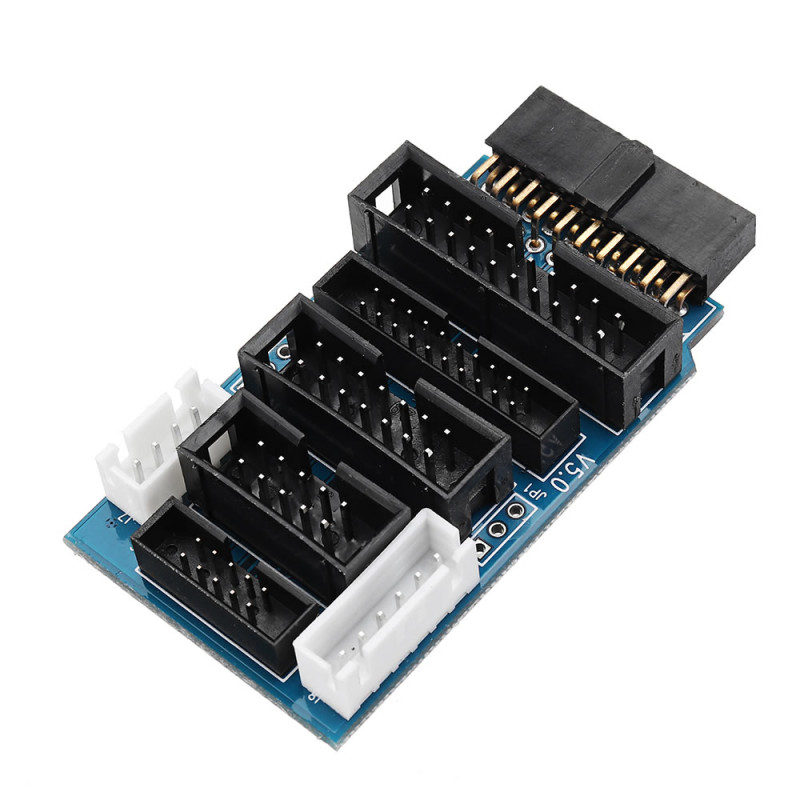

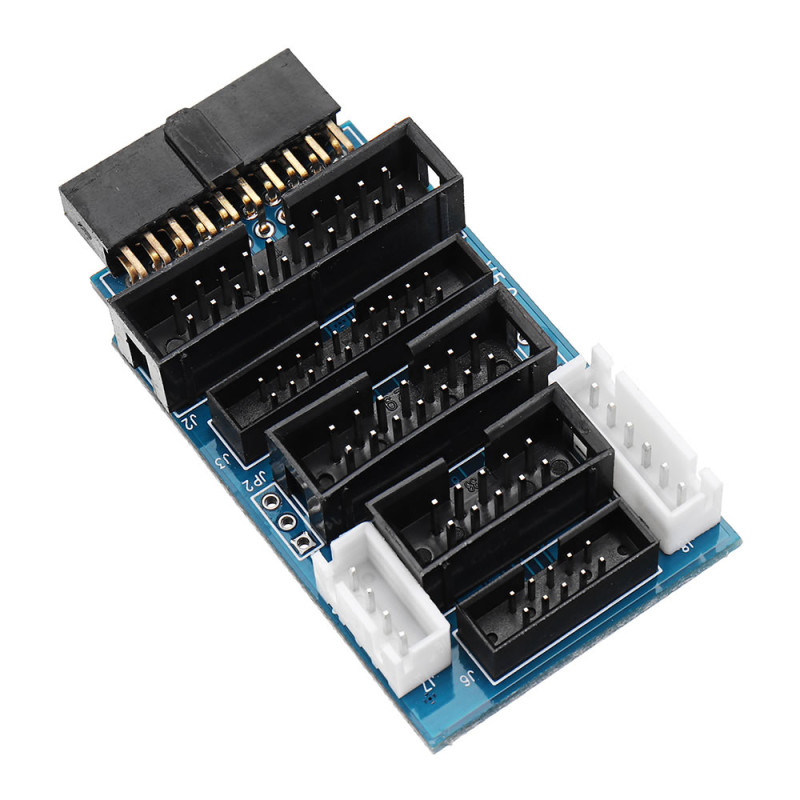

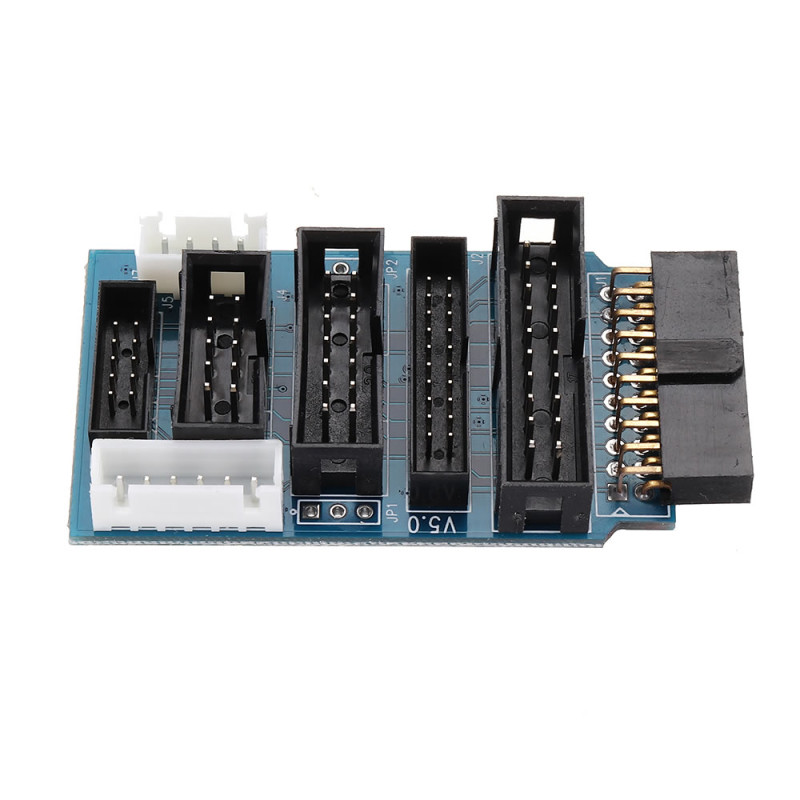

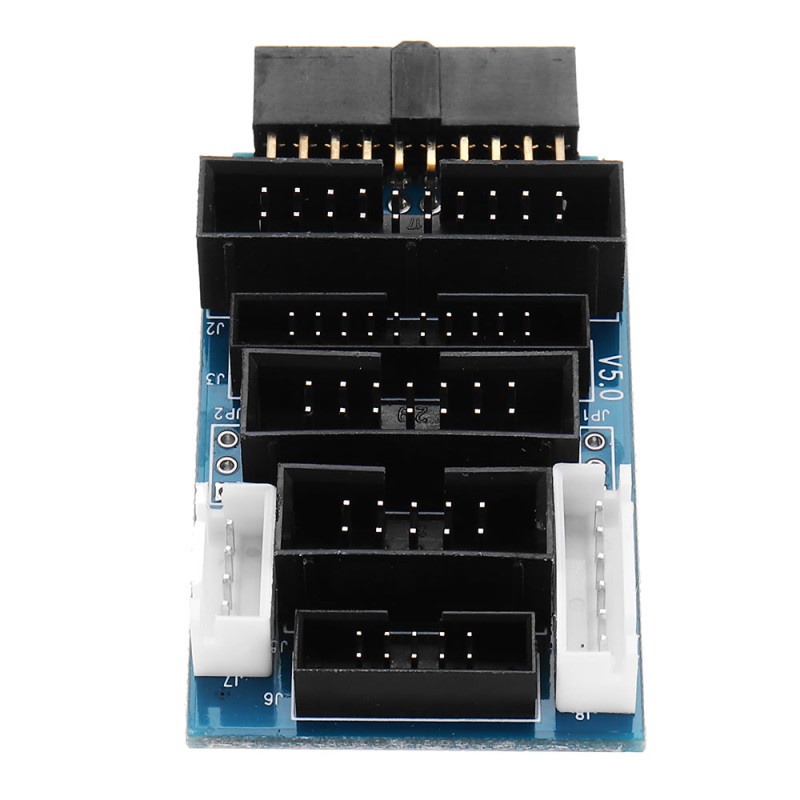

     This board converts the standard jtag socket to 7 different types of sockets. If you use similar sockets in your target circuits, you have the possibility to connect the programming pins to your jtag programmer via this converter board with a very simple cable. The 6 pin and 4 pin sockets for the very widely used SWD programming are available on the board.

Sockets:

• 20 Pin  2.54mm Male
• 20 Pin  2.54mm Female
• 20 Pin  2mm
• 14 Pin  2.54mm
• 10 Pin  2.54mm
• 10 Pin  2mm
• 6 Pin SWD 2.54mm
• 4 Pin SWD 2.54mm

Package Contents:

• 1 Piece Jtag Swd Socket Converter Board
