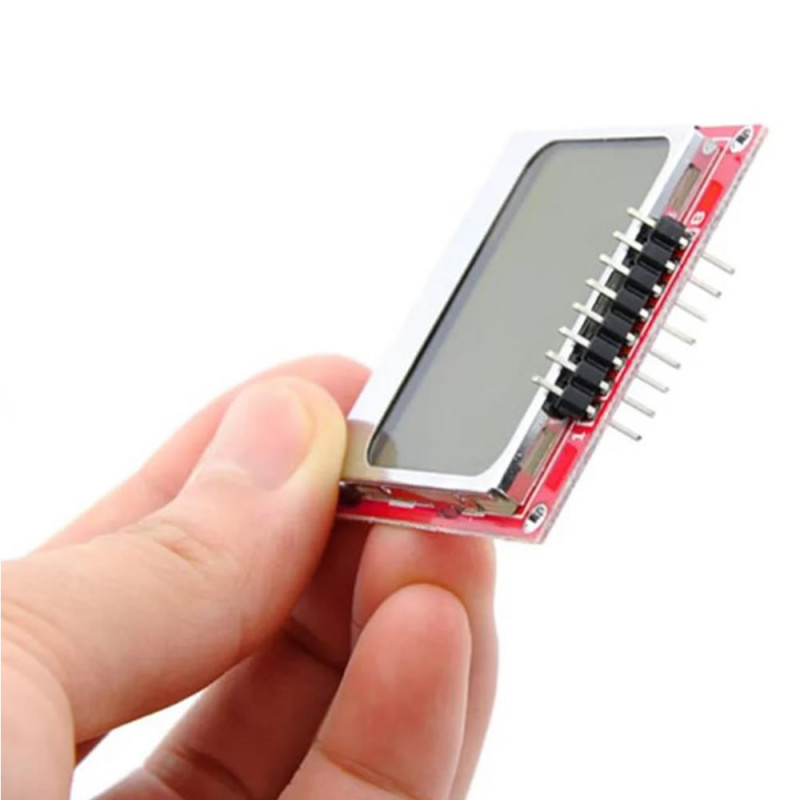

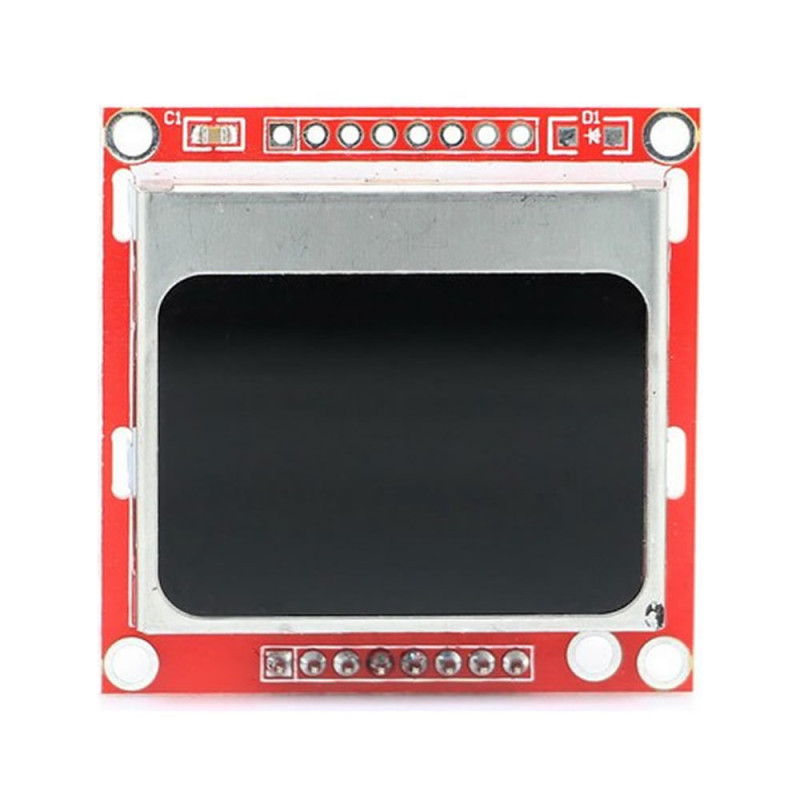

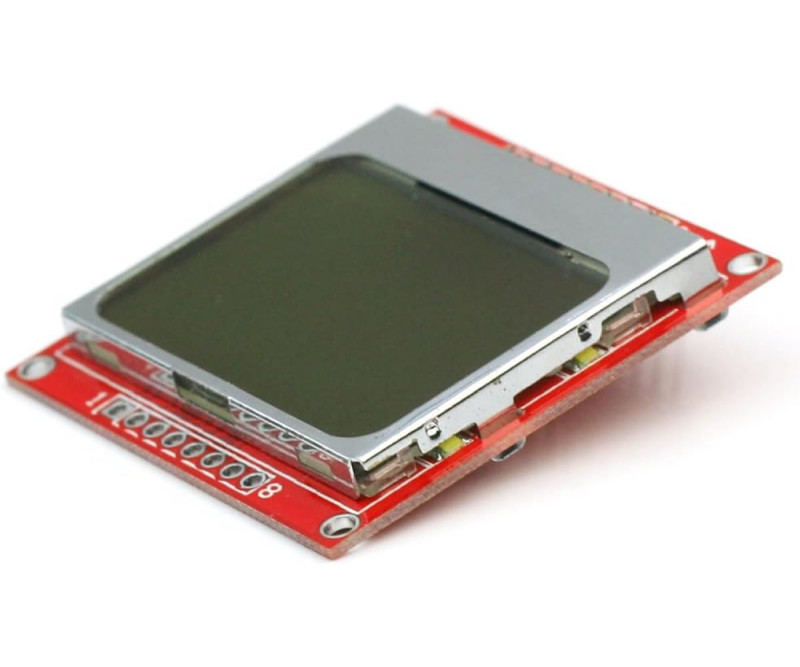

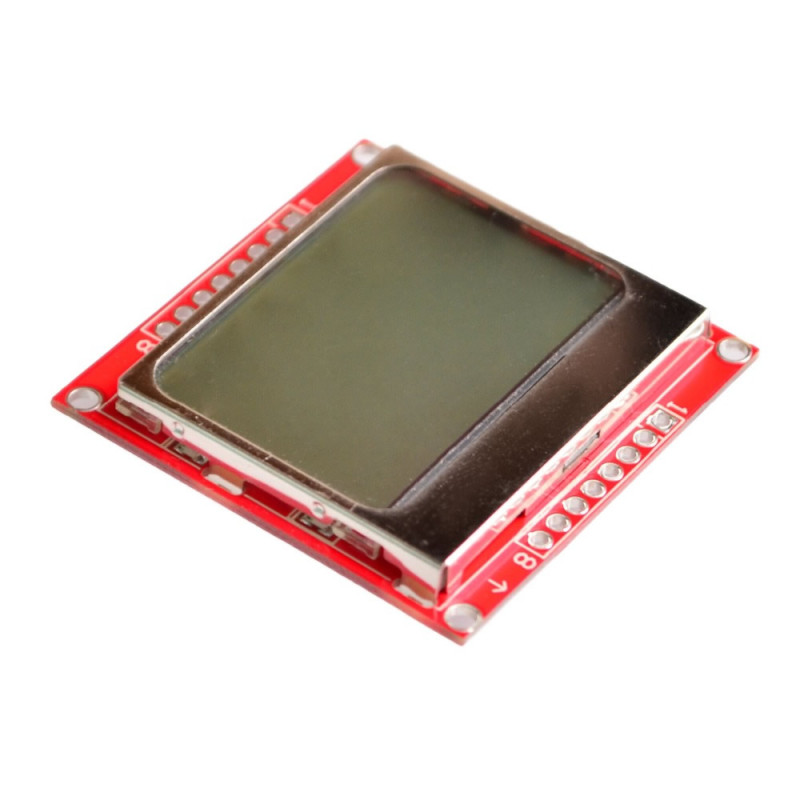

5110 84x48 Lcd Module

5110 84x48 Lcd Module

84 x 48 Pixel Graphic Lcd Display Screen 5V White Backlight Indicator Menu Image Text Nokia

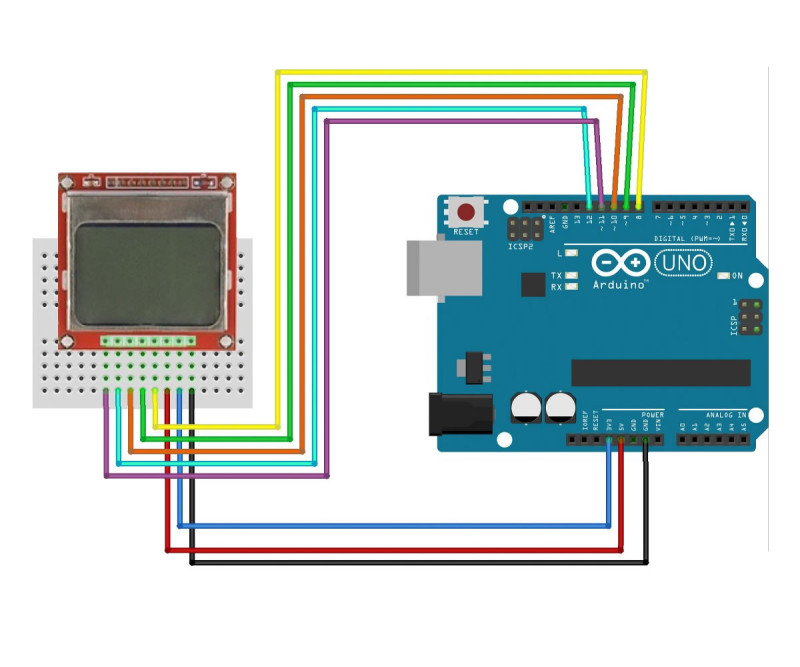

     It can be easily driven with Arduino development boards. Arduino libraries are available. It can be easily used in projects and products that need a user interface.

Features:

• 5110 84x48 Lcd Module
• Operating voltage: DC 2.7V / 5V
• Operating current:  20mA ( 5mA when the backlight is off)
• Backlight: White
• Driver: PCD8544
• Resolution: 84 x 48 pixels
• Communication:  SPI
• Screen dimensions:  26mm x 34mm
• Operating temperature:  -20C  /  65C
• 4 mounting holes
• Dimensions:   45mm x 45mm
• Weight:  14gr

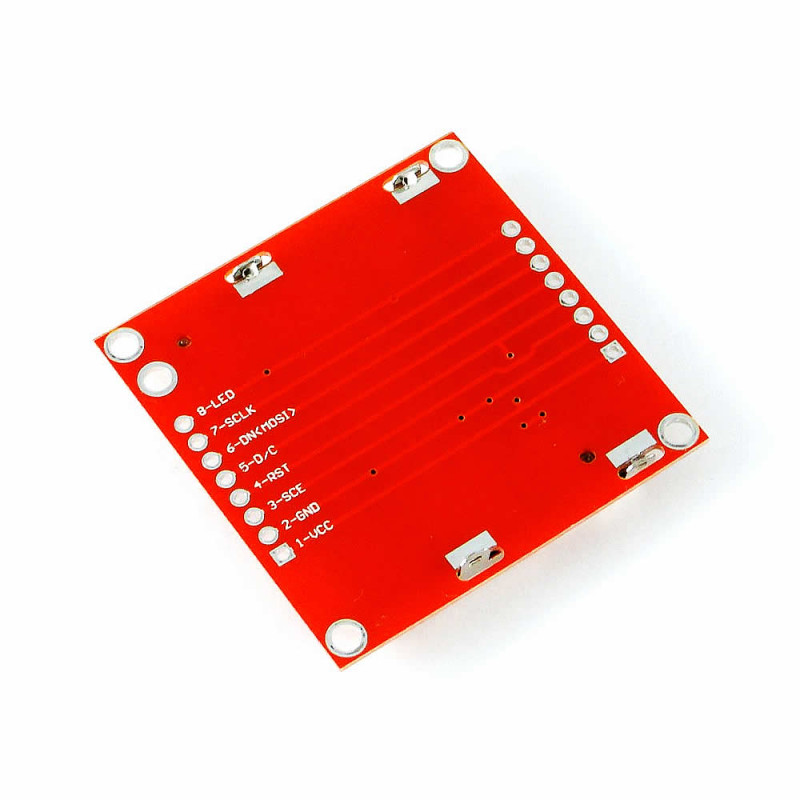

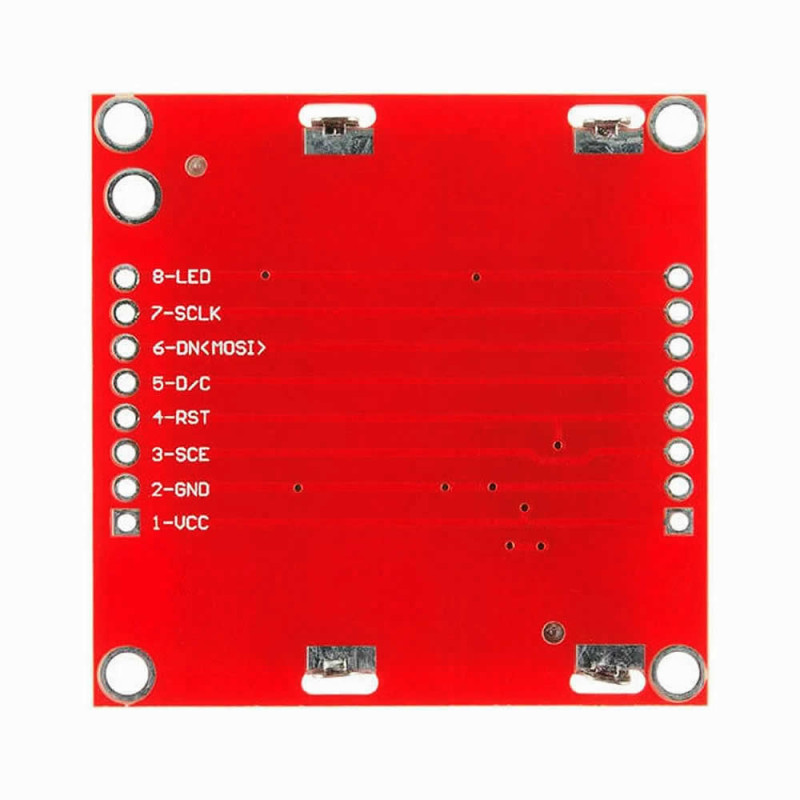

Pin connections:

• RST: Reset
• CE: Enable
• D/C: Data/Command Selection
• DIN: Data input pin
• CLK: Clock input pin
• VCC: DC 3.3V
• LIGHT: Backlight control
• GND: Ground

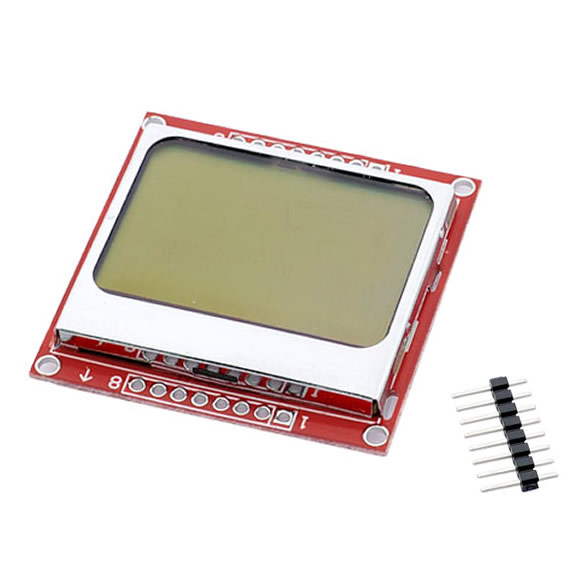

Package contents:

•  1 Piece 5110 84x48 Lcd Module
•  8 Pin male header not soldered

.
