MSP-EXP430FR2433

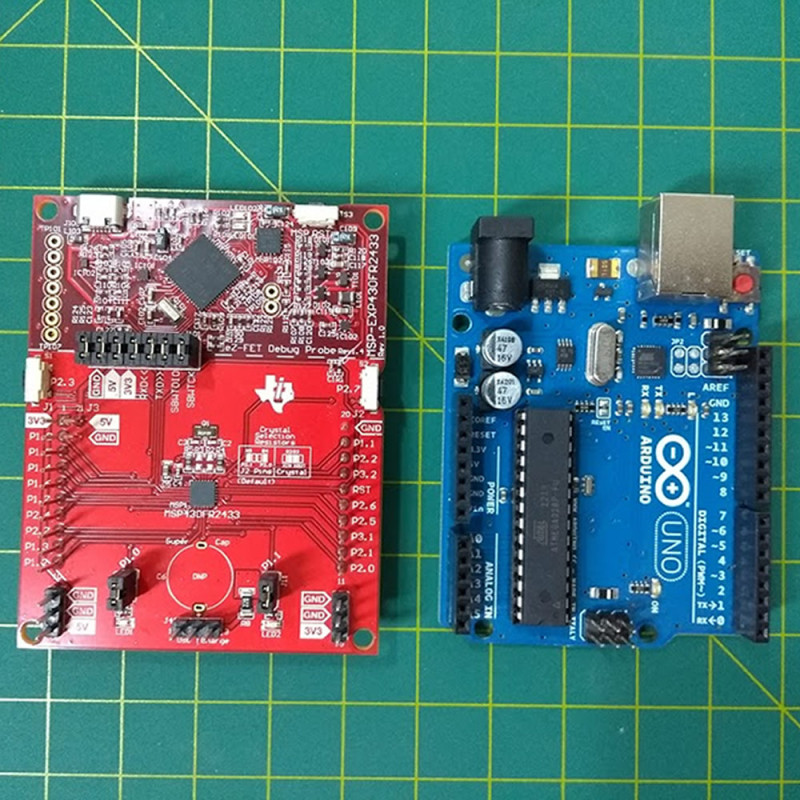

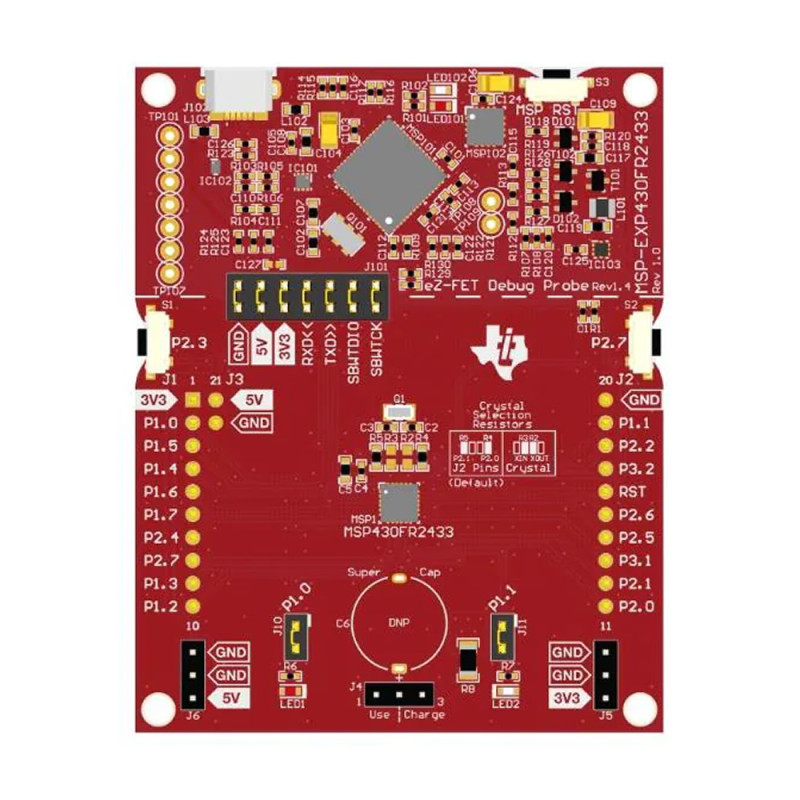

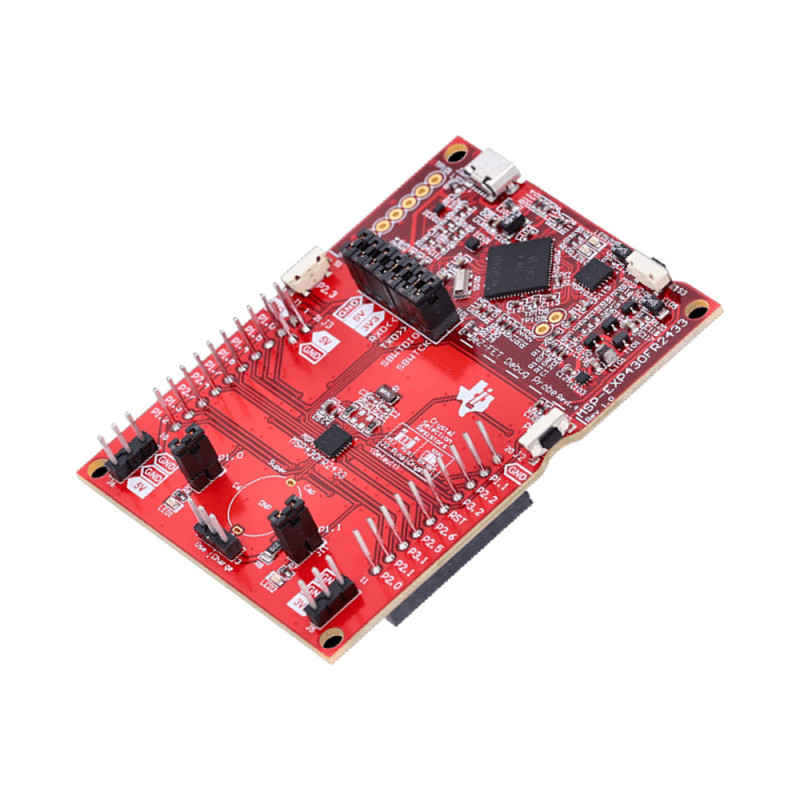

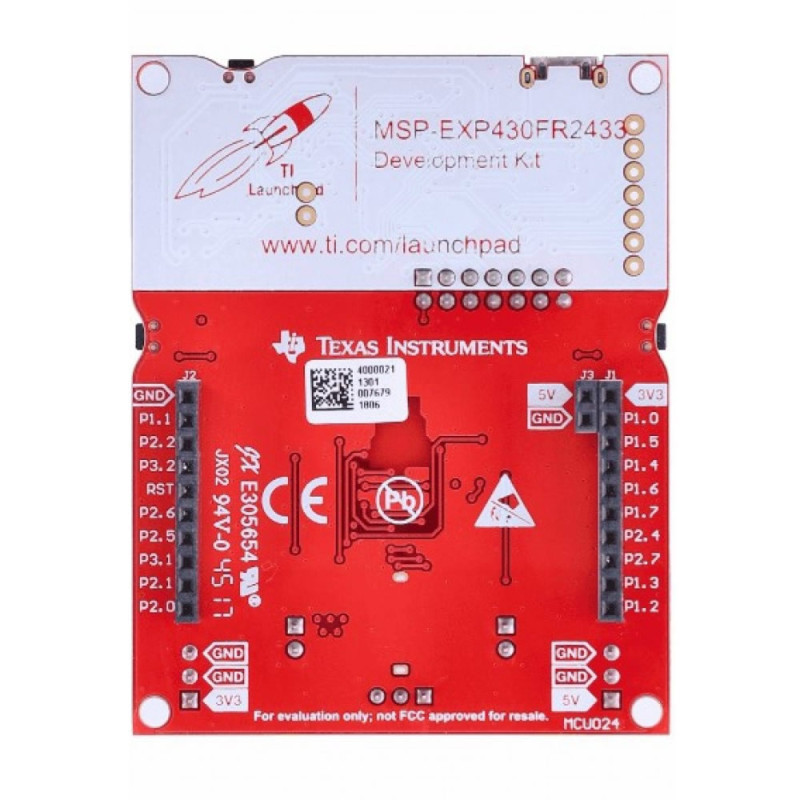

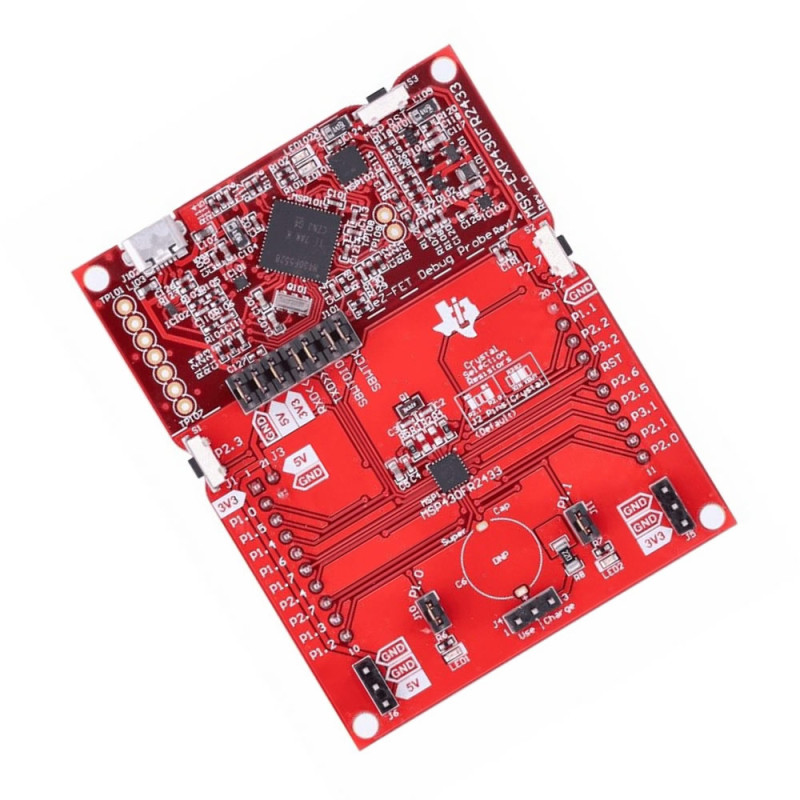

TI MSP-EXP430FR2433 LaunchPad Development Kit

MSP430FR2433 16MHz 16 bit Mcu Development Board eZ-FET Programmer 16Kb Flash

     The MSP-EXP430FR2433 LaunchPad Development Kit is an easy-to-use evaluation module (EVM) based on the MSP430FR2433 Value Line Sensing microcontroller (MCU). It contains everything needed to start developing on the ultra-low-power MSP430FR2x Value Line Sensing MCU platform, including on-board debug probe for programming, debugging and energy measurements. The board includes 2 buttons and 2 LEDs for creating a simple user interface. It also supports using a supercapacitor (needs to be purchased and installed by the user) that acts like a rechargeable battery, enabling standalone applications without an external power supply.

     The 16MHz MSP430FR2433 device features 15.5KB of embedded FRAM (Ferroelectric Random Access Memory), a non-volatile memory known for its ultra-low power, high endurance, and high speed write access. Combined with the 4 KB of on-chip SRAM, users have access to 15.5KB of memory to split between their program and data as required.  For example, a data logging application may require a large data memory with a relatively small program memory, so the memory may be allocated as required between program and data memory.

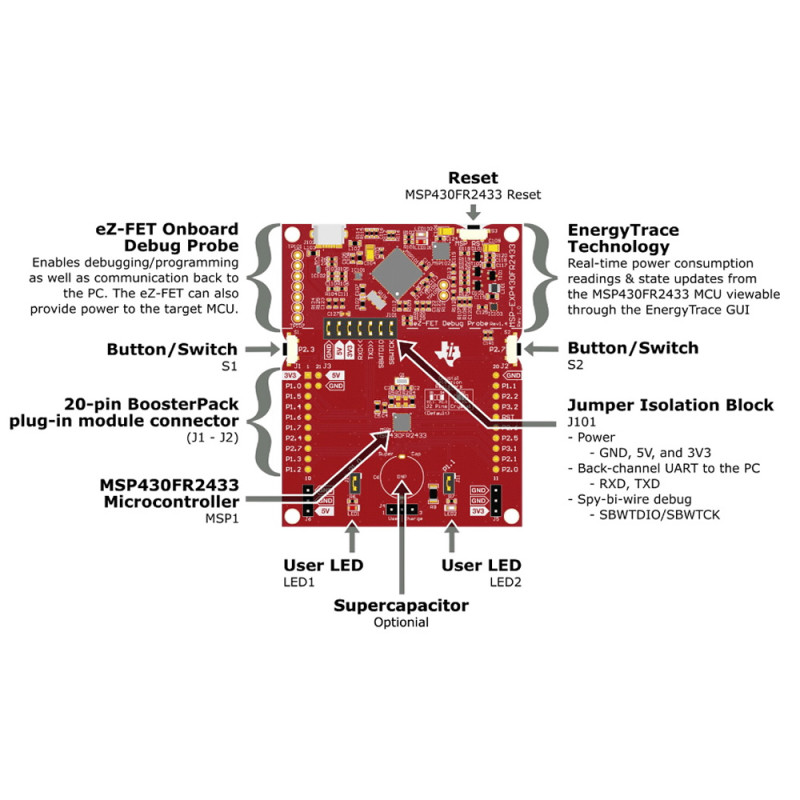

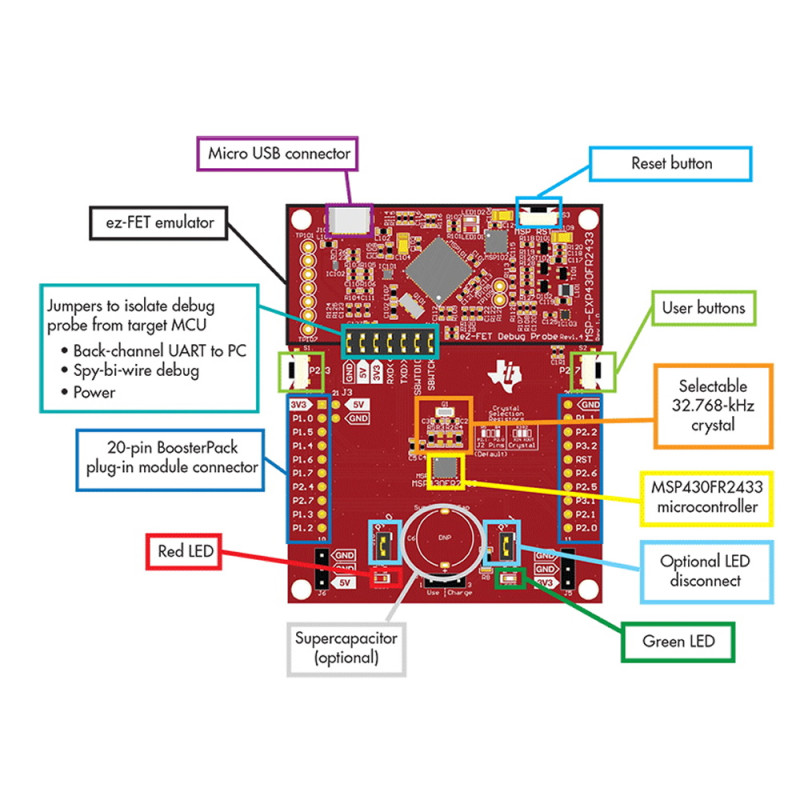

Features

•     ULP FRAM technology based MSP430FR2433 16-bit MCU
•     EnergyTrace Technology available for ultra-low-power debugging
•     20-pin LaunchPad kit standard leveraging the BoosterPack ecosystem
•     On-board eZ-FET debug probe
•     8 Channel 10 bit adc
•     Four 16 bit timer
•     Two enhanced UART, IrDA, and SPI
•     One SPI and I2C
•     2 User buttons
•     2 User led
•     Reset button
•     Micro usb connector

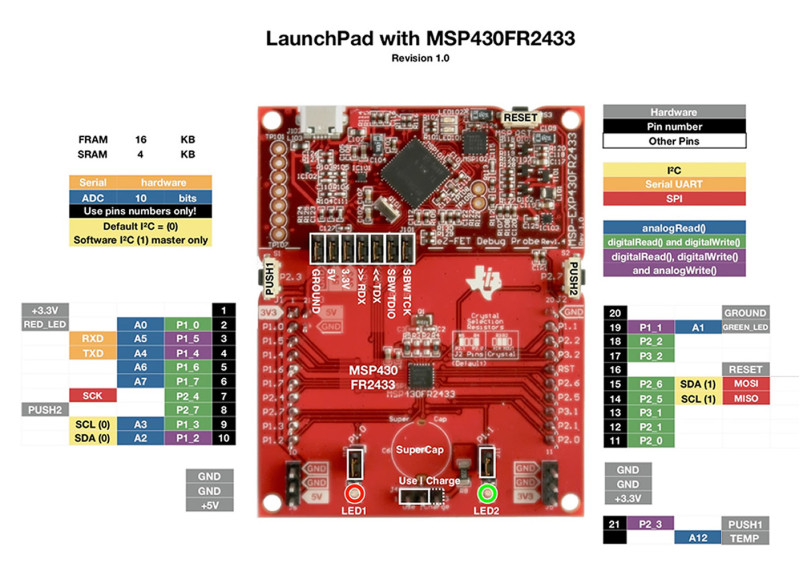

•     2x10 pin io connection socket.
•    Optional supercap

Package Contents:

• 1 Piece MSP-EXP430FR2433 Kit
• 1 Piece micro usb cable
