Type-C 5V 3A Module F35J5V3A

12.2V / 24V to TYPE-C 5V 3A Module F35J5V3A

30cm Usb Cable Waterproof Charge Phone Car Caravan Boat Tablet Voltage Step Down Power Supply

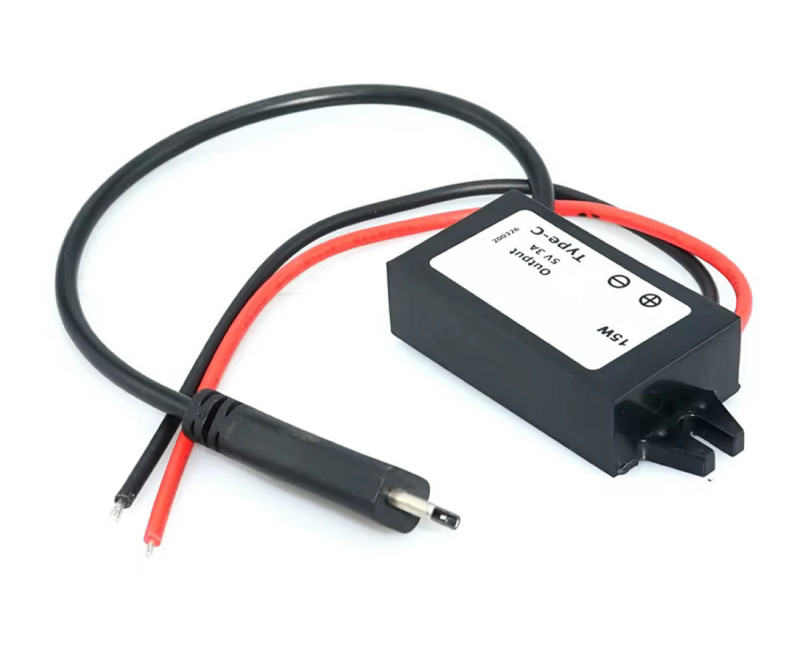

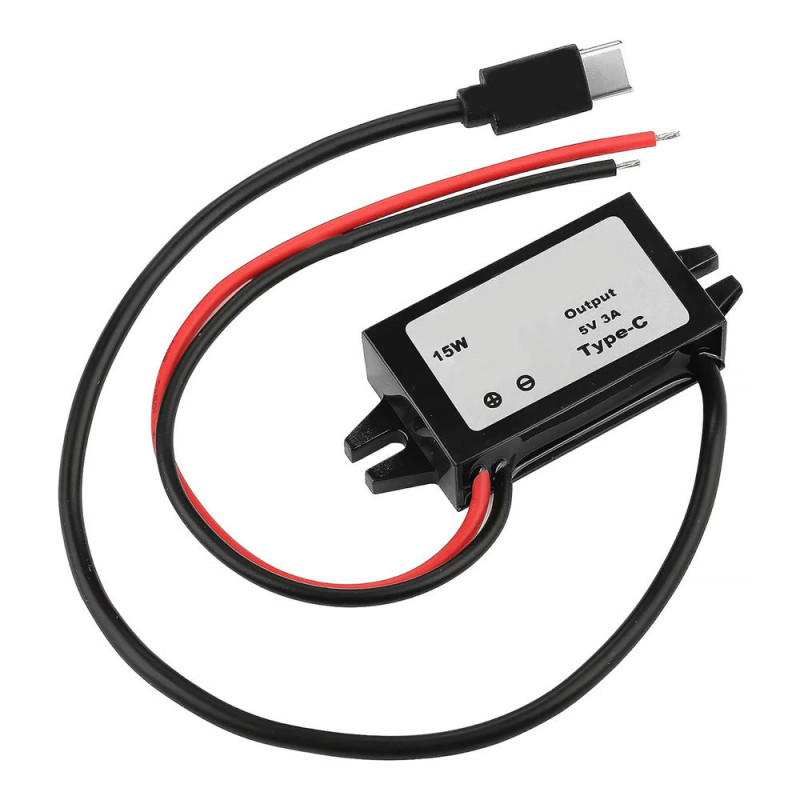

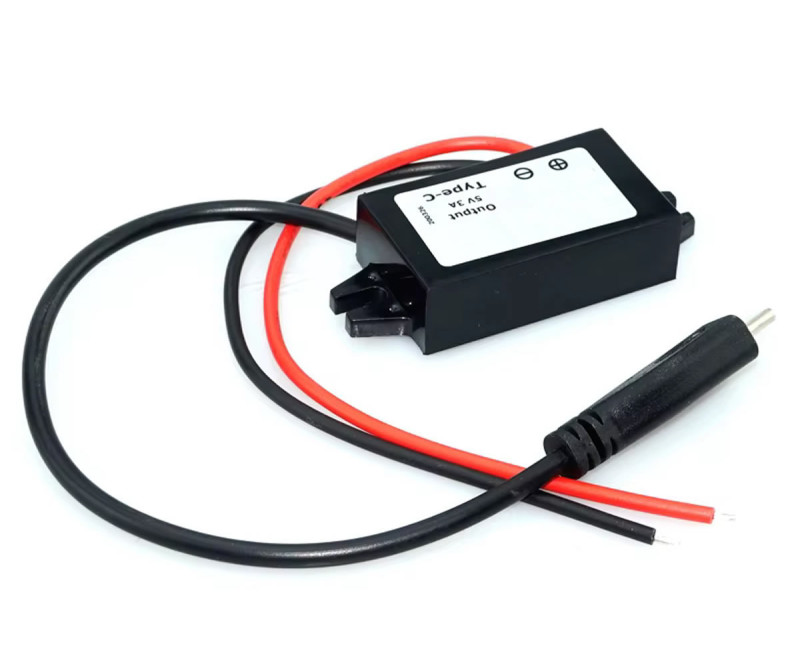

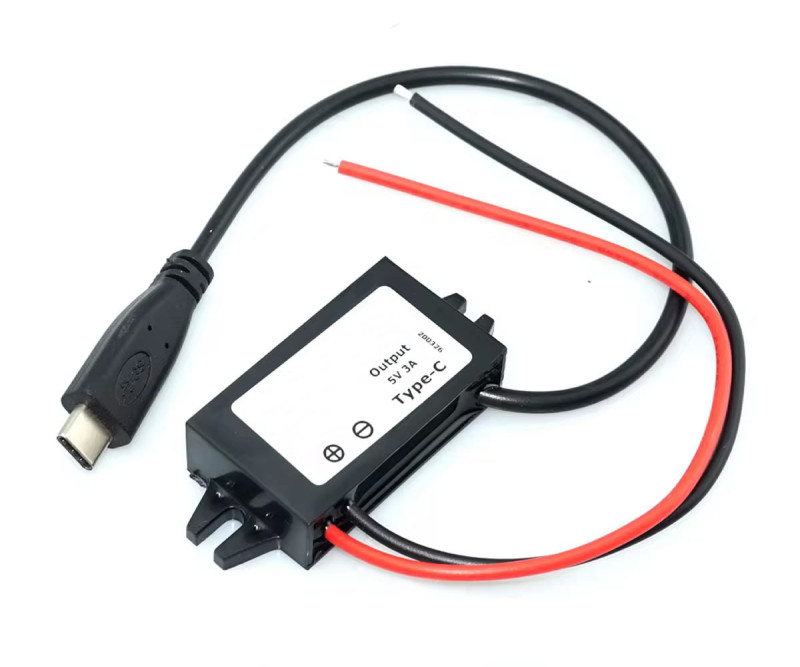

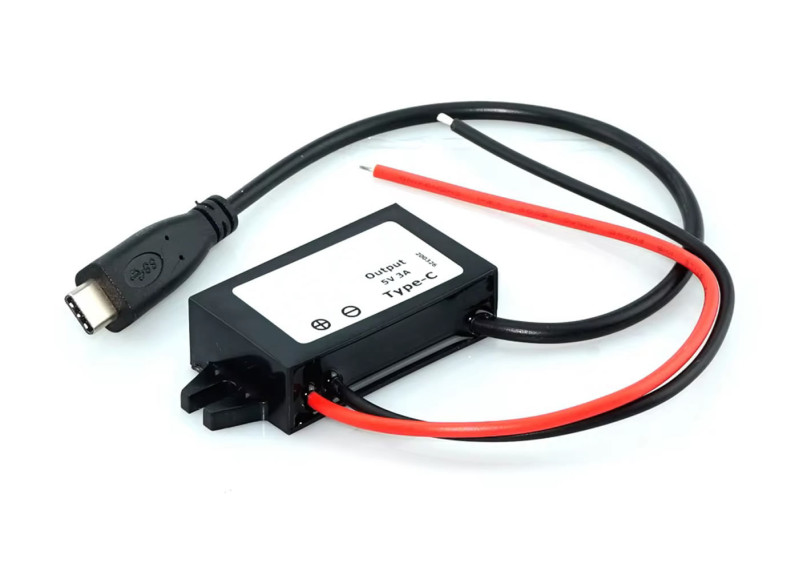

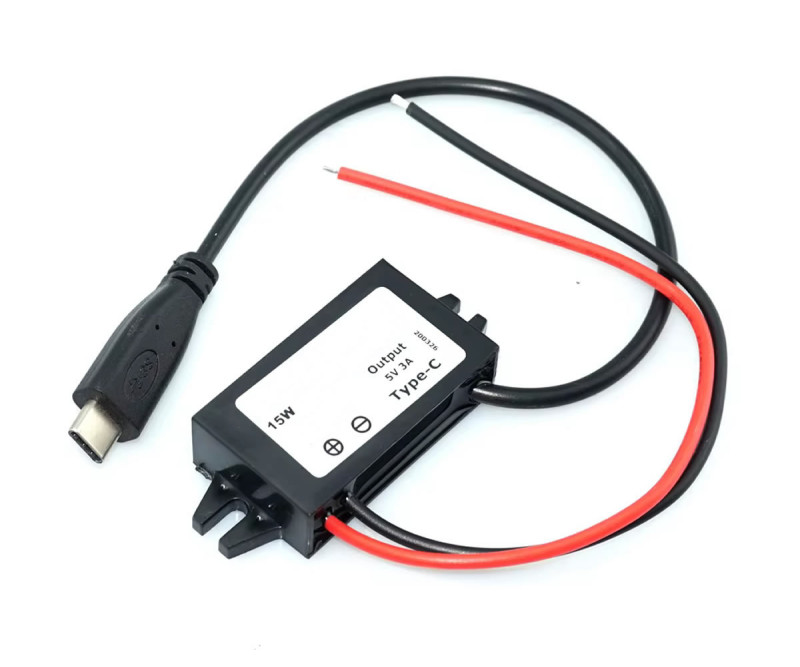

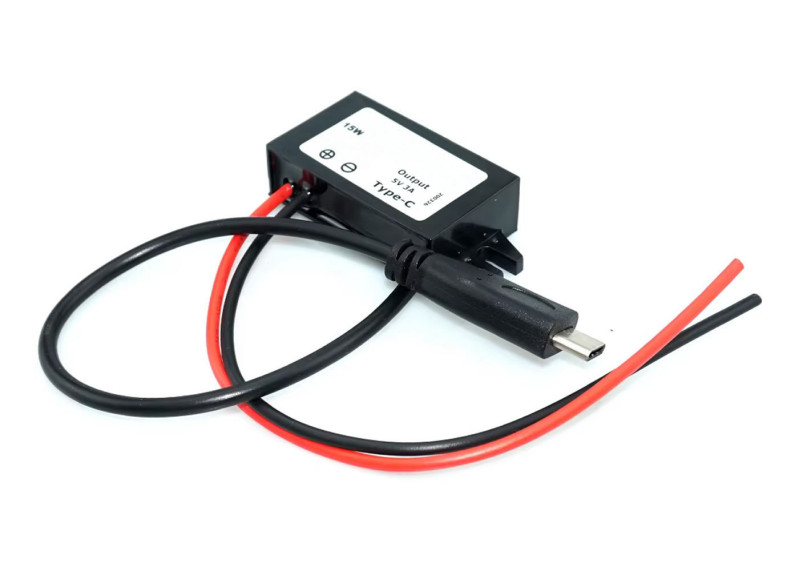

     The F35J5V3A is a waterproof DC-DC converter module with a Type-C male cable that steps down DC 12V or 24V in vehicle and battery systems to 5V. The input voltage is at most 32V; the output provides at most 3A current and 15W power. A red (+) and black (-) input wire and a Type-C cable of about 30cm come out of the case; a phone, tablet or Type-C powered device plugs in directly.

     The circuit is inside a black waterproof plastic case; it is screwed into a vehicle, caravan or boat panel with the mounting ears at both ends of the case. It has reverse polarity, over current, short circuit and over temperature protections; its efficiency is about 90%. The output is a fixed 5V, phones and tablets charge at standard speed.

Key features:

     Works in 12V and 24V vehicles: It connects to the 12V line in cars, caravans, boats and motorcycles and the 24V line in trucks and buses; the input voltage is at most 32V.

     Type-C cable ready: The output is not a socket but a Type-C male plug at the end of an about 30cm cable; it plugs into the device without an extra cable or adapter.

     5V 3A output: It delivers at most 3A and 15W; enough to charge and power a phone, tablet, navigation unit or dash camera.

     Waterproof case: The circuit is in a closed plastic case; it can be used in boats, motorcycles and outdoor applications exposed to moisture and splashes.

     Protected circuit: Reverse polarity, over current, short circuit and over temperature protections protect the module and the device against wrong connection and overload.

Features:

• Product type: DC-DC voltage step down (buck) converter with Type-C male cable
• Model: F35J5V3A
• Input voltage: DC 12V / 24V (max. 32V)
• Output voltage: DC 5V
• Output current: max. 3A
• Output power: max. 15W
• Output connection: Type-C male plug
• Charging: standard 5V charging; no PD / QC fast charging protocol
• Efficiency: about 90%
• Reverse polarity protection: yes
• Over current protection: yes
• Short circuit protection: yes
• Over temperature protection: yes
• Case: waterproof, closed plastic case
• Mounting: screw ears at both ends of the case
• Input wires: red (+) and black (-), open ends
• Operating temperature: about -10°C - 65°C
• Material and color: Black plastic case
• Type-C cable length: about 30cm

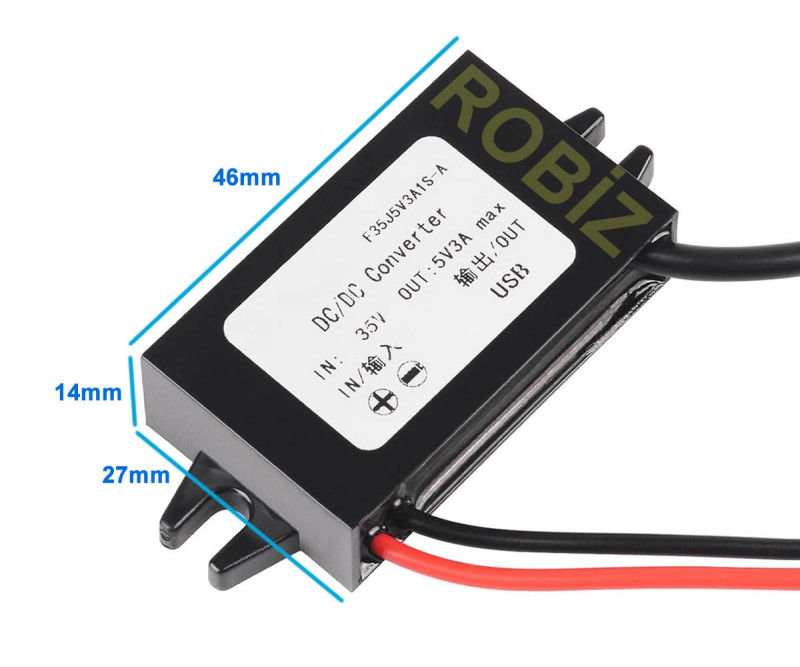

• Dimensions: 46mm x 27mm x 14mm
• Weight: 40gr

Usage information:

• Connect the red wire to the positive of the 12V or 24V line and the black wire to the negative. Before plugging in a device, check by measuring that there is 5V at the Type-C plug; adding a suitable fuse at the input is recommended.
• Fix the module with screws through its mounting ears; do not leave the cables under tension and keep them away from hot engine parts.
• For long term use, it is advisable not to exceed 2/3 of the stated maximum values; keeping the continuous load at about 2A or less extends the module life.

Areas of use:

•  Phone and tablet charging in cars
•  Caravan and camper 12V systems
•  Boat and yacht 12V / 24V panels
•  Truck, lorry and bus 24V line
•  Motorcycle phone holder charging
•  Supply for car navigation and dash cameras
•  5V Type-C output from solar charge controllers and battery systems
•  Type-C powered devices in industrial 24V panels
•  Type-C powered portable speakers, flashlights and meters

Precautions:

•  The input voltage must not exceed 32V; a higher voltage damages the module.
•  Do not connect a solar panel directly to the input; the open circuit voltage of a panel is higher than its rated voltage and can exceed 32V on 24V panels. Connect the module to the battery or to the load output of the charge controller.
•  The output is only 5V, it does not do PD or QC fast charging. Laptops that require more than 5V will not charge with this module.
•  The total load must not exceed 15W. The module gets warm at a continuous 3A load; do not mount it in closed and hot places.
•  Do not pull the cables out of the case; if the cable entries are damaged, the waterproofing is lost.

Package contents:

•  1 x Type-C 5V 3A Module F35J5V3A
•  1 x Type-C cable and input wires ( Assembled )
•  Note: Fuse and mounting screws are not included in the package.
