J-Link Edu Mini 8.08.91

Segger J-Link Edu Mini 8.08.91 Arm Jtag Swd Programmer Debugger

ARM7 ARM9 ARM11 Cortex A5 A7 A8 A9 A12 A15 A17 M0 M1 M3 M4 M7 M23 M33 R4 R5

The product is an original SEGGER product. You can get support on any matter from the manufacturer.

Product Information
     The J-Link EDU Mini is designed for education purposes and hobbyists, it provides access to top-of-the-line debug probe functionality. With a tiny form factor (18mm by 50mm, similar to a USB stick), users can enjoy full functionality. It is JTAG and SWD supported and can only be used for non-commercial education purposes.

Other Details
     Various cores are supported by the J-Link EDU Mini. Find a complete list of supported cores here. J-Link also allows applications to access a CPU simultaneously, such as being used in parallel as a debugger. Like all SEGGER products, it is cross platform working on Windows, Linux and macOS.

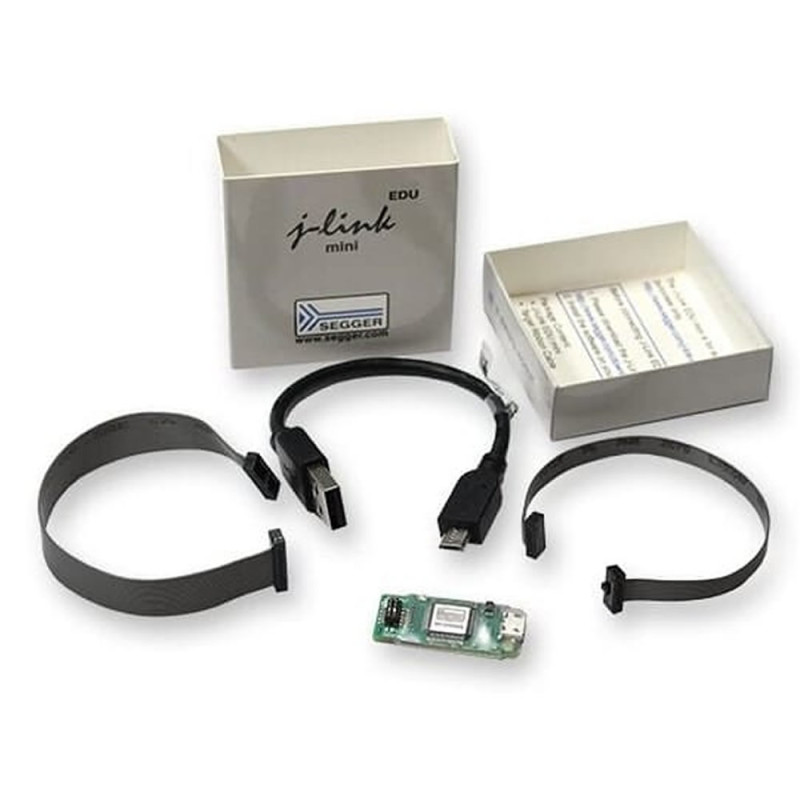

Package Contents

•     1 pcs J-Link EDU mini
•     1 pcs 1.27mm 2x5 pin cable
•     1 pcs 1.27mm 2x10 pin cable
•     1 pcs Micro Uusb cable

Common features of the J-Link product family

•  USB 2.0 interface (Full-Speed/Hi-Speed, depends on J-Link model)
•  Any ARM7/ARM9/ARM11 (including thumb mode), Cortex-A5/A7/A8/A9/A12/A15/A17, Cortex-M0/M1/M3/M4/M7/M23/M33, Cortex-R4/R5 core supported
•  Automatic core recognition
•  Maximum interface speed 15/50 MHz (depends on J-Link model)
•  Seamless integration into all major IDEs ( List of supported IDEs )
•  No power supply required, powered through USB
•  Support for adaptive clocking
•  All JTAG signals can be monitored, target voltage can be measured
•  Support for multiple devices
•  Fully plug and play compatible
•  Standard 20-pin JTAG/SWD connector, 19-pin JTAG/SWD and Trace connector, standard 38-pin JTAG+Trace connector
•  USB and 20-pin ribbon cable included
•  Memory viewer (J-Mem) included
•  Remote server included, which allows using J-Trace via TCP/IP networks
•  RDI interface available, which allows using J-Link with RDI compliant software
•  Flash programming software (J-Flash) available
•  Flash DLL available, which allows using flash functionality in custom applications
•  Software Developer Kit (SDK) available
•  14-pin JTAG adapter available
•  J-Link 19-pin Cortex-M Adapter available
•  J-Link 9-pin Cortex-M Adapter available
•  Adapter for 5V JTAG targets available for hardware revisions up to 5.3
•  Optical isolation adapter for JTAG/SWD interface available
•  Target power supply via pin 19 of the JTAG/SWD interface (up to 300 mA to target with overload protection), alternatively on pins 11 and 13 of the Cortex-M 19-pin trace connector
