Canable V2.1

Canable V2.1 USB CAN FD Bus Analyzer

Monitor Viewer Communication Converter Debugger Transceiver Processor Cangaroo CAN 2.0A 2.0B CAN-FD

In some batches the product carries STM32F431. In some (new) batch products there is an STM32G473 processor. In the future it may come with a different processor as well. This cannot be shown as a reason for returning this product.

     It is used to connect to the CAN communication line over the Pc usb port to communicate, monitor data and perform analysis. Data is transferred to the computer very fast over the usb port. It can be used for learning the CAN network, developing applications, testing, etc.

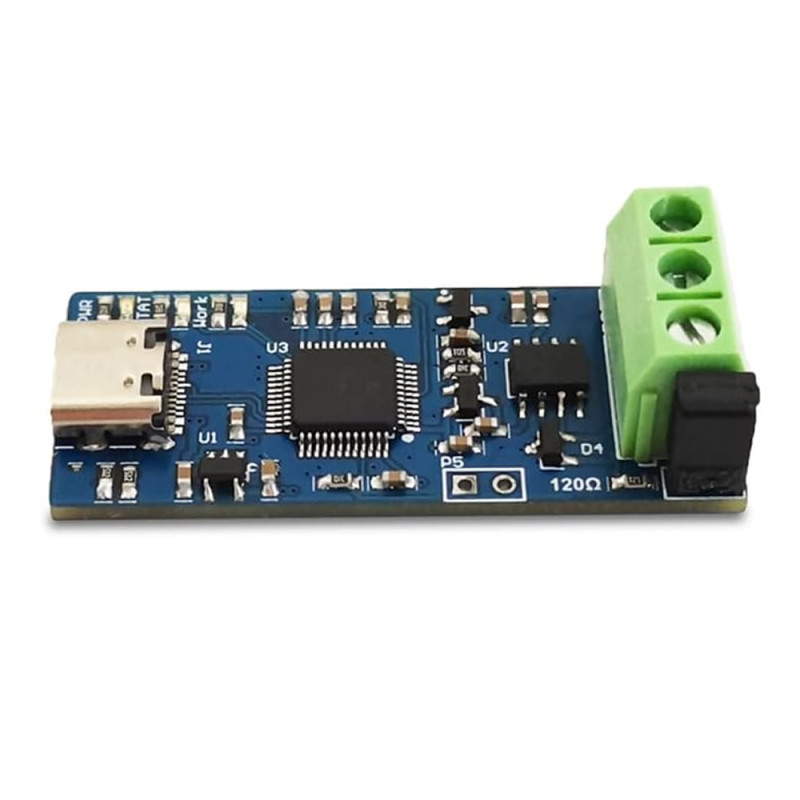

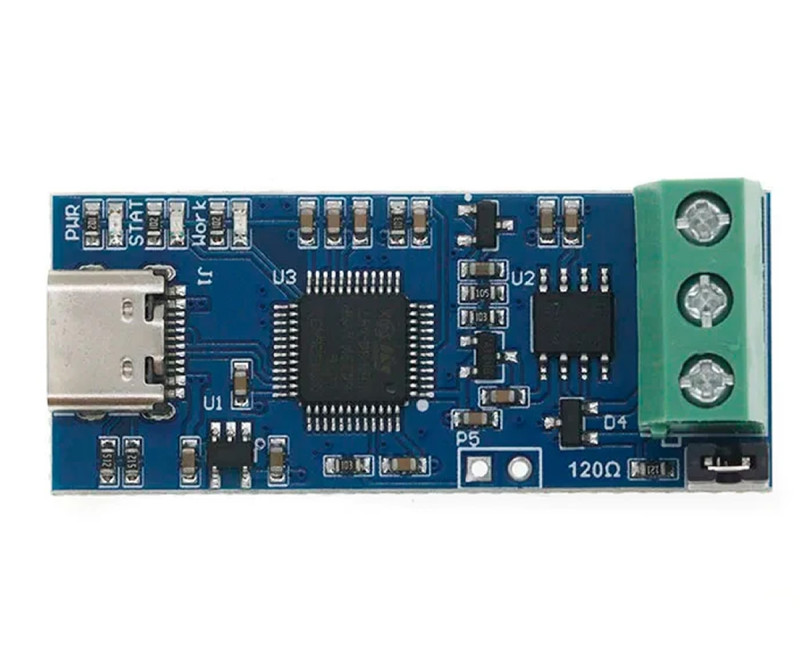

     When plugged into the computer, a com port is created. If the boot jumper is short circuited and the board is powered, the processor enters programming mode. In this case the firmware update can be done quickly over the usb port. The 120ohm resistor can be enabled or disabled with the jumper next to the terminal block. Connection to the can line is established with the 3 pin terminal block. The operating status of the board can be monitored with 3 indicator leds.

Features:

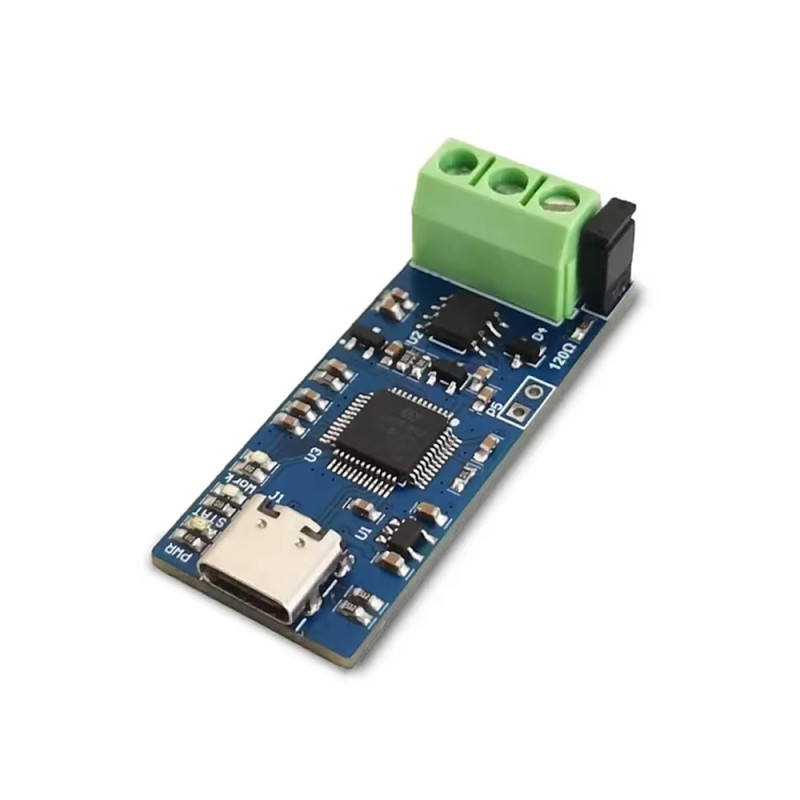

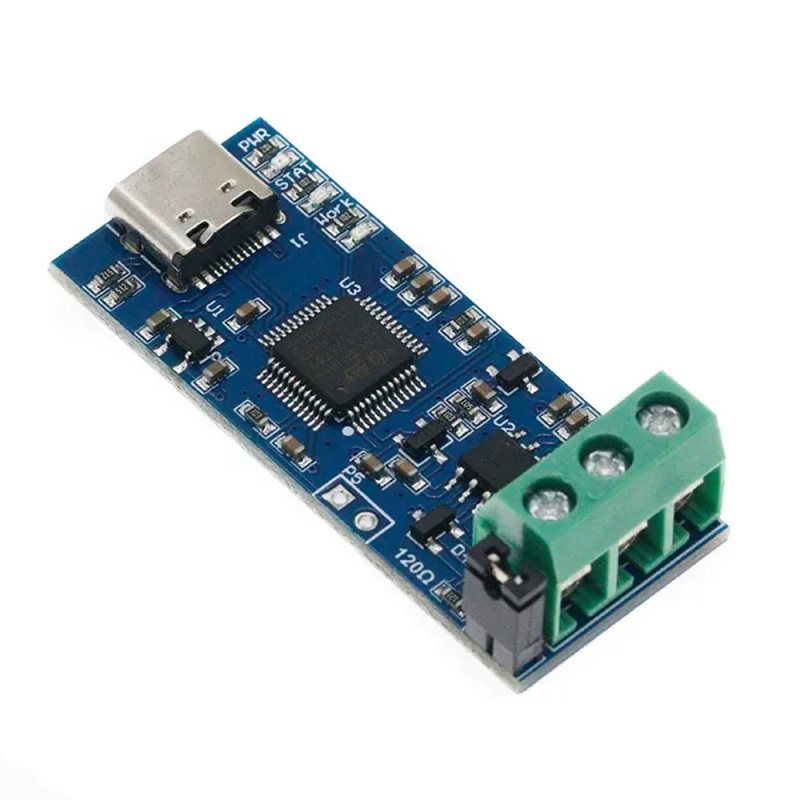

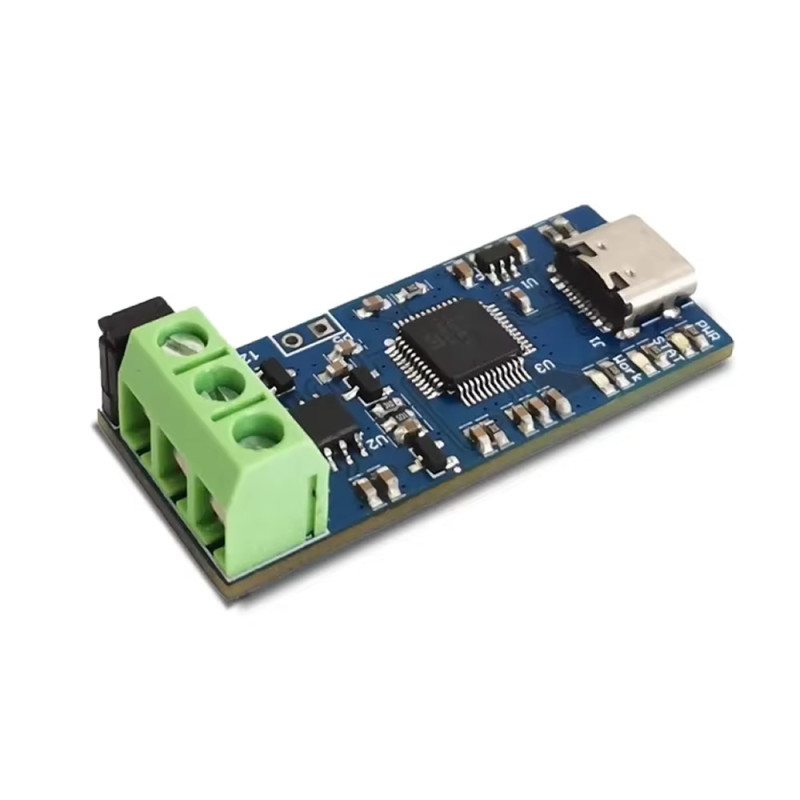

•     Canable V2.1 module board
•     Usb can communication analysis
•     Power supply and communication:  Type C usb port
•     3 Indicator leds. Power / Status / Communication
•     It can be used for learning, developing and testing the can network.
•     Open source Cangaroo CAN protocol analysis software support
•     Stm32f431 Processor  170Mhz
•     TJA1051 IC and 1Mbit/s communication speed
•     Firmware update support

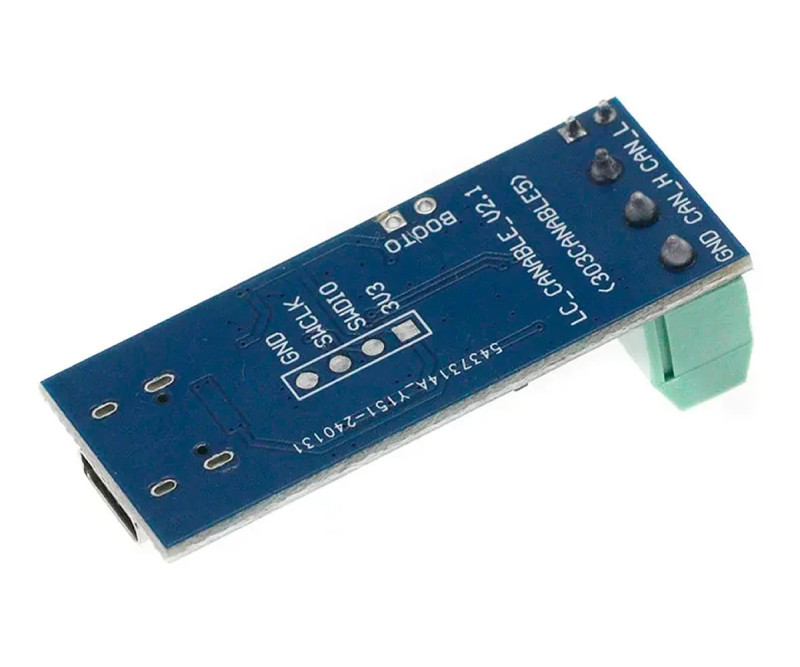

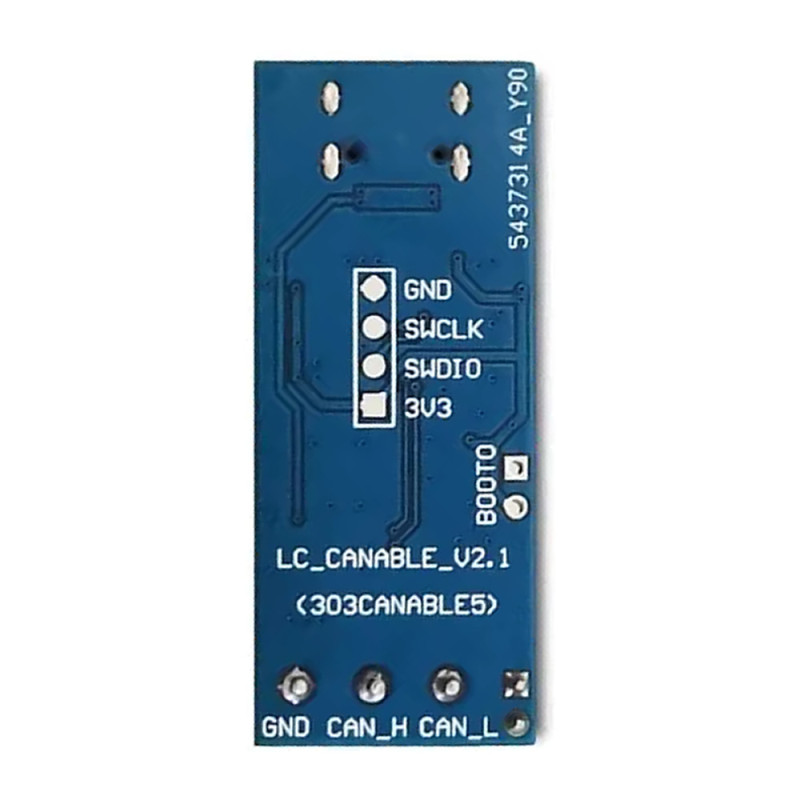

•     4 pin programming empty header for loading firmware to the processor.
•     It can monitor data
•     USB 2.0 support compatible with USB 1.1
•     It supports Can 2.0A, Can 2.0B and Can-FD protocols
•     It supports two way communication
•     Color:  Blue
•     Operating temperature:  -10C  /   65C
•     2 Pin boot empty jumper
•     120ohm control jumper
•     3 pin terminal block. Gnd / CanH / CanL

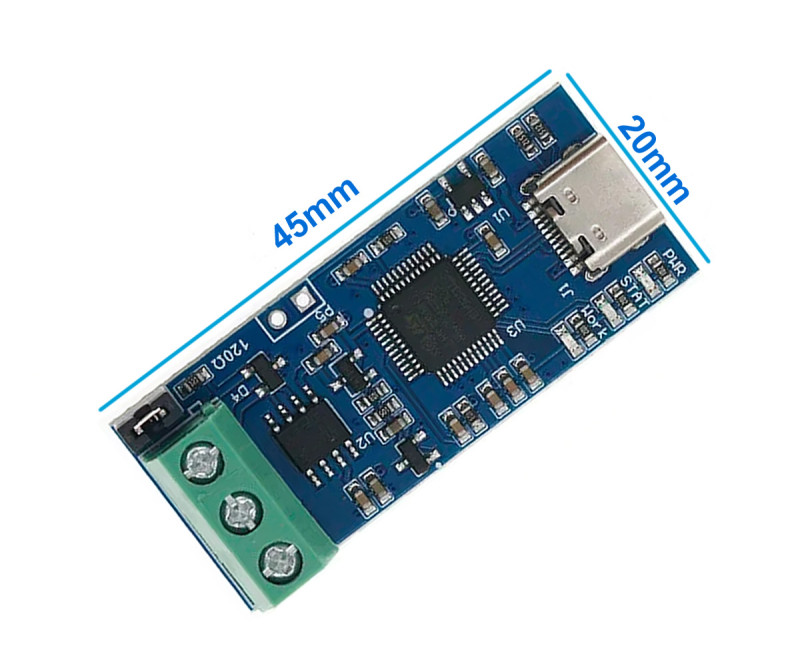

•     Dimensions:  20mm x 45mm
•     Weight: 7gr

Software: ( Software is not sent with the product. )

•     Open source Cangaroo CAN protocol analysis software support   github.com/HubertD/cangaroo
•     normaldotcom     github.com/normaldotcom?tab=repositories
•     Busmaster  https://rbei-etas.github.io/busmaster/
•     Tsmaster   https://github.com/TOSUN-Shanghai/TSMaster
•     http://115.28.16.44:81/file/4540.rar

Package contents:

• 1 Piece Canable V2.1
