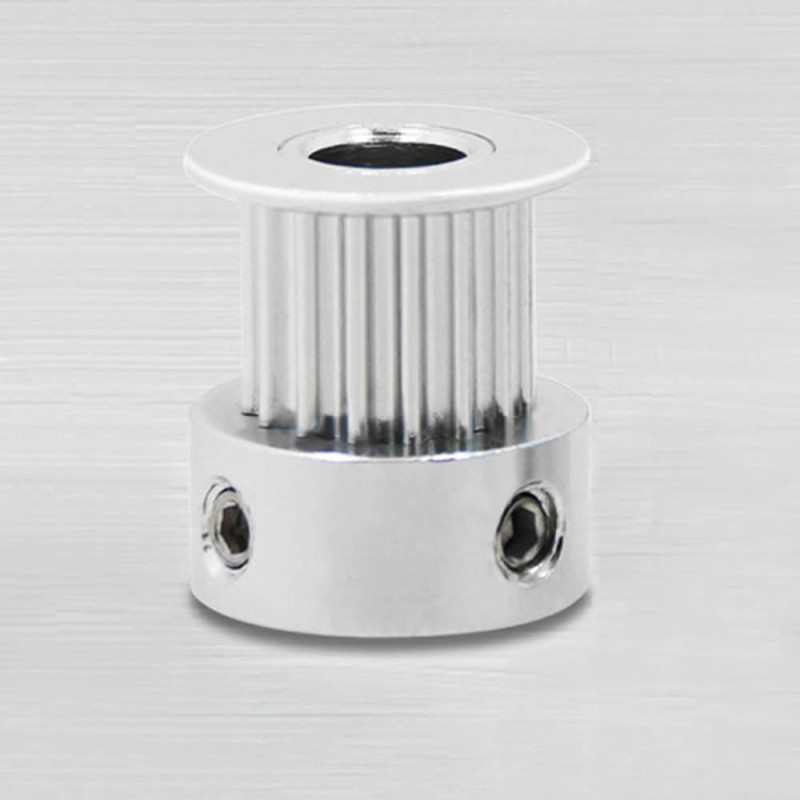

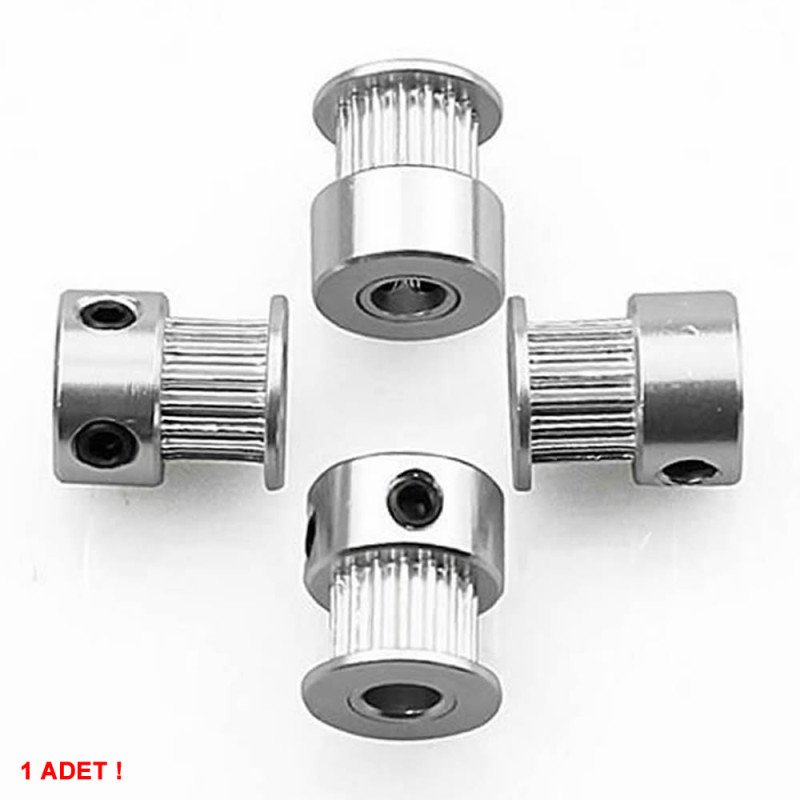

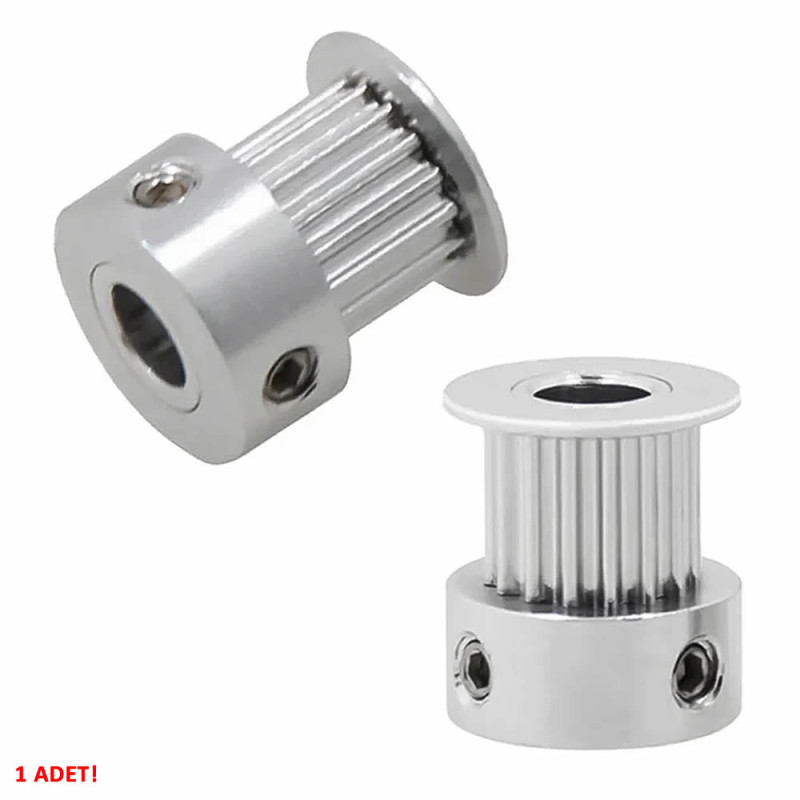

GT2 16 Tooth Aluminum Pulley

GT2 16 Tooth Aluminum Pulley

5mm Bore Diameter 6mm Belt Timing Linear Motion Positioner DIY Project 3D Printer CNC

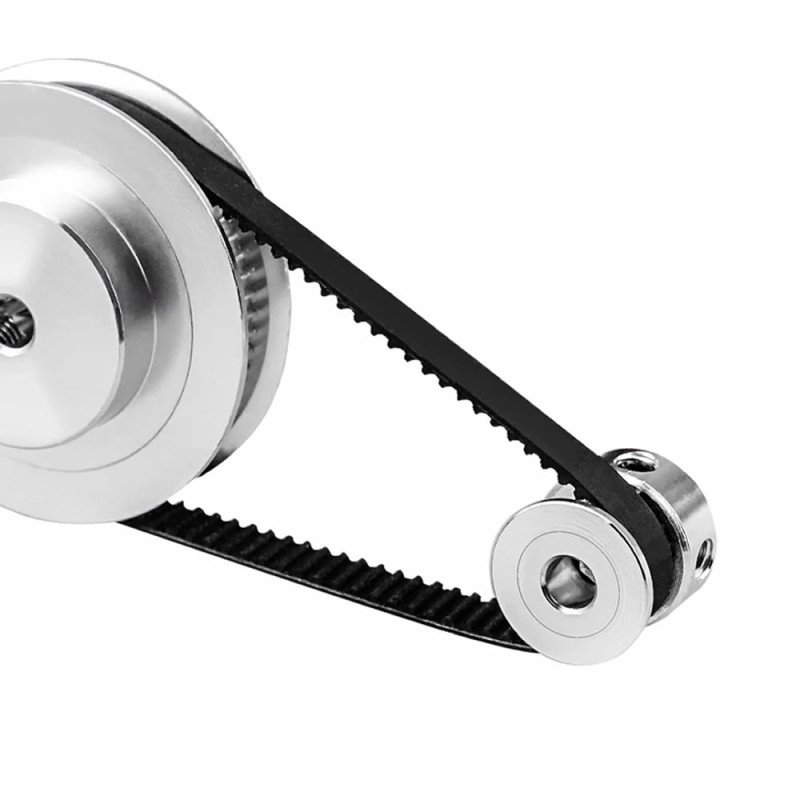

     16 tooth 5mm pulley suitable for use with 3D printers. It is used for mechanical linear motion and accurate positioning in applications such as 3D printers, cnc etc. Since its inner diameter is 5mm, it is compatible with 5mm shaft stepper motors such as Nema 17. It can be used with a 6mm belt. The teeth are designed to prevent the belts from slipping. You can attach it to the motor shaft by clamping it with 2 screws.

Features:

•     Model: 2GT
•     Aluminum pulley
•     Material: Aluminum alloy
•     Suitable for use with 3D printers.
•     Number of teeth: 16 teeth
•     Tooth pitch: 2mm

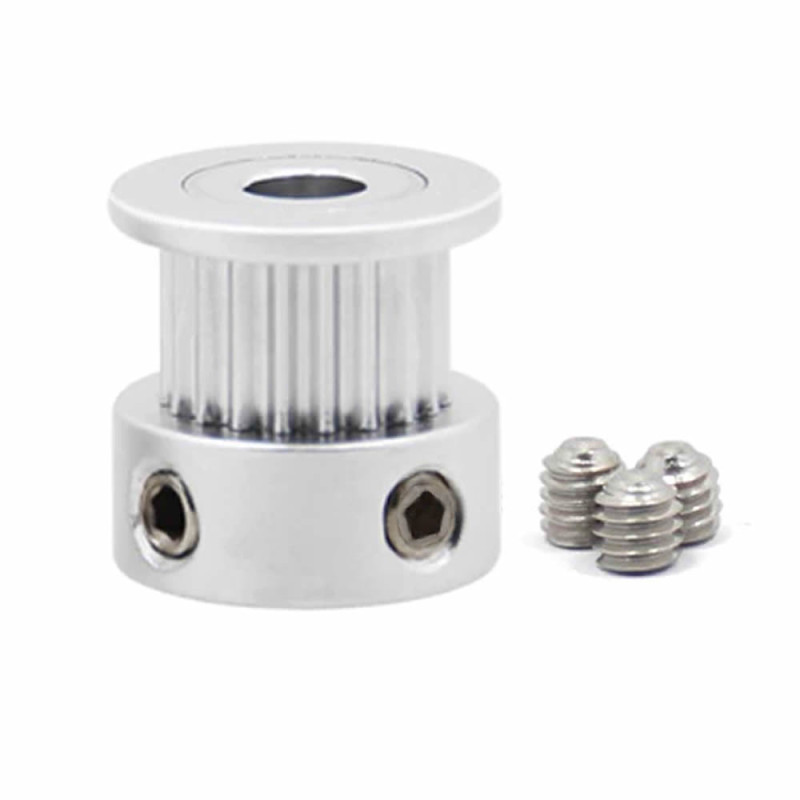

•     Number of set screws:: 2 Pieces
•     Color: Silver Gray
•     Operating temperature:  -10C  /  + 80C

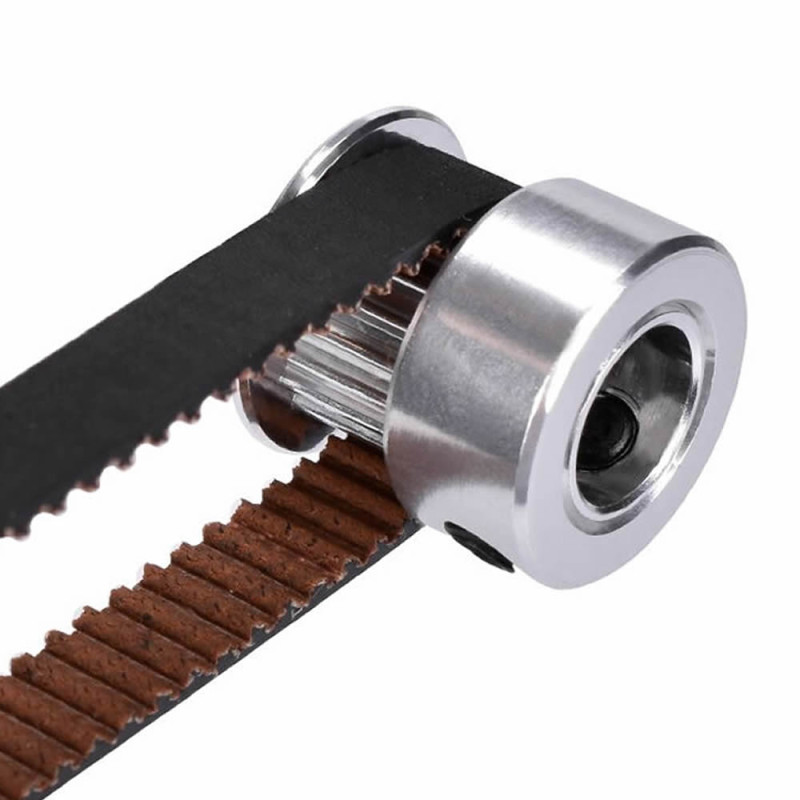

•     Belt width: 6mm Maximum
•     Pulley inner bore diameter: 5mm

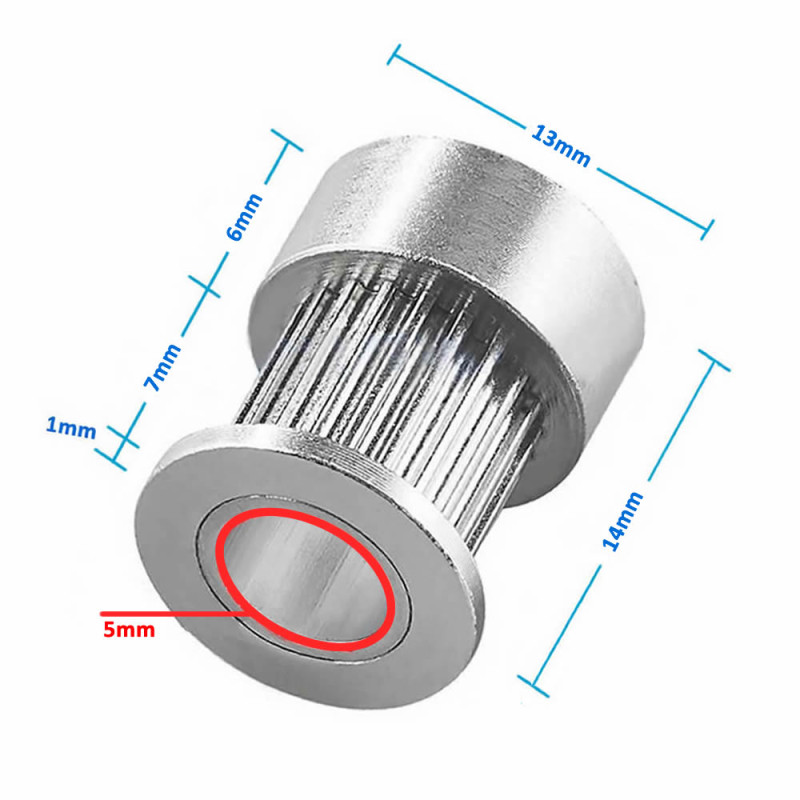

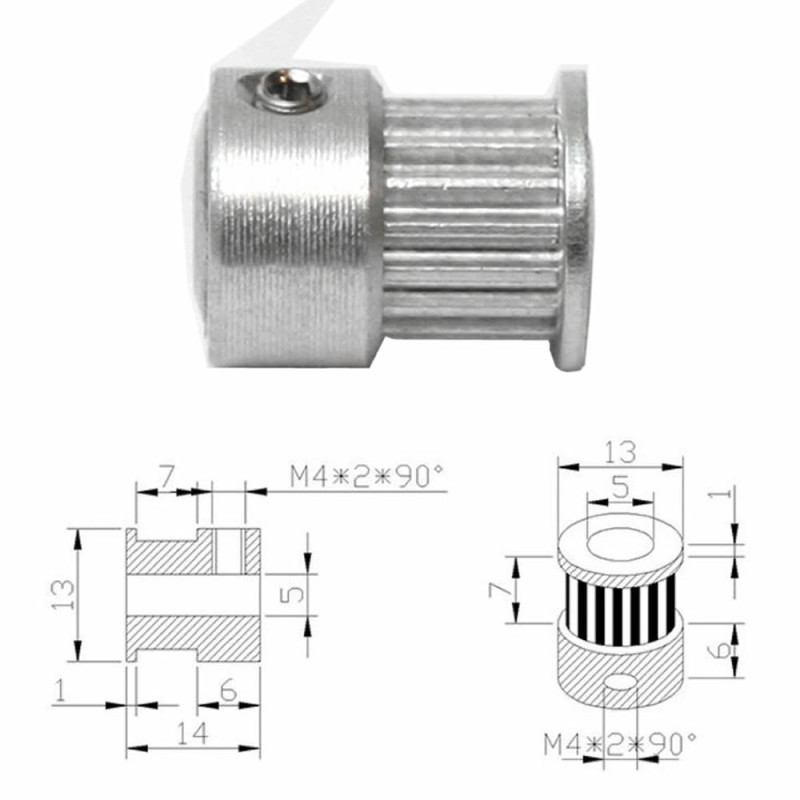

•     Dimensions: 14mm x 13mm
•     Weight: 3gr

Package contents:

•    1 Piece GT2 16 Tooth Aluminum Pulley

.
