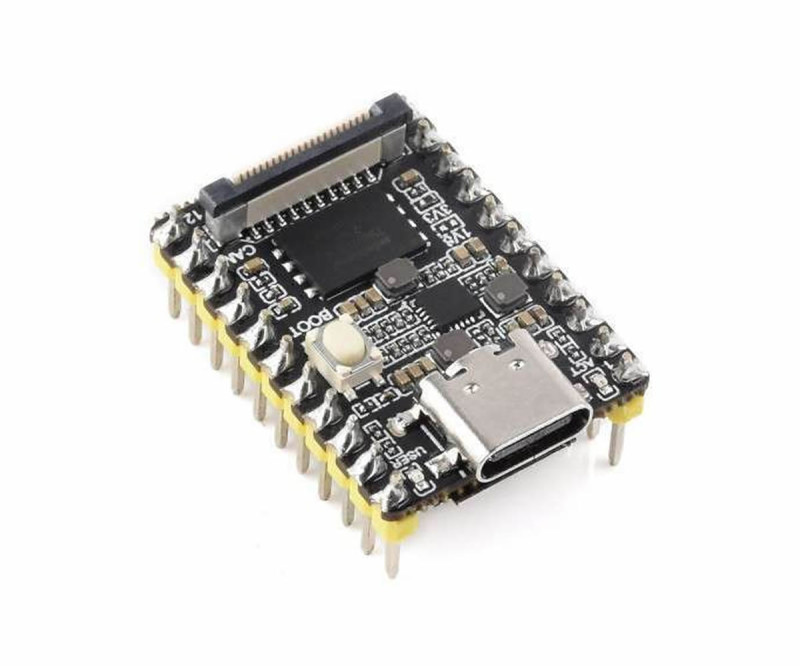

Mini RV1103 Pico Mini B 128MB Flash Soldered

LuckFox Mini RV1103 Pico Mini B Soldered Linux Micro ARM Cortex-A7 Development Board

1.2GHz Neural Network Processor NPU 0.5 TOPS Image Processor ISP 64MB DDR2 128MB Flash MIPI USB Type-C 17 GPIO Pin

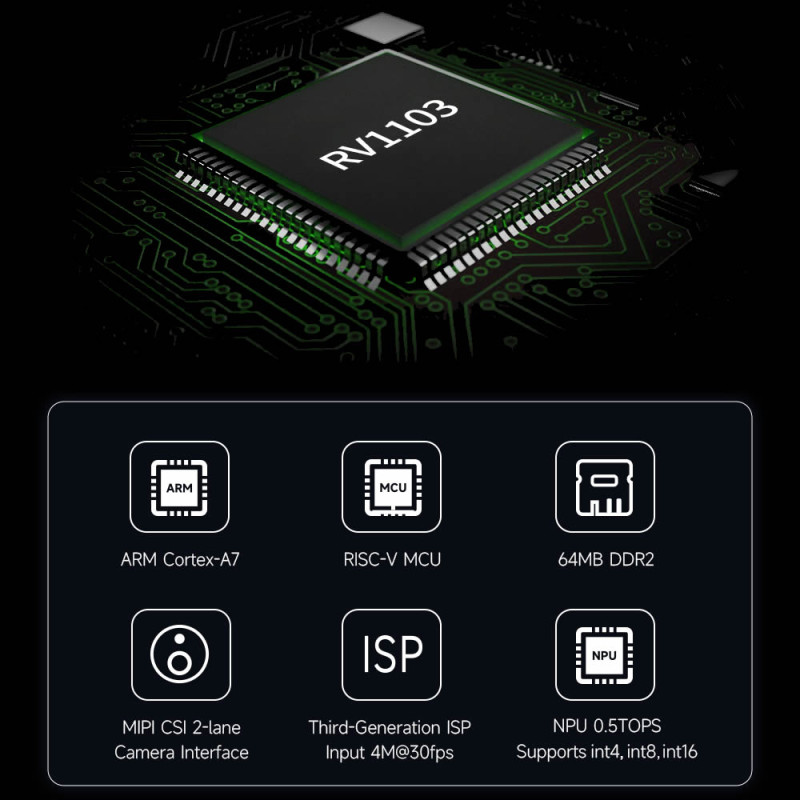

     LuckFox Pico Plus are low-cost micro Linux development boards based on the Rockchip RV1103 chip. The RV1103 is a highly integrated IPC visual processor designed for AI-related applications. It is built on a single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU, and has a built-in NPU supporting INT4 / INT8 / INT16 mixed operations with computing power of up to 0.5 TOPS.

     In addition, it has a new hardware-based ISP supporting various algorithm accelerators such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, haze removal, gamma correction and more. Additionally, it has a built-in 16-bit DDR2 DRAM to maintain demanding memory bandwidth as well as a built-in POR, audio codec and MAC PHY. In essence, the RV113 is a powerful processor suitable for various AI application scenarios.

     The development board supports multiple interfaces including GPIO, UART, SPI, I2C, USB etc., facilitating rapid development and debugging for developers.It should be noted that all LuckFox Pico series development boards support both Buildroot and Ubuntu 22.04 systems, allowing developers to choose the appropriate system according to project requirements and providing more flexibility to meet specific application needs.

     Pico Plus RV1103, the versatile development platform Pico Plus can be used for a wide range of applications including IoT projects, robotics, computer vision and AI. The built-in NPU allows you to run artificial intelligence and machine learning models directly on the board. The MIPI CSI camera interface allows you to connect various cameras and capture images and video. The Linux Operating System provides a familiar development environment and access to a rich ecosystem of libraries and tools. GPIO pins and various connectivity options make it easy to interface with sensors, actuators and other devices. You can set up a development environment with the necessary tools for your preferred programming language (for example, C/C++, Python).

     The development board provides numerous interface resources such as GPIO, UART, SPI, I2C, USB etc. to facilitate rapid prototyping and debugging for developers. The full range of support to meet the needs of different projects, considering the choice of lightweight and general-purpose development environments for Buildroot and Ubuntu 22.04 systems. In addition, Luckfox provides a complete hardware schematic and software development kit (SDK) with documentation covering details from basic hardware to application development. Whether a DIY enthusiast or a professional engineer, with rich community resources and official support you can use it more efficiently to apply to various AI scenarios such as smart vision and edge computing.

Features:

•     IC: Rockchip RV1103
•     Cpu: Cortex A7 1.2GHz
•     Cpu speed:  1.2GHz
•     Neural network processor (NPU): 0.5 TOPS, supports int4, int8, int16
•     Image processor (ISP):  Maximum input 4M @30fps
•     Memory: 64MB DDR2

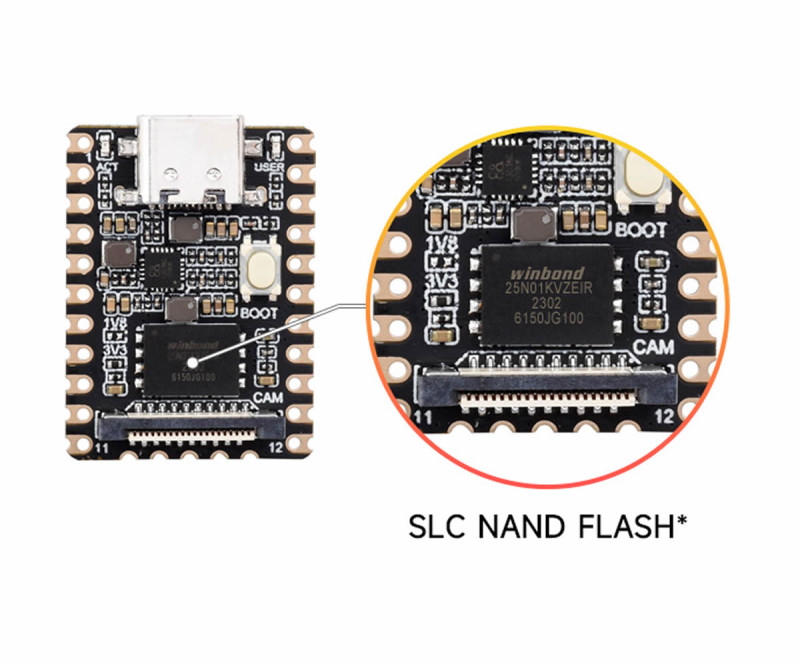

•     Flash memory: 128MB  W25N01KVZEIR  SLC NAND
•     Camera interface:  MIPI CSI 2-lane
•     USB: USB 2.0 Host/Device

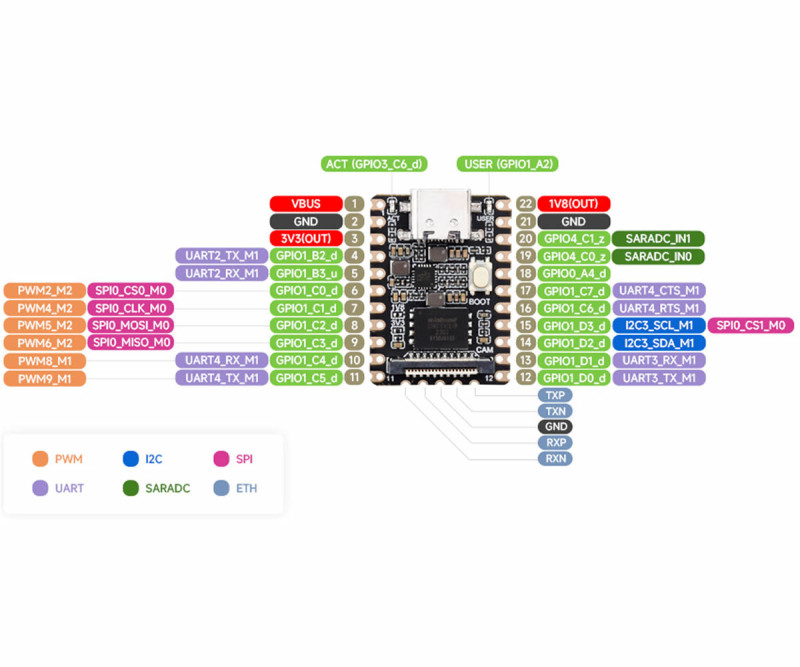

•     GPIO: 17 GPIO pins

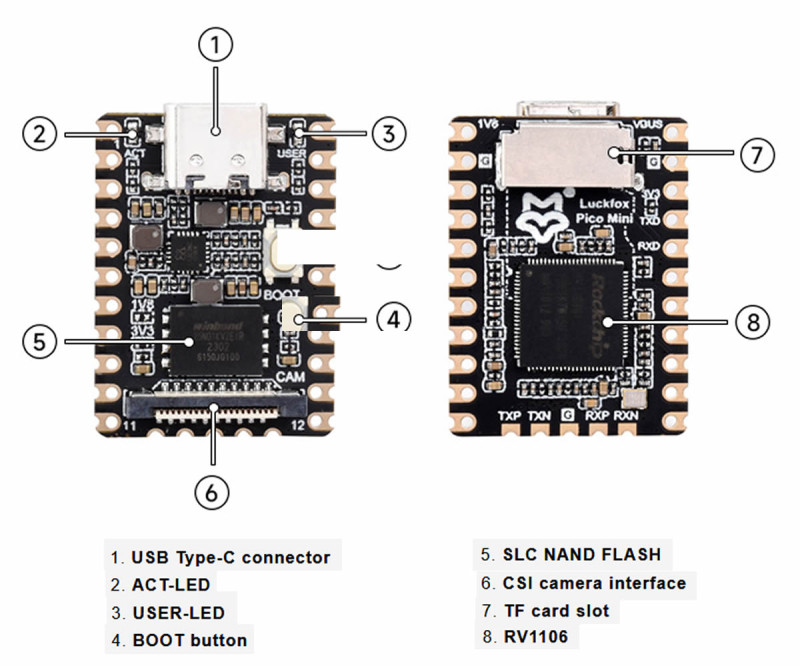

•     USB Type-C connector
•     ACT-LED
•     Boot button: Press it while powering on to enter download mode
•     W25N01KV: SLC NAND FLASH

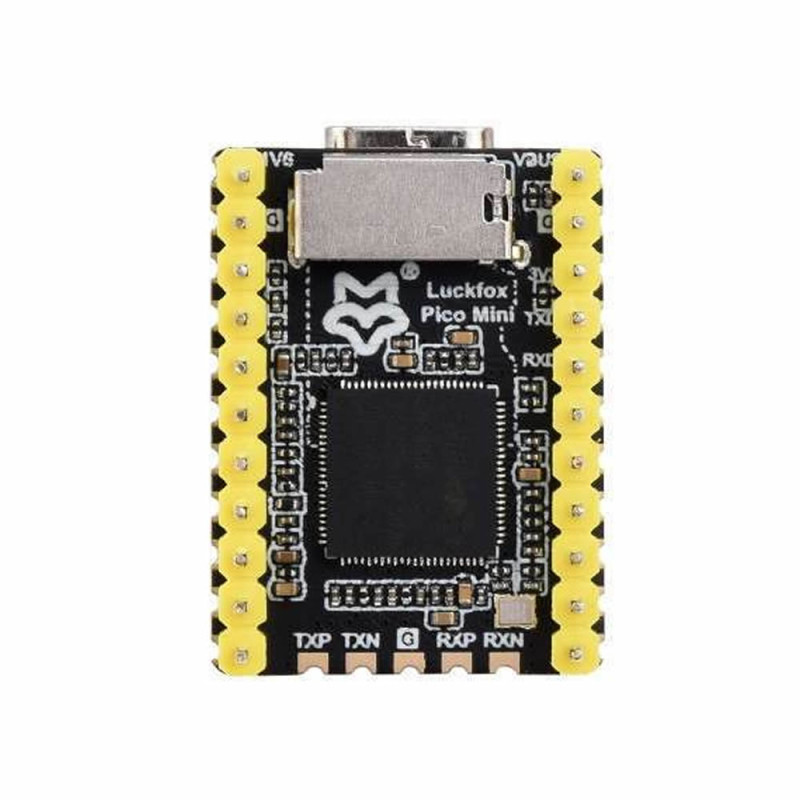

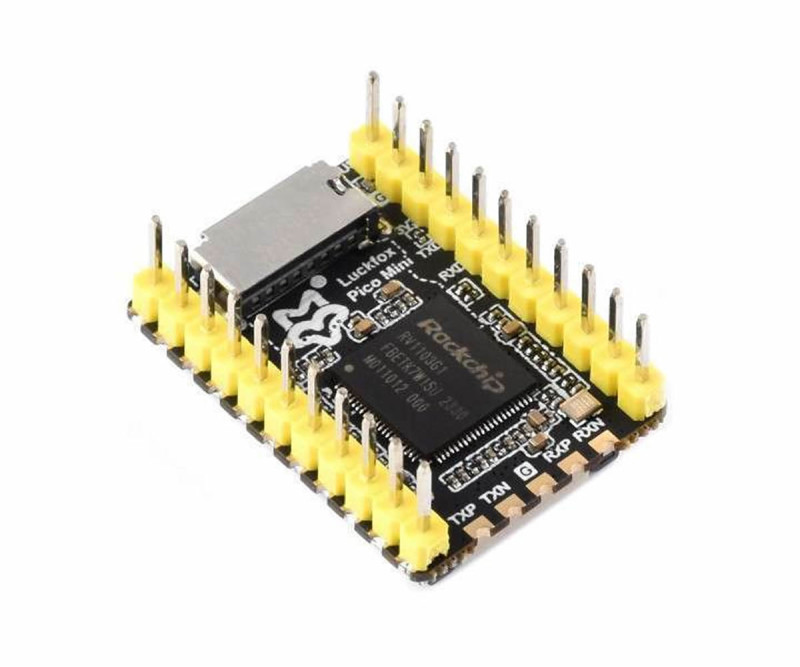

•     RV1103: Image processor SoC with built-in ARM Cortex-A7 core
•     CSI camera interface: MIPI CSI 2-lane
•     USB test pads
•     Boot test pad
•     Microphone test pads
•     Boot button
•     Power indicator led.
•     Color: Black
•     Operating temperature:  -10C  /  65C
•     2 pcs 20 pin sockets on 2 edges of the board. 100 mil pin pitch
•     Dimensions:  21mm x 72mm
•     Weight:  16gr

Software support:

•  wiki.luckfox.com/Luckfox-Pico/Luckfox-Pico-quick-start/

Package contents:

•    1 pcs Mini RV1103 Pico Mini B 128MB Flash Soldered

.
