15A 400W Mosfet Switching Board

15A 400W PWM Controlled Mosfet Switching Board

Dual Mosfet Terminal Block Connection Socket SSR Relay Motor Led Lamp Pump Solenoid Valve

In high power applications the mosfets must be cooled. Otherwise the mosfets will burn!

     It is a switching board with MOSFETs that you can use to switch loads up to a maximum of 15A at DC 5-36V. It works just like a relay board. Unlike a relay board, since it does not contain mechanical parts, it also offers the possibility of proportional control with a PWM signal (for example DC motor speed control). It has the possibility of being driven with low voltage. Thanks to this, it can be used with mcu kits such as arduino.

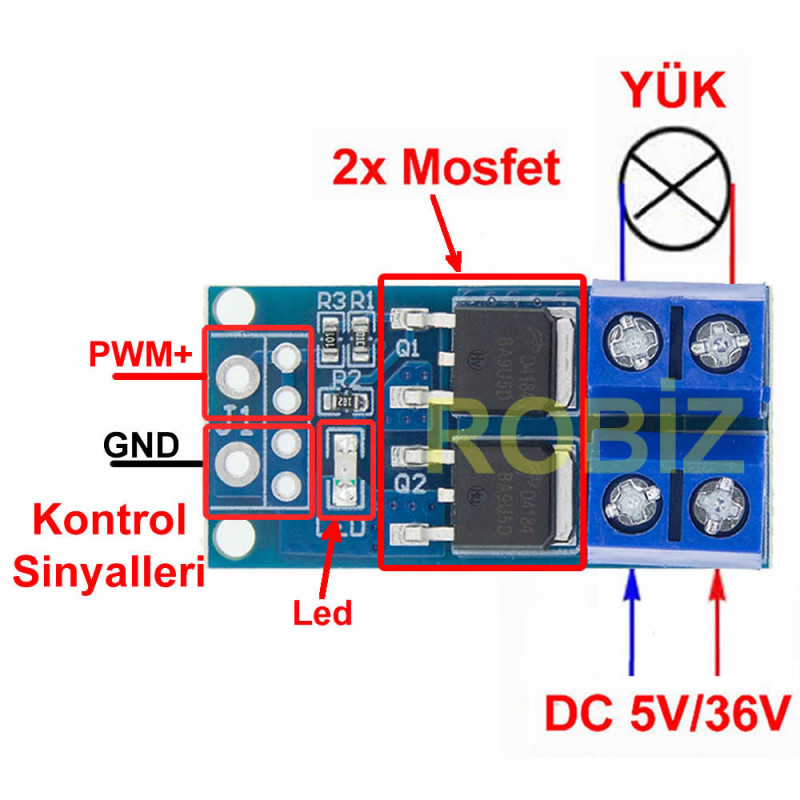

     There are 2 parallel mosfets on the board. Thanks to this it has a high current sinking capacity. It shows low resistance. It can be used in switching operations at 400W power. It can be used in applications such as motor speed control, led lamp brightness control.

Features:

•     2 Pieces Mosfet connected in parallel
•     Operating voltage: DC 5-36V
•     Output current: 15A continuous, 30A peak
•     Output power: 400W maximum
•     Trigger signal level: DC 3.3-20V ( It can be connected to microcontroller io pins. )
•     Maximum pwm speed: 0 / 20kHz
•     High current
•     High power
•     Low resistance
•     2 terminal block sockets for easy connection
•     Operating temperature range: -40C / 85C

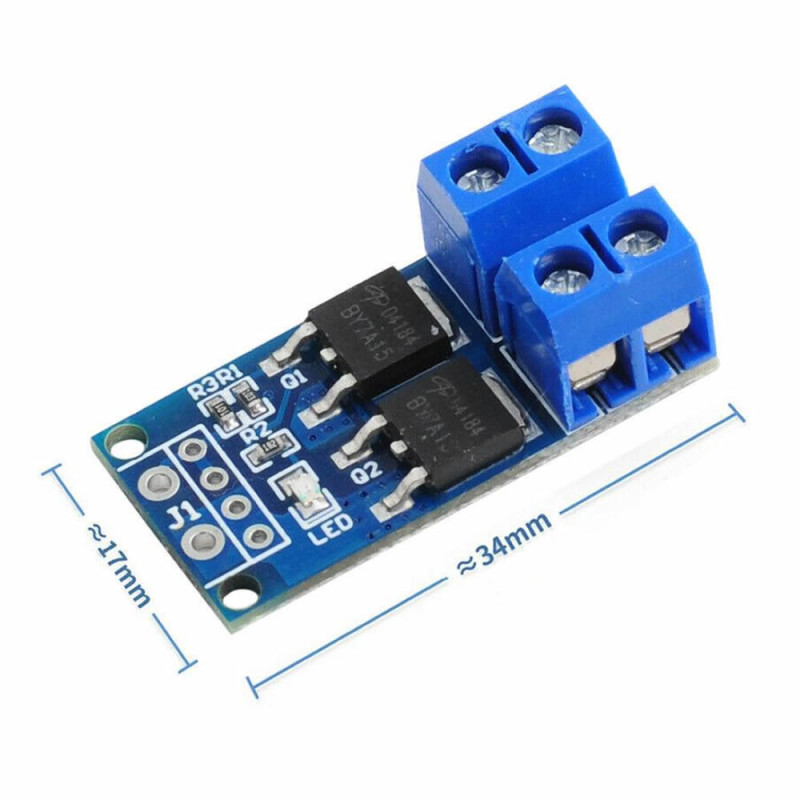

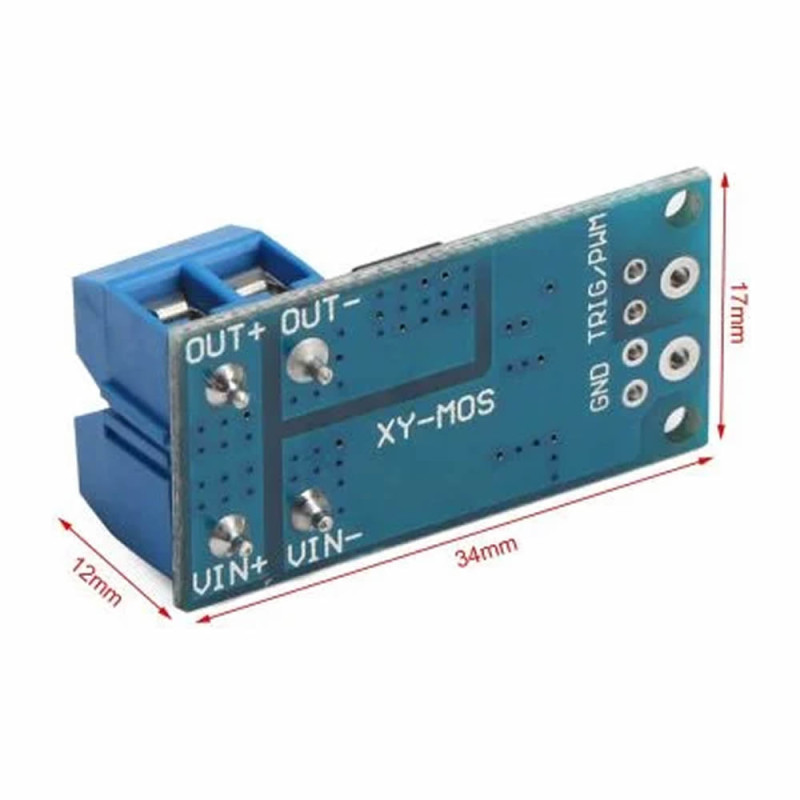

•     Dimensions: 34 × 17 × 12mm
•     Weight: 5gr

Package Contents:

• 1 Piece 15A 400W Mosfet Switching Board
