1 Kg Load Sensor

1 Kg  Weight Measurement Sensor

1kg Loadcell HX711 Scale Balance Arduino Raspberry Pi  YZC-131

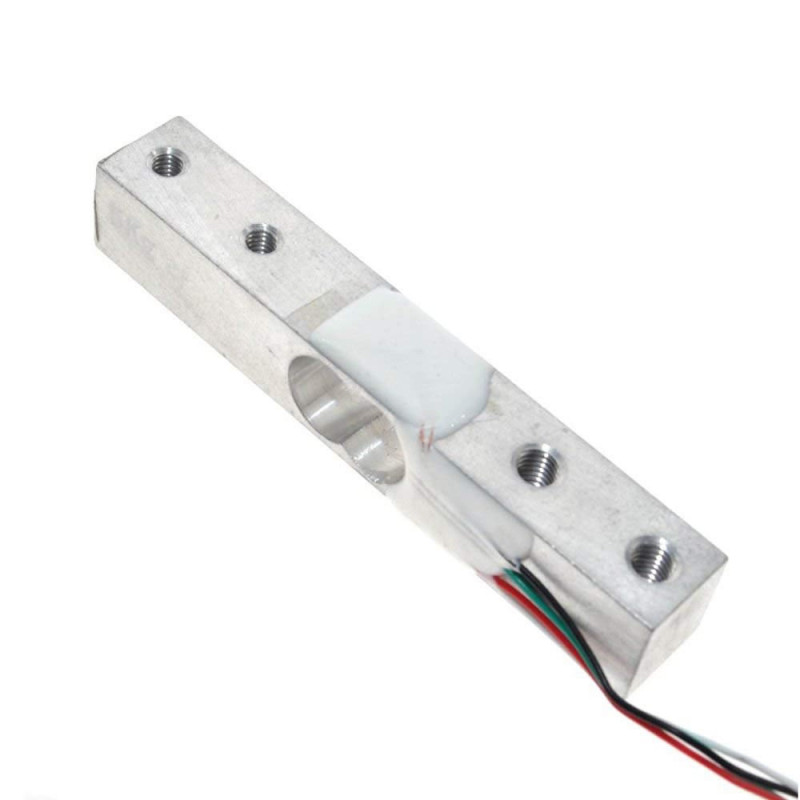

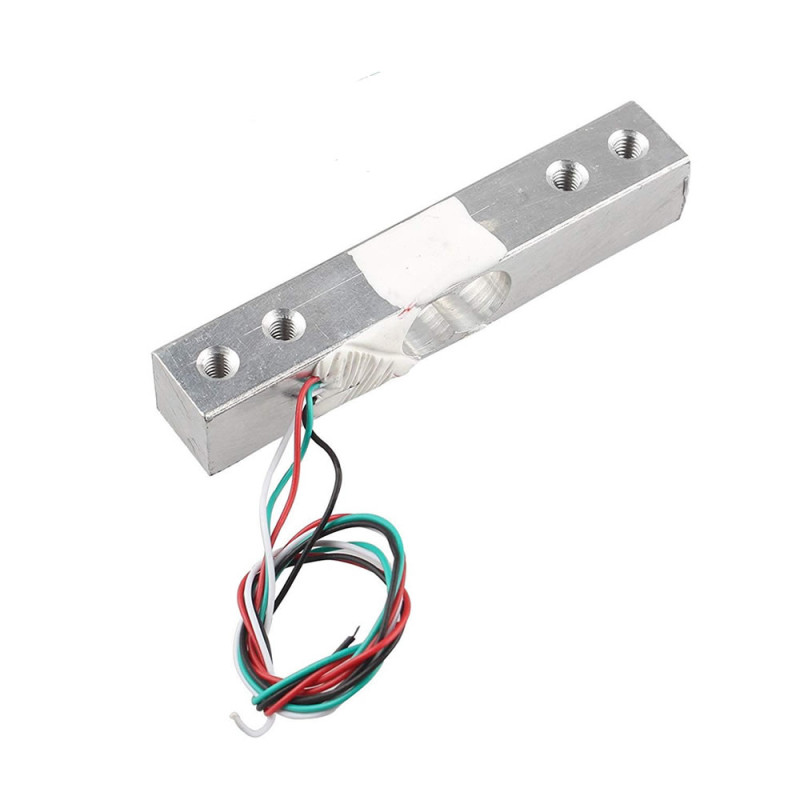

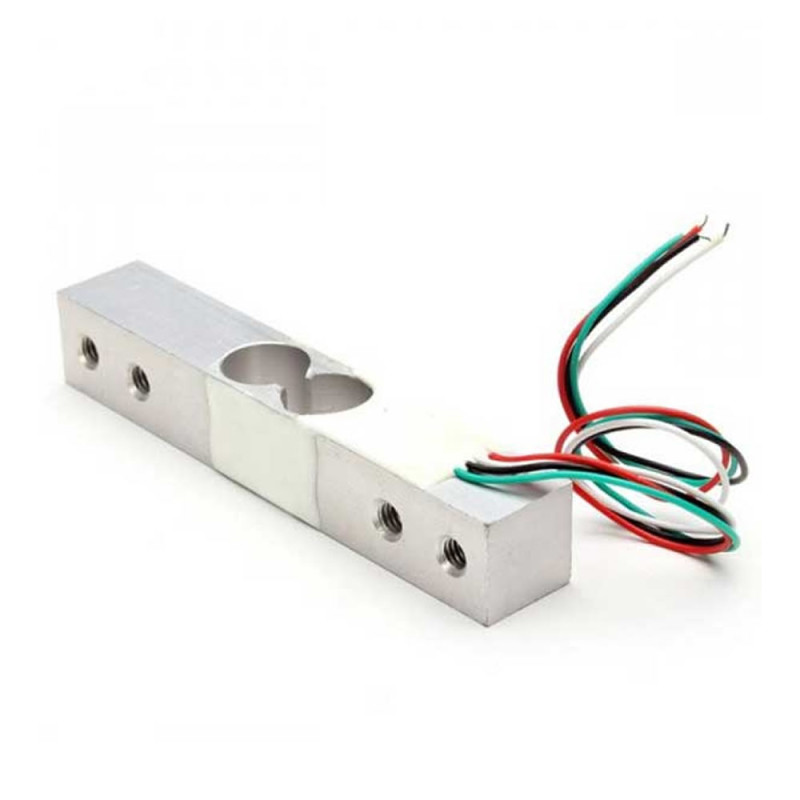

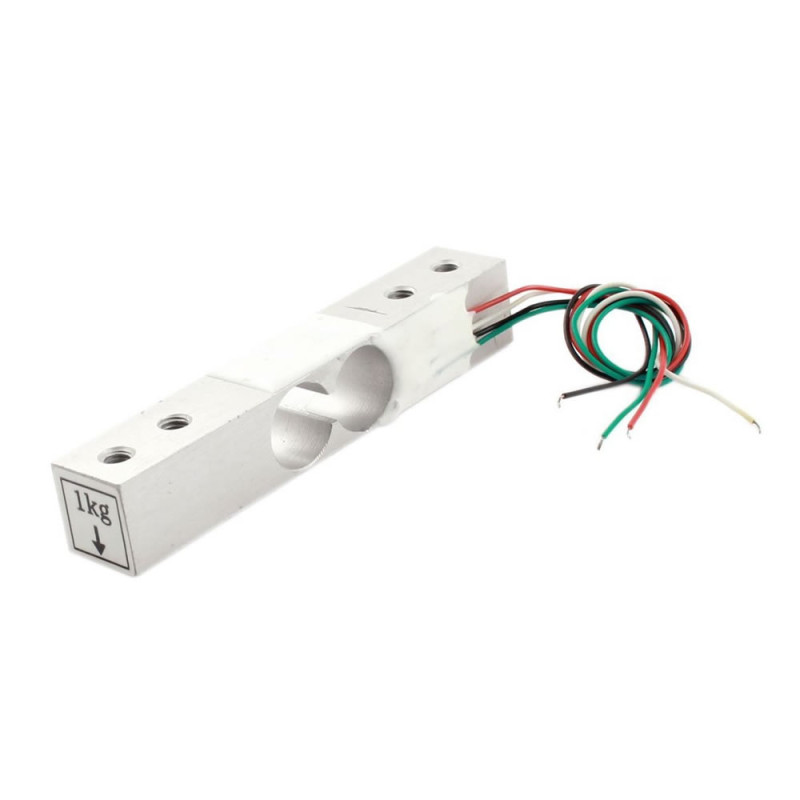

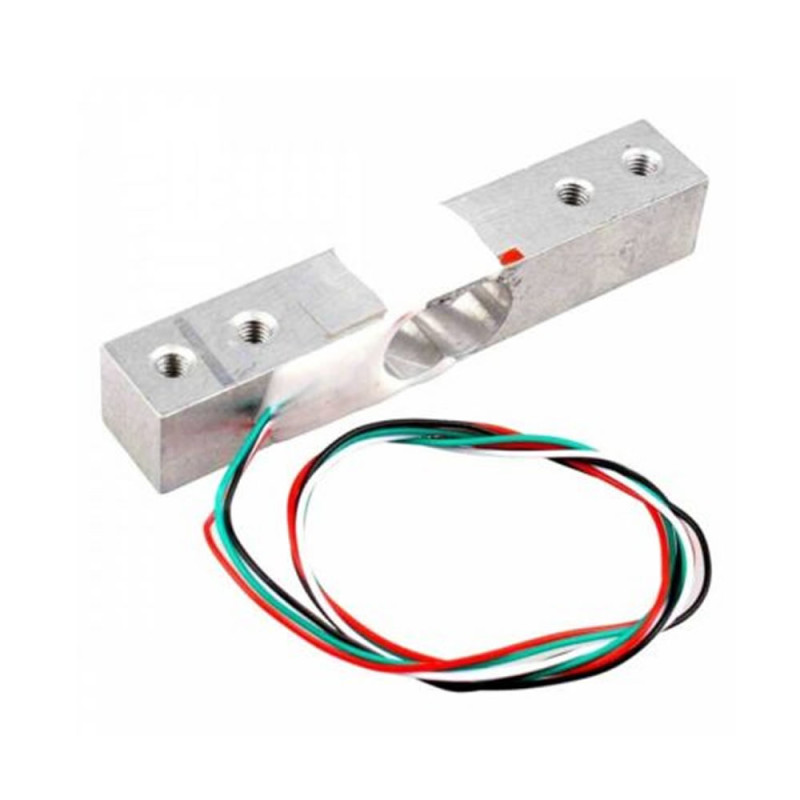

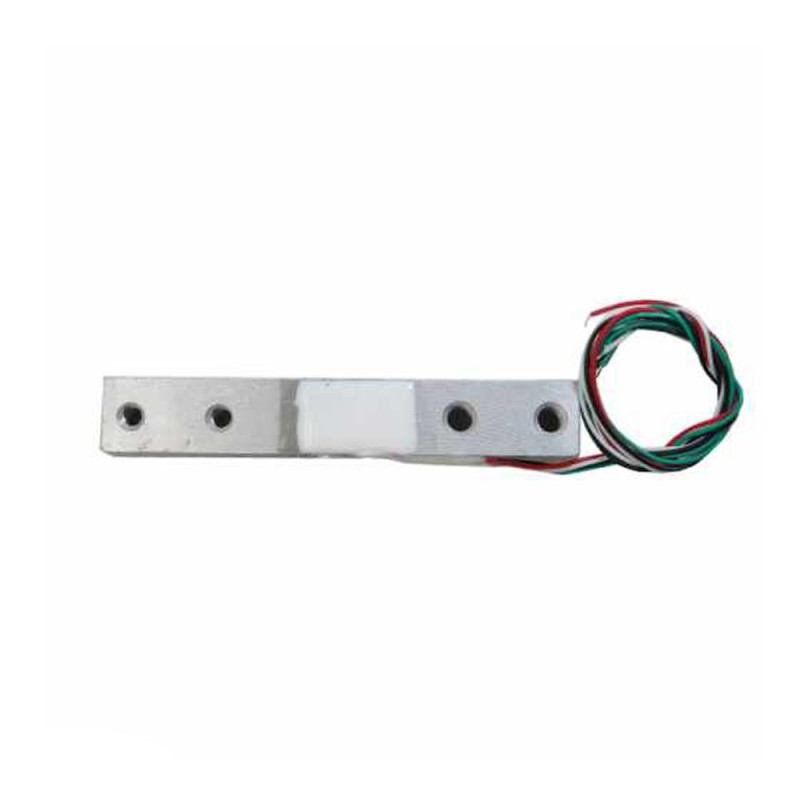

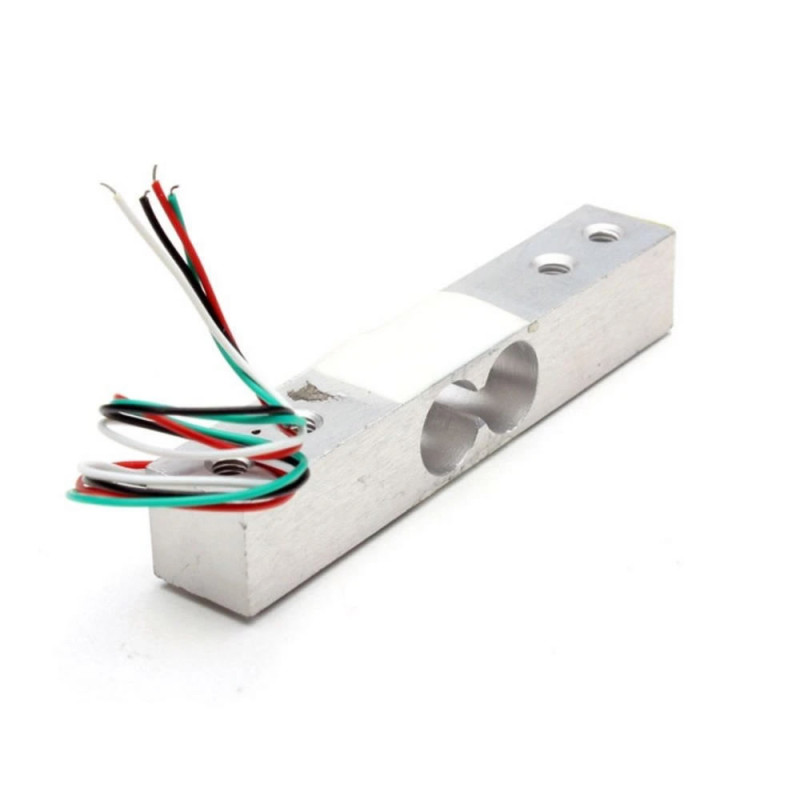

      The Load Weight Sensor is used for measuring weights up to 1 Kilogram. If you want to increase the measurement weight you can increase the sensors in parallel. It has a half bridge structure. 2 kg measurement can be made with 2 sensors, 4 kg with 4 sensors. It is manufactured from durable aluminum material.

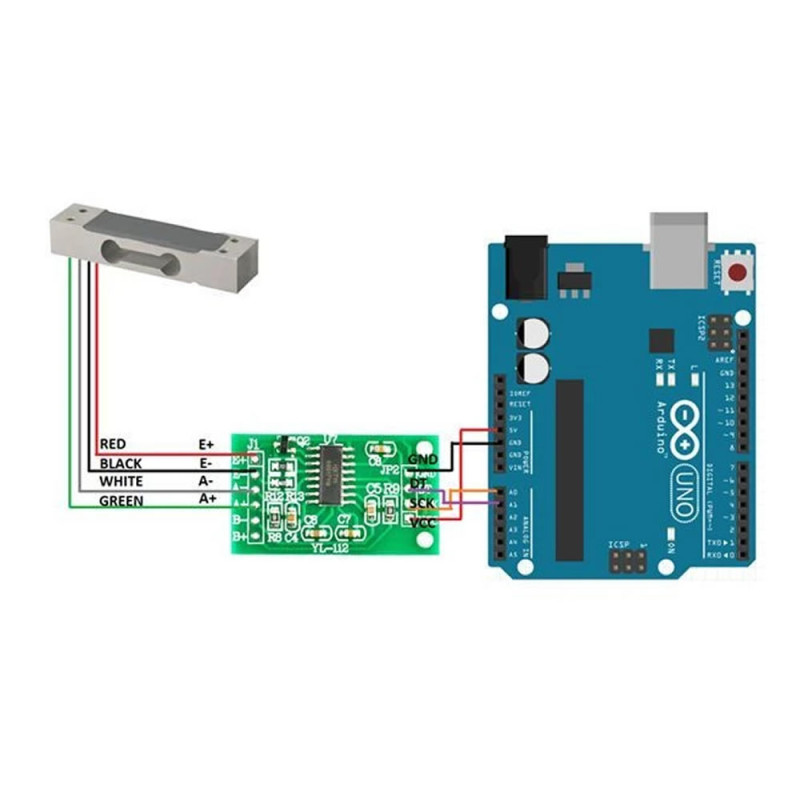

     There are 4 wires on the product. It gives analog output. It can be used with weight sensing sensor modules such as HX711. An example arduino circuit connection is shown in picture number 8.

Features:

•     Capacity: 1kg
•     Comprehensive error (% F.S): 0.2
•     Output sensitivity (mv / v): 1.1 ± 0.15
•     Non-linearity (% F.S): 0.2
•     Repeatability (% F.S): 0.1
•     Hysteresis (% F.S): 0.2
•     Creep (% F.S/3min): 0.1
•     Zero Drift (% F.S/1min): 0.1
•     Temperature. 0.2: zero (% F.S/10 ° C) Effect
•     Temperature. Output Effect (% F.S/10 ° C): ≤ 0.15
•     Zero Output (mv / V): ± 0.3
•     Input Resistance (Ω): 1000 ± 50
•     Output resistance (Ω): 1000 ± 50
•     Insulation Resistance (M): ≤ 2000 (100VDC)
•     Excitation voltage (V): 5 ~ 10
•     Operating Temperature. Range (° C): -10 ~ +50
•     Overload Capacity (% F.S): 150
•     Wire connection method: red = Sig +, white = Exc -; blue = Exc +
•     Dimensions (mm): 80mm x 13mm x 13mm
•     Weight: 30gr

Package Contents:

• 1 Piece 1 Kg  Load Sensor
