3.5 TFT LCD Module + Touch

Arduino UNO R3  3.5” TFT LCD Display Module Resistive Touch Panel

320x480 Pixel SD Card Socket  Touch Mega2560 Compatible

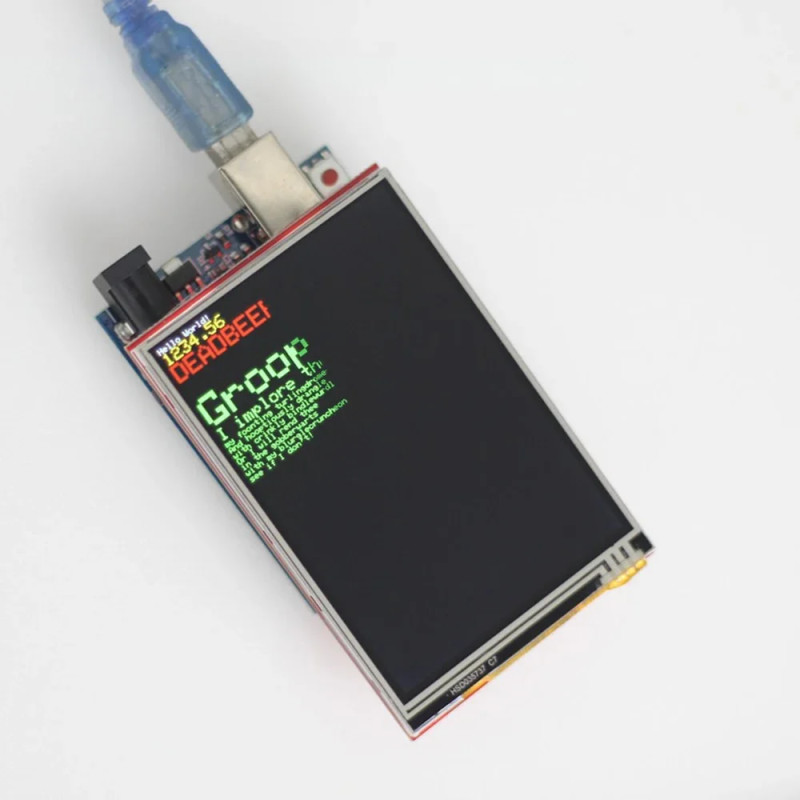

It works with Arduino Uno with the Mcufriend kbv master – Glue_Demo_480x320 example.

     The Arduino compatible 3.5 inch tft lcd display is a large, bright and colorful screen. Thanks to its 480×320 pixel resolution and rgb pixel control, it offers a much higher resolution compared to a black and white 128×64 screen. It has a resistive touch sensor. This way you can control your application by touching any area of the screen. A microsd socket can be attached.

Features:

• Screen size: 3.5inch IPS
• Resolution: 320x480 Pixel
• Screen colors: 16 bit Rgb 65K color
• Resistive touch panel
• Operating voltage: DC 2.8 / 3.3V
• Driver IC: ILI9486 / ILI9488L

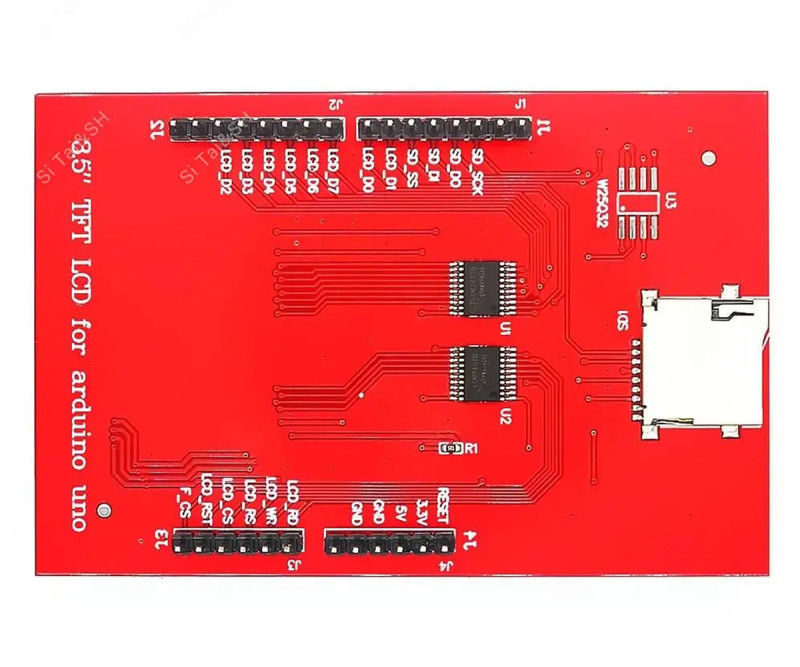

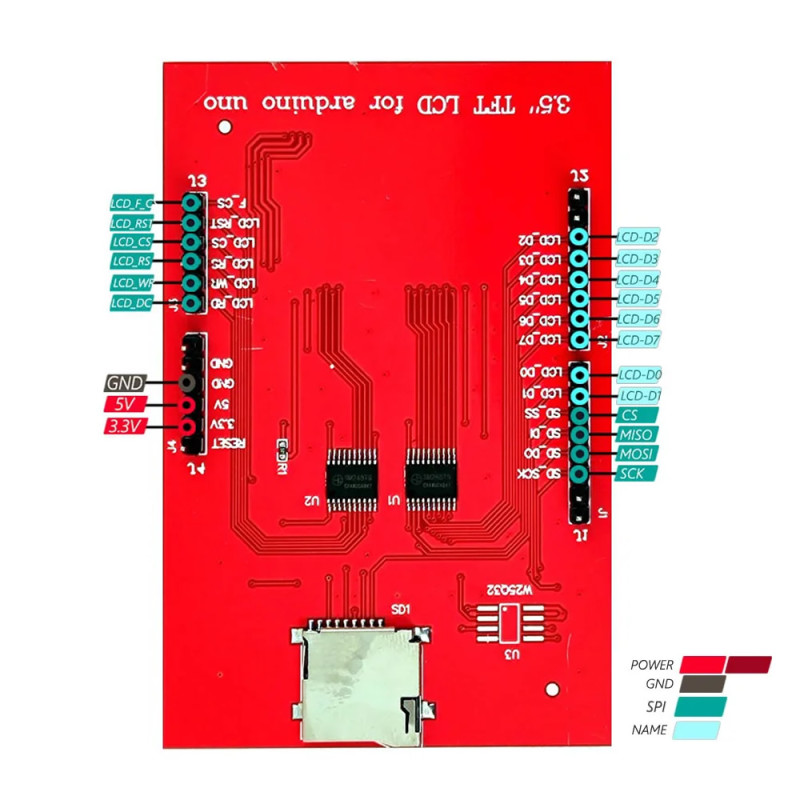

• Module pin count: 28 pin (8+8+6+6)  Uno R3 / Mega2560 compatible
• 8-bit parallel bus
• Active use area: 73mm x 49mm
• Operating temperature: -20C  /  70C

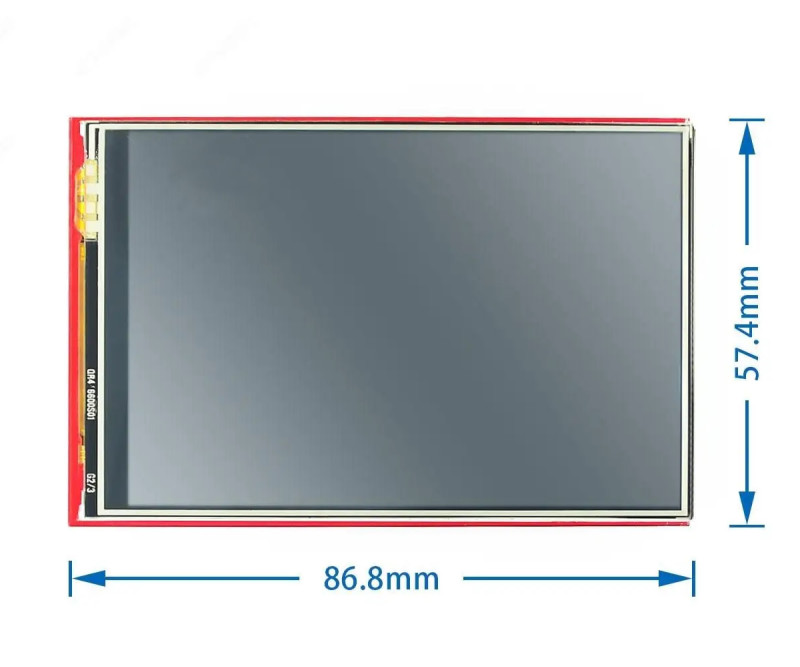

• Dimensions: 8.5cm x 5.5cm
• Weight: 53gr

Package contents:

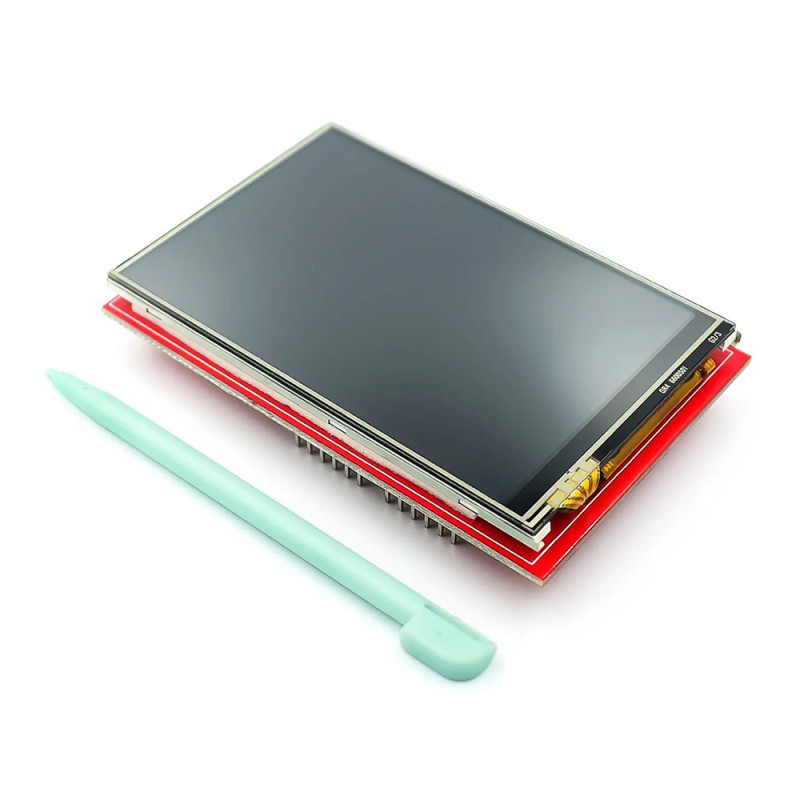

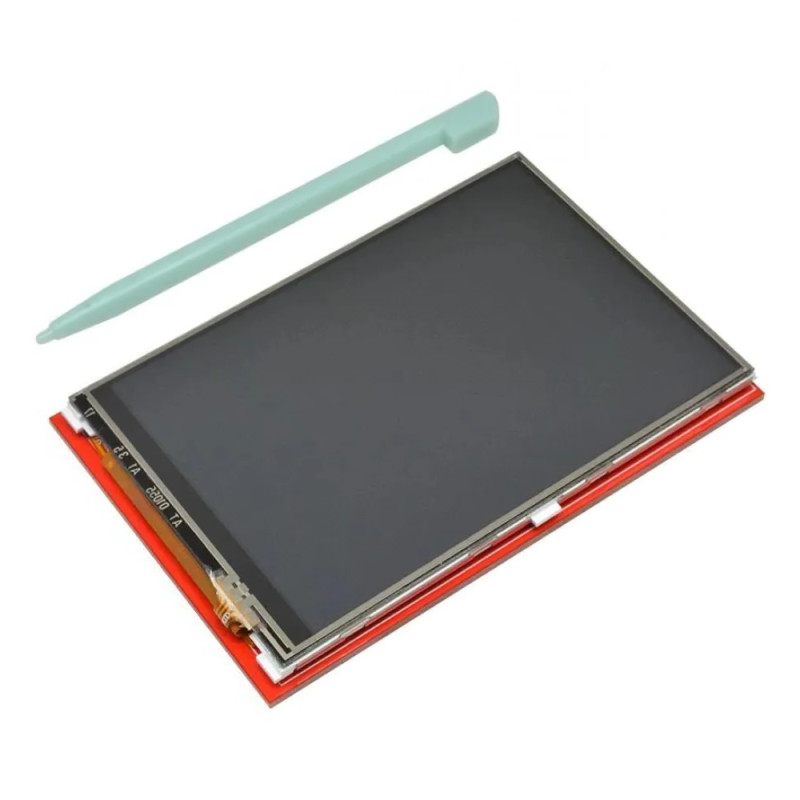

•  1 Piece  3.5” TFT LCD Module
•  1 Piece Touch Pen
