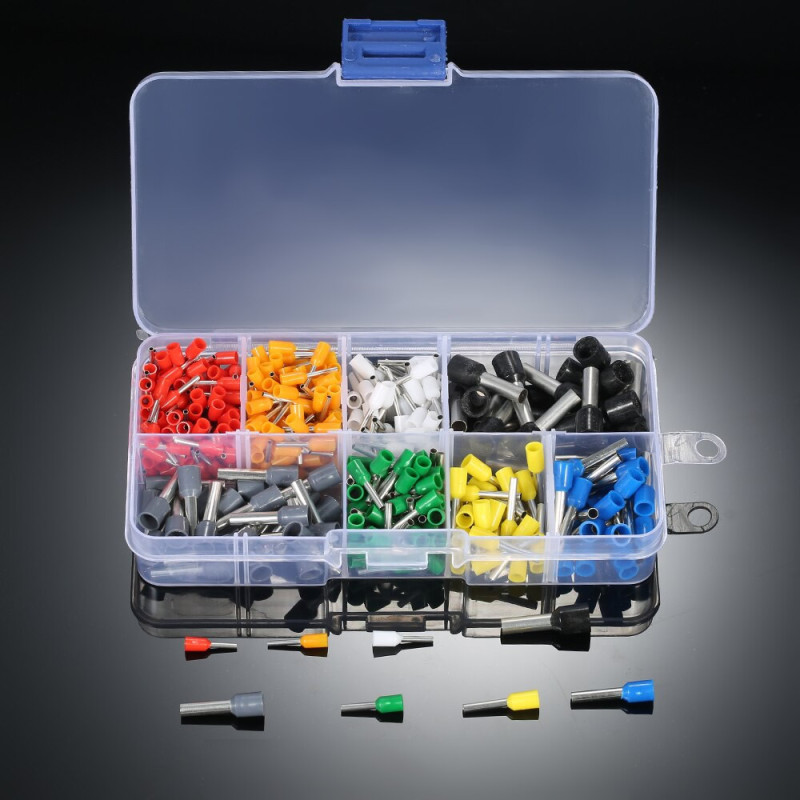

400 Piece Insulated Wire Ferrule Set

400 Piece Insulated Wire Ferrule Set Boxed

Insulated Wire Terminal Socket Crimp Pin Electric Wire Connector 10/22 AWG Cord

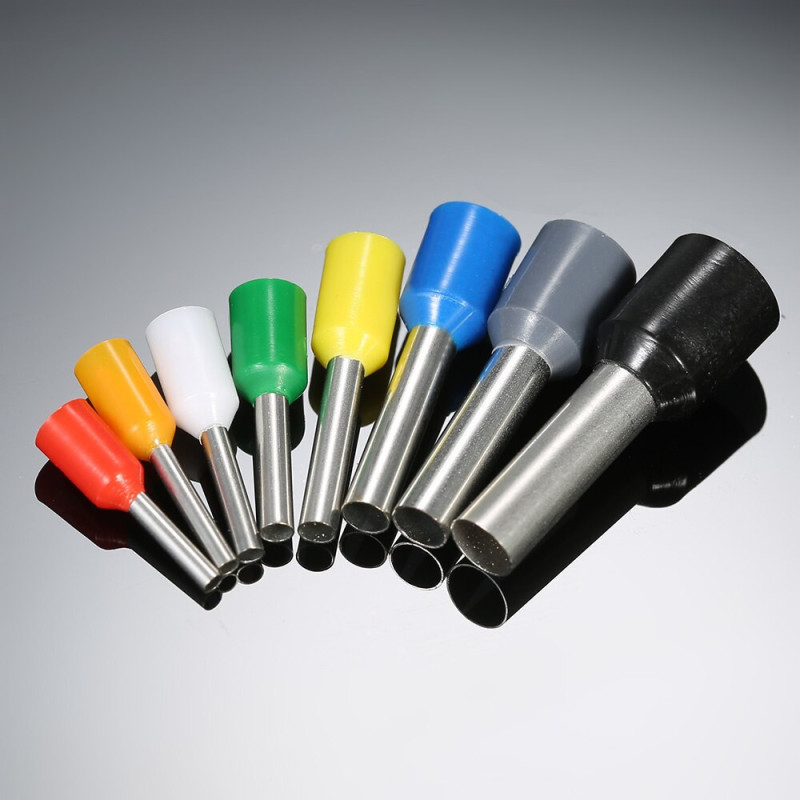

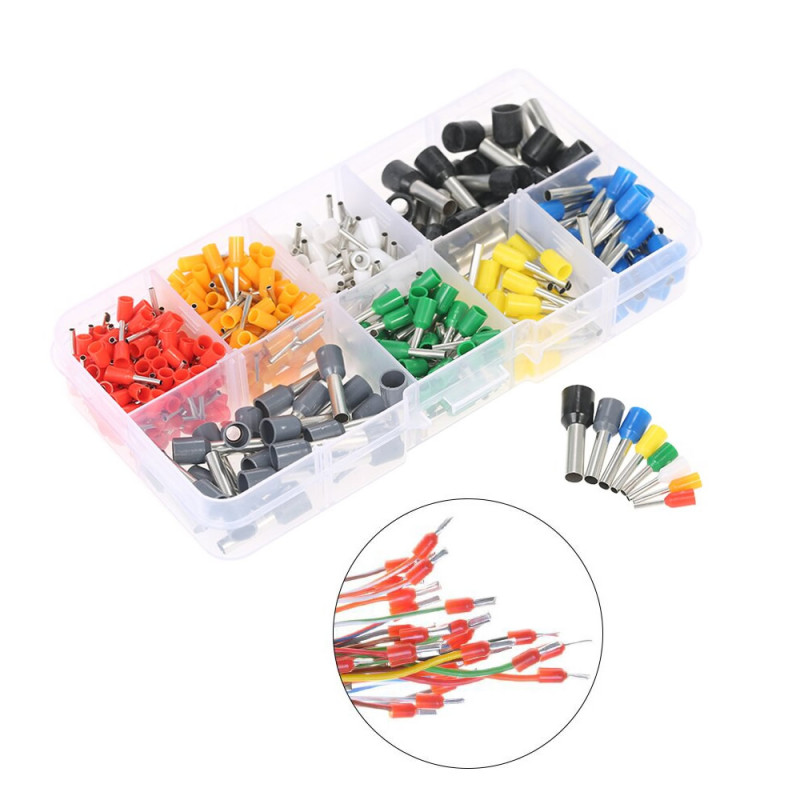

     400 piece wire end socket set. It consists of sockets in different lengths for 8 different wire thicknesses. They are used for insulation, strength and convenience while easily inserting your cables into various sockets. The cable of suitable thickness is inserted into the socket. The metal housing is crimped with crimping pliers and takes a form inseparable from each other.

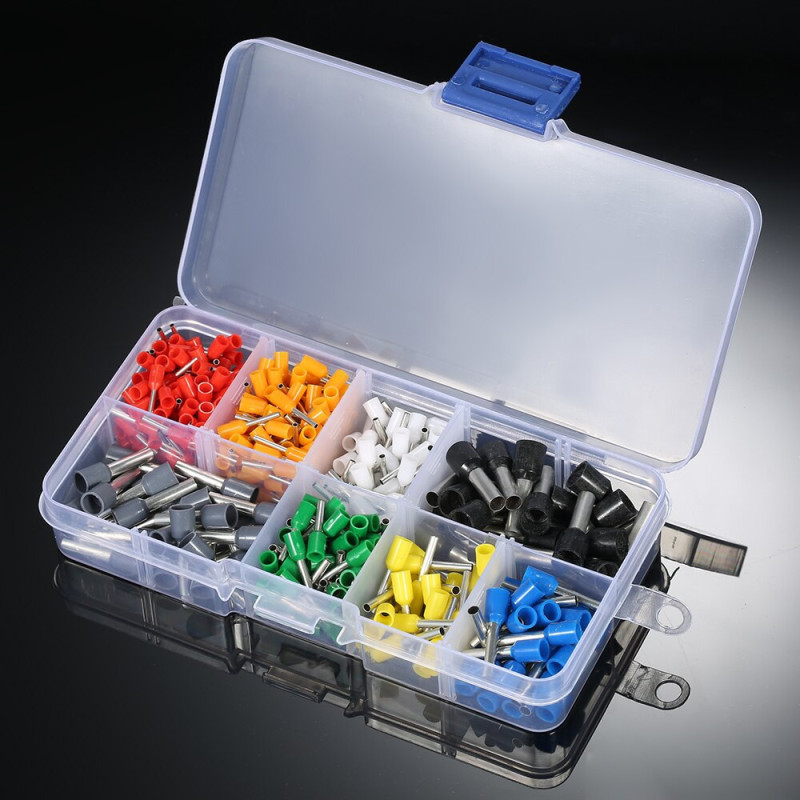

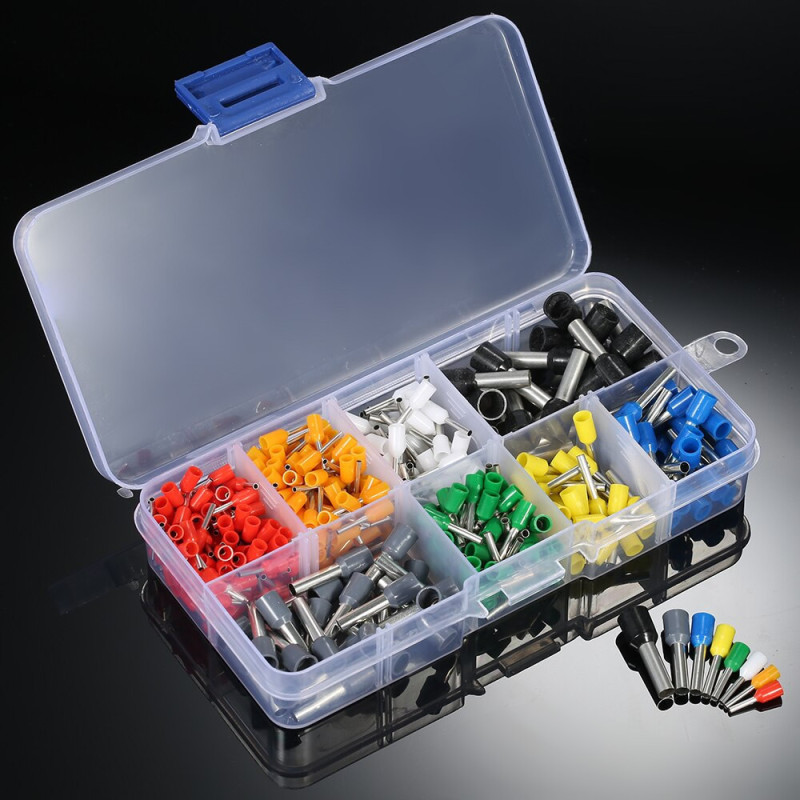

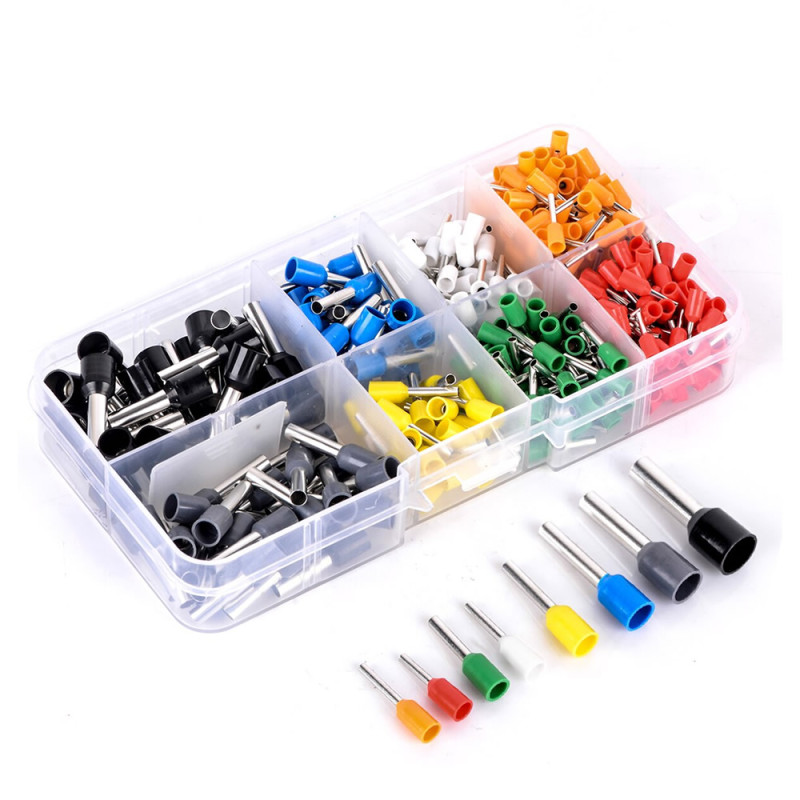

     The plastic part at the back of the socket provides insulation that prevents short circuits. It is used together with cables in all kinds of electrical applications at home, at work, in the car, in the laboratory. It is effective against impact and wear. It provides good insulation. It takes up very little space in the transparent box. The box can also be used for storing different materials.

Features:

• 400 pieces of 8 Color wire ferrules
• Wire thickness: 0.5-4mm /  AWG22-10
• Color: Black, White, Yellow, Red, Blue, Green, Gray, Orange
• E0506, E0508, E7508, E1008, E1510, E2512, E4012, E6012
• Material: Plastic / Metal
• Easy to install easy to use
• Long lasting and widespread use
• It is resistant to impact, wear and oiling.
• Operating temperature:  -10C  /  80C

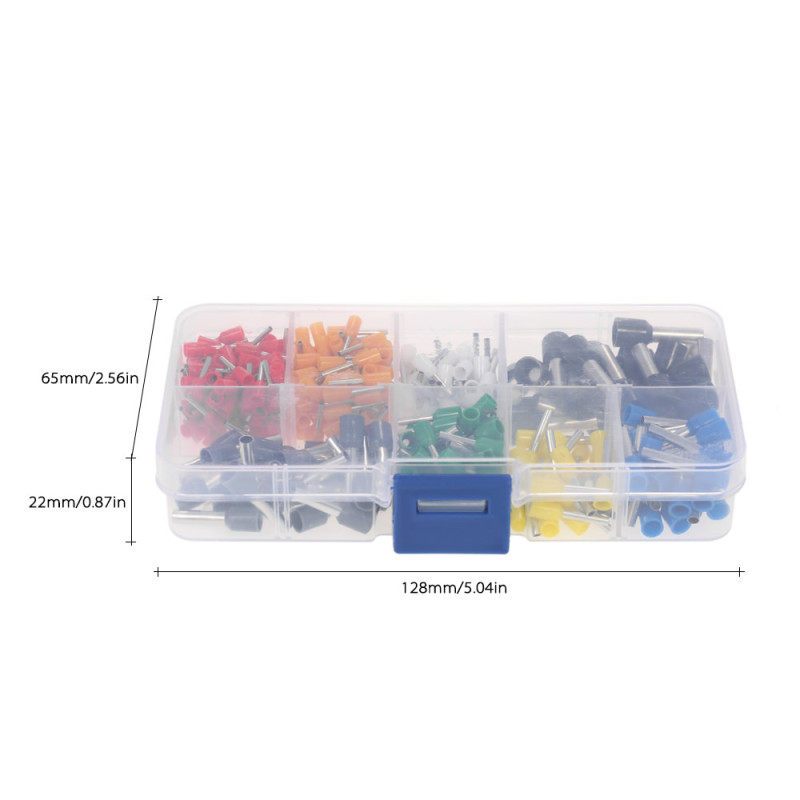

• Set dimensions: 130mm x 65mm x 22mm
• Weight:  65gr

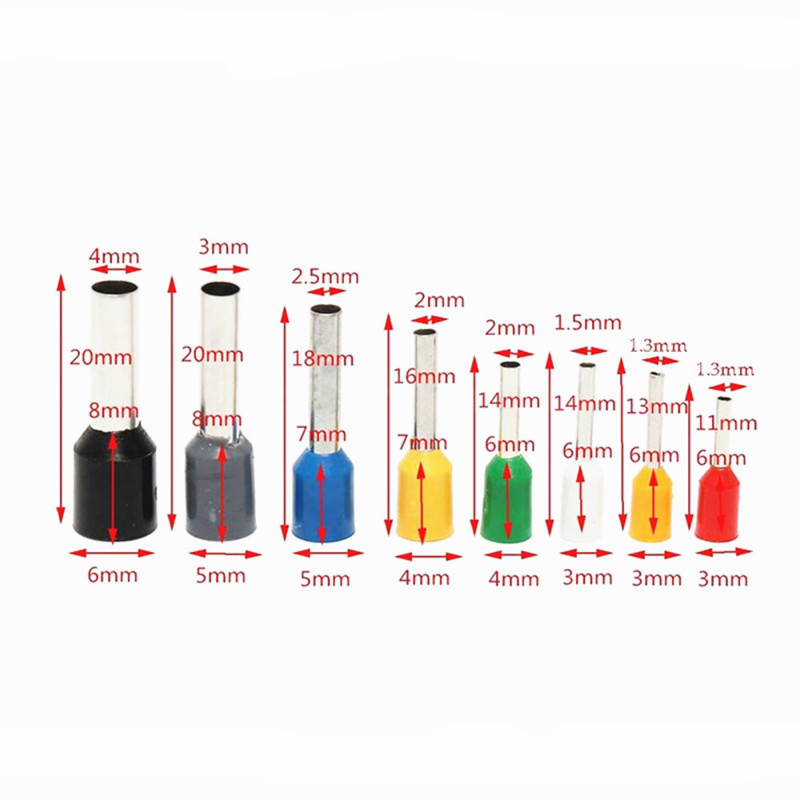

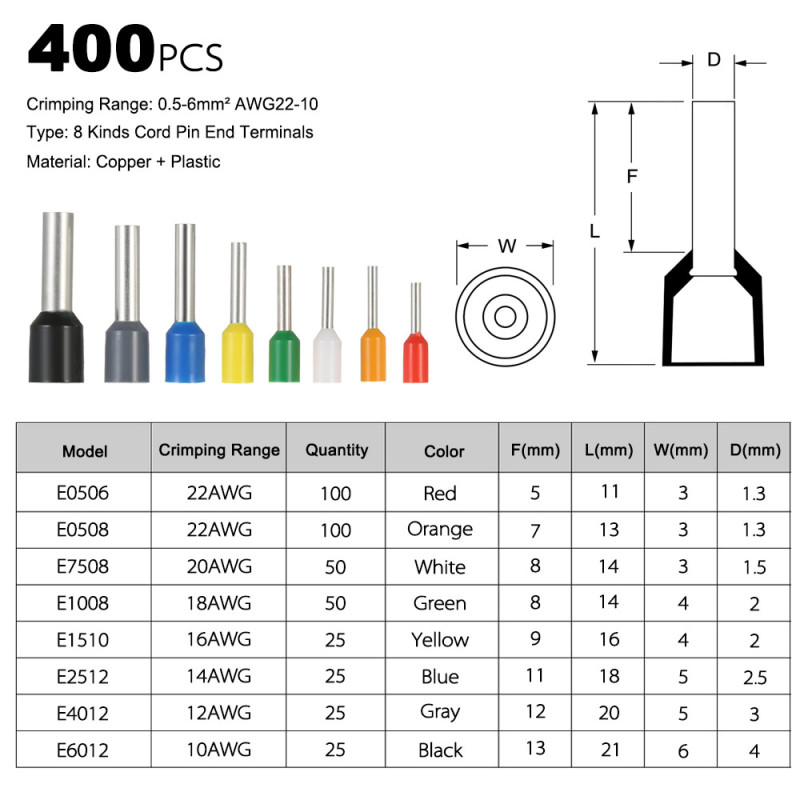

Socket Types Quantities

• 100 Pieces  Red E0506 22AWG      3mm  / 1.3mm
• 100 Pieces  Orange E0508 22AWG    3mm  / 1.3mm
• 50 Pieces    White E7508 20AWG      3mm  / 1.5mm
• 50 Pieces    Green E1008 18AWG        4mm  / 2mm
• 25 Pieces    Yellow E1510 16AWG         4mm  / 2mm
• 25 Pieces    Blue E2512 14AWG         5mm  / 2.5mm
• 25 Pieces    Gray E4012 12AWG           5mm  / 3mm
• 25 Pieces    Black E6012 10AWG       6mm  / 4mm

Package Contents:

• 400 Piece Insulated Wire Ferrule Set
• 1 Piece Transparent Material Box
