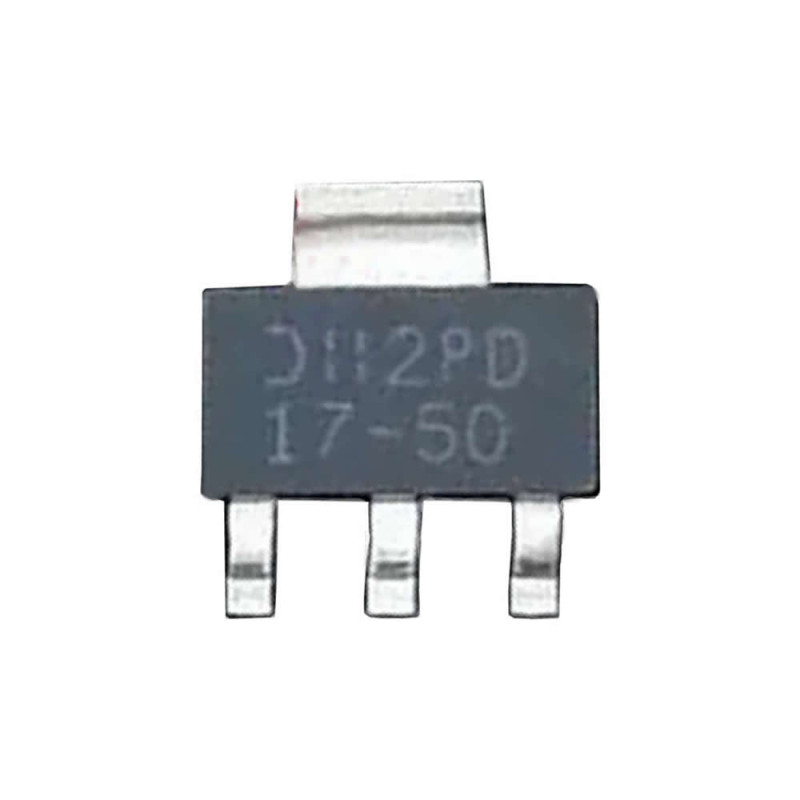

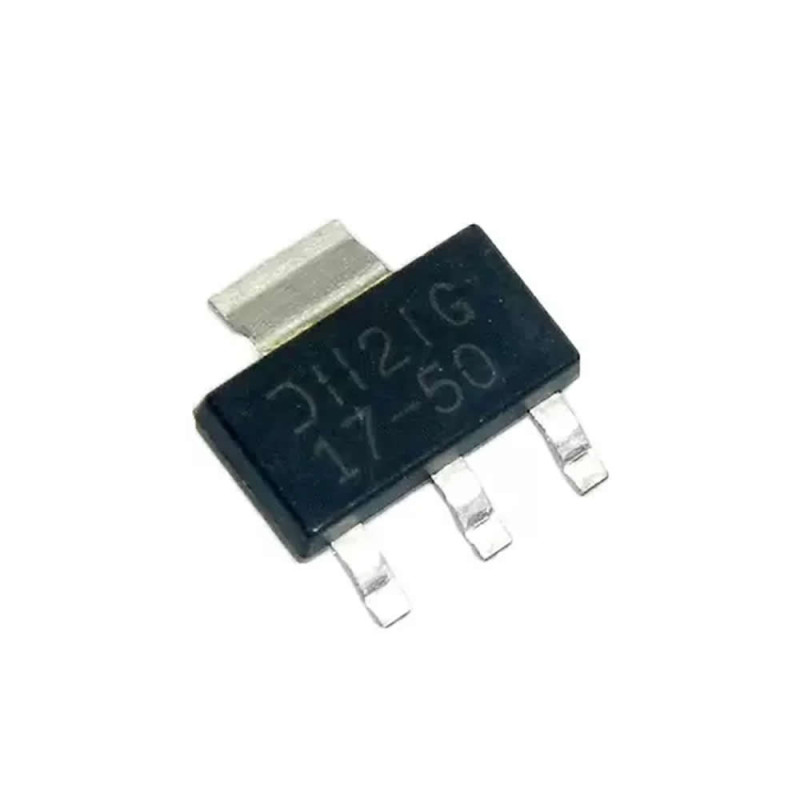

AP1117E50G 5V Sot223 Ldo Regulator

Diodes AP1117E50G 5V 1A Step Down Ldo Regulator

Power Supply 1A Low Dropout Smd SOT223

     It is a 5V supply voltage generating IC needed in electronic circuits. It steps down input voltages between DC 6V / 18V to 5V. It is in the Smd SOT223 package structure.

     AP1117 is a low dropout positive adjustable or fixed-mode regulator with 1A output current capability. The product is voltage specifically designed to provide well regulated supply for low IC applications such as high-speed bus termination and low current 5V logic supply. AP1117 is also well suited for other applications such as VGA cards. AP1117 is guaranteed to have lower than 1.4V dropout at full load current making it ideal to provide well-regulated outputs of 1.25 to 5.0 with 6.4V to 18V input supply. AP1117 is available in commercial temperature grade.

Features:

•     Input voltage: DC 6V / 18V
•     Output voltage: DC 5V
•     Output current: 1A
•     Voltage drop: DC 1.4V At maximum current

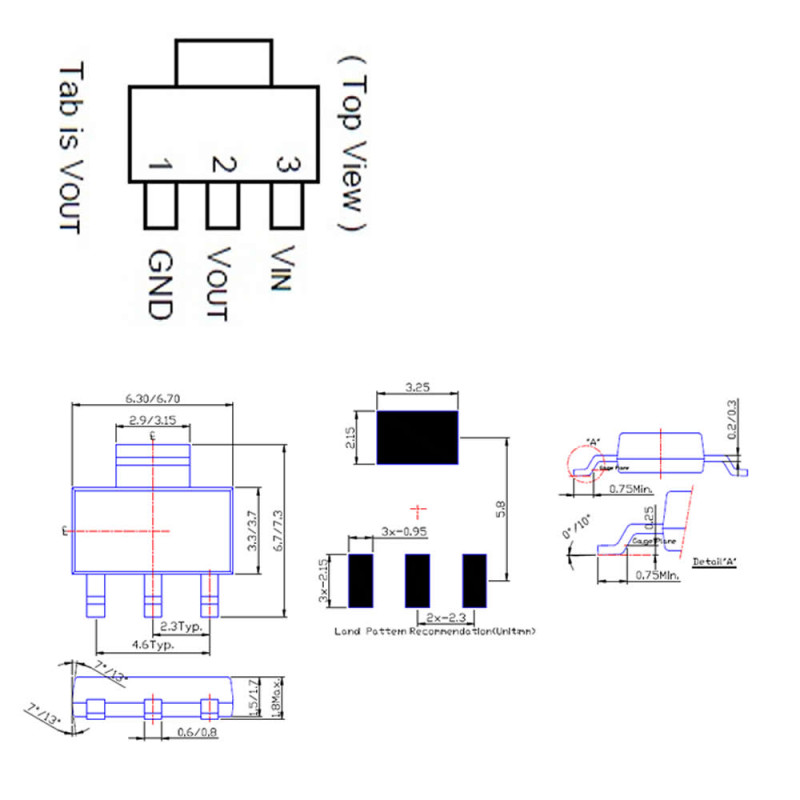

•     Package: Smd SOT223
•     Dimensions:  6.5mm x 6.5mm

Package contents:

•      1 Piece AP1117E50G 5V Sot223 Ldo Regulator

.
