Encoder 1000 Pulse E38S6G5

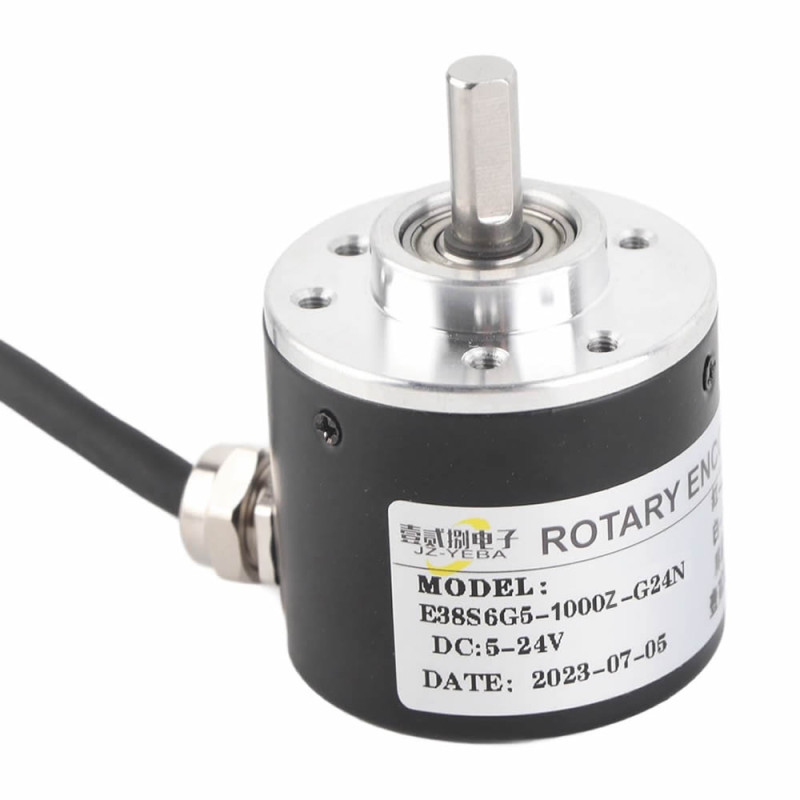

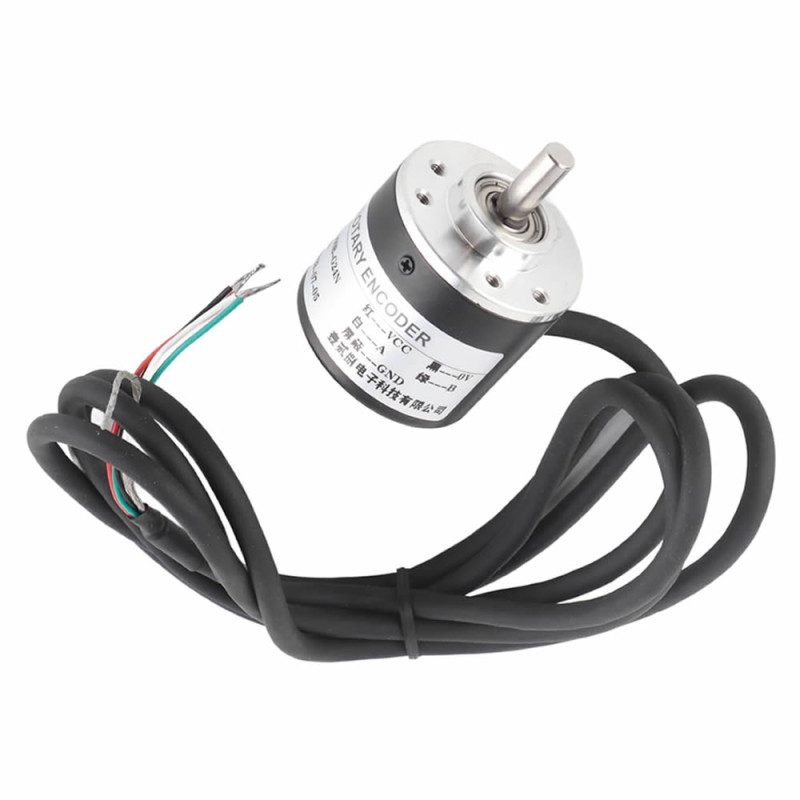

E38S6G5-1000Z-G24N 1000 Pulse Optical Encoder

DC 5V/24V Rotary Encoder AB 2 Phase Motor Rotation Speed Direction Angle Distance Position Measurement Sensor NPN

If the A and B phase lines are connected directly to VCC, the product will be damaged. Read the pin description and make the connections.

     It is an optical sensor that produces 1000 pulses in one full revolution. It is used for measuring parameters such as rotation speed, direction, angle, acceleration, travel distance. According to this information we can carry out various control operations precisely. It is used to understand the speed of moving systems and where the system is. Or for example it can be used for the control function in a sound control operation.

     It can work with DC 5-24V supply. As the encoder shaft turns, the signals generated are counted with an arduino etc. microprocessor kit or circuit and the number of rotations is found. The outputs are used by connecting them to an mcu pin with a pull up resistor. If the encoder ends are free, you may not be able to measure properly with an oscilloscope. It would be appropriate for you to measure with the scope by connecting to the supply with 2 pull up resistors.

Features:

•     AB two phase optical rotary encoder
•     Operating voltage: DC 5V / 24V
•     Operating current: 40mA
•     NPN Type output structure
•     Signal count: 1000 pulse / revolution
•     Maximum mechanical speed: 5000 rpm
•     IC speed: 2000 rpm
•     Response frequency:  0-20KHz
•     Operating temperature: -20C  /  75C

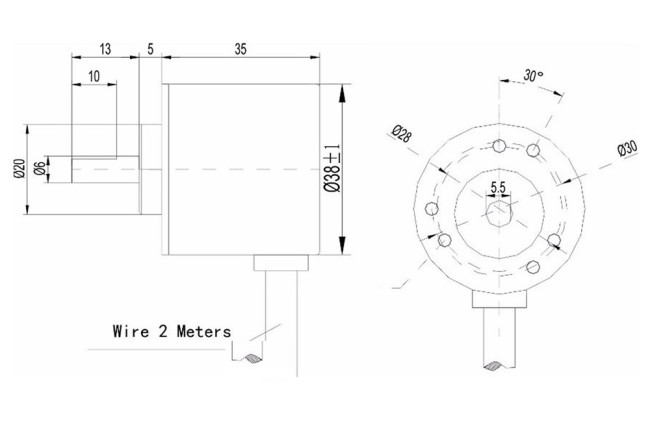

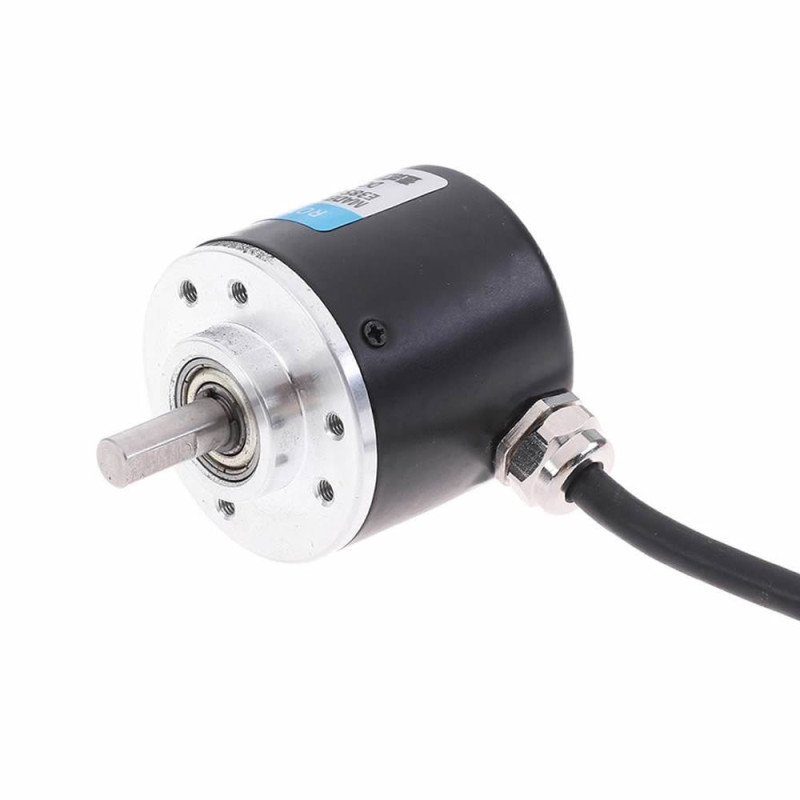

•     D type shaft 6mm x 13mm
•     M3 fixing screw holes

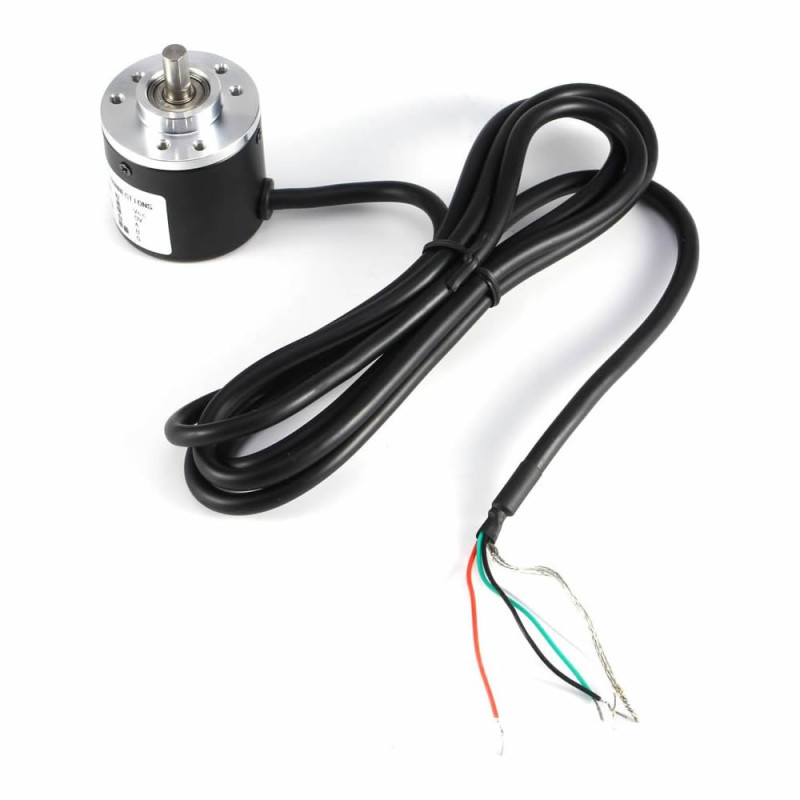

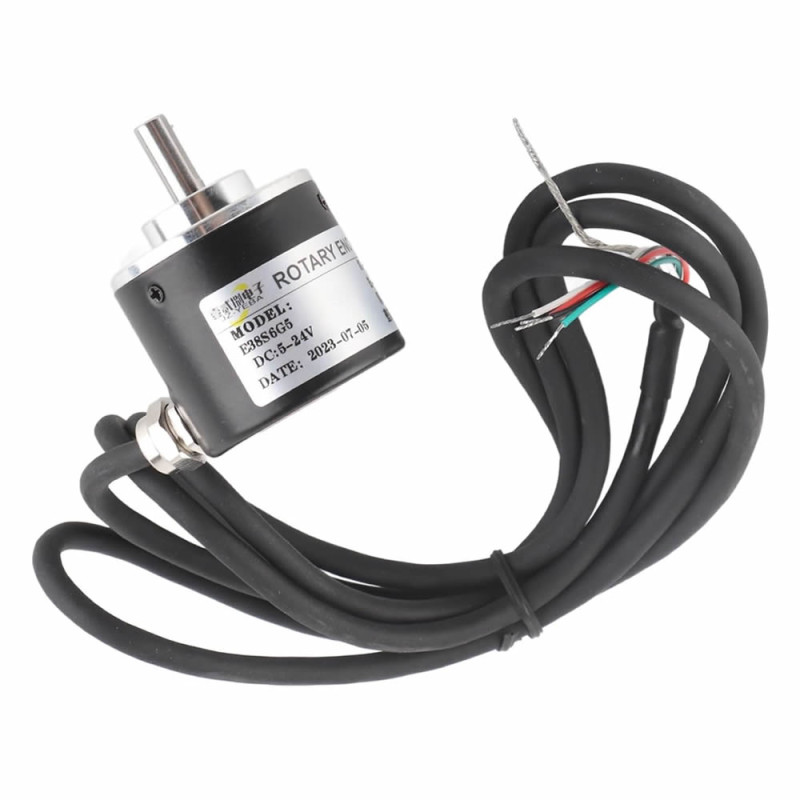

•     Cable length: 1,5meter
•     Height: 38mm( 43,5mm)
•     Diameter:   41,5mm
•     Weight: 140gr

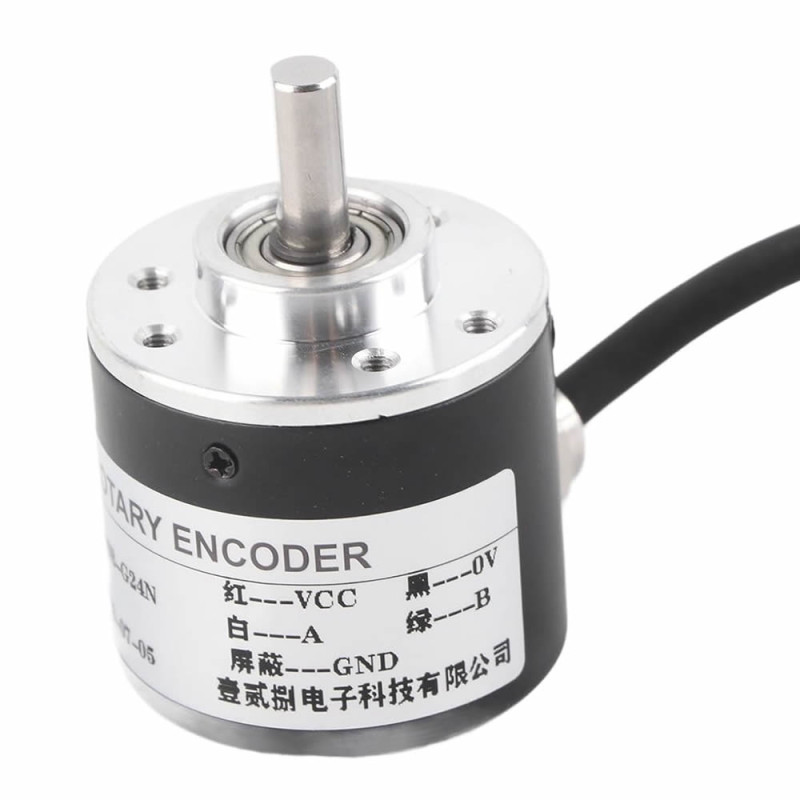

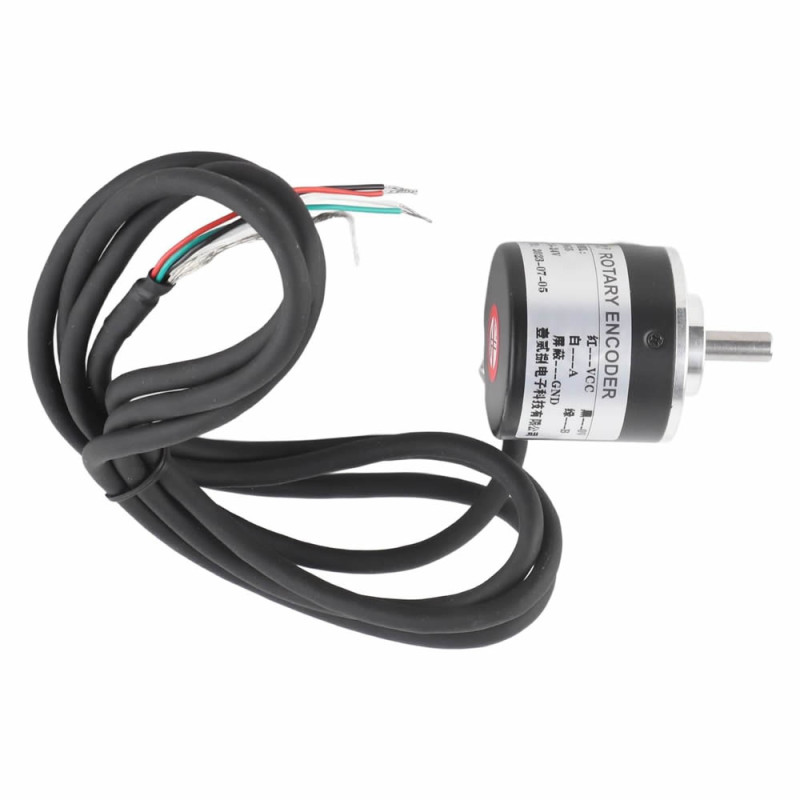

Cable Connection Description

•     Green = A phase
•     White = B phase
•     Red = VCC Supply + pin
•     Black = GND

Package Contents:

• 1 Piece Encoder 1000 Pulse E38S6G5

.
