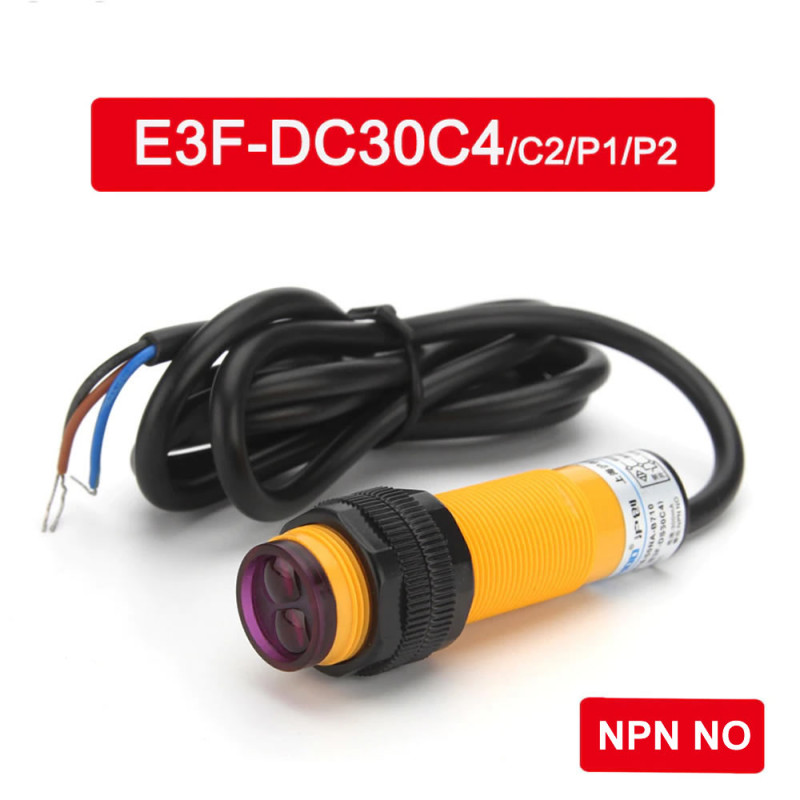

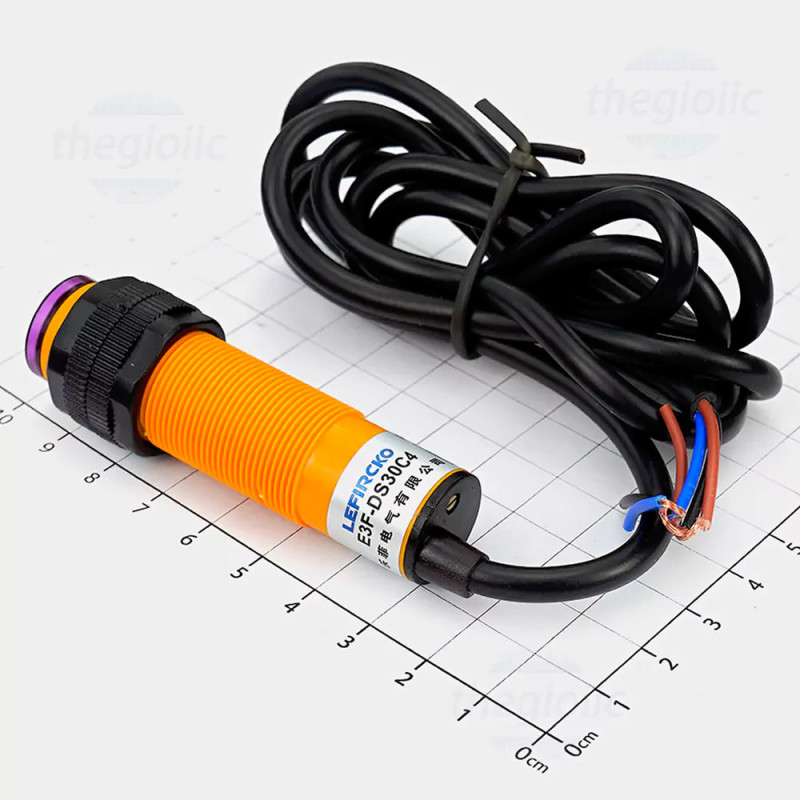

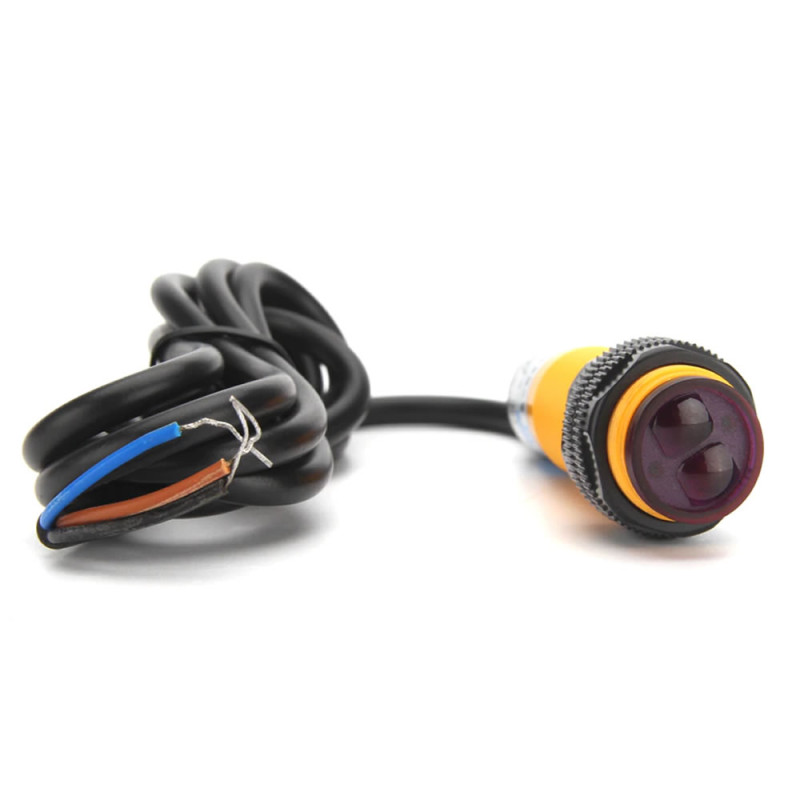

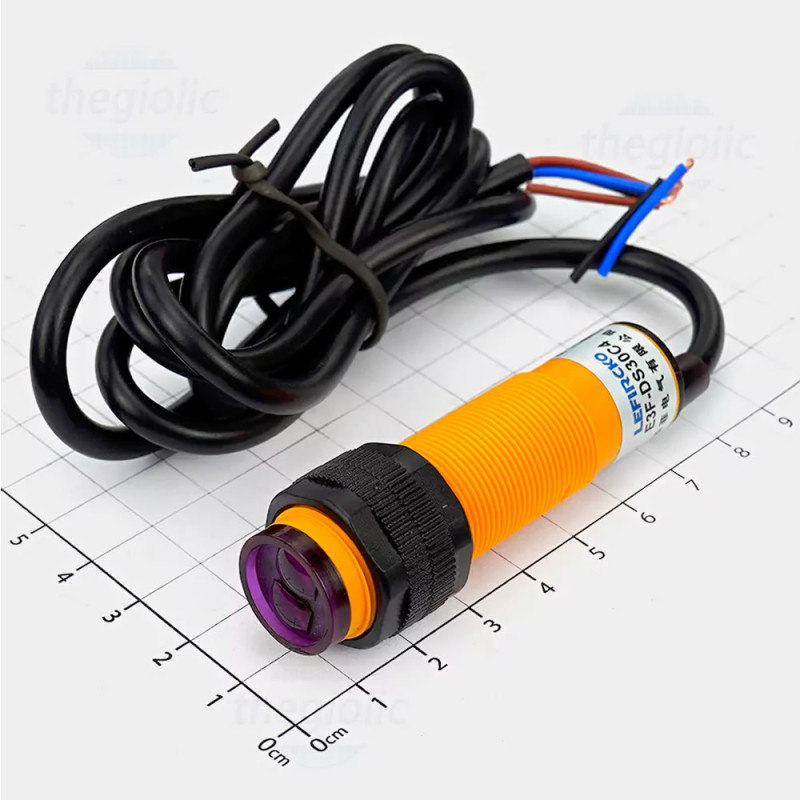

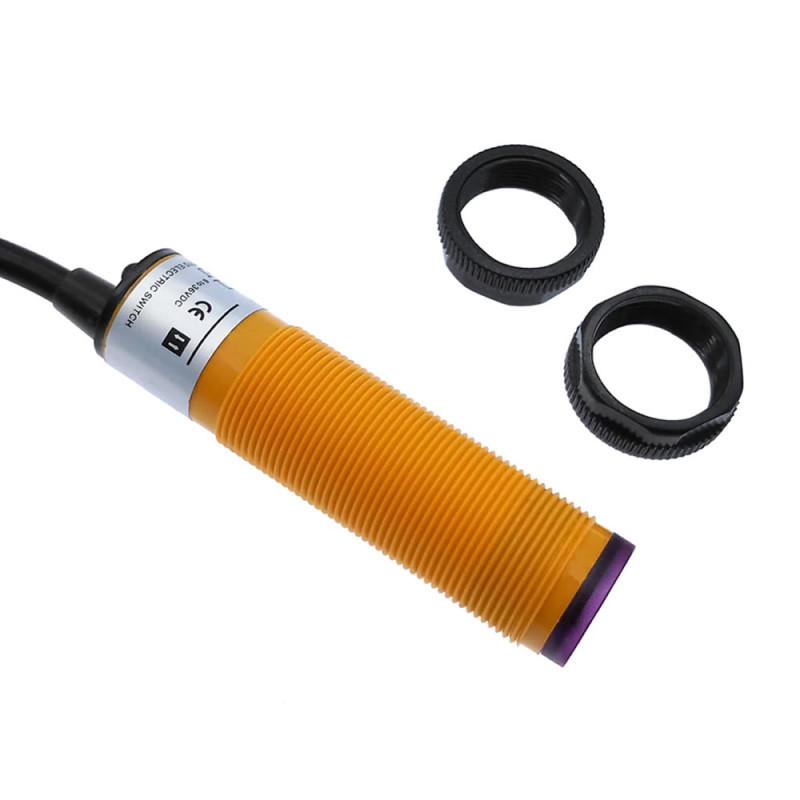

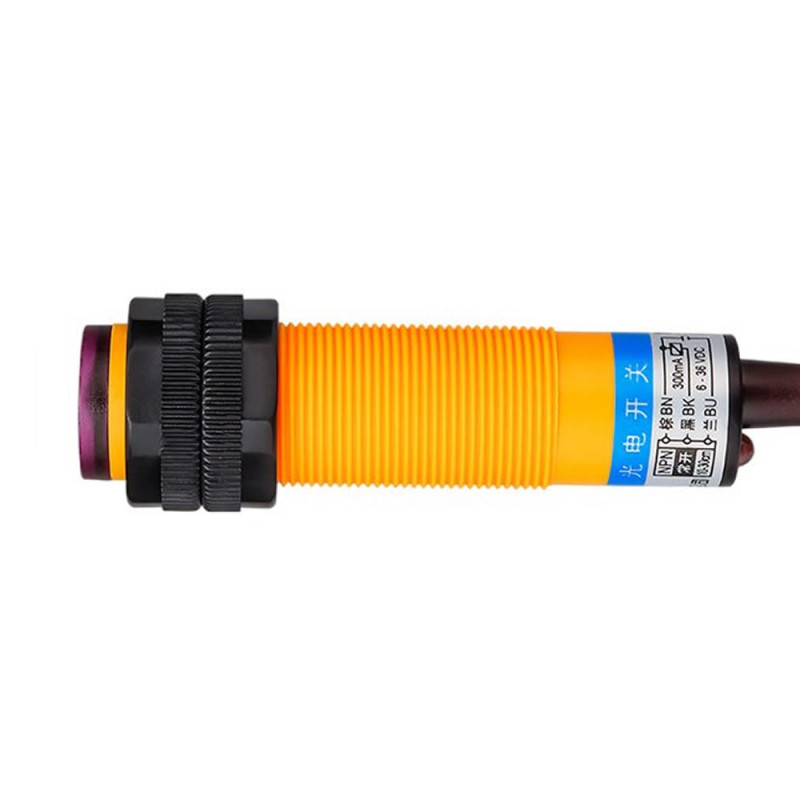

E3F-DS30C4 Infrared Distance Sensor
241.92TL
Ex Tax: 201.60TL
- Stok Durumu: Stok Var
- Marka: OEM
- Model: E3F-DS30C4 Sensör
- SKU: RBZ.101.085
E3F-DS30C4 IR Infrared Distance Sensor MZ80
NPN NO Infrared Optical 30cm Obstacle Object Detector Proximity Switch DC 6V/36V Automation Control
Infrared distance measuring sensor with 30cm range. It has NPN NO type output. It is suitable for many robot projects. It is a digital output, high quality, industrial infrared sensor.
Features:
- Model: E3F-DS30C4
- Operating voltage: DC 6V / 36V
- Operating current: 200mA
- Output type: NPN NO

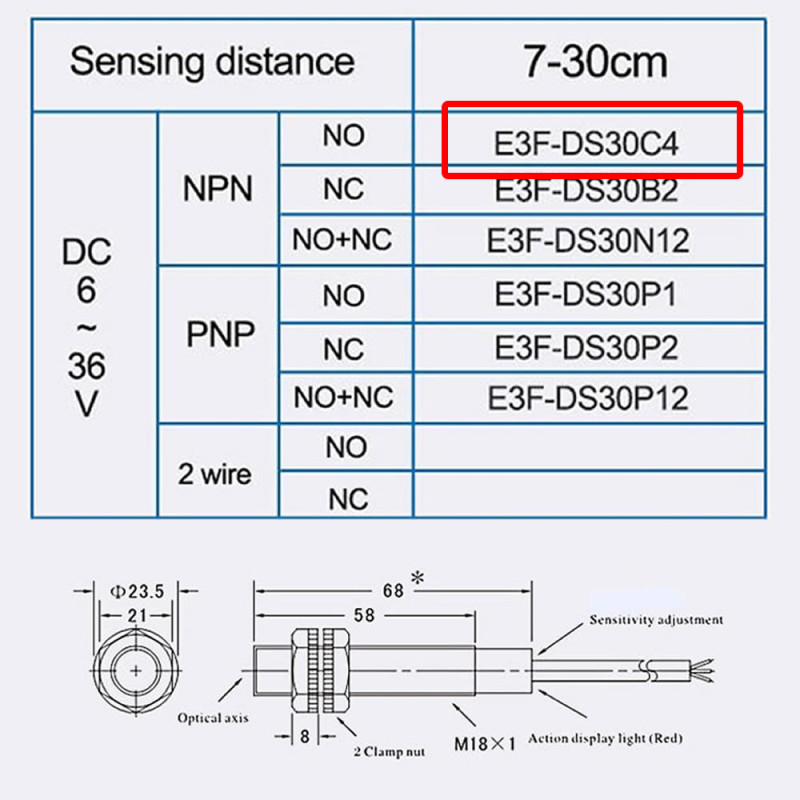

- Sensor distance: 7cm / 30cm
- It is a digital output, high quality industrial sensor.

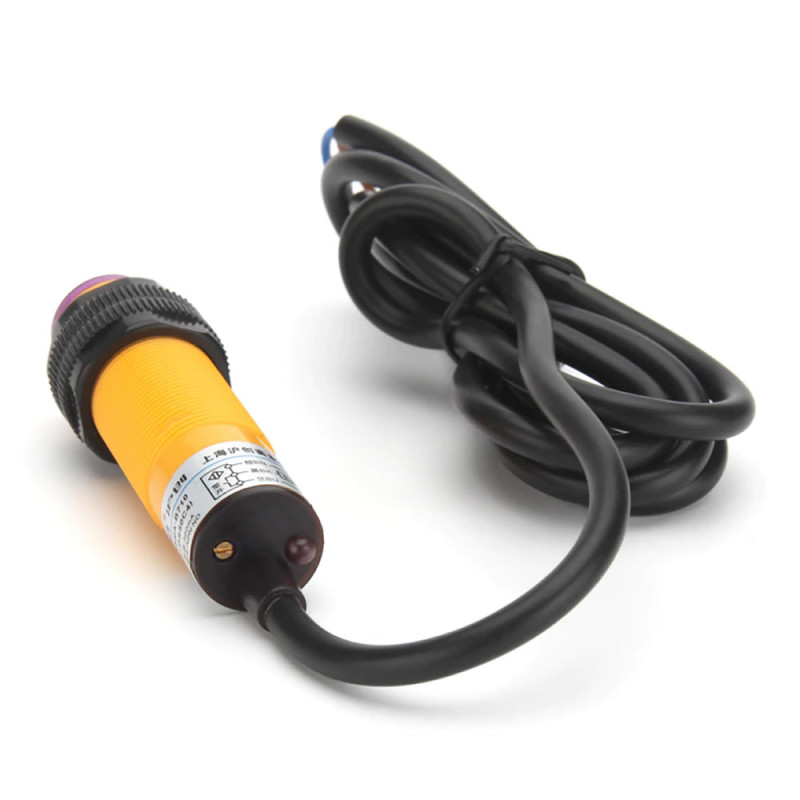

- The distance can be adjusted with the trimpot on the back.
- Material: Plastic / Metal
- Color: Yellow / Black
- Head diameter: 16.5mm
- Mounting hole: 18mm
- Cable length: 116 cm
- Dimensions: 69mm x 23mm
- Weight: 53gr
Cable Connections:
- Brown: +5V
- Blue: GND
- Black: Data Output
Package contents:
- 1 Piece E3F-DS30C4 Infrared Distance Sensor
.
