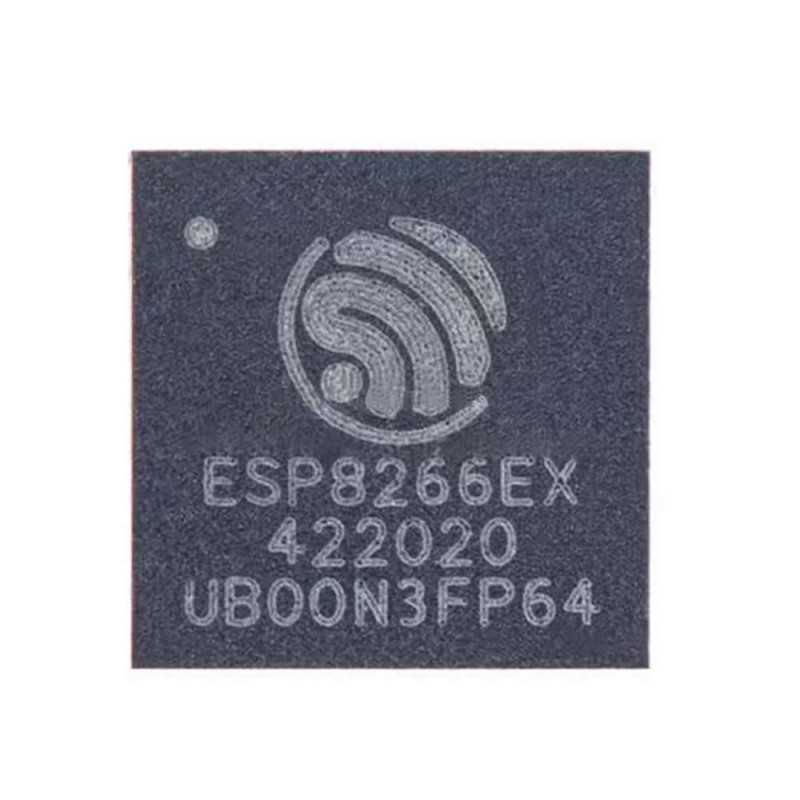

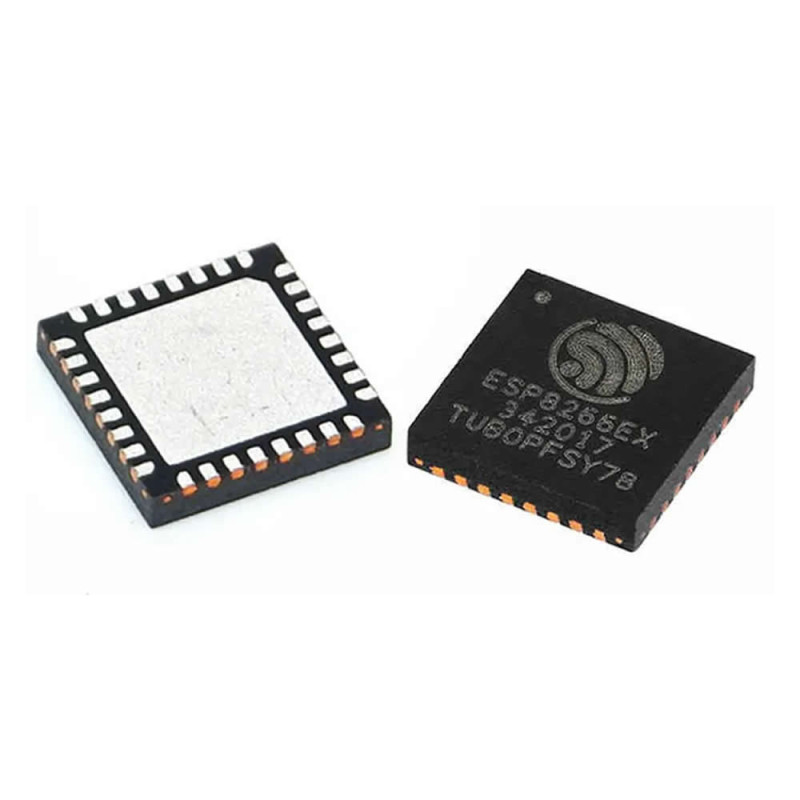

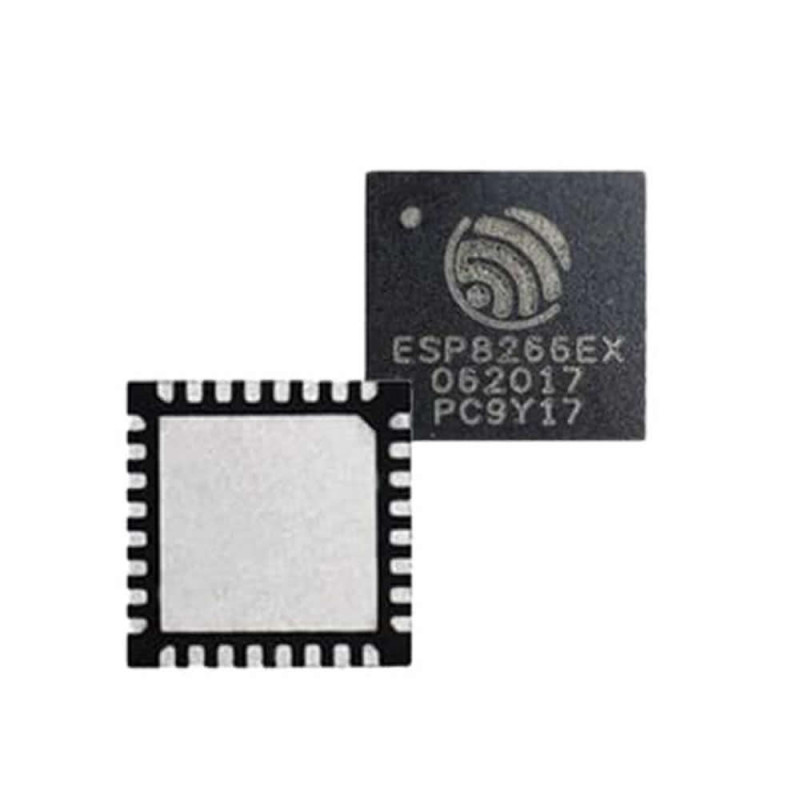

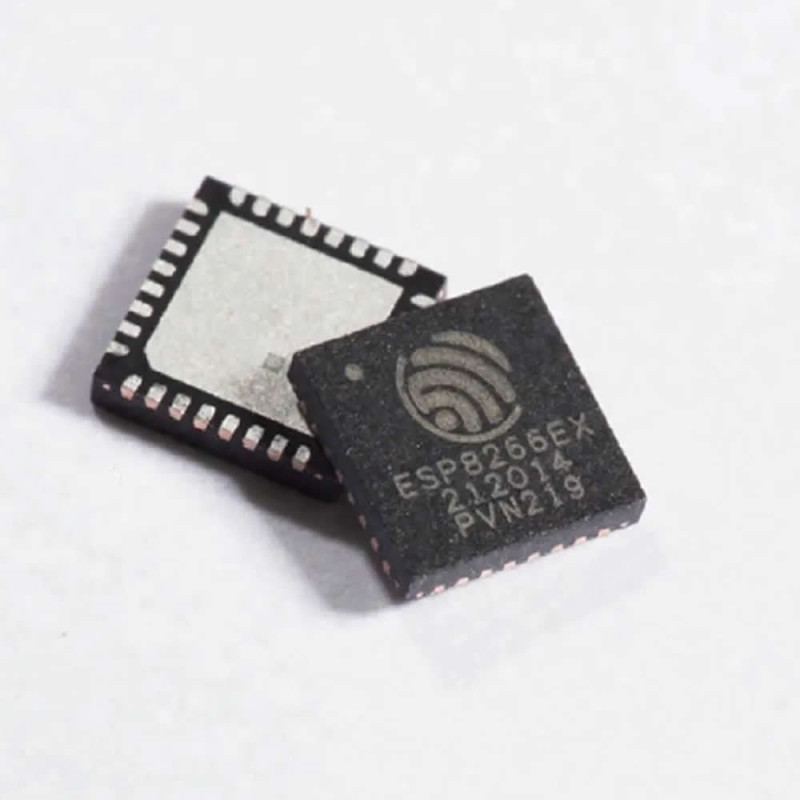

ESP8266EX Wifi IC

ESP8266EX Wifi IC

Espressif Tensilica L106 32-bit 160MHz Risc Processor SoC Smd  Mcu Qfn32 2.4GHz Adc Gpio I2c I2s Sdio Spi Uart

     The ESP8266EX microcontroller integrates a Tensilica L106 32-bit RISC processor, which achieves extra-low power consumption and reaches a maximum clock speed of 160 MHz. The Real-Time Operating System (RTOS) and Wi-Fi stack allow about 80% of the processing power to be available for user application programming and development.

     ESP8266EX is integrated with a 32-bit Tensilica processor, standard digital peripheral interfaces, antenna switches, RF balun, power amplifier, low noise receive amplifier, filters and power management modules. All of them are included in one small package, our ESP8266EX

     ESP8266EX is capable of functioning consistently in industrial environments, due to its wide operating temperature range. With highly-integrated on-chip features and minimal external discrete component count, the chip offers reliability, compactness and robustness.

     Engineered for mobile devices, wearable electronics and IoT applications, ESP8266EX achieves low power consumption with a combination of several proprietary technologies. The power-saving architecture features three modes of operation: active mode, sleep mode and deep sleep mode. This allows battery-powered designs to run longer.

Features:

•     802.11 b/g/n
•     Integrated low power 32-bit MCU
•     Integrated TCP/IP protocol stack
•     Wi-Fi 2.4 GHz, support WPA/WPA2
•     Support STA/AP/STA+AP operation modes
•     Support Smart Link Function for both Android and iOS devices
•     SDIO 2.0, SPI, UART
•     STBC, 1×1 MIMO, 2×1 MIMO
•     A-MPDU & A-MSDU aggregation & 0.4ìs guard interval
•     Deep sleep power <10uA, Power down leakage current < 5uA
•     Wake up and transmit packets in < 2ms
•     Standby power consumption of < 1d.0mW (DTIM3)
•     +20dBm output power in 802.11b mode
•     Integrated 10-bit ADC
•     Integrated TR switch, balun, LNA, power amplifier and matching network
•     Integrated PLL, regulators, and power management units
•     Supports antenna diversity
•     Super small module size (11.5mm x 11.5mm)
•     Operating temperature range -40C ~ 125C
•     FCC, CE, TELEC, and SRRC certified
•     Provide both hardware reference design, antenna design, and SDK for secondary development

Package Contents :

•     1 Piece ESP8266EX IC
