Nxp Frdm-Mcxn947

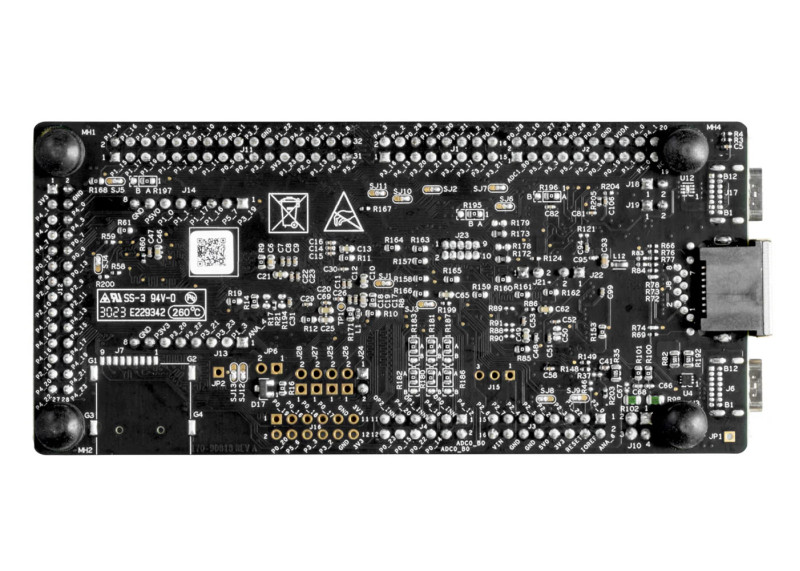

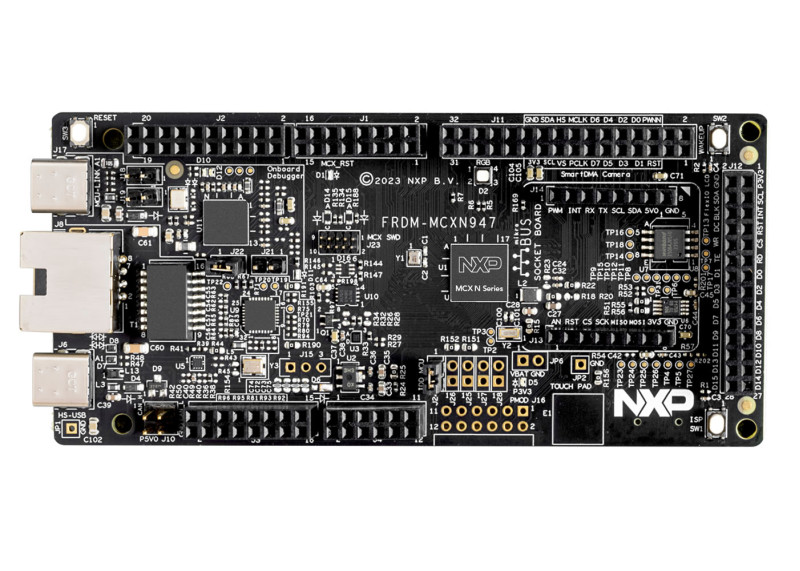

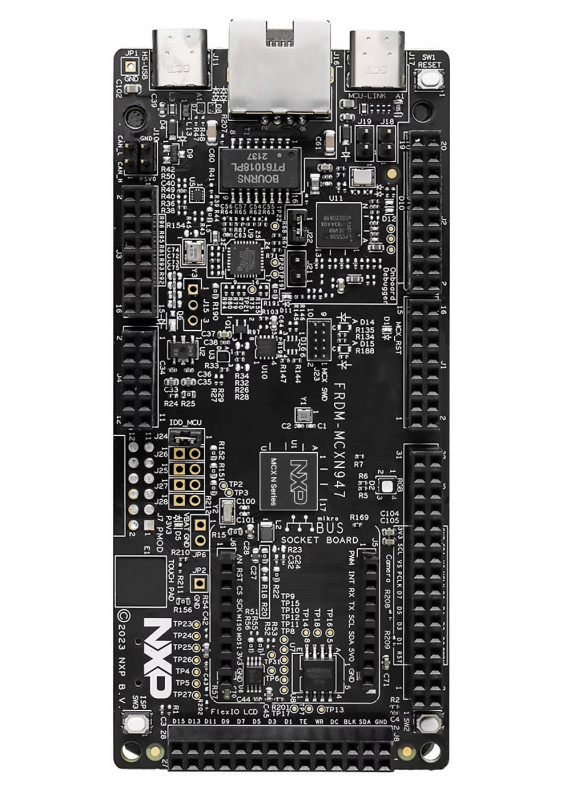

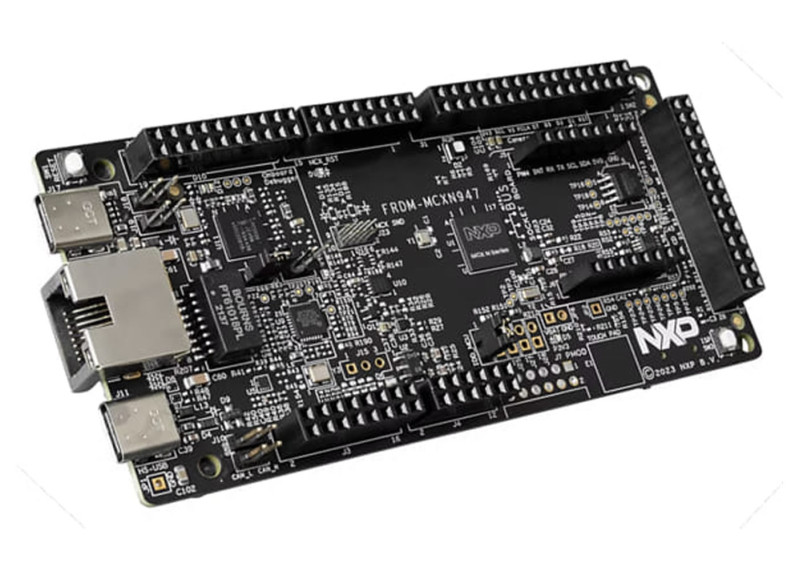

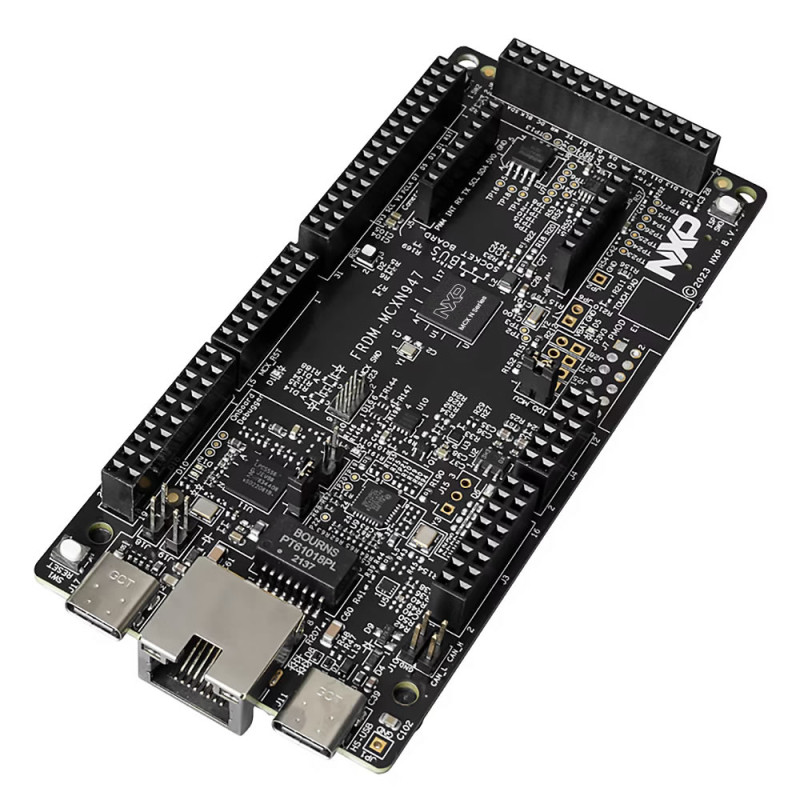

FRDM-MCXn947 Development Board

MCX-N947 Dual Arm Cortex-M33 Core 150MHz 2Mb Flash Uart Spi I2C Usb Can Dma Onboard Jtag Ethernet Adc

     FRDM-MCXN947 are compact and scalable development boards for rapid prototyping of MCX N94 and N54 MCUs. They offer industry standard headers for easy access to the MCU’s I/Os, integrated open-standard serial interfaces, external flash memory and an on-board MCU-Link debugger.

Features:

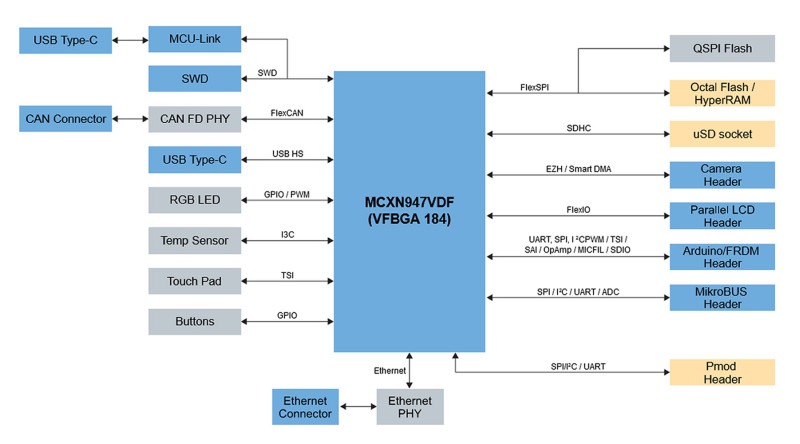

Microcontroller

•     MCX-N947 Dual Arm Cortex-M33 cores 150MHz each with optimized performance efficiency, Up to 2MB dual-bank flash with optional full ECC RAM, External flash
•     Accelerators: Neural Processing Unit, PowerQuad, Smart DMA, etc.

Memory Expansion

•     DNP Micro SD card socket

Connectivity

•     Ethernet Phy and connector
•     HS USB Type-C connectors
•     SPI/I2C/UART connector (PMOD/mikroBUS, DNP)
•     WIFI connector (PMOD/mikroBUS, DNP)
•     CAN-FD transceiver

Debug

•     On-board MCU-Link debugger with CMSIS-DAP
•     JTAG/SWD connector

Sensor

•     P3T1755 I3C/I2C Temp Sensor, Touch Pad

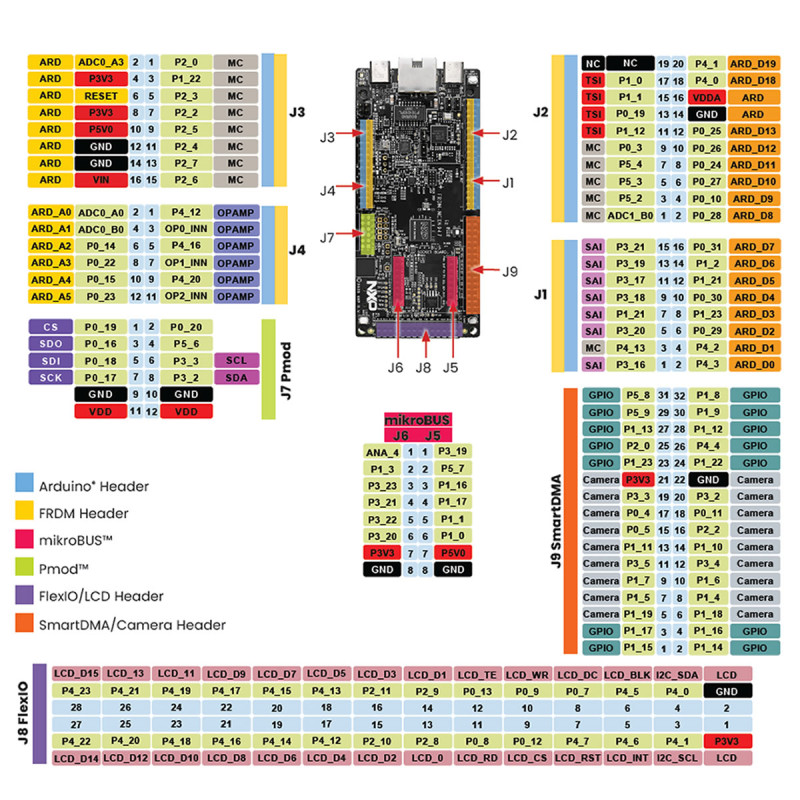

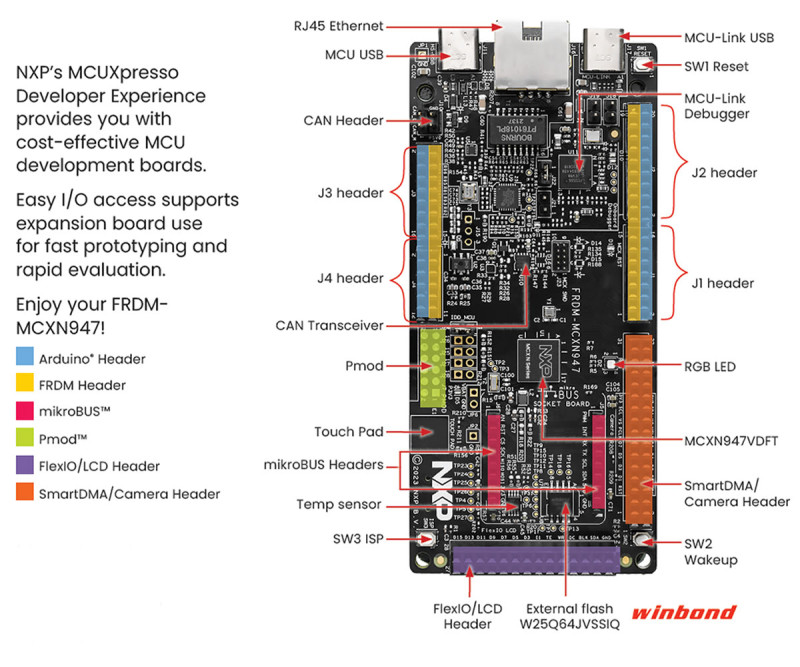

Expansion Options

•     Arduino Header (with FRDM expansion rows)
•     FRDM Header
•     FlexIO/LCD Header
•     SmartDMA/Camera Header
•     Pmod DNP
•     mikroBUS

User Interface

•     RGB user LED, plus Reset, ISP, Wakeup buttons

Package contents :

•  1 pcs FRDM-MCXN947 Development Board
